maserati qtp. (2007) 4.2 auto transmission pipe parts diagram

032 - Transmission Pipe

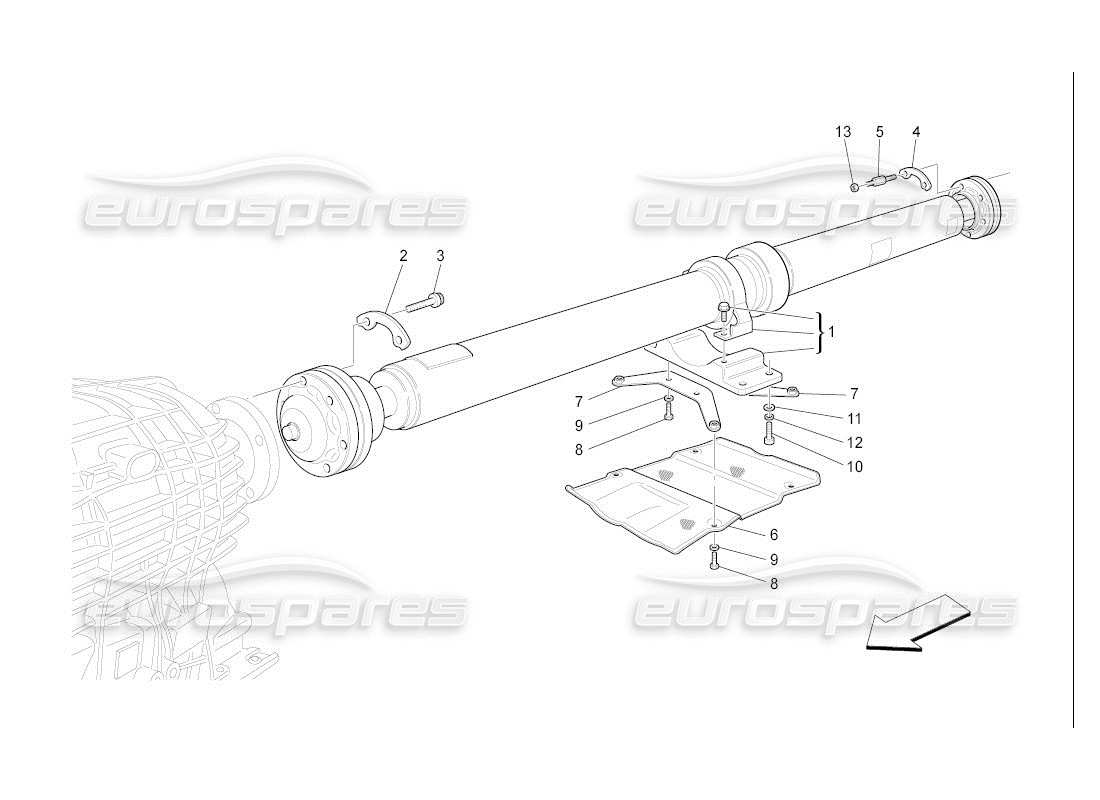

Maserati QTP. (2007) 4.2 auto Transmission Pipe Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 01
                            MPN: 246683
                            COMPLETE PROPELLER SHAFT
                            from £1,391.73
                            from £1,391.73
                            This part replaces part number 222462
                            # 02
                            MPN: 222679
                            PLATE
                            from £2.47
                            from £2.47
                            This part replaces part number 149415 which we have in stock
                            # 03
                            MPN: 225109
                            SCREW
                            from £9.66
                            from £9.66
                            # 04
                            MPN: 222679
                            PLATE
                            from £2.47
                            from £2.47
                            This part replaces part number 149415 which we have in stock
                            # 05
                            MPN: 223760
                            STUD
                            from £13.13
                            from £13.13
                            # 06
                            MPN: 229742
                            PROPELLER SHAFT SHIELD
                            from £48.27
                            from £48.27
                            # 07
                            MPN: 229654
                            BRACKET
                            from £6.42
                            from £6.42
                            # 08
                            MPN: 10902214
                            SCREW
                            from £1.08
                            from £1.08
                            # 09
                            MPN: 12643701
                            WASHER
                            Supersession
                            Supersession
                            # 10
                            MPN: 10552424
                            SCREW
                            from £7.12
                            from £7.12
                            # 11
                            MPN: 12646724
                            WASHER
                            from £0.53
                            from £0.53
                            # 12
                            MPN: 12602474
                            WASHER
                            from £0.47
                            from £0.47
                            # 13
                            MPN: 225154
                            NUT (1.5 GRAMS)
                            from £8.50
                            from £8.50
                            # 13
                            MPN: 225155
                            NUT (3 GRAMS)
                            from £9.04
                            from £9.04
                            # 13
                            MPN: 225156
                            NUT (4.5 GRAMS)
                            from £4.09
                            from £4.09
                            # 13
                            MPN: 225157
                            NUT (6 GRAMS)
                            from £4.09
                            from £4.09
                            # 13
                            MPN: 225158
                            NUT (7.5 GRAMS)
                            from £4.09
                            from £4.09
                            # 13
                            MPN: 235529
                            NUT (9 GRAMS)
                            from £3.16
                            from £3.16
                            # 13
                            MPN: 235530
                            NUT (10.5 GRAMS)
                            from £3.16
                            from £3.16
                            # 13
                            MPN: 235531
                            NUT (12 GRAMS)
                            from £3.55
                            from £3.55
