maserati qtp. (2007) 4.2 auto lubrication and gearbox oil cooling parts diagram

033 - lubrication and gearbox oil cooling

Maserati QTP. (2007) 4.2 auto Lubrication And Gearbox Oil Cooling Parts Diagram

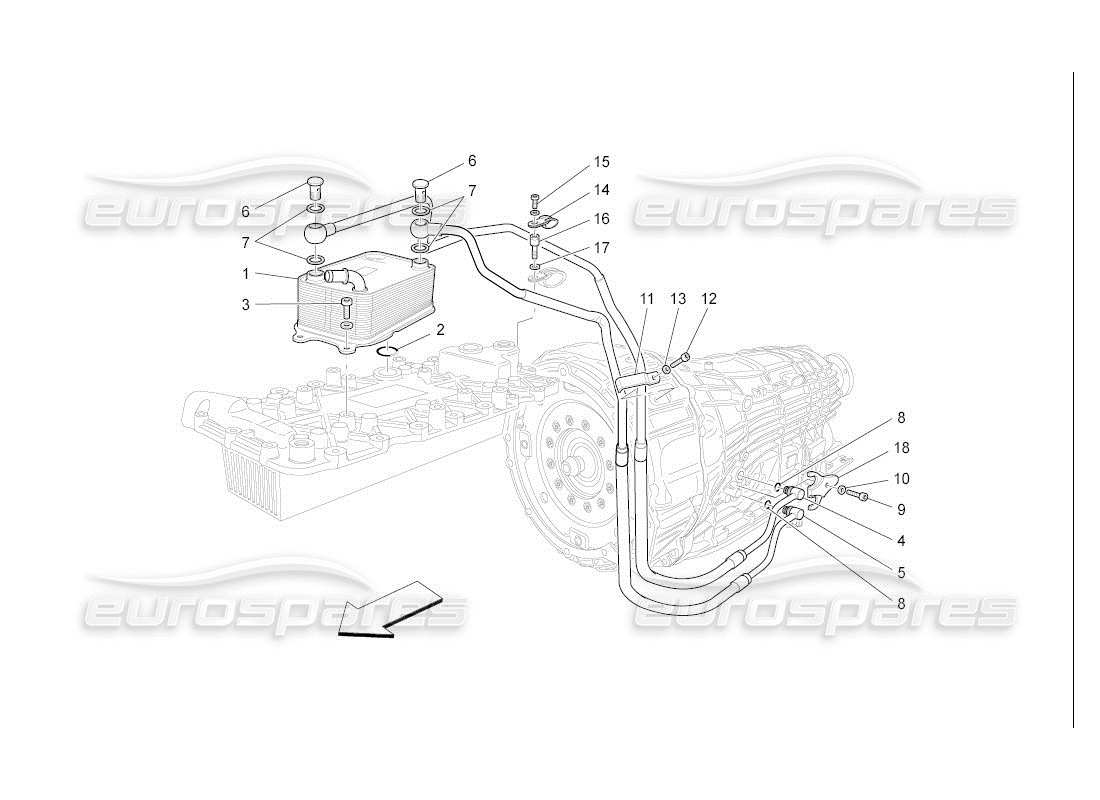

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Price
                                      # 01
                                      MPN: 225800
                                      OIL HEAT EXCHANGER
                                      from £210.89
                                      from £210.89
                                      # 02
                                      MPN: 223553
                                      GASKET
                                      from £1.55
                                      from £1.55
                                      # 03
                                      MPN: 231616
                                      SCREW
                                      from £0.53
                                      from £0.53
                                      # 04
                                      MPN: 229241
                                      EXCHANGER OIL INLET PIPE
                                      Supersession
                                      Supersession
                                      # 04
                                      MPN: 234412
                                      EXCHANGER OIL INLET PIPE
                                      Supersession
                                      Supersession
                                      This part replaces part number 229241
                                      # 04
                                      MPN: 235941
                                      EXCHANGER OIL INLET PIPE
                                      from £662.98
                                      from £662.98
                                      This part replaces part number 234412
                                      # 04
                                      MPN: 236427
                                      EXCHANGER OIL INLET PIPE
                                      from £77.63
                                      from £77.63
                                      # 05
                                      MPN: 225863
                                      EXCHANGER OIL OUTLET PIPE
                                      Supersession
                                      Supersession
                                      # 05
                                      MPN: 234413
                                      EXCHANGER OIL OUTLET PIPE
                                      Supersession
                                      Supersession
                                      This part replaces part number 225863
                                      # 05
                                      MPN: 235943
                                      EXCHANGER OIL OUTLET PIPE
                                      from £662.98
                                      from £662.98
                                      This part replaces part number 234413
                                      # 05
                                      MPN: 236429
                                      EXCHANGER OIL OUTLET PIPE
                                      from £73.87
                                      from £73.87
                                      # 07
                                      MPN: 10278660
                                      GASKET
                                      from £0.47
                                      from £0.47
                                      # 08
                                      MPN: 137192
                                      O.R. GASKET
                                      from £0.53
                                      from £0.53
                                      # 08
                                      MPN: 14457081
                                      O.R. GASKET
                                      from £0.53
                                      from £0.53
                                      This part replaces part number 675000193
                                      # 08
                                      MPN: 235925
                                      O.R. GASKET
                                      from £1.08
                                      from £1.08
                                      This part replaces part number 223432
                                      # 09
                                      MPN: 14814434
                                      SCREW
                                      from £0.54
                                      from £0.54
                                      # 10
                                      MPN: 12604474
                                      WASHER
                                      from £0.54
                                      from £0.54
                                      This part replaces part number 12604479
                                      # 11
                                      MPN: 224699
                                      BRACKET
                                      from £2.85
                                      from £2.85
                                      # 12
                                      MPN: 14305124
                                      SCREW
                                      from £0.53
                                      from £0.53
                                      # 13
                                      MPN: 11197774
                                      WASHER
                                      from £0.54
                                      from £0.54
                                      # 14
                                      MPN: 10441390
                                      BRACKET WITH SHEATH
                                      from £0.53
                                      from £0.53
                                      # 15
                                      MPN: 233600
                                      SCREW
                                      from £0.54
                                      from £0.54
                                      # 16
                                      MPN: 232777
                                      STUD
                                      from £5.06
                                      from £5.06
                                      # 17
                                      MPN: 11197774
                                      WASHER
                                      from £0.54
                                      from £0.54
                                      # 18
                                      MPN: 241161
                                      FORK
                                      from £13.60
                                      from £13.60
