maserati qtp. (2007) 4.2 auto front doors: mechanisms parts diagram

109 - front doors: mechanisms

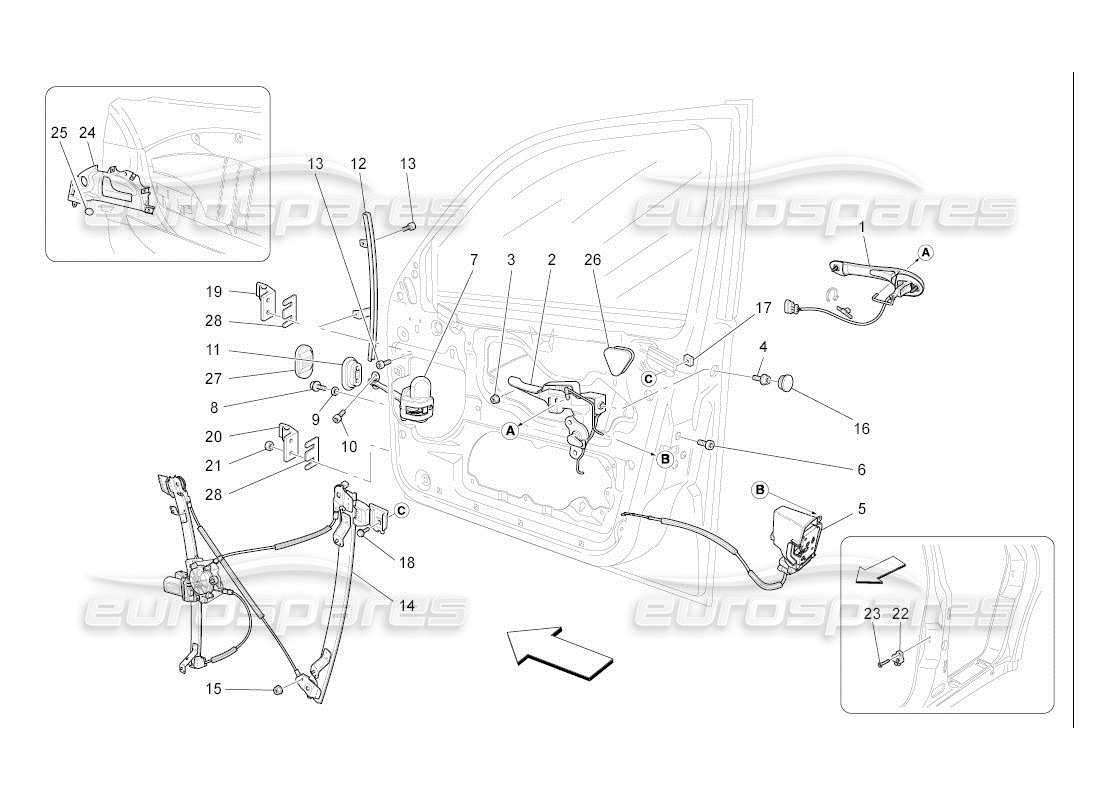

Maserati QTP. (2007) 4.2 auto Front Doors: Mechanisms Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 01
                                                      MPN: 69287600
                                                      RH HANDLE FOR DOOR OPENING
                                                      from £76.54
                                                      from £76.54
                                                      # 01
                                                      MPN: 69287700
                                                      LH HANDLE FOR DOOR OPENING
                                                      from £136.98
                                                      from £136.98
                                                      # 02
                                                      MPN: 68001800
                                                      RH FRONT HANDLE BOX
                                                      from £68.16
                                                      from £68.16
                                                      This part replaces part number 67865400 which we have in stock
                                                      # 02
                                                      MPN: 68001900
                                                      LH FRONT HANDLE BOX
                                                      from £68.16
                                                      from £68.16
                                                      This part replaces part number 67865500 which we have in stock
                                                      # 03
                                                      MPN: 14040514
                                                      NUT
                                                      from £0.53
                                                      from £0.53
                                                      # 04
                                                      MPN: 46401657
                                                      SCREW
                                                      from £0.53
                                                      from £0.53
                                                      # 05
                                                      MPN: 67575900
                                                      RH FRONT DOOR LOCK
                                                      from £111.29
                                                      from £111.29
                                                      # 05
                                                      MPN: 67576000
                                                      LH FRONT DOOR LOCK
                                                      from £111.29
                                                      from £111.29
                                                      # 06
                                                      MPN: 67077900
                                                      SCREW
                                                      from £0.52
                                                      from £0.52
                                                      # 07
                                                      MPN: 82519200
                                                      TIE ROD
                                                      from £107.03
                                                      from £107.03
                                                      This part replaces part number 66513400 which we have in stock
                                                      # 08
                                                      MPN: 67077800
                                                      SCREW
                                                      from £1.55
                                                      from £1.55
                                                      # 09
                                                      MPN: 12643724
                                                      WASHER
                                                      from £0.51
                                                      from £0.51
                                                      # 10
                                                      MPN: 68808500
                                                      SCREW
                                                      from £2.47
                                                      from £2.47
                                                      # 11
                                                      MPN: 67575800
                                                      GASKET
                                                      from £10.51
                                                      from £10.51
                                                      # 12
                                                      MPN: 67271000
                                                      RH FRONT GLASS GUIDE
                                                      from £142.37
                                                      from £142.37
                                                      # 12
                                                      MPN: 67271100
                                                      LH FRONT GLASS GUIDE
                                                      from £47.48
                                                      from £47.48
                                                      # 13
                                                      MPN: 46401657
                                                      SCREW
                                                      from £0.53
                                                      from £0.53
                                                      # 14
                                                      MPN: 84934000
                                                      FRONT RH GLASS LIFT
                                                      from £212.50
                                                      from £212.50
                                                      This part replaces part number 66944800
                                                      # 14
                                                      MPN: 84934200
                                                      FRONT LH GLASS LIFT
                                                      from £212.50
                                                      from £212.50
                                                      This part replaces part number 66944900
                                                      # 15
                                                      MPN: 14040614
                                                      NUT
                                                      from £0.53
                                                      from £0.53
                                                      # 16
                                                      MPN: 14506787
                                                      PLUG
                                                      from £0.69
                                                      from £0.69
                                                      # 17
                                                      MPN: 67712400
                                                      PLATE
                                                      from £0.85
                                                      from £0.85
                                                      # 18
                                                      MPN: 16296924
                                                      SCREW
                                                      from £0.51
                                                      from £0.51
                                                      # 19
                                                      MPN: 67880900
                                                      UPPER RH HINGE
                                                      from £50.71
                                                      from £50.71
                                                      # 19
                                                      MPN: 67881000
                                                      UPPER LH HINGE
                                                      from £50.71
                                                      from £50.71
                                                      # 20
                                                      MPN: 66812400
                                                      LOWER RH HINGE
                                                      from £37.79
                                                      from £37.79
                                                      # 20
                                                      MPN: 66812500
                                                      LOWER LH HINGE
                                                      from £37.79
                                                      from £37.79
                                                      # 21
                                                      MPN: 15501025
                                                      NUT
                                                      from £0.77
                                                      from £0.77
                                                      # 22
                                                      MPN: 85321500
                                                      STRIKER
                                                      from £10.51
                                                      from £10.51
                                                      This part replaces part number 68308800
                                                      # 23
                                                      MPN: 67999500
                                                      SCREW
                                                      from £0.85
                                                      from £0.85
                                                      # 24
                                                      MPN: 980139375
                                                      RH FRONT OPENING HANDLE
                                                      Not for GD
                                                      from £203.75
                                                      from £203.75
                                                      # 24
                                                      MPN: 980139376
                                                      COMPLETE LH FRONT HANDLE
                                                      from £203.75
                                                      from £203.75
                                                      # 24
                                                      MPN: 980139458
                                                      COMPLETE RH FRONT HANDLE
                                                      from £209.46
                                                      from £209.46
                                                      # 24
                                                      MPN: 980139459
                                                      COMPLETE LH FRONT HANDLE
                                                      from £209.46
                                                      from £209.46
                                                      # 25
                                                      MPN: 66939600
                                                      PLUG
                                                      from £5.57
                                                      from £5.57
                                                      # 26
                                                      MPN: 67305000
                                                      PLUG
                                                      from £1.55
                                                      from £1.55
                                                      # 27
                                                      MPN: 67079000
                                                      GASKET
                                                      from £6.42
                                                      from £6.42
