maserati qtp. (2007) 4.2 auto front seats: trim panels parts diagram

114 - front seats: trim panels

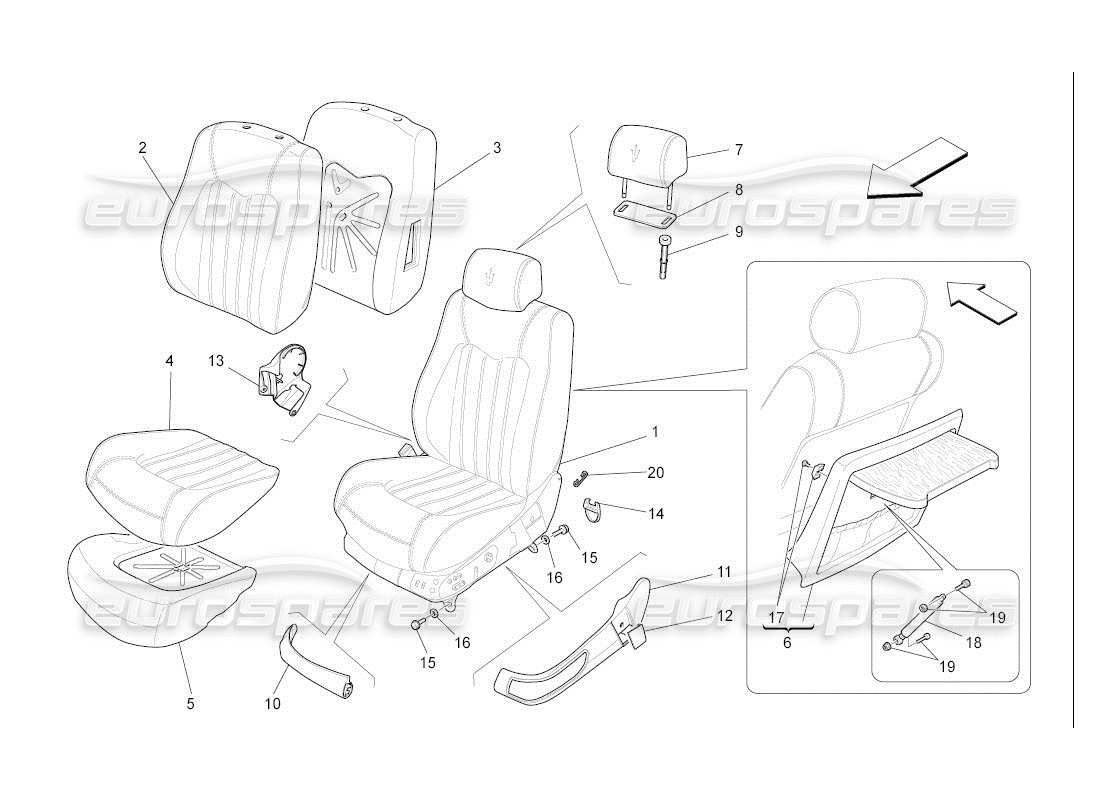

Maserati QTP. (2007) 4.2 auto Front Seats: Trim Panels Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Price
                                          # 01
                                          MPN: custom
                                          COMPLETE RH FRONT SEAT
                                          # 01
                                          MPN: custom
                                          COMPLETE LH FRONT SEAT
                                          # 02
                                          MPN: custom
                                          LH FRONT SEAT BACK LINING
                                          # 02
                                          MPN: custom
                                          RH FRONT SEAT BACK LINING
                                          # 03
                                          MPN: custom
                                          LH FRONT SEAT BACK PADDING
                                          # 03
                                          MPN: custom
                                          RH FRONT SEAT BACK PADDING
                                          # 04
                                          MPN: custom
                                          LH FRONT CUSHION LINING
                                          # 04
                                          MPN: custom
                                          RH FRONT CUSHION LINING
                                          # 05
                                          MPN: 980139627
                                          RH FRONT CUSHION PADDING
                                          from £209.78
                                          from £209.78
                                          # 05
                                          MPN: custom
                                          LH FRONT CUSHION PADDING
                                          # 06
                                          MPN: custom
                                          COMPLETE SEAT BACK PANEL
                                          # 07
                                          MPN: custom
                                          COMPLETE FRONT HEAD-REST NOT FOR CARS WITH HEAD-REST PLATE (POS. 8) PAINTED
                                          # 07
                                          MPN: custom
                                          COMPLETE FRONT HEAD-REST VALID FOR CARS WITH HEAD-REST PLATE (POS. 8) PAINTED
                                          # 08
                                          MPN: 9813135..
                                          HEAD-REST PLATE PAINTED
                                          Supersession
                                          Supersession
                                          # 08
                                          MPN: 981313500
                                          HEAD-REST PLATE COLOURLESS
                                          from £543.79
                                          from £543.79
                                          This part replaces part number 9813135.. - and 1 more. Click to view details
                                          # 09
                                          MPN: 9813136..
                                          LH BUSHING
                                          Supersession
                                          Supersession
                                          # 09
                                          MPN: 9813137..
                                          RH BUSHING
                                          Supersession
                                          Supersession
                                          # 10
                                          MPN: 9813138..
                                          LH FRONT COVER
                                          Supersession
                                          Supersession
                                          # 10
                                          MPN: 9813139..
                                          RH FRONT COVER
                                          # 11
                                          MPN: 981314000
                                          LH OUTER LATERAL COVER
                                          from £229.23
                                          from £229.23
                                          # 11
                                          MPN: 9813141..
                                          RH OUTER LATERAL COVER
                                          # 12
                                          MPN: 9813142..
                                          LH PLATE
                                          # 12
                                          MPN: 9813143..
                                          RH PLATE
                                          # 13
                                          MPN: 9813144..
                                          LH INNER LATERAL COVER
                                          # 13
                                          MPN: 9813145..
                                          RH INNER LATERAL COVER
                                          # 14
                                          MPN: 67573800
                                          RH REAR GUIDE COVER
                                          from £6.15
                                          from £6.15
                                          # 14
                                          MPN: 67573900
                                          LH REAR GUIDE COVER
                                          from £6.15
                                          from £6.15
                                          # 15
                                          MPN: 67574200
                                          SCREW
                                          from £1.55
                                          from £1.55
                                          # 16
                                          MPN: 13550401
                                          WASHER
                                          from £0.71
                                          from £0.71
                                          # 17
                                          MPN: 980139444
                                          BLOCK
                                          from £43.82
                                          from £43.82
                                          # 18
                                          MPN: 980139443
                                          SHOCK ABSORBER
                                          from £98.29
                                          from £98.29
                                          # 19
                                          MPN: 980139445
                                          SHOCK ABSORBER FIXING KIT
                                          from £101.71
                                          from £101.71
                                          # 20
                                          MPN: 980139759
                                          HOOK
                                          from £1.08
                                          from £1.08
