maserati qtp. (2008) 4.2 auto crank mechanism parts diagram

002 - crank mechanism

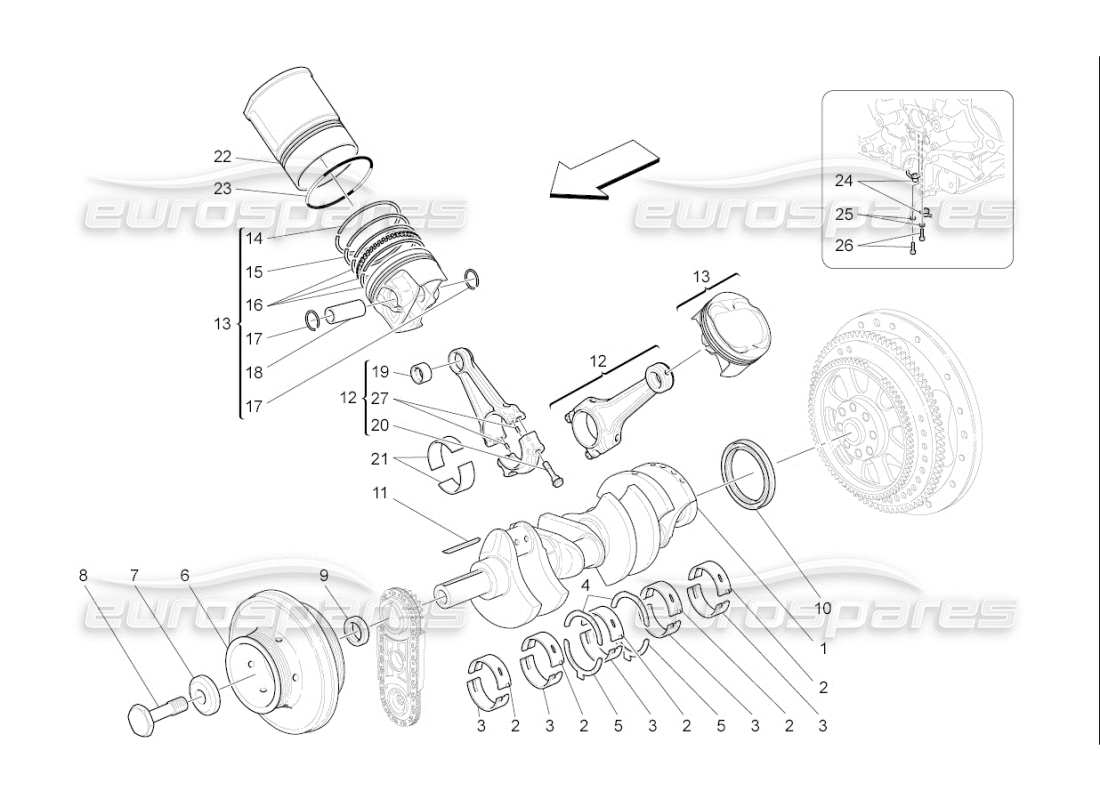

Maserati QTP. (2008) 4.2 auto Crank Mechanism Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Price
                                                        # 01
                                                        MPN: 216406
                                                        crankshaft
                                                        from £1,009.19
                                                        from £1,009.19
                                                        # 02
                                                        MPN: 195307
                                                        UPPER HALF BEARING BLUE
                                                        from £31.79
                                                        from £31.79
                                                        # 02
                                                        MPN: 195308
                                                        UPPER HALF BEARING YELLOW
                                                        from £15.01
                                                        from £15.01
                                                        # 02
                                                        MPN: 198910
                                                        UPPER HALF BEARING GREEN - STANDARD
                                                        from £15.01
                                                        from £15.01
                                                        # 03
                                                        MPN: 200194
                                                        LOWER HALF BEARING BLUE
                                                        from £17.25
                                                        from £17.25
                                                        # 03
                                                        MPN: 200195
                                                        LOWER HALF BEARING YELLOW
                                                        from £12.75
                                                        from £12.75
                                                        # 03
                                                        MPN: 200196
                                                        LOWER HALF BEARING GREEN - STANDARD
                                                        from £13.96
                                                        from £13.96
                                                        # 04
                                                        MPN: 196648
                                                        UPPER SHIM STANDARD
                                                        from £174.74
                                                        from £174.74
                                                        # 04
                                                        MPN: 201220
                                                        UPPER SHIM 1ST OVERSIZE
                                                        from £129.84
                                                        from £129.84
                                                        # 04
                                                        MPN: 201224
                                                        UPPER SHIM 2ND OVERSIZE
                                                        from £129.84
                                                        from £129.84
                                                        # 04
                                                        MPN: 222874
                                                        SHIM STANDARD
                                                        from £16.79
                                                        from £16.79
                                                        # 05
                                                        MPN: 196649
                                                        LOWER SHIM STANDARD
                                                        from £59.51
                                                        from £59.51
                                                        # 05
                                                        MPN: 201225
                                                        LOWER SHIM 1ST OVERSIZE
                                                        from £129.84
                                                        from £129.84
                                                        # 05
                                                        MPN: 201226
                                                        LOWER SHIM 2ND OVERSIZE
                                                        from £129.84
                                                        from £129.84
                                                        # 05
                                                        MPN: 222874
                                                        SHIM STANDARD
                                                        from £16.79
                                                        from £16.79
                                                        # 06
                                                        MPN: 257518
                                                        torsion damper
                                                        from £424.19
                                                        from £424.19
                                                        This part replaces part number 225848
                                                        # 06
                                                        MPN: 257518
                                                        torsion damper
                                                        from £424.19
                                                        from £424.19
                                                        This part replaces part number 225848
                                                        # 07
                                                        MPN: 192106
                                                        WASHER
                                                        from £3.67
                                                        from £3.67
                                                        # 08
                                                        MPN: 196216
                                                        SCREW FOR DAMPER FIXING
                                                        from £25.12
                                                        from £25.12
                                                        This part replaces part number 192005 - and 1 more. Click to view details

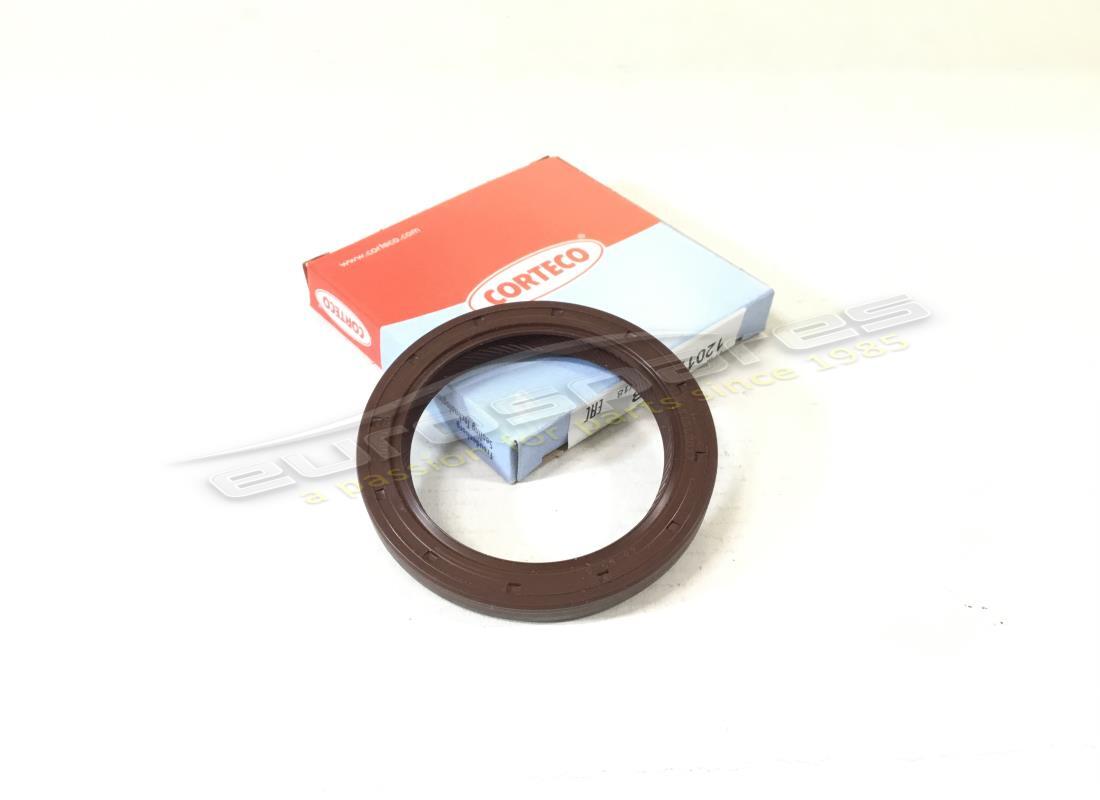

                                                        # 09
                                                        MPN: 188717
                                                        FRONT CRANKSHAFT SEAL
                                                        from £15.77
                                                        from £15.77
                                                        This part replaces part number 186883
                                                        # 10
                                                        MPN: 200323
                                                        SEAL RING
                                                        from £24.95
                                                        from £24.95
                                                        # 11
                                                        MPN: 186201
                                                        Key
                                                        from £0.69
                                                        from £0.69
                                                        # 12
                                                        MPN: 216295
                                                        COMPLETE CONNECTING ROD
                                                        Supersession
                                                        Supersession
                                                        # 12
                                                        MPN: 281167
                                                        COMPLETE CONNECTING ROD
                                                        from £95.13
                                                        from £95.13
                                                        This part replaces part number 216295 - and 3 more. Click to view details
                                                        # 13
                                                        MPN: 226718
                                                        RH SIDE ENGINE PISTON WITH RINGS
                                                        from £1,259.16
                                                        from £1,259.16
                                                        # 13
                                                        MPN: 226720
                                                        LH SIDE ENGINE PISTON WITH RINGS
                                                        from £1,259.16
                                                        from £1,259.16
                                                        # 14
                                                        MPN: 175612
                                                        SEAL RING 1ST GROOVE
                                                        from £64.38
                                                        from £64.38
                                                        This part replaces part number 187955
                                                        # 15
                                                        MPN: 226260
                                                        SEAL RING 2ND GROOVE
                                                        from £40.80
                                                        from £40.80
                                                        # 16
                                                        MPN: 226261
                                                        OIL SCRAPING RING 3ND GROOVE
                                                        from £32.76
                                                        from £32.76
                                                        # 17
                                                        MPN: 178890
                                                        STOP RING
                                                        from £3.24
                                                        from £3.24
                                                        # 18
                                                        MPN: 198260
                                                        PIN
                                                        from £20.34
                                                        from £20.34
                                                        PIN Genuine Ferrari Part - Used In stock
                                                        Removed from 458 engine 199088
                                                        # 19
                                                        MPN: 224504
                                                        BUSHING
                                                        from £10.97
                                                        from £10.97
                                                        # 20
                                                        MPN: 218371
                                                        CONNECTING ROD TIGHTENING SCREW
                                                        from £19.78
                                                        from £19.78
                                                        # 21
                                                        MPN: 204290
                                                        CONNECTING ROD HALFBEARING RED - STANDARD
                                                        from £4.82
                                                        from £4.82
                                                        # 21
                                                        MPN: 204291
                                                        CONNECTING ROD HALFBEARING BLUE
                                                        from £4.82
                                                        from £4.82
                                                        # 22
                                                        MPN: 222571
                                                        CYLINDER LINER
                                                        from £703.83
                                                        from £703.83
                                                        # 23
                                                        MPN: 186251
                                                        GASKET
                                                        from £1.57
                                                        from £1.57
                                                        # 24
                                                        MPN: 175657
                                                        PISTONS COOLING NOZZLE
                                                        from £5.28
                                                        from £5.28
                                                        # 25
                                                        MPN: 11181474
                                                        WASHER
                                                        from £0.51
                                                        from £0.51
                                                        # 26
                                                        MPN: 14302921
                                                        SCREW
                                                        from £0.51
                                                        from £0.51
                                                        # 27
                                                        MPN: 224608
                                                        CENTERING PIN
                                                        from £1.94
                                                        from £1.94
