031 - DIFFERENTIAL AND REAR AXLE SHAFTS

Maserati QTP. (2008) 4.2 auto Differential And Rear Axle Shafts Parts Diagram

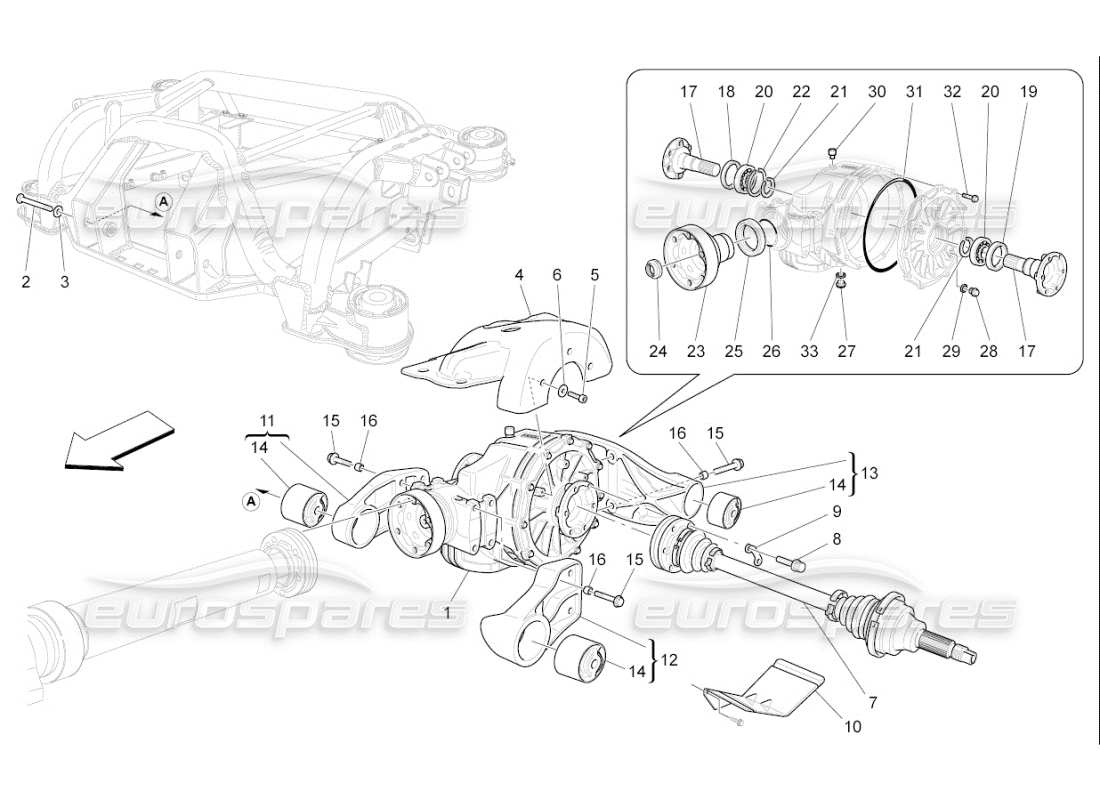

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 01
                                                                    MPN: 270983
                                                                    COMPLETE DIFFERENTIAL
                                                                    from £1,462.11
                                                                    from £1,462.11
                                                                    This part replaces part number 272821 - and 1 more. Click to view details
                                                                    # 02
                                                                    MPN: 15977921
                                                                    SCREW
                                                                    from £4.24
                                                                    from £4.24
                                                                    # 03
                                                                    MPN: 11194174
                                                                    WASHER
                                                                    from £1.85
                                                                    from £1.85
                                                                    # 04
                                                                    MPN: 230714
                                                                    DIFFERENTIAL SHIELD
                                                                    from £198.02
                                                                    from £198.02
                                                                    # 05
                                                                    MPN: 14433124
                                                                    SCREW
                                                                    from £0.49
                                                                    from £0.49
                                                                    # 06
                                                                    MPN: 12640604
                                                                    WASHER
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 07
                                                                    MPN: 196135
                                                                    AXLE SHAFT
                                                                    Supersession
                                                                    Supersession
                                                                    # 07
                                                                    MPN: 270625
                                                                    AXLE SHAFT
                                                                    from £258.53
                                                                    from £258.53
                                                                    This part replaces part number 250707 - and 1 more. Click to view details
                                                                    # 07
                                                                    MPN: 270625
                                                                    AXLE SHAFT
                                                                    from £258.53
                                                                    from £258.53
                                                                    This part replaces part number 250707 - and 1 more. Click to view details
                                                                    # 08
                                                                    MPN: 181910
                                                                    SCREW
                                                                    from £2.32
                                                                    from £2.32
                                                                    This part replaces part number 211027 - and 1 more. Click to view details
                                                                    # 09
                                                                    MPN: 149415
                                                                    PLATE
                                                                    from £1.08
                                                                    from £1.08
                                                                    # 09
                                                                    MPN: 222679
                                                                    PLATE
                                                                    from £2.47
                                                                    from £2.47
                                                                    This part replaces part number 149415 which we have in stock
                                                                    # 10
                                                                    MPN: 198514
                                                                    HEAT PROTECTION
                                                                    from £5.92
                                                                    from £5.92
                                                                    # 11
                                                                    MPN: 240022
                                                                    RH FRONT BRACKET
                                                                    from £130.83
                                                                    from £130.83
                                                                    This part replaces part number 233227 - and 1 more. Click to view details
                                                                    # 12
                                                                    MPN: 240023
                                                                    LH FRONT BRACKET
                                                                    from £130.83
                                                                    from £130.83
                                                                    This part replaces part number 233228 - and 1 more. Click to view details
                                                                    # 13
                                                                    MPN: 240024
                                                                    REAR BRACKET
                                                                    from £342.94
                                                                    from £342.94
                                                                    This part replaces part number 235414 - and 2 more. Click to view details
                                                                    # 14
                                                                    MPN: 238620
                                                                    BUFFER FOR SUPPORT
                                                                    from £24.73
                                                                    from £24.73
                                                                    This part replaces part number 224415
                                                                    # 15
                                                                    MPN: 229203
                                                                    SCREW M 10X35
                                                                    Supersession
                                                                    Supersession
                                                                    # 15
                                                                    MPN: 229204
                                                                    SCREW M 10X45
                                                                    Supersession
                                                                    Supersession
                                                                    # 16
                                                                    MPN: 229202
                                                                    CENTERING DOWEL
                                                                    from £2.32
                                                                    from £2.32
                                                                    # 17
                                                                    MPN: 218085
                                                                    DIFFERENTIAL OUTLET SHAFT
                                                                    from £466.70
                                                                    from £466.70
                                                                    # 18
                                                                    MPN: 181618
                                                                    RH SEAL RING
                                                                    from £28.93
                                                                    from £28.93
                                                                    # 19
                                                                    MPN: 181617
                                                                    LH SEAL RING
                                                                    from £26.03
                                                                    from £26.03
                                                                    # 20
                                                                    MPN: 184995
                                                                    BALL BEARING
                                                                    from £74.55
                                                                    from £74.55
                                                                    # 21
                                                                    MPN: 184994
                                                                    FLEXIBLE RING
                                                                    from £3.63
                                                                    from £3.63
                                                                    # 22
                                                                    MPN: 185723
                                                                    SEEGER RING
                                                                    from £2.59
                                                                    from £2.59
                                                                    # 23
                                                                    MPN: 235382
                                                                    PROPELLER SHAFT CONNECTION FLANGE
                                                                    from £209.78
                                                                    from £209.78
                                                                    This part replaces part number 218086
                                                                    # 24
                                                                    MPN: 183967
                                                                    RING NUT
                                                                    from £39.94
                                                                    from £39.94
                                                                    # 25
                                                                    MPN: 221062
                                                                    SEAL RING
                                                                    from £48.77
                                                                    from £48.77
                                                                    This part replaces part number 386200121
                                                                    # 26
                                                                    MPN: 271172
                                                                    O.R. GASKET
                                                                    from £5.96
                                                                    from £5.96
                                                                    This part replaces part number 14454581 which we have in stock
                                                                    # 27
                                                                    MPN: 183962
                                                                    THREADED PLUG M 22X1.5
                                                                    from £14.38
                                                                    from £14.38
                                                                    This part replaces part number 4123120
                                                                    # 28
                                                                    MPN: 10305111
                                                                    THREADED PLUG M 22X1.5
                                                                    from £4.33
                                                                    from £4.33
                                                                    # 29
                                                                    MPN: 10263460
                                                                    GASKET
                                                                    from £0.53
                                                                    from £0.53
                                                                    This part replaces part number 10261830
                                                                    # 30
                                                                    MPN: 197797
                                                                    OIL BREATHER
                                                                    from £15.47
                                                                    from £15.47
                                                                    # 31
                                                                    MPN: 14468781
                                                                    O.R. GASKET
                                                                    from £23.08
                                                                    from £23.08
                                                                    # 32
                                                                    MPN: 16287321
                                                                    SCREW
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 33
                                                                    MPN: 10263460
                                                                    GASKET
                                                                    from £0.53
                                                                    from £0.53
                                                                    This part replaces part number 10261830
