maserati qtp. (2008) 4.2 auto braking devices on rear wheels parts diagram

036 - braking devices on rear wheels

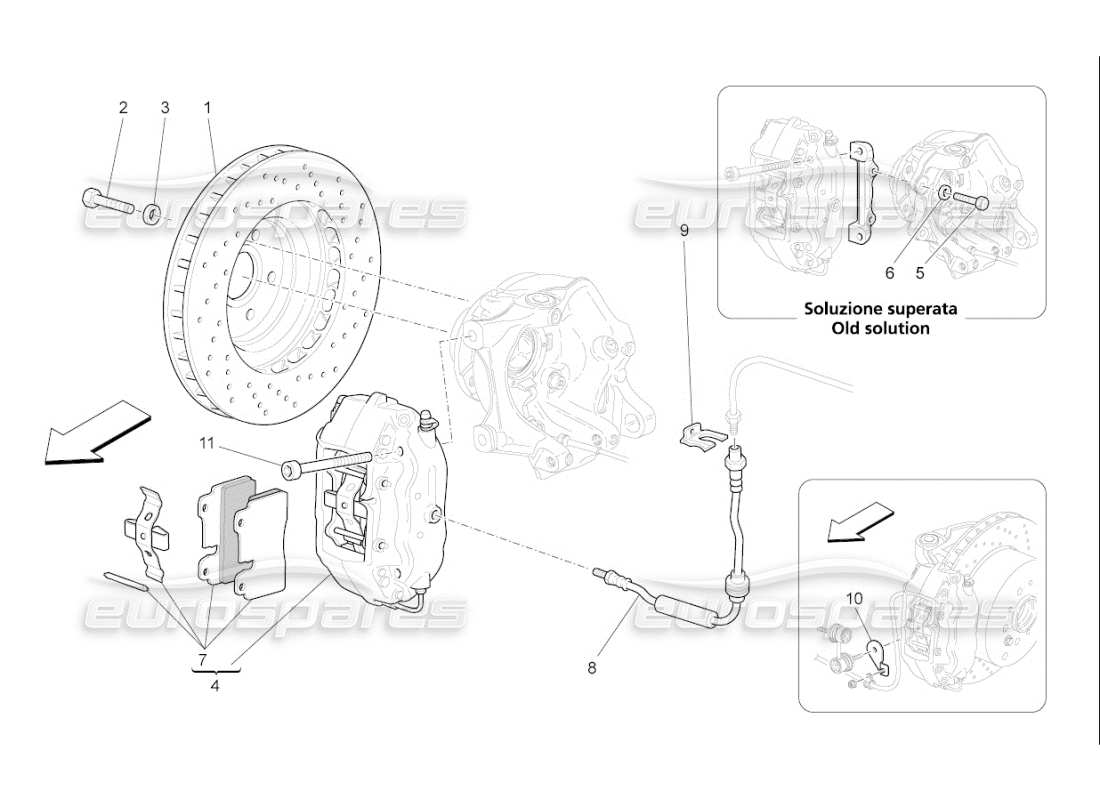

Maserati QTP. (2008) 4.2 auto Braking Devices On Rear Wheels Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Price
                    # 00
                    MPN: 228411/A
                    REAR BRAKE KIT
                    includes 1x 980139064 and 2x 228411 Pack sport version, Manufactured In Italy Chassis Number Required
                    # 01
                    MPN: 228411
                    REAR BRAKE DISC
                    (Option - Sports Package - Model Year 2008 >) (priced per disc) Chassis Number Required O/D 330mm, Thickness 28mm
                    from £157.60
                    from £157.60
                    # 02
                    MPN: 16043424
                    SCREW
                    from £0.51
                    from £0.51
                    # 03
                    MPN: 12601374
                    WASHER
                    from £0.53
                    from £0.53
                    # 04
                    -
                    COMPLETE LH REAR CALIPER
                    # 04
                    -
                    COMPLETE RH REAR CALIPER
                    # 05
                    MPN: 217564
                    SCREW
                    from £1.85
                    from £1.85
                    # 06
                    MPN: 228130
                    WASHER
                    from £2.55
                    from £2.55
                    # 07
                    MPN: 980139064
                    REAR BRAKE PADS SET
                    from £391.47
                    from £391.47
                    # 07
                    MPN: 9835916485
                    WEAR SENSOR
                    BRAKE PADS NOT INCLUDED
                    from £22.30
                    from £22.30
                    # 08
                    -
                    FLEXIBLE PIPE TO REAR CALIPERS
                    # 09
                    MPN: 181897
                    CLIP
                    from £1.08
                    from £1.08
                    This part replaces part number 252814
                    # 10
                    MPN: 228183
                    BRACKET
                    from £3.63
                    from £3.63
                    # 11
                    MPN: 175947
                    SCREW
                    from £3.19
                    from £3.19
