maserati qtp. (2008) 4.2 auto front suspension parts diagram

044 - Front Suspension

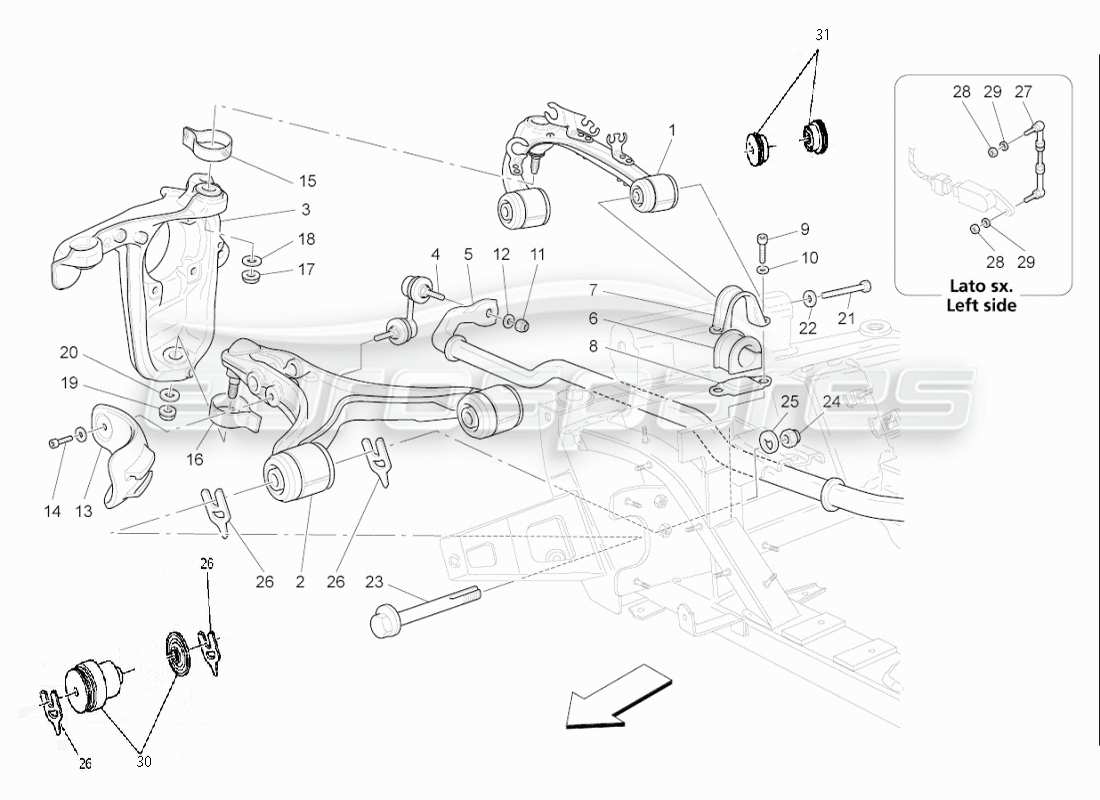

Maserati QTP. (2008) 4.2 auto Front Suspension Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                #
                                                                Part number
                                                                Description
                                                                Price
                                                                # 00
                                                                MPN: 980139891
                                                                RH FRONT SUSPENSION KIT
                                                                (CHASSIS NUMBER REQUIRED)
                                                                from £1,015.22
                                                                from £1,015.22
                                                                This part replaces part number 900027689
                                                                # 00
                                                                MPN: 980139892
                                                                LH FRONT SUSPENSION KIT
                                                                (CHASSIS NUMBER REQUIRED)
                                                                from £998.89
                                                                from £998.89
                                                                This part replaces part number 900027690
                                                                # 01
                                                                -
                                                                COMPLETE RH FRONT UPPER LEVER
                                                                # 01
                                                                -
                                                                COMPLETE LH FRONT UPPER LEVER
                                                                # 02
                                                                -
                                                                COMPLETE LH FRONT LOWER LEVER
                                                                # 02
                                                                MPN: 3206581
                                                                COMPLETE RH FRONT LOWER LEVER
                                                                # 03
                                                                -
                                                                COMPLETE RH FRONT HUB HOLDER
                                                                # 03
                                                                -
                                                                COMPLETE LH FRONT HUB HOLDER
                                                                # 04
                                                                MPN: 259572
                                                                RH BALL TIE ROD
                                                                from £51.64
                                                                from £51.64
                                                                This part replaces part number 162619
                                                                # 04
                                                                MPN: 259572
                                                                RH BALL TIE ROD
                                                                from £51.64
                                                                from £51.64
                                                                This part replaces part number 162619
                                                                # 04
                                                                MPN: 259573
                                                                LH BALL TIE ROD
                                                                from £47.44
                                                                from £47.44
                                                                This part replaces part number 162620
                                                                # 04
                                                                MPN: 259573
                                                                LH BALL TIE ROD
                                                                from £47.44
                                                                from £47.44
                                                                This part replaces part number 162620
                                                                # 05
                                                                MPN: 199126
                                                                ANTI-ROLL BAR
                                                                from £74.72
                                                                from £74.72
                                                                # 06
                                                                MPN: 199224
                                                                BAR BUFFER
                                                                from £10.38
                                                                from £10.38
                                                                # 07
                                                                MPN: 192773
                                                                UPPER SUPPORT
                                                                Supersession
                                                                Supersession
                                                                # 08
                                                                MPN: 192772
                                                                LOWER SUPPORT
                                                                Supersession
                                                                Supersession
                                                                # 09
                                                                MPN: 14307534
                                                                SCREW
                                                                from £1.46
                                                                from £1.46
                                                                # 10
                                                                MPN: 12604574
                                                                WASHER
                                                                from £0.53
                                                                from £0.53
                                                                # 11
                                                                MPN: 102742
                                                                NUT
                                                                from £0.53
                                                                from £0.53
                                                                # 12
                                                                MPN: 12601474
                                                                WASHER
                                                                from £0.53
                                                                from £0.53
                                                                # 13
                                                                MPN: 198405
                                                                AIR FLOW FLAP
                                                                from £4.34
                                                                from £4.34
                                                                # 13
                                                                MPN: 239645
                                                                LH AIR FLOW FLAP
                                                                from £25.04
                                                                from £25.04
                                                                # 13
                                                                MPN: 239646
                                                                RH AIR FLOW FLAP
                                                                from £25.04
                                                                from £25.04
                                                                # 14
                                                                MPN: 202013
                                                                SCREW
                                                                from £6.04
                                                                from £6.04
                                                                # 15
                                                                MPN: 386600416
                                                                JOINT UPPER PROTECTION
                                                                from £3.63
                                                                from £3.63
                                                                # 16
                                                                MPN: 160019
                                                                JOINT LOWER PROTECTION
                                                                from £3.63
                                                                from £3.63
                                                                This part replaces part number 386600419
                                                                # 17
                                                                MPN: 149807
                                                                NUT
                                                                from £0.63
                                                                from £0.63
                                                                # 18
                                                                MPN: 12646924
                                                                WASHER VALID FOR CARS WITH SUSPENSIONS KIT 900027689/900027690 (POS.0)
                                                                from £1.39
                                                                from £1.39
                                                                # 19
                                                                MPN: 203795
                                                                NUT VALID FOR CARS WITH SUSPENSIONS KIT 900027689/900027690 (POS.0)
                                                                from £1.57
                                                                from £1.57
                                                                This part replaces part number 183417 - and 1 more. Click to view details
                                                                # 20
                                                                MPN: 205496
                                                                WASHER
                                                                from £12.68
                                                                from £12.68
                                                                # 21
                                                                MPN: 15977934
                                                                SCREW
                                                                from £5.69
                                                                from £5.69
                                                                # 22
                                                                MPN: 13550634
                                                                WASHER
                                                                from £2.32
                                                                from £2.32
                                                                # 23
                                                                MPN: 208319
                                                                SCREW FRONT FIXING
                                                                from £106.79
                                                                from £106.79
                                                                # 23
                                                                MPN: 208320
                                                                SCREW REAR FIXING
                                                                from £37.79
                                                                from £37.79
                                                                # 23
                                                                MPN: 240875
                                                                SCREW FRONT FIXING
                                                                from £77.21
                                                                from £77.21
                                                                # 23
                                                                MPN: 240875
                                                                SCREW FRONT FIXING - VALID ONLY FOR CARS WITH FRONT FRAME ASSEMBLY 980139618
                                                                from £77.21
                                                                from £77.21
                                                                # 23
                                                                MPN: 240876
                                                                SCREW REAR FIXING
                                                                from £76.28
                                                                from £76.28
                                                                # 23
                                                                MPN: 240876
                                                                SCREW REAR FIXING - VALID ONLY FOR CARS WITH FRONT FRAME ASSEMBLY 980139618
                                                                from £76.28
                                                                from £76.28
                                                                # 24
                                                                MPN: 203795
                                                                NUT
                                                                from £1.48
                                                                from £1.48
                                                                This part replaces part number 183417 - and 1 more. Click to view details
                                                                # 25
                                                                MPN: 194222
                                                                WASHER
                                                                from £31.22
                                                                from £31.22
                                                                # 25
                                                                MPN: 240877
                                                                WASHER VALID ONLY FOR CARS WITH FRONT FRAME ASSEMBLY 980139618
                                                                from £3.86
                                                                from £3.86
                                                                # 25
                                                                MPN: 240877
                                                                WASHER
                                                                from £3.86
                                                                from £3.86
                                                                # 26
                                                                MPN: 198038
                                                                SPACER THICKNESS MM. 0,50
                                                                from £3.16
                                                                from £3.16
                                                                # 26
                                                                MPN: 198039
                                                                SPACER THICKNESS MM. 0,75
                                                                from £3.09
                                                                from £3.09
                                                                # 26
                                                                MPN: 198040
                                                                SPACER THICKNESS MM. 1,00
                                                                from £3.01
                                                                from £3.01
                                                                # 26
                                                                MPN: 198041
                                                                SPACER THICKNESS MM. 1,75
                                                                from £2.47
                                                                from £2.47
                                                                # 26
                                                                MPN: 198042
                                                                SPACER THICKNESS MM. 3,00
                                                                from £3.32
                                                                from £3.32
                                                                # 27
                                                                MPN: 188629
                                                                TIE ROD FOR LIGHT ADJUSTING POTENTIOMETER
                                                                from £19.31
                                                                from £19.31
                                                                # 28
                                                                MPN: 102741
                                                                NUT
                                                                from £0.53
                                                                from £0.53
                                                                This part replaces part number 12575421
                                                                # 29
                                                                MPN: 14498824
                                                                WASHER
                                                                from £0.54
                                                                from £0.54
                                                                # 30
                                                                MPN: 273809

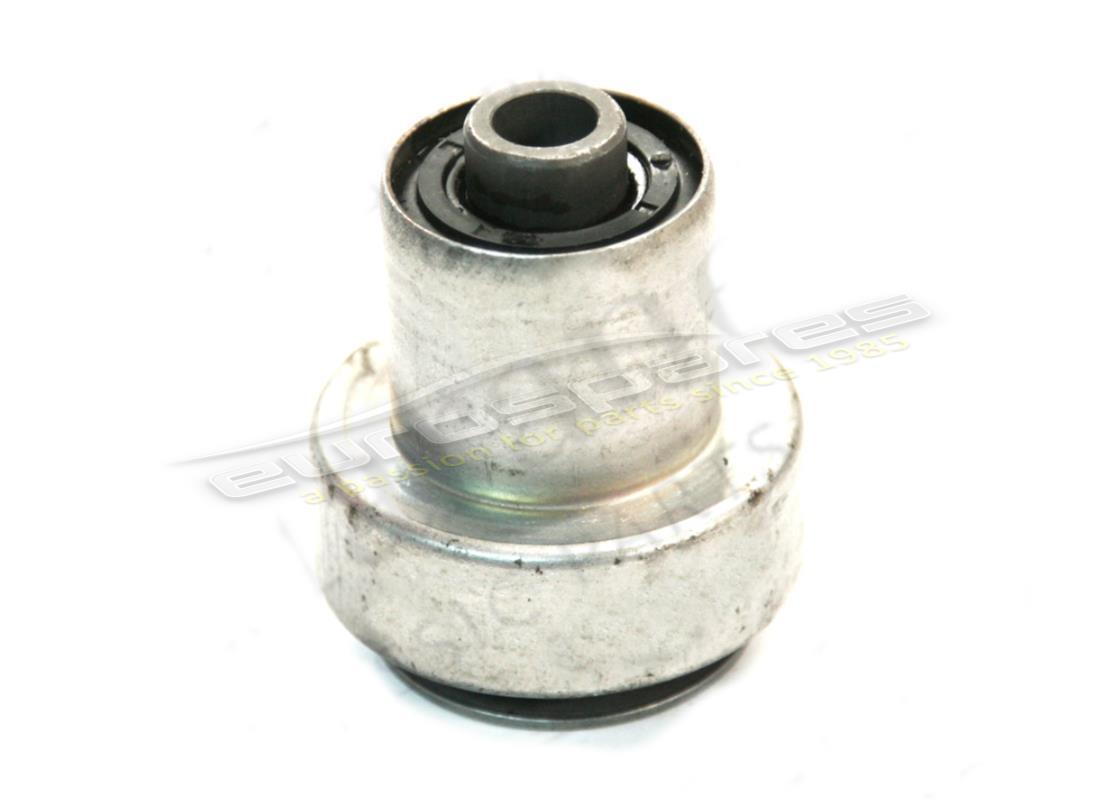

                                                                WISHBONE BUSHES
                                                                Supersession
                                                                Supersession
                                                                This part replaces part number 215901
                                                                # 31
                                                                MPN: 213582
                                                                WISHBONE BUSHES
                                                                from £22.26
                                                                from £22.26
