maserati qtp. (2008) 4.2 auto main wiring parts diagram

081 - main wiring

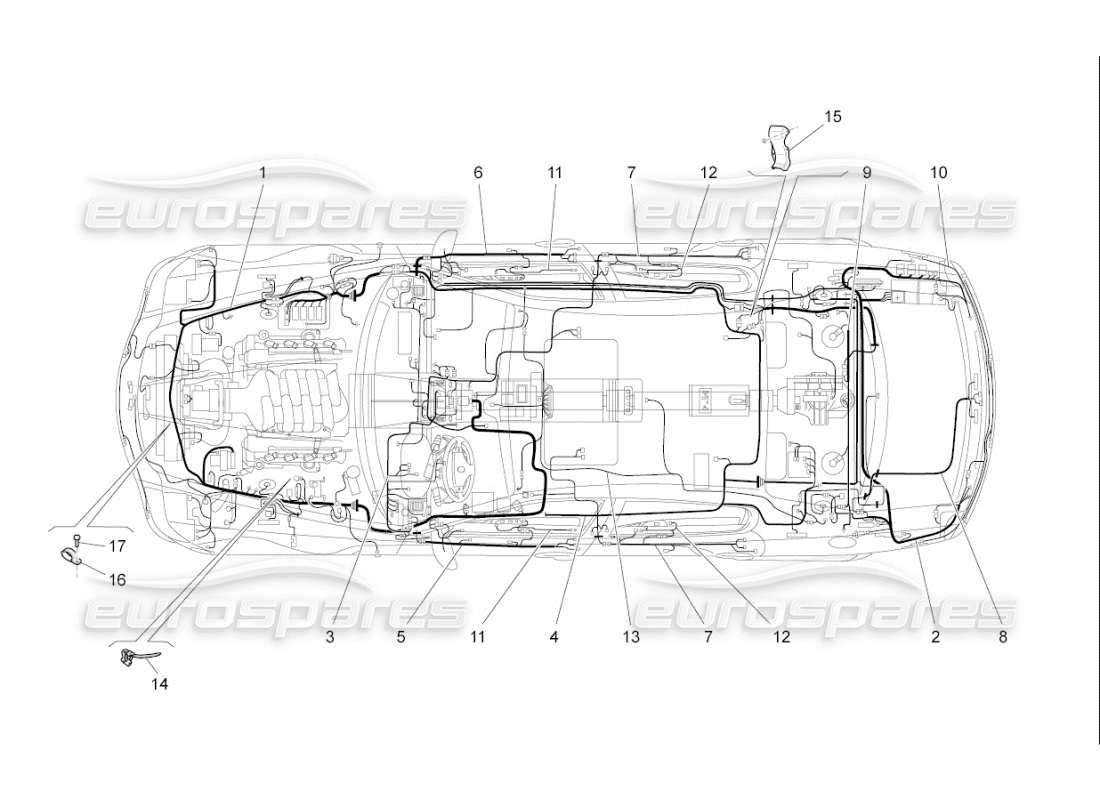

Maserati QTP. (2008) 4.2 auto Main Wiring Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price
                                  # 01
                                  MPN: 240395
                                  ENGINE COMPARTMENT CABLE
                                  from £1,437.59
                                  from £1,437.59
                                  # 02
                                  -
                                  TRUNK COMPARTMENT CABLE
                                  # 03
                                  -
                                  DASHBOARD CABLE
                                  # 04
                                  -
                                  PASSENGERS COMPARTMENT CABLE
                                  # 05
                                  MPN: 228319
                                  CABLE FOR PASSENGER FRONT DOOR
                                  from £143.81
                                  from £143.81
                                  # 06
                                  MPN: 228317
                                  CABLE FOR DRIVER FRONT DOOR
                                  from £137.16
                                  from £137.16
                                  # 07
                                  MPN: 200536
                                  DOOR REAR CABLE
                                  from £64.85
                                  from £64.85
                                  # 08
                                  MPN: 193785
                                  TRUNK HOOD BONNET CABLE
                                  Supersession
                                  Supersession
                                  # 08
                                  MPN: 212164
                                  TRUNK HOOD BONNET CABLE
                                  Supersession
                                  Supersession
                                  This part replaces part number 193785
                                  # 08
                                  MPN: 231400
                                  TRUNK HOOD BONNET CABLE
                                  from £100.58
                                  from £100.58
                                  This part replaces part number 212164
                                  # 09
                                  MPN: 212487
                                  FUEL PUMPS CABLE
                                  from £218.89
                                  from £218.89
                                  # 11
                                  MPN: 196809
                                  CABLE FOR DRIVER FRONT DOOR PANEL
                                  from £45.59
                                  from £45.59
                                  # 11
                                  MPN: 214128
                                  CABLE FOR PASSENGER FRONT DOOR PANEL
                                  from £17.41
                                  from £17.41
                                  # 12
                                  MPN: 196810
                                  CABLE FOR REAR DOOR PANEL
                                  from £45.59
                                  from £45.59
                                  # 13
                                  -
                                  ROOF CABLE
                                  # 14
                                  MPN: 177553
                                  CLAMP
                                  from £0.54
                                  from £0.54
                                  # 15
                                  MPN: 251758
                                  CONTOUR
                                  from £2.45
                                  from £2.45
                                  # 16
                                  MPN: 10448890
                                  BRACKET WITH SHEATH
                                  from £1.08
                                  from £1.08
                                  # 17
                                  MPN: 16284914
                                  SCREW
                                  from £0.52
                                  from £0.52
                                  This part replaces part number 16284911
                                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
