maserati qtp. (2008) 4.2 auto main wiring parts diagram

082 - main wiring

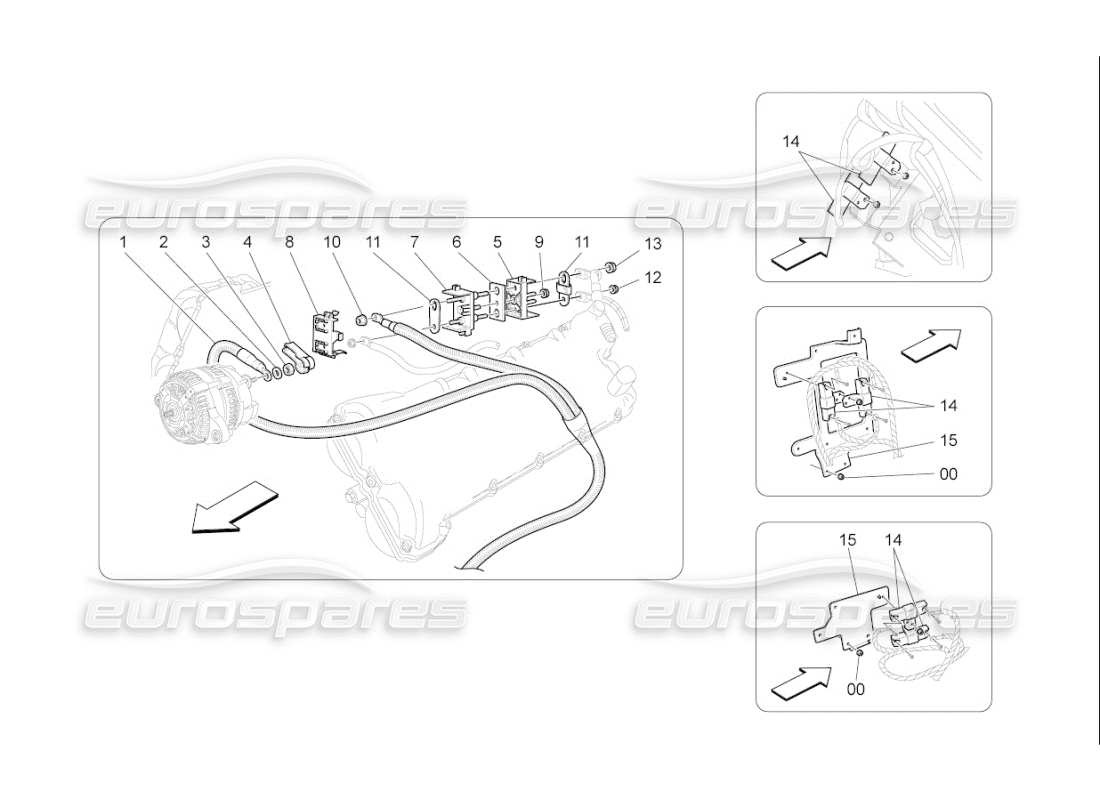

Maserati QTP. (2008) 4.2 auto Main Wiring Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 01
                              MPN: 233419
                              CABLE FROM ALTERNATOR TO STARTER MOTOR
                              from £155.66
                              from £155.66
                              This part replaces part number 224092
                              # 02
                              MPN: 12601374
                              WASHER
                              from £0.54
                              from £0.54
                              # 03
                              MPN: 16102314
                              NUT
                              from £0.47
                              from £0.47
                              # 04
                              MPN: 154803
                              PROTECTION BOOT
                              from £2.68
                              from £2.68
                              # 05
                              MPN: 60510161
                              INSERT
                              from £1.58
                              from £1.58
                              # 06
                              MPN: 393050343
                              GASKET
                              from £1.55
                              from £1.55
                              # 07
                              MPN: 60510160
                              INSERT
                              from £10.06
                              from £10.06
                              INSERTO GUIDA FILI Genuine Maserati Part - Used In stock
                              COMPLETE WITH 5,6,8,9,10,11,12 SEE PICTURE
                              # 08
                              MPN: 60616507
                              COVER
                              from £2.29
                              from £2.29
                              This part replaces part number 393050340
                              # 09
                              MPN: 14084211
                              NUT
                              from £0.71
                              from £0.71
                              This part replaces part number 14084217
                              # 10
                              MPN: 14059311
                              NUT
                              from £0.54
                              from £0.54
                              # 11
                              MPN: 393050344
                              CONNECTION ELEMENT
                              from £1.78
                              from £1.78
                              # 12
                              MPN: 14059214
                              NUT M6
                              from £0.54
                              from £0.54
                              This part replaces part number 12578121
                              # 13
                              MPN: 14084417
                              NUT
                              from £1.21
                              from £1.21
                              # 14
                              MPN: 183276
                              RESISTOR
                              from £39.98
                              from £39.98
