maserati qtp. (2008) 4.2 auto relays, fuses and boxes parts diagram

083 - relays, fuses and boxes

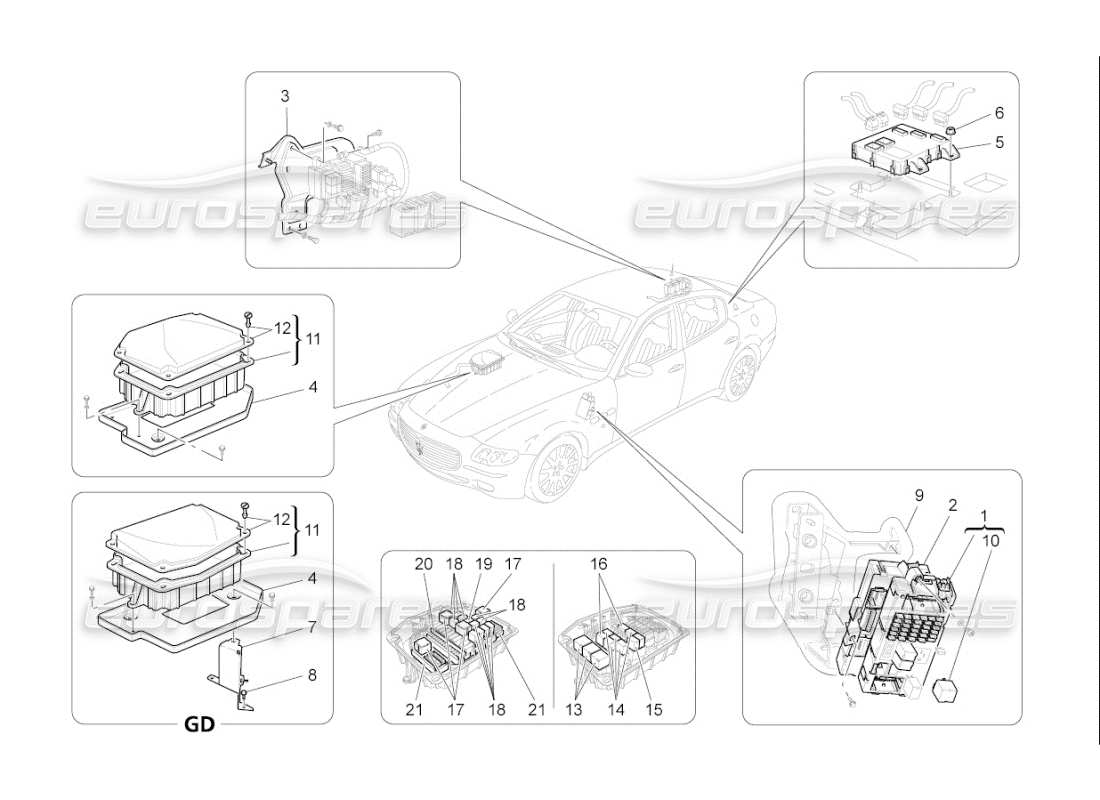

Maserati QTP. (2008) 4.2 auto Relays, Fuses And Boxes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price
                                  # 01
                                  MPN: 245787
                                  DASHBOARD UNITS
                                  from £146.37
                                  from £146.37
                                  This part replaces part number 190831
                                  # 02
                                  MPN: 238580
                                  BODY COMPUTER UNIT
                                  from £332.01
                                  from £332.01
                                  This part replaces part number 222660
                                  # 04
                                  MPN: 191131
                                  FUSES CASE SUPPORT
                                  from £15.77
                                  from £15.77
                                  This part replaces part number 191101 - and 1 more. Click to view details
                                  # 05
                                  MPN: 210683
                                  TRUNK COMPARTMENT CONTROL UNIT
                                  from £321.67
                                  from £321.67
                                  This part replaces part number 190925 which we have in stock
                                  # 06
                                  MPN: 13046114
                                  NUT
                                  from £0.53
                                  from £0.53
                                  # 07
                                  MPN: 191107
                                  BRACKET
                                  from £14.84
                                  from £14.84
                                  # 08
                                  MPN: 11612424
                                  SCREW
                                  from £1.20
                                  from £1.20
                                  # 09
                                  MPN: 68806200
                                  BODY COMPUTER SHIELD
                                  from £9.55
                                  from £9.55
                                  # 10
                                  MPN: 233100
                                  RELAY 50A
                                  from £5.59
                                  from £5.59
                                  # 11
                                  MPN: 196908
                                  RELAYS AND FUSES CASE
                                  from £102.76
                                  from £102.76
                                  # 12
                                  MPN: 196910
                                  COMPLETE COVER
                                  from £27.09
                                  from £27.09
                                  # 13
                                  MPN: 233100
                                  RELAY 50A
                                  from £5.59
                                  from £5.59
                                  # 14
                                  MPN: 216065
                                  RELAY 20A
                                  from £5.76
                                  from £5.76
                                  # 15
                                  MPN: 161590
                                  RELAY 20A
                                  from £13.02
                                  from £13.02
                                  # 16
                                  MPN: 980139751
                                  RELAY 30A
                                  from £18.26
                                  from £18.26
