maserati qtp. (2008) 4.2 auto front bumper parts diagram

097 - FRONT BUMPER

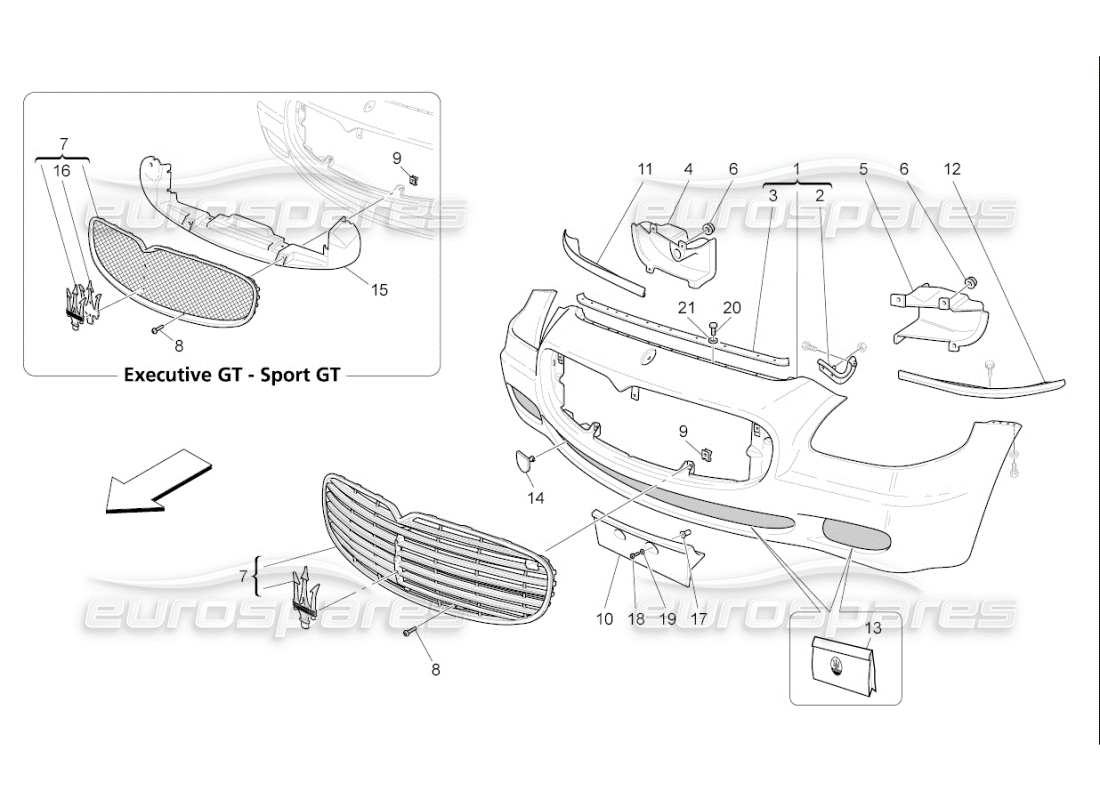

Maserati QTP. (2008) 4.2 auto Front Bumper Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Price
                                          # 01
                                          MPN: 980139639
                                          COMPLETE FRONT BUMPER
                                          (no parking sensor)
                                          from £875.96
                                          from £875.96
                                          # 02
                                          MPN: 67070800
                                          RH BRACKET
                                          from £17.70
                                          from £17.70
                                          # 02
                                          MPN: 67070900
                                          LH BRACKET
                                          from £17.70
                                          from £17.70
                                          # 03
                                          MPN: 67071000
                                          CENTRAL BRACKET
                                          from £38.49
                                          from £38.49
                                          # 04
                                          MPN: 67564900
                                          RH AIR CONVEYOR
                                          from £54.67
                                          from £54.67
                                          # 05
                                          MPN: 67565000
                                          LH AIR CONVEYOR
                                          from £54.67
                                          from £54.67
                                          # 06
                                          MPN: 14059114
                                          NUT
                                          from £0.53
                                          from £0.53
                                          # 07
                                          -
                                          COMPLETE CALENDER
                                          # 08
                                          MPN: 67278600
                                          SCREW
                                          from £2.47
                                          from £2.47
                                          # 09
                                          MPN: 67278700
                                          BRACKET
                                          from £2.32
                                          from £2.32
                                          # 10
                                          MPN: 67575700
                                          FRONT PLATE FRAME
                                          from £101.00
                                          from £101.00
                                          # 11
                                          MPN: 67723100
                                          RH BRACKET
                                          from £9.20
                                          from £9.20
                                          # 12
                                          MPN: 67723200
                                          LH BRACKET
                                          from £9.20
                                          from £9.20
                                          # 13
                                          MPN: 980139380
                                          KIT NETS FOR FRONT BUMPER
                                          from £155.22
                                          from £155.22
                                          # 14
                                          MPN: 67316700
                                          TOW HOOK PLUG
                                          from £16.70
                                          from £16.70
                                          # 15
                                          MPN: 69839300
                                          LOWER SIDE CONVEYOR
                                          from £107.11
                                          from £107.11
                                          This part replaces part number 69296000
                                          # 15
                                          MPN: 69839300
                                          LOWER SIDE CONVEYOR
                                          from £107.11
                                          from £107.11
                                          This part replaces part number 69296000
                                          # 16
                                          MPN: 68804700
                                          SPACER
                                          from £85.01
                                          from £85.01
                                          # 17
                                          MPN: 66412700
                                          BUSHING
                                          from £1.93
                                          from £1.93
                                          # 18
                                          MPN: 13274377
                                          SCREW
                                          from £0.51
                                          from £0.51
                                          # 19
                                          MPN: 12637807
                                          WASHER
                                          from £0.51
                                          from £0.51
                                          # 20
                                          MPN: 10902387
                                          SCREW
                                          from £0.47
                                          from £0.47
                                          # 21
                                          MPN: 10523478
                                          WASHER
                                          from £0.47
                                          from £0.47
