maserati qtp. (2008) 4.2 auto sunroof parts diagram

134 - SUNROOF

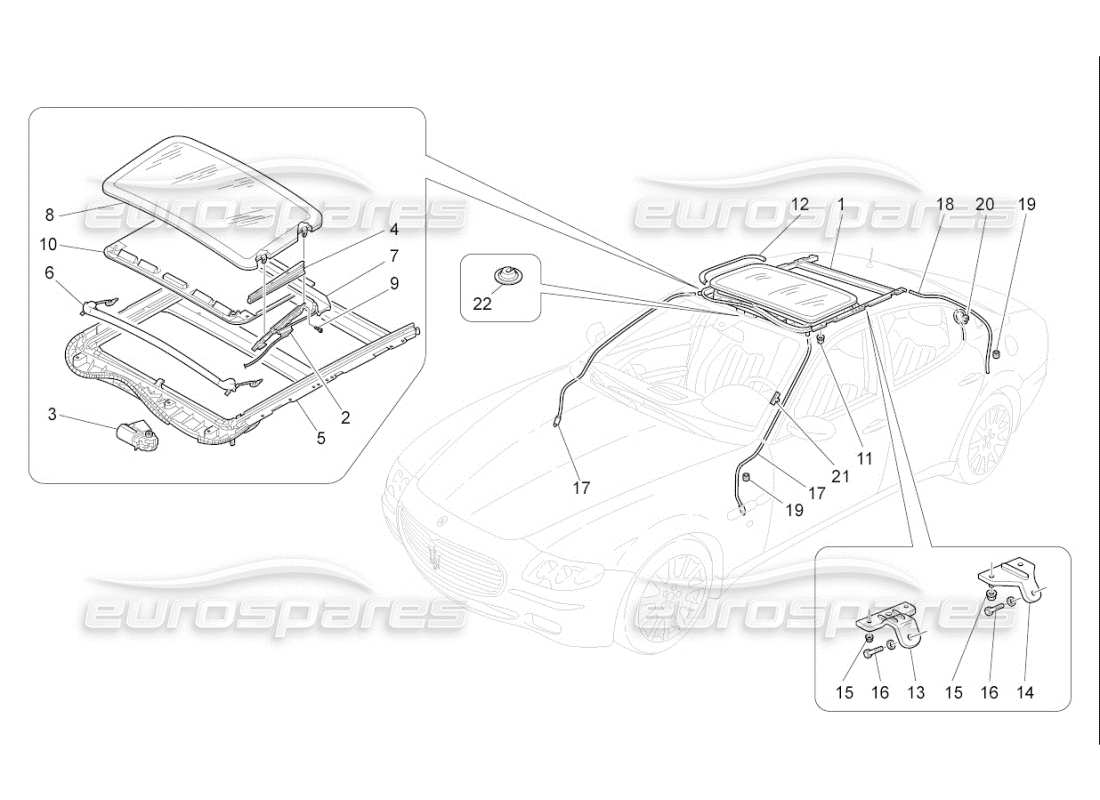

Maserati QTP. (2008) 4.2 auto Sunroof Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Price
                                            # 01
                                            -
                                            COMPLETE SUN ROOF BEIGE
                                            # 01
                                            -
                                            COMPLETE SUN ROOF BLACK
                                            # 01
                                            -
                                            COMPLETE SUN ROOF PEARL BEIGE
                                            # 01
                                            MPN: 68807031
                                            COMPLETE SUN ROOF
                                            (light gray - alcantara lining)
                                            from £2,355.55
                                            from £2,355.55
                                            This part replaces part number 980139507
                                            # 02
                                            MPN: 980139303
                                            RH DEVICE
                                            from £83.01
                                            from £83.01
                                            # 02
                                            MPN: 980139304
                                            LH DEVICE
                                            from £82.62
                                            from £82.62
                                            # 03
                                            MPN: 980139305
                                            GEAR MOTOR
                                            from £332.88
                                            from £332.88
                                            # 04
                                            MPN: 980139306
                                            RH OPENING DEVICE GUARD
                                            from £35.77
                                            from £35.77
                                            # 04
                                            MPN: 980139307
                                            LH OPENING DEVICE GUARD
                                            from £33.37
                                            from £33.37
                                            # 05
                                            MPN: 980139308
                                            COMPLETE FRAME
                                            from £975.68
                                            from £975.68
                                            # 06
                                            MPN: 980139309
                                            DEFLECTOR
                                            from £85.12
                                            from £85.12
                                            # 07
                                            MPN: 980139310
                                            SUNROOF GUIDE RAIL ASSEMBLY WITH BRACKETS
                                            from £42.76
                                            from £42.76
                                            # 08
                                            MPN: 980139311
                                            COMPLETE GLASS
                                            from £319.03
                                            from £319.03
                                            # 09
                                            MPN: 980139314
                                            SCREW M3X8
                                            from £20.48
                                            from £20.48
                                            # 10
                                            -
                                            SUN SCREEN BLACK
                                            # 10
                                            -
                                            SUN SCREEN PEARL BEIGE
                                            # 10
                                            -
                                            SUN SCREEN GRAY
                                            # 10
                                            -
                                            SUN SCREEN BEIGE
                                            # 11
                                            MPN: 13046111
                                            NUT
                                            from £0.47
                                            from £0.47
                                            # 12
                                            MPN: 67730030
                                            GASKET BEIGE
                                            Supersession
                                            Supersession
                                            # 12
                                            MPN: 67730031
                                            GASKET GRAY
                                            Supersession
                                            Supersession
                                            # 12
                                            MPN: 68804500
                                            GASKET BLACK
                                            from £420.35
                                            from £420.35
                                            # 12
                                            MPN: 68804530
                                            GASKET BEIGE
                                            from £28.67
                                            from £28.67
                                            This part replaces part number 67730030
                                            # 12
                                            MPN: 68804531
                                            GASKET GRAY
                                            from £28.67
                                            from £28.67
                                            This part replaces part number 67730031
                                            # 13
                                            MPN: 67488200
                                            CENTRAL BRACKET
                                            from £11.44
                                            from £11.44
                                            # 14
                                            MPN: 67488300
                                            REAR BRACKET
                                            from £13.98
                                            from £13.98
                                            # 15
                                            MPN: 14648390
                                            NUT
                                            from £1.31
                                            from £1.31
                                            # 16
                                            MPN: 11620021
                                            SCREW
                                            from £1.55
                                            from £1.55
                                            # 17
                                            MPN: 67488900
                                            COMPLETE FRONT PIPE FOR WATER OUTLET
                                            from £37.28
                                            from £37.28
                                            # 18
                                            MPN: 67489000
                                            COMPLETE REAR PIPE FOR WATER OUTLET
                                            from £15.23
                                            from £15.23
                                            # 19
                                            MPN: 10396480
                                            CABLE GROMMET
                                            from £2.32
                                            from £2.32
                                            # 20
                                            MPN: 177553
                                            CLAMP
                                            from £0.53
                                            from £0.53
                                            # 21
                                            MPN: 94078599
                                            CLIP
                                            from £2.85
                                            from £2.85
                                            # 22
                                            MPN: 721596..
                                            SUN ROOF OPENING CONTROL
                                            Supersession
                                            Supersession
