maserati qtp. (2009) 4.2 auto rh cylinder head parts diagram

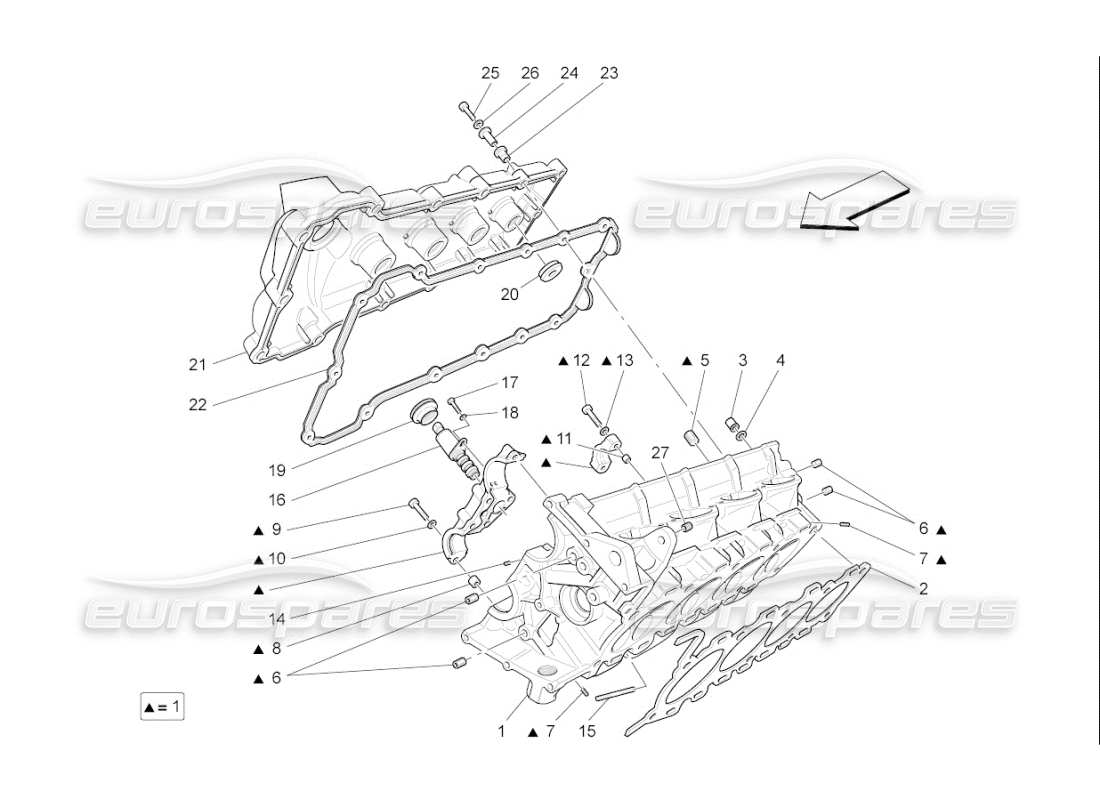

004 - RH cylinder head

Maserati QTP. (2009) 4.2 auto Rh Cylinder Head Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Price
                                                        # 01
                                                        MPN: 261272
                                                        COMPLETE RH HEAD
                                                        from £1,316.25
                                                        from £1,316.25
                                                        This part replaces part number 248931
                                                        # 01
                                                        MPN: 261327
                                                        COMPLETE RH HEAD
                                                        from £1,623.37
                                                        from £1,623.37
                                                        This part replaces part number 233695
                                                        # 01
                                                        MPN: 271221
                                                        COMPLETE RH HEAD
                                                        from £1,463.28
                                                        from £1,463.28
                                                        # 02
                                                        MPN: 211871
                                                        RH HEAD GASKET
                                                        from £102.56
                                                        from £102.56
                                                        # 03
                                                        MPN: 183524
                                                        NUT
                                                        from £1.20
                                                        from £1.20
                                                        # 04
                                                        MPN: 151117
                                                        WASHER
                                                        from £0.31
                                                        from £0.31
                                                        This part replaces part number 300266 - and 1 more. Click to view details
                                                        # 05
                                                        MPN: 14325140
                                                        THREADED PLUG
                                                        from £1.00
                                                        from £1.00
                                                        # 06
                                                        MPN: 14326001
                                                        THREADED PLUG
                                                        from £0.48
                                                        from £0.48
                                                        # 07
                                                        MPN: 199760
                                                        THREADED PLUG
                                                        from £0.52
                                                        from £0.52
                                                        # 08
                                                        MPN: 102725
                                                        CENTERING DOWEL
                                                        from £0.64
                                                        from £0.64
                                                        # 09
                                                        MPN: 14305921
                                                        SCREW
                                                        from £0.52
                                                        from £0.52
                                                        # 10
                                                        MPN: 11197774
                                                        WASHER
                                                        from £0.53
                                                        from £0.53
                                                        # 11
                                                        MPN: 102725
                                                        CENTERING DOWEL
                                                        from £0.58
                                                        from £0.58
                                                        # 12
                                                        MPN: 14305621
                                                        SCREW
                                                        from £0.71
                                                        from £0.71
                                                        # 13
                                                        MPN: 11197774
                                                        WASHER
                                                        from £0.52
                                                        from £0.52
                                                        # 15
                                                        MPN: 13543424
                                                        STUD
                                                        from £1.04
                                                        from £1.04
                                                        # 16
                                                        MPN: 296016
                                                        OIL PRESSURE CHECK VALVE
                                                        from £101.15
                                                        from £101.15
                                                        This part replaces part number 269226
                                                        # 16
                                                        MPN: 296016
                                                        OIL PRESSURE CHECK VALVE
                                                        from £101.15
                                                        from £101.15
                                                        This part replaces part number 269226
                                                        # 17
                                                        MPN: 14304224
                                                        SCREW
                                                        from £0.53
                                                        from £0.53
                                                        # 18
                                                        MPN: 11181574
                                                        WASHER
                                                        from £0.54
                                                        from £0.54
                                                        # 19
                                                        MPN: 228962
                                                        GASKET
                                                        from £6.42
                                                        from £6.42
                                                        # 20
                                                        MPN: 223982
                                                        GASKET
                                                        from £1.40
                                                        from £1.40
                                                        # 21
                                                        MPN: 228861
                                                        RH HEAD COVER
                                                        from £2,217.79
                                                        from £2,217.79
                                                        # 21
                                                        MPN: 230056
                                                        RH HEAD COVER (VALID FOR CARS WITH OIL PLUG COD. 228493)
                                                        Supersession
                                                        Supersession
                                                        # 21
                                                        MPN: 237706
                                                        RH HEAD COVER (VALID FOR CARS WITH OIL PLUG COD. 238500)
                                                        Supersession
                                                        Supersession
                                                        # 22
                                                        MPN: 211219
                                                        RH HEAD COVER GASKET
                                                        from £37.64
                                                        from £37.64
                                                        # 23
                                                        MPN: 203102
                                                        RUBBER BUSHING
                                                        from £2.65
                                                        from £2.65
                                                        # 24
                                                        MPN: 228598
                                                        BUSHING
                                                        from £1.73
                                                        from £1.73
                                                        # 25
                                                        MPN: 213129
                                                        SCREW
                                                        from £0.49
                                                        from £0.49
                                                        # 26
                                                        MPN: 11197774
                                                        WASHER
                                                        from £0.52
                                                        from £0.52
                                                        # 27
                                                        MPN: 13525970
                                                        THREADED INSERT
                                                        from £3.63
                                                        from £3.63
