maserati qtp. (2009) 4.2 auto intake manifold and throttle body parts diagram

010 - intake manifold and throttle body

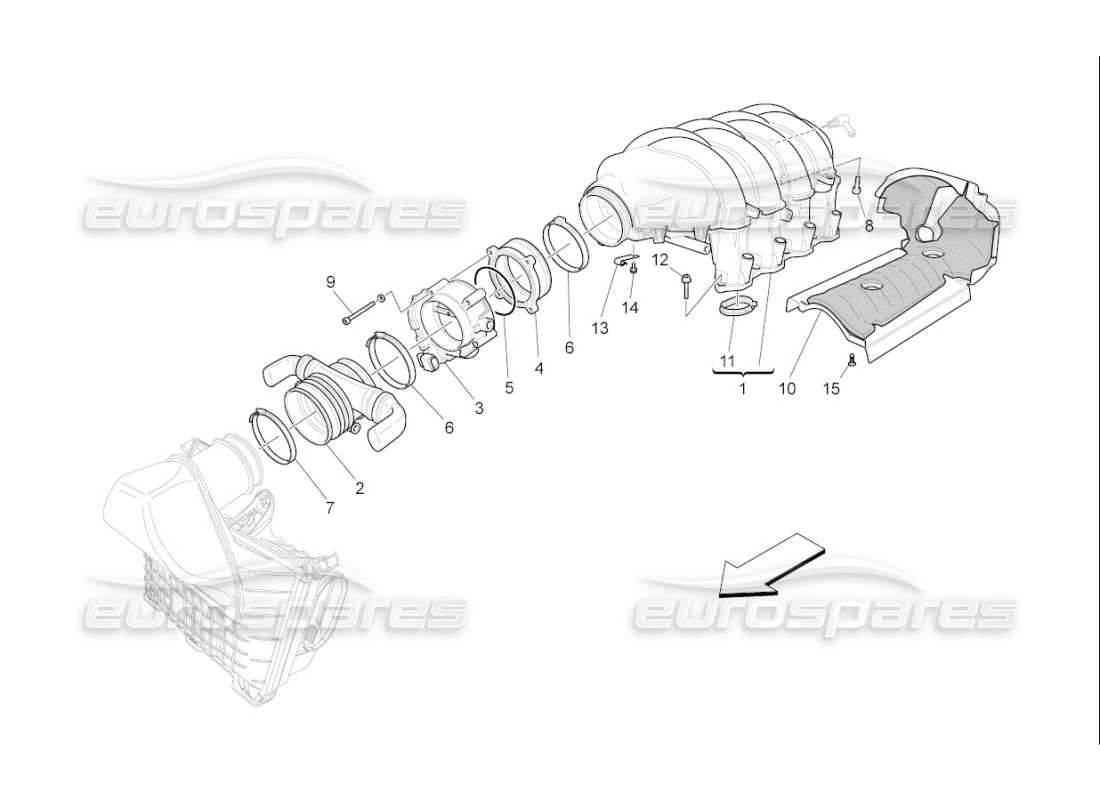

Maserati QTP. (2009) 4.2 auto Intake Manifold And Throttle Body Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Price
                                # 01
                                MPN: 231732
                                SUCTION MANIFOLD
                                Supersession
                                Supersession
                                This part replaces part number 224758
                                # 01
                                MPN: 252163
                                SUCTION MANIFOLD
                                from £563.28
                                from £563.28
                                This part replaces part number 231732
                                # 02
                                MPN: 215889
                                SLEEVE
                                from £70.32
                                from £70.32
                                # 04
                                MPN: 240262
                                SPACER
                                from £61.82
                                from £61.82
                                This part replaces part number 195206
                                # 04
                                MPN: 240262
                                SPACER
                                from £61.82
                                from £61.82
                                This part replaces part number 195206
                                # 05
                                MPN: 150302
                                O.R. GASKET VALID FOR CARS WITH SPACER (POS. 4) CODE 195206
                                from £1.66
                                from £1.66
                                # 06
                                MPN: 190151
                                CLAMP
                                from £2.07
                                from £2.07
                                # 07
                                MPN: 274889
                                CLAMP
                                from £6.81
                                from £6.81
                                This part replaces part number 233242
                                # 08
                                MPN: 14306224
                                SCREW VALID FOR CARS WITH SUCTION MANIFOLD (POS. 1) CODE 231732
                                from £0.53
                                from £0.53
                                # 09
                                MPN: 231624
                                SCREW
                                from £0.53
                                from £0.53
                                # 10
                                MPN: 224757
                                SILENCER VALID FOR CARS WITH SUCTION MANIFOLD (POS. 1) CODE 231732
                                from £152.09
                                from £152.09
                                # 11
                                MPN: 203134
                                GASKET VALID FOR CARS WITH SUCTION MANIFOLD (POS. 1) CODE 231732
                                Supersession
                                Supersession
                                # 11
                                MPN: 255738
                                GASKET
                                from £9.66
                                from £9.66
                                This part replaces part number 203134
                                # 12
                                MPN: 242177
                                SCREW
                                from £0.47
                                from £0.47
                                # 13
                                MPN: 203130
                                CLIP VALID FOR CARS WITH SUCTION MANIFOLD (POS. 1) CODE 231732
                                from £4.63
                                from £4.63
                                # 13
                                MPN: 255745
                                CLIP VALID FOR CARS WITH SUCTION MANIFOLD (POS. 1) CODE 252163
                                from £2.32
                                from £2.32
                                # 14
                                MPN: 203133
                                SCREW VALID FOR CARS WITH SUCTION MANIFOLD (POS. 1) CODE 231732
                                from £4.88
                                from £4.88
                                # 14
                                MPN: 255746
                                SCREW VALID FOR CARS WITH SUCTION MANIFOLD (POS. 1) CODE 252163
                                from £1.55
                                from £1.55
                                # 15
                                MPN: 255737
                                PIN VALID FOR CARS WITH SUCTION MANIFOLD (POS. 1) CODE 231732
                                from £1.23
                                from £1.23
