012 - FUEL TANK

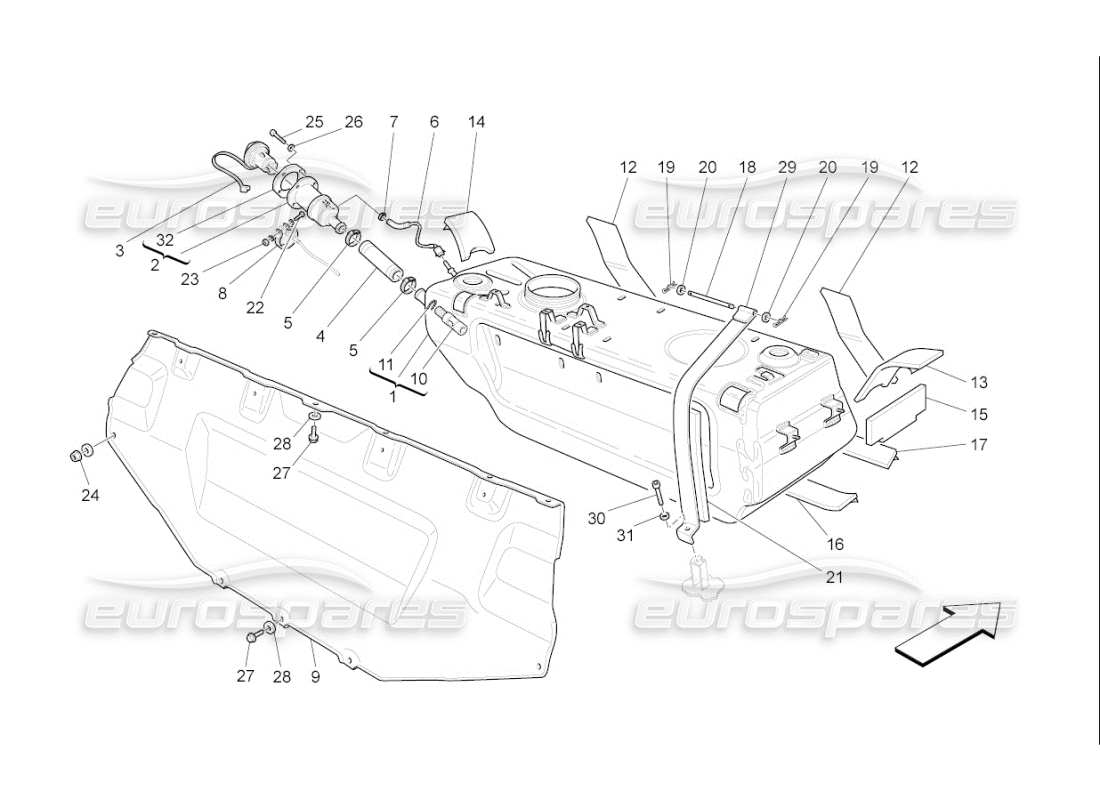

Maserati QTP. (2009) 4.2 auto Fuel Tank Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Price
                                                                  # 01
                                                                  MPN: 214699
                                                                  FUEL TANK
                                                                  from £564.38
                                                                  from £564.38
                                                                  # 01
                                                                  MPN: 233037
                                                                  FUEL TANK
                                                                  Supersession
                                                                  Supersession
                                                                  This part replaces part number 214699 which we have in stock
                                                                  # 02
                                                                  MPN: 192332
                                                                  COMPLETE FUEL UNION COMPLETE OF PLUG (POS. 3)
                                                                  from £76.52
                                                                  from £76.52
                                                                  # 02
                                                                  MPN: 222257
                                                                  COMPLETE FUEL UNION
                                                                  from £18.80
                                                                  from £18.80
                                                                  This part replaces part number 192332 which we have in stock - and 1 more. Click to view details
                                                                  # 03
                                                                  MPN: 201026
                                                                  TANK PLUG
                                                                  from £33.15
                                                                  from £33.15
                                                                  # 04
                                                                  MPN: 197828
                                                                  UNION-TANK CONNECTING PIPE
                                                                  from £10.93
                                                                  from £10.93
                                                                  # 05
                                                                  MPN: 13000590
                                                                  SCREW COLLAR
                                                                  from £0.47
                                                                  from £0.47
                                                                  # 06
                                                                  MPN: 193573
                                                                  VAPORS RECYCLING PIPE
                                                                  from £189.43
                                                                  from £189.43
                                                                  # 07
                                                                  MPN: 13432070
                                                                  COLLAR
                                                                  from £0.53
                                                                  from £0.53
                                                                  This part replaces part number 13434670
                                                                  # 08
                                                                  MPN: 203446
                                                                  COLLAR FOR GROUND CABLE
                                                                  from £32.76
                                                                  from £32.76
                                                                  # 09
                                                                  MPN: 67564100
                                                                  TANK PANEL
                                                                  from £48.17
                                                                  from £48.17
                                                                  # 09
                                                                  MPN: 68807100
                                                                  TANK PANEL
                                                                  from £85.16
                                                                  from £85.16
                                                                  This part replaces part number 67564100 which we have in stock
                                                                  # 10
                                                                  MPN: 181929
                                                                  INTERCEPTION VALVE
                                                                  from £159.04
                                                                  from £159.04
                                                                  # 11
                                                                  MPN: 181930
                                                                  CLIP
                                                                  from £10.05
                                                                  from £10.05
                                                                  # 12
                                                                  MPN: 192990
                                                                  RUBBER THICKNESS
                                                                  from £7.19
                                                                  from £7.19
                                                                  # 13
                                                                  MPN: 192993
                                                                  RH RUBBER THICKNESS
                                                                  from £5.09
                                                                  from £5.09
                                                                  # 14
                                                                  MPN: 192994
                                                                  LH RUBBER THICKNESS
                                                                  from £6.42
                                                                  from £6.42
                                                                  # 15
                                                                  MPN: 192329
                                                                  RUBBER THICKNESS
                                                                  from £2.85
                                                                  from £2.85
                                                                  # 16
                                                                  MPN: 192991
                                                                  LOWER RUBBER THICKNESS
                                                                  from £13.98
                                                                  from £13.98
                                                                  # 17
                                                                  MPN: 192992
                                                                  LOWER RUBBER THICKNESS
                                                                  from £9.20
                                                                  from £9.20
                                                                  # 19
                                                                  MPN: 58841309
                                                                  SAFETY CLIP
                                                                  from £1.83
                                                                  from £1.83
                                                                  This part replaces part number 670000498 - and 2 more. Click to view details
                                                                  # 20
                                                                  MPN: 12648206
                                                                  WASHER
                                                                  from £0.48
                                                                  from £0.48
                                                                  # 21
                                                                  MPN: 221335
                                                                  ADHESIVE GASKET
                                                                  from £3.75
                                                                  from £3.75
                                                                  # 22
                                                                  MPN: 10389321
                                                                  SCREW
                                                                  from £0.54
                                                                  from £0.54
                                                                  # 23
                                                                  MPN: 14059121
                                                                  NUT
                                                                  from £0.54
                                                                  from £0.54
                                                                  # 24
                                                                  MPN: 14040611
                                                                  NUT
                                                                  from £0.53
                                                                  from £0.53
                                                                  # 25
                                                                  MPN: 13289277
                                                                  SCREW
                                                                  from £1.85
                                                                  from £1.85
                                                                  # 26
                                                                  MPN: 389200348
                                                                  WASHER
                                                                  from £4.17
                                                                  from £4.17
                                                                  # 27
                                                                  MPN: 11625724
                                                                  SCREW
                                                                  from £0.58
                                                                  from £0.58
                                                                  # 28
                                                                  MPN: 12643724
                                                                  WASHER
                                                                  from £0.48
                                                                  from £0.48
                                                                  # 29
                                                                  MPN: 223524
                                                                  FUEL TANK FASTENER
                                                                  from £12.68
                                                                  from £12.68
                                                                  # 29
                                                                  MPN: 239711
                                                                  FUEL TANK FASTENER
                                                                  from £6.97
                                                                  from £6.97
                                                                  # 30
                                                                  MPN: 205402
                                                                  SCREW
                                                                  from £1.55
                                                                  from £1.55
                                                                  # 31
                                                                  MPN: 13550224
                                                                  WASHER
                                                                  from £0.92
                                                                  from £0.92
                                                                  # 32
                                                                  MPN: 980139787
                                                                  GASKET
                                                                  from £1.08
                                                                  from £1.08
                                                                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
