maserati qtp. (2009) 4.2 auto lubrication system: pump and filter parts diagram

018 - lubrication system: pump and filter

Maserati QTP. (2009) 4.2 auto Lubrication System: Pump And Filter Parts Diagram

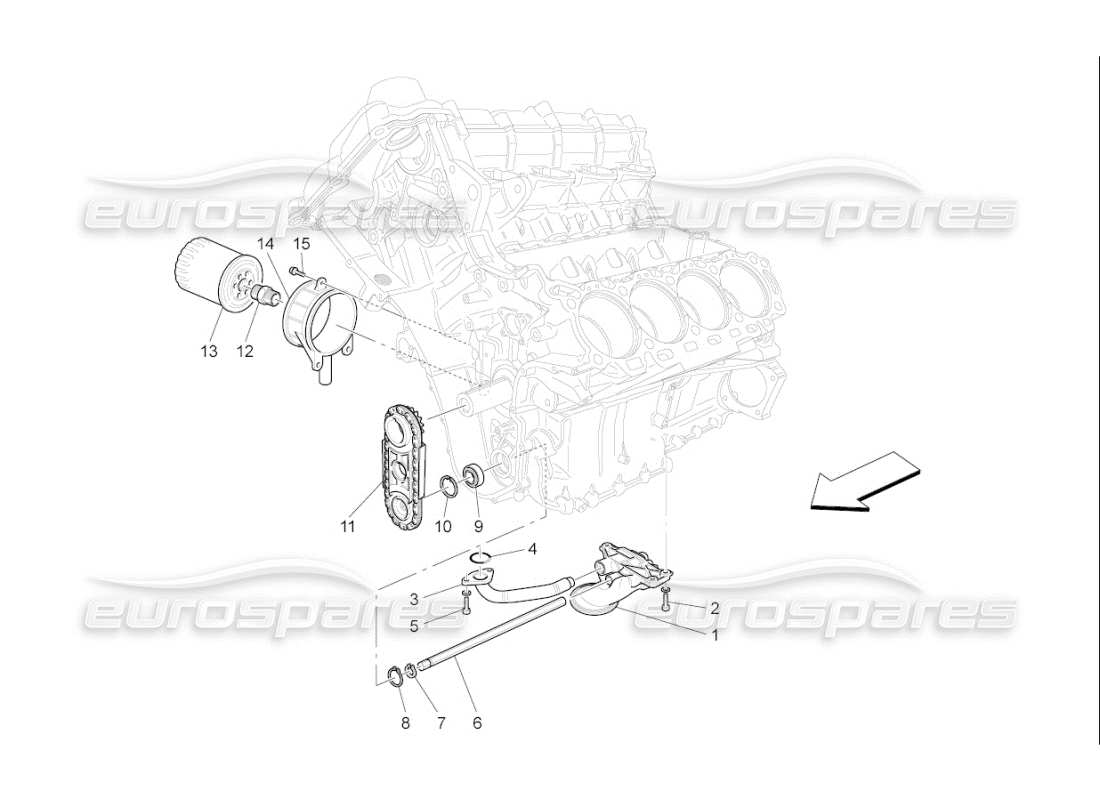

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Price
                                # 01
                                MPN: 228233
                                COMPLETE OIL PUMP
                                from £332.94
                                from £332.94
                                # 02
                                MPN: 231629
                                SCREW
                                from £0.53
                                from £0.53
                                # 03
                                MPN: 223417
                                OIL DELIVERY TUBE
                                from £737.24
                                from £737.24
                                # 04
                                MPN: 140071
                                O.R. GASKET
                                from £0.51
                                from £0.51
                                # 05
                                MPN: 231618
                                SCREW
                                from £0.53
                                from £0.53
                                # 06
                                MPN: 225963
                                OIL PUMP CONTROL BAR
                                from £10.15
                                from £10.15
                                # 07
                                MPN: 11066176
                                SEEGER RING
                                from £0.53
                                from £0.53
                                # 08
                                MPN: 11066876
                                SEEGER RING
                                from £0.47
                                from £0.47
                                # 09
                                MPN: 216239
                                BEARING
                                from £10.86
                                from £10.86
                                # 10
                                MPN: 11059676
                                SEEGER RING
                                from £0.47
                                from £0.47
                                # 11
                                MPN: 223267
                                OIL PUMP CONTROL SET
                                from £280.01
                                from £280.01
                                # 12
                                MPN: 225838
                                THREADED UNION
                                from £6.69
                                from £6.69
                                # 13
                                MPN: 289571
                                OIL FILTER CARTRIDGE
                                from £47.49
                                from £47.49
                                This part replaces part number 280465
                                # 14
                                MPN: 237837
                                OIL FILTER BOOT
                                from £31.43
                                from £31.43
                                # 15
                                MPN: 231617
                                SCREW
                                from £0.53
                                from £0.53
