021 - oil vapour recirculation system

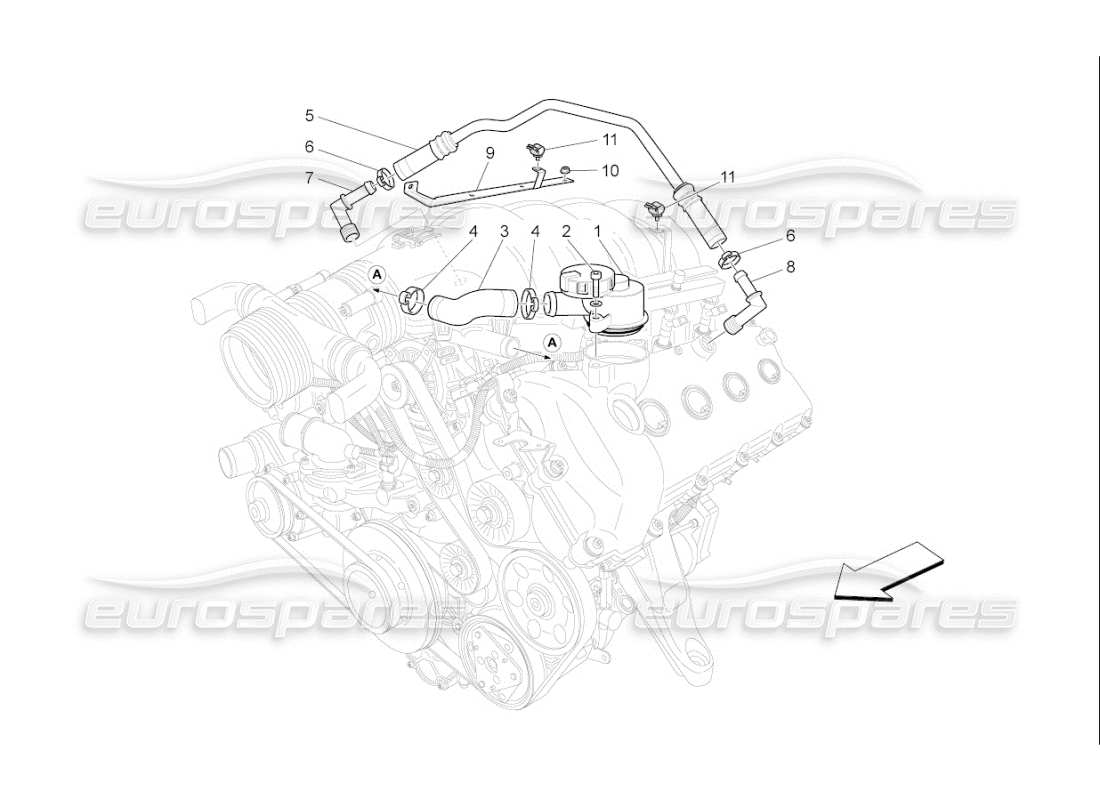

Maserati QTP. (2009) 4.2 auto Oil Vapour Recirculation System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 01
MPN: 219111
OIL DISAREATOR
from £217.38
from £217.38
# 02
MPN: 231621
SCREW
from £0.53
from £0.53
# 03
MPN: 224272
PIPE FROM DISAREATOR TO SUCTION MANIFOLD
from £9.51
from £9.51
# 04
MPN: 224271
CLAMP
from £0.86
from £0.86
# 05
MPN: 227297
HEAD CONNECTING VENT PIPE
from £739.50
from £739.50
# 06
MPN: 178053
CLAMP
from £0.97
from £0.97
# 07
MPN: 224597
THREADED UNION IN THE RH HEAD
Supersession
Supersession
# 07
MPN: 235288
THREADED UNION IN THE RH HEAD
from £17.12
from £17.12
This part replaces part number 224597
# 08
MPN: 224596
THREADED UNION IN THE LH HEAD
Supersession
Supersession
# 08
MPN: 235287
THREADED UNION IN THE LH HEAD
from £17.12
from £17.12
This part replaces part number 224596
# 09
MPN: 230832
BRACKET
from £1,085.69
from £1,085.69
# 10
MPN: 14040715
NUT
from £1.08
from £1.08
# 11
MPN: 191273
CLIP
from £0.71
from £0.71
