maserati qtp. (2009) 4.2 auto braking devices on front wheels parts diagram

036 - braking devices on front wheels

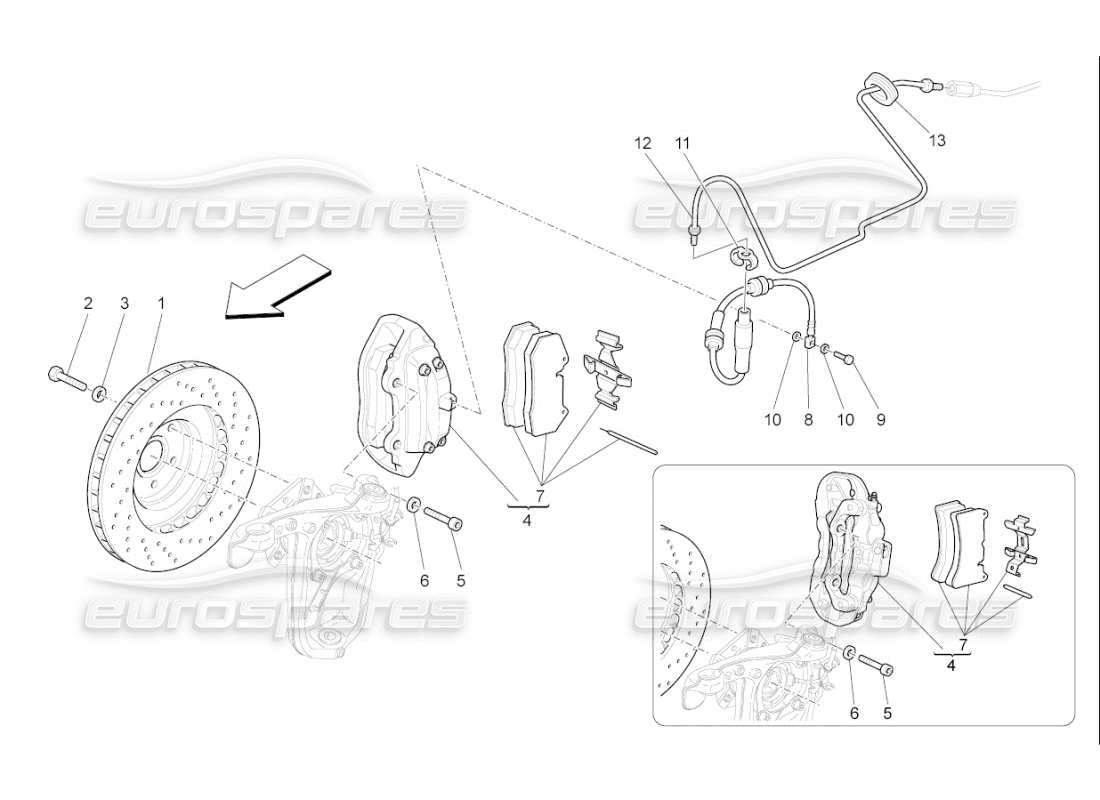

Maserati QTP. (2009) 4.2 auto Braking Devices On Front Wheels Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 00
                        MPN: 202016/A
                        FRONT BRAKE KIT
                        iincludes 1x 216226 and 2x202016 Pack sport version, Manufactured In Italy Chassis Number Required
                        # 01
                        MPN: 202016
                        FRONT BRAKE DISC
                        Pack sport version (priced per disc) Chassis Number Required O/D 330MM, Thickness 30mm
                        from £195.00
                        from £195.00
                        # 02
                        MPN: 16043424
                        SCREW
                        from £0.51
                        from £0.51
                        # 03
                        MPN: 12601374
                        WASHER
                        from £0.53
                        from £0.53
                        # 04
                        -
                        COMPLETE RH FRONT CALIPER
                        # 04
                        -
                        COMPLETE LH FRONT CALIPER
                        # 05
                        MPN: 14311734
                        SCREW
                        from £19.47
                        from £19.47
                        # 06
                        MPN: 11194174
                        WASHER
                        from £1.85
                        from £1.85
                        # 07
                        MPN: 216226
                        KIT OF FRONT PADS
                        Manufactured In Italy Chassis Number Required
                        from £405.73
                        from £405.73
                        This part replaces part number 206675
                        # 07
                        MPN: 9835916485
                        WEAR SENSOR
                        BRAKE PADS NOT INCLUDED
                        from £22.30
                        from £22.30
                        # 08
                        -
                        FLEXIBLE PIPE TO FRONT CALIPERS
                        # 09
                        MPN: 198489
                        UNION
                        from £3.24
                        from £3.24
                        This part replaces part number 204175
                        # 10
                        MPN: 219553
                        WASHER
                        from £9.81
                        from £9.81
                        This part replaces part number 198490
                        # 11
                        MPN: 228185
                        CLIP
                        from £2.85
                        from £2.85
                        This part replaces part number 387400301
                        # 11
                        MPN: 228185
                        CLIP
                        from £2.85
                        from £2.85
                        This part replaces part number 387400301
                        # 12
                        MPN: 198082
                        RIGID PIPE FROMRH CONNECTION TO RH FRONT WHEEL
                        from £9.10
                        from £9.10
                        # 12
                        MPN: 252239
                        RIGID PIPE FROM LH CONNECTION TO LH FRONT WHEEL
                        from £13.04
                        from £13.04
                        # 12
                        MPN: 252239
                        RIGID PIPE FROM LH CONNECTION TO LH FRONT WHEEL REPLACE ALSO: RIGID PIPE FROM CONTROL UNIT TO LH CONNECTION (COD.252240)
                        from £13.04
                        from £13.04
                        # 13
                        MPN: 10396680
                        CABLE GROMMET
                        from £1.08
                        from £1.08
