maserati qtp. (2010) 4.7 rear doors: mechanisms parts diagram

111 - rear doors: mechanisms

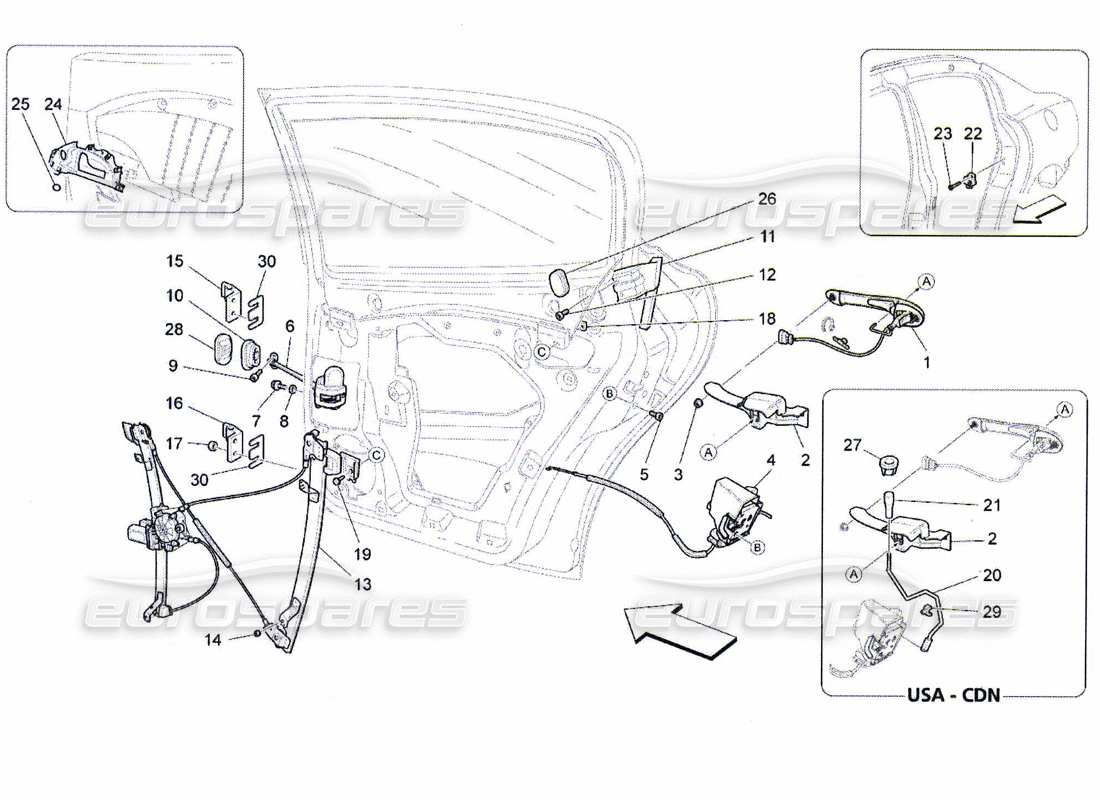

Maserati QTP. (2010) 4.7 Rear Doors: Mechanisms Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Price
                                                    # 001
                                                    -
                                                    LH HANDLE FOR DOOR OPENING
                                                    # 002
                                                    MPN: 67865600
                                                    RH REAR HANDLE BOX
                                                    from £33.70
                                                    from £33.70
                                                    # 002
                                                    MPN: 67865700
                                                    LH REAR HANDLE BOX
                                                    from £6.97
                                                    from £6.97
                                                    # 003
                                                    MPN: 14040514

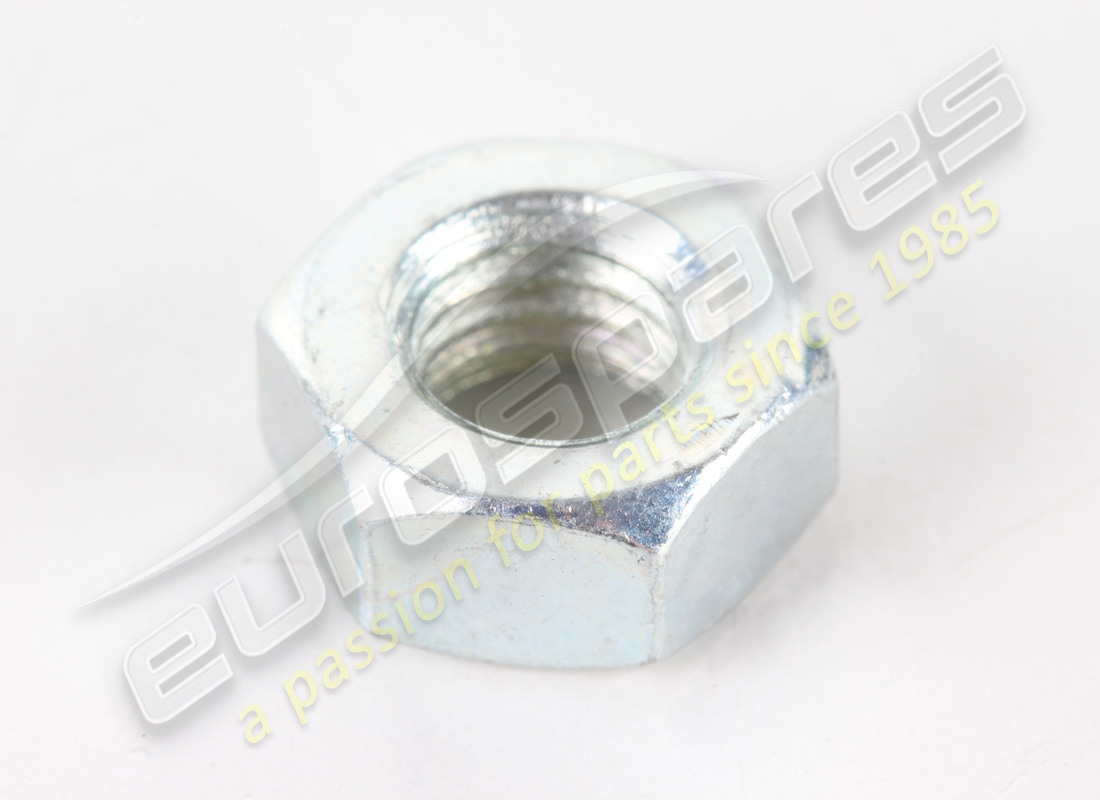

                                                    NUT
                                                    from £0.53
                                                    from £0.53
                                                    # 004
                                                    MPN: 68206400
                                                    RH REAR DOOR LOCK
                                                    from £116.16
                                                    from £116.16
                                                    # 004
                                                    MPN: 68206500
                                                    LH REAR DOOR LOCK
                                                    from £107.58
                                                    from £107.58
                                                    # 005
                                                    MPN: 67077900
                                                    SCREW
                                                    from £0.52
                                                    from £0.52
                                                    # 006
                                                    MPN: 82519300
                                                    TIE ROD
                                                    from £157.77
                                                    from £157.77
                                                    This part replaces part number 66514400
                                                    # 007
                                                    MPN: 67077800
                                                    SCREW
                                                    from £1.55
                                                    from £1.55
                                                    # 008
                                                    MPN: 12643724
                                                    WASHER
                                                    from £0.51
                                                    from £0.51
                                                    # 009
                                                    MPN: 68808500
                                                    SCREW
                                                    from £2.47
                                                    from £2.47
                                                    # 011
                                                    MPN: 67271400
                                                    RH REAR GLASS GUIDE
                                                    from £12.81
                                                    from £12.81
                                                    # 011
                                                    MPN: 67271500
                                                    LH REAR GLASS GUIDE
                                                    from £12.81
                                                    from £12.81
                                                    # 012
                                                    MPN: 46401657
                                                    SCREW
                                                    from £0.53
                                                    from £0.53
                                                    # 013
                                                    MPN: 84934400

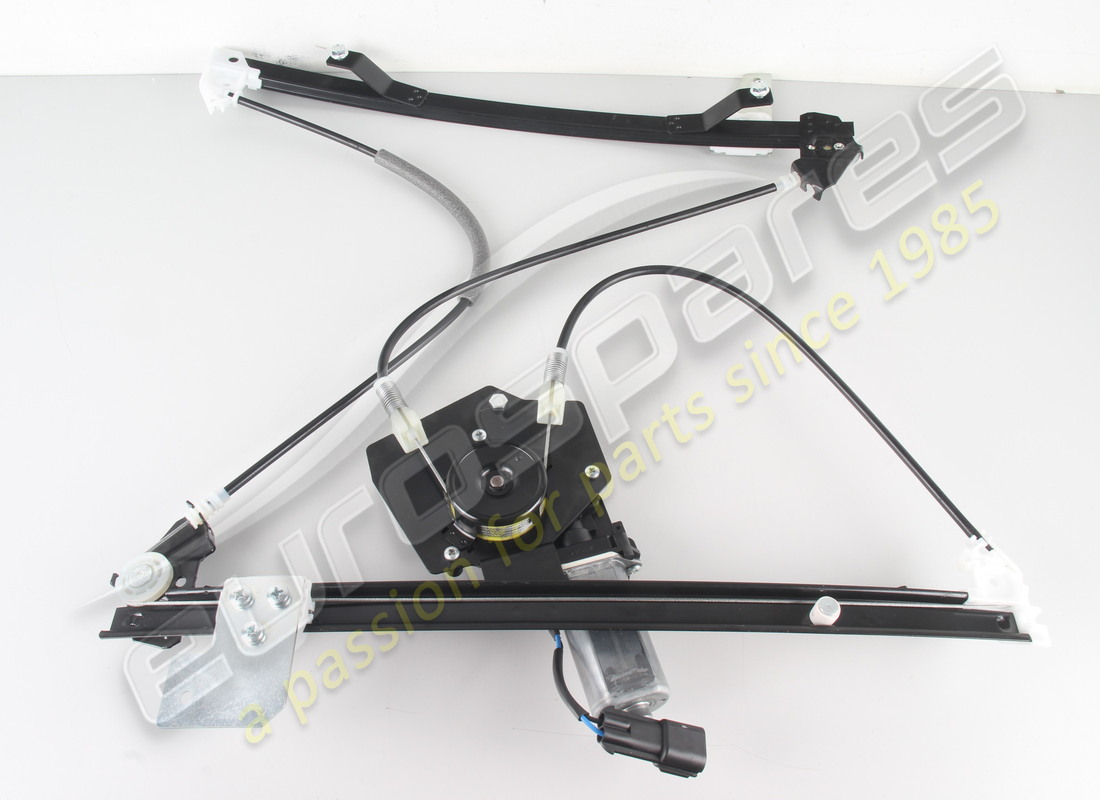

                                                    REAR RH GLASS LIFT
                                                    from £212.50
                                                    from £212.50
                                                    This part replaces part number 66945400
                                                    # 013
                                                    MPN: 84934500
                                                    REAR LH GLASS LIFT
                                                    from £212.50
                                                    from £212.50
                                                    This part replaces part number 66945500
                                                    # 014
                                                    MPN: 14040614
                                                    NUT
                                                    from £0.53
                                                    from £0.53
                                                    # 015
                                                    MPN: 67880900
                                                    UPPER RH HINGE
                                                    from £50.71
                                                    from £50.71
                                                    # 015
                                                    MPN: 67881000
                                                    UPPER LH HINGE
                                                    from £50.71
                                                    from £50.71
                                                    # 016
                                                    MPN: 66814900
                                                    LOWER RH HINGE
                                                    from £64.06
                                                    from £64.06
                                                    # 016
                                                    MPN: 66815000
                                                    LOWER LH HINGE
                                                    from £64.06
                                                    from £64.06
                                                    # 017
                                                    MPN: 15501025
                                                    NUT
                                                    from £0.77
                                                    from £0.77
                                                    # 018
                                                    MPN: 67712400
                                                    PLATE
                                                    from £0.85
                                                    from £0.85
                                                    # 019
                                                    MPN: 16296924
                                                    SCREW
                                                    from £0.51
                                                    from £0.51
                                                    # 022
                                                    MPN: 68308800
                                                    STRIKER
                                                    - Not as spare part - use: 85321500
                                                    from £5.75
                                                    from £5.75
                                                    This part replaces part number 67877100
                                                    # 022
                                                    MPN: 85321500
                                                    STRIKER
                                                    from £10.51
                                                    from £10.51
                                                    This part replaces part number 68308800
                                                    # 023
                                                    MPN: 67999500
                                                    SCREW
                                                    from £0.85
                                                    from £0.85
                                                    # 024
                                                    -
                                                    COMPLETE RH HANDLE FOR DOOR OPENING
                                                    # 024
                                                    -
                                                    COMPLETE LH HANDLE FOR DOOR OPENING
                                                    # 025
                                                    MPN: 66939600
                                                    PLUG
                                                    from £5.57
                                                    from £5.57
                                                    # 026
                                                    MPN: 67886000
                                                    PLUG
                                                    from £6.81
                                                    from £6.81
                                                    # 028
                                                    MPN: 67079200
                                                    RH GASKET
                                                    from £2.80
                                                    from £2.80
                                                    # 028
                                                    MPN: 67723400
                                                    LH GASKET
                                                    from £2.80
                                                    from £2.80
