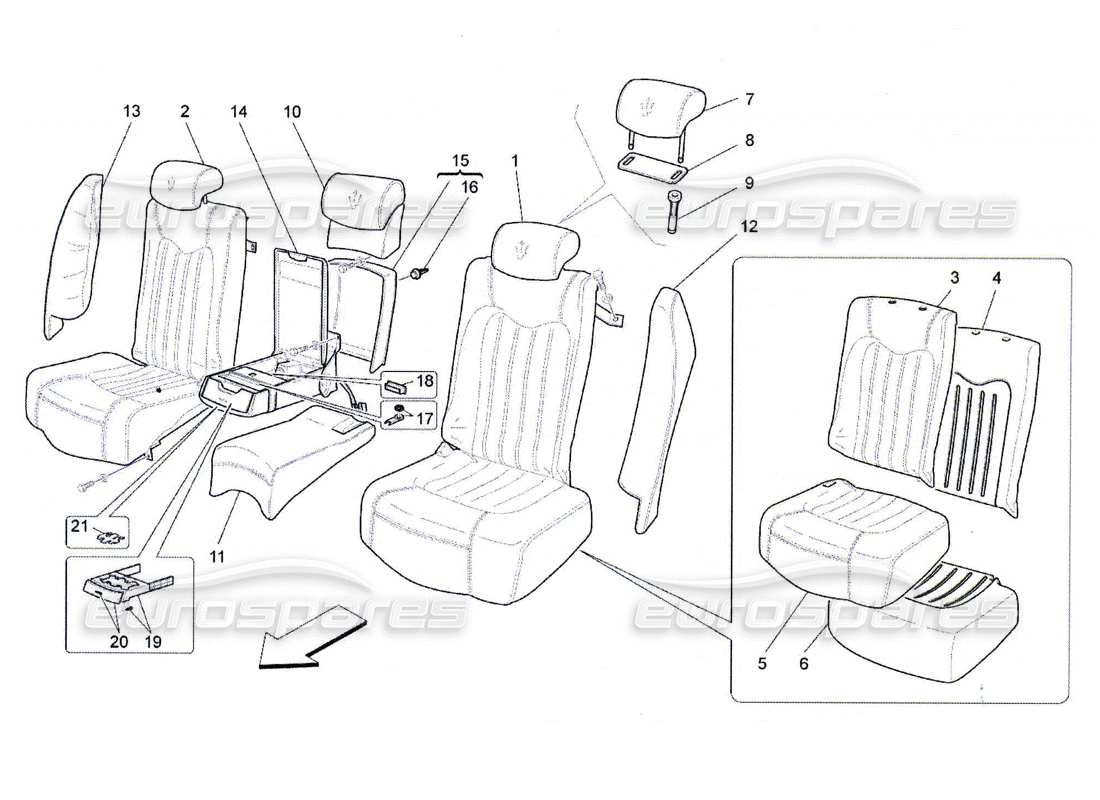

118 - rear seats: trim panels
Maserati QTP. (2010) 4.7 Rear Seats: Trim Panels Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
-
COMPLETE LH REAR SEAT
# 002
-
COMPLETE RH REAR SEAT
# 003
-
LH REAR SEAT BACK LINING
# 003
-
RH REAR SEAT BACK LINING
# 004
-
LH REAR SEAT BACK PADDING
# 004
-
RH REAR SEAT BACK PADDING
# 005
-
L.H, REAR CUSHION LINING
# 005
-
RH REAR CUSHION LINING
# 006
-
LH REAR CUSHION PADDING
# 006
-
RH REAR CUSHION PADDING
# 007
MPN: 9814396
COMPLETE LATERAL REAR HEAD-REST
# 008
MPN: 981316500
REAR HEAD-REST PLATE
from £592.63
from £592.63
This part replaces part number 9813165.. - and 1 more. Click to view details
# 009
MPN: 9813166
BUSHING WITH RELEASE
# 009
MPN: 9813167
BUSHING WITHOUT RELEASE
# 010
MPN: 9814216
COMPLETE CENTRAL REAR HEAD-REST
# 011
MPN: 9813169
COMPLETE CENTRAL LOWER MOULDING
# 012
MPN: 9814208
LH SIDE MOULDING FOR REAR SEAT
# 013
MPN: 9814209
RH SIDE MOULDING FOR REAR SEAT
# 014
-
COMPLETE REAR ARM-REST
# 015
MPN: 9813175
ARM-REST COVER
# 016
MPN: 980139518
CLIP
from £8.19
from £8.19
# 017
MPN: 980139605
SMALL LINK KIT FOR REAR ARM-REST
from £36.45
from £36.45
# 018
MPN: 980139606
REAR ARM-REST DOME LAMP KIT
from £71.86
from £71.86
# 019
MPN: 980139628
CAN HOLDER REPLACEMENT KIT CONSIST OF: CAN HOLDER - GASKET - RESTRAINER - SCREW
from £200.32
from £200.32
# 020
MPN: 9814394
CAN HOLDER PLATE KIT CONSIST OF: PLATE - SCREW - CHROMATE MOULDING
Supersession
Supersession
# 021
MPN: 980139631
CUP HOLDER REPAIR BRACKET
from £20.88
from £20.88
