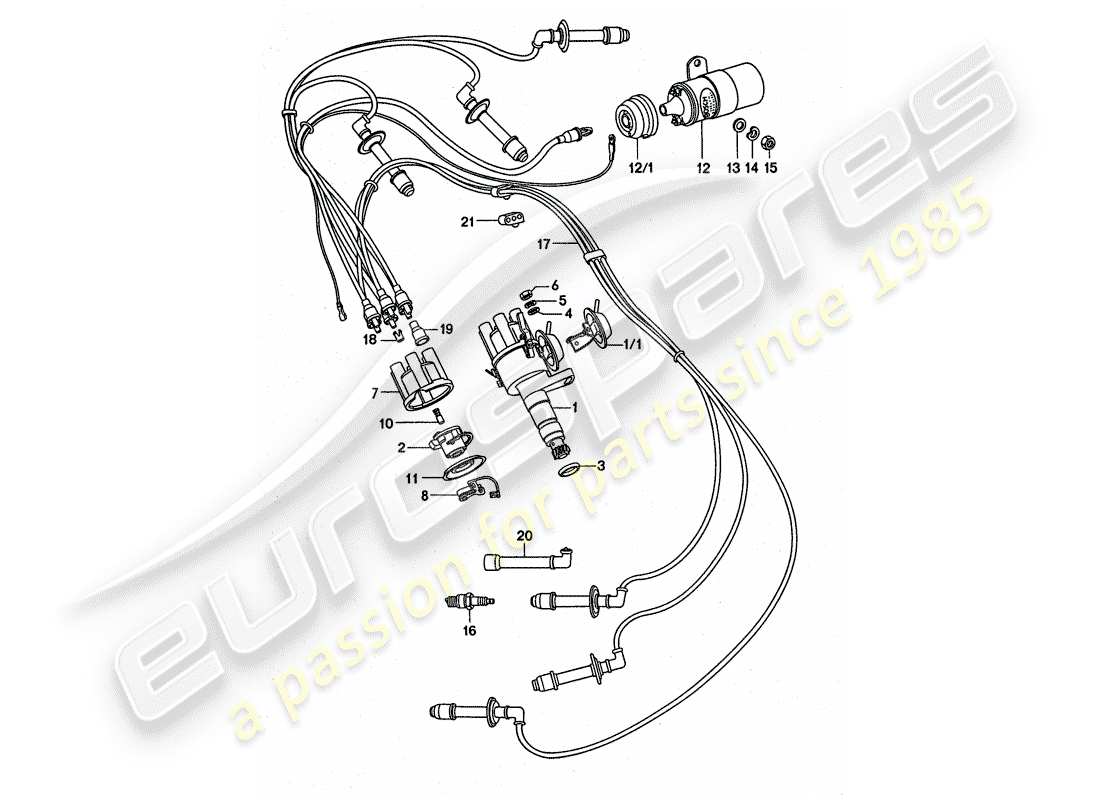

901-000 - ENGINE ELECTRICS
Porsche 1977 (911 Turbo) ENGINE ELECTRICS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 93060210100
DISTRIBUTOR
# 1
MPN: 930602101 X
distributor - - bosch - - for - 930/50/51/52/53
# 1
MPN: 93060210101
DISTRIBUTOR
(930/54)
# 1
MPN: 93060290300
VACUUM UNIT - - BOSCH -
# 2
MPN: 93060290101
ROTOR - - BOSCH - - DISCONTINUED PART
# 2
MPN: 93060290104
ROTOR - - BOSCH -
from £48.44
from £48.44
# 2
MPN: 93060290103
ROTOR - - BOSCH - - DISCONTINUED PART
# 2
MPN: 93060290103
ROTOR - - BOSCH -
# 3
MPN: 91160210201
SEAL RING
from £3.60
from £3.60
# 4
MPN: 90002500702
WASHER - B 8,4 - DISCONTINUED PART
# 4
MPN: 90002500703
WASHER - B 8,4
from £0.84
from £0.84
# 5
MPN: N 0122418
SPRING WASHER - 8 X 15
from £0.70
from £0.70
# 6
MPN: 90007602502
HEX. NUT - M 8 - DISCONTINUED PART
Supersession
Supersession
# 6
MPN: 90007606402
hex. nut - M 8
from £0.59
from £0.59
# 7
MPN: 93060290400
DISTRIBUTOR CAP - - BOSCH - - DISCONTINUED PART
# 7
MPN: 93060290401
Distributor cap - - bosch -
from £42.73
from £42.73
# 10
MPN: 93060290500
WIPER CONTACT - - BOSCH -
# 11
MPN: 93060290600
DUST COVER - - BOSCH -
# 12
MPN: 93060250300
IGNITION TRANSFORMER - DISCONTINUED PART
# 12
MPN: 93060250301
IGNITION TRANSFORMER - DISCONTINUED PART
# 12
MPN: 90160250200
ignition transformer
from £267.20
from £267.20
# 12
MPN: 91160280100
PROTECTIVE CAP
from £4.39
from £4.39
# 13
MPN: 90002500702
WASHER - 8,4 - DISCONTINUED PART
# 13
MPN: 90002500703
WASHER - 8,4
from £0.84
from £0.84
# 14
MPN: N 0122418
SPRING WASHER - B 8 X 15
from £0.70
from £0.70
# 15
MPN: 90007602502
HEX. NUT - M 8 - DISCONTINUED PART
Supersession
Supersession
# 15
MPN: 90007606402
hex. nut - M 8
from £0.59
from £0.59
# -
-
SPARK PLUG - ALSO USE: - FOR - SPARK PLUG
-547 09 222
# -
-
NUT - FOR - SPARK PLUG
# 16
MPN: 99917012890
SPARK PLUG - - BOSCH -
from £30.23
from £30.23
# 17
MPN: 91160901007
1 SET OF IGNITION LEADS - GESCHIRMT
RIGHT
from £265.81
from £265.81
# 17
MPN: 91160901107
1 SET OF IGNITION LEADS - GESCHIRMT
LEFT
from £265.81
from £265.81
# -
-
IGNITION WIRE - DISTRIBUTOR - IGNITION TRANSFORMER - D - MJ 1976>>
# -
-
IGNITION WIRE - 5 METER - D >> - MJ 1975
# 18
MPN: 91160951000
CABLE PLUG - DISCONTINUED PART
# 18
MPN: PCG60951000
CABLE PLUG
from £3.19
from £3.19
# 19
MPN: 99965900140
WATER PROTECTION CAP
from £5.03
from £5.03
# 20
MPN: 90160930900
SCREENED CONNECTOR - D >> - MJ 1976 - DISCONTINUED PART
# 20
MPN: 90160930901
SCREENED CONNECTOR
from £44.41
from £44.41
# 20
MPN: 91160231500
spark plug connector - D - MJ 1977>>
from £35.63
from £35.63
# 21
MPN: 90160959100
CABLE HOLDER
from £10.87
from £10.87
# -
-
connector (screened) for - ignition leads
