813-030 - AIR CONDITIONER

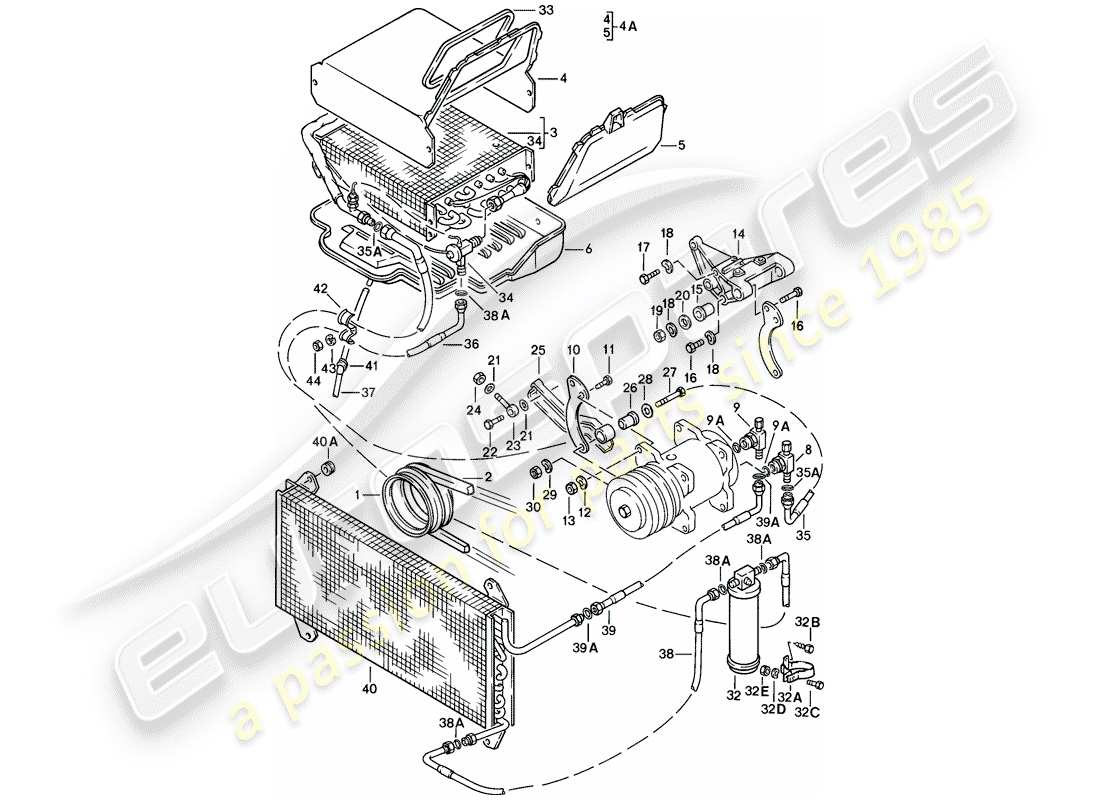

Porsche 1978 (924) AIR CONDITIONER Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 046105255F
V-BELT PULLEY
# -
-
bolt, with hex. socket - hd. - M 8 X 30
# 2
MPN: 047260849
V-BELT
# 3
MPN: 477820013
evaporator
# -
-
EVAPORATOR HOUSING
# 4
MPN: 477820015A
EVAPORATOR HOUSING
# 5
MPN: 477820019A
COVER - EVAPORATOR HOUSING
# 6
MPN: 477820031A
DRIP TRAY
from £2.10
from £2.10
# 8
MPN: 059260855A
SUCTION VALVE
# 9
MPN: 059260865A
PRESSURE VALVE
# 9
MPN: 477298821
O-RING
# -
-
MOUNT - COMPRESSOR - SEE TPI - GRUPPE 8,NR.8
# 10
MPN: 048260885A
COMPRESSOR BRACKETS
# 10
MPN: 047260883A
BRACKET
FRONT
# 10
MPN: 047260859A
BRACKET
rear
# -
-
SCREW, HEX. HD. - M 10 X 125
# -
-
WASHER - A 10,5 - DISCONTINUED PART
# -
-
Washer - A 10,5
# -
-
Washer - A 10,5
Yellow
# -
-
HEX. NUT - M 10 - DISCONTINUED PART
# -
-
hex. nut - M 10
# -
-
SPRING WASHER - B 10
# -
-
WASHER
# 11
MPN: 90007514802
SCREW, HEX. HD. - M 10 X 32
from £4.52
from £4.52
# 12
MPN: N 0122306
SPRING WASHER - B 10
# 13
MPN: N 0110106
HEX. NUT - M 10 - DISCONTINUED PART
# 13
MPN: N 10155210
hex. nut - M 10
from £1.34
from £1.34
# 14
MPN: 046260889A
BRACKET
# 14
MPN: 047260877E
BRACKET
from £172.68
from £172.68
# -
-
VIBRATION DAMPER
# 15
MPN: 048260905B
RUBBER ISOLATOR
# 16
MPN: N 0104453
SCREW, HEX. HD. - M 10 X 45
# 16
MPN: 90007406302
SCREW, HEX. HD. - M 10 X 55
# 16
MPN: 90007438001
SCREW, HEX. HD. - M 10 X 55
from £2.20
from £2.20
# 17
MPN: N 0104553
SCREW, HEX. HD. - M 10 X 55
from £3.61
from £3.61
# 17
MPN: 90007406502
SCREW, HEX. HD. - M 10 X 70
# 18
MPN: N 0122306
SPRING WASHER - B 10
# 19
MPN: N 0110106
HEX. NUT - M 10 - DISCONTINUED PART
# 19
MPN: N 10155210
hex. nut - M 10
from £1.37
from £1.37
# 20
MPN: 111857707A
SPACER WASHER - DISCONTINUED PART
# 20
MPN: WHT001373
SPACER WASHER
from £4.55
from £4.55
# 21
MPN: N 01152513
WASHER
# 21
MPN: 211843661
WASHER
# 22
MPN: N 01024411
SCREW, HEX. HD. - M 8 X 30 - DISCONTINUED PART
# 22
MPN: N 01024425
SCREW, HEX. HD. - M 8 X 30
from £1.97
from £1.97
# 22
MPN: 90007504302
SCREW, HEX. HD. - M 10 X 30
Supersession
Supersession
# 23
MPN: N 0160781
eye bolt - M 8 X 60
# 23
MPN: N 90079801
EYE BOLT
# 24
MPN: 311101463
HEX. NUT, SELF-LOCKING - M 8
from £5.57
from £5.57
# 25
MPN: 047260903B
BRACKET
# 26
MPN: 048260905B
RUBBER ISOLATOR
# 27
MPN: N 0104602
SCREW, HEX. HD. - M 10 X 60
from £2.45
from £2.45
# 28
MPN: N 01152712
WASHER - A 10,5 - DISCONTINUED PART
# 28
MPN: 90002508101
Washer - A 10,5
from £1.33
from £1.33
# 29
MPN: N 0122306
SPRING WASHER - B 10
# 30
MPN: N 0110106
HEX. NUT - M 10 - DISCONTINUED PART
# 30
MPN: N 10155210
hex. nut - M 10
from £1.41
from £1.41
# 32
MPN: 94457394300
RECEIVER DRIER
from £128.85
from £128.85
# 32
MPN: 477820195
BRACKET - FLUID CONTAINER
# 32
MPN: N 0138845
TAPPING SCREW,HEX.HD. - B 4,8 X 13
from £0.87
from £0.87
# 32
MPN: N 0102644
SCREW, HEX. HD. - M 5 X 20
from £1.24
from £1.24
# 32
MPN: N 0120053
LOCK RING - 5
from £0.66
from £0.66
# 32
MPN: N 01100514
HEX. NUT - M 5 - DISCONTINUED PART
# 32
MPN: 90007609101
hex. nut - M 5
from £1.00
from £1.00
# 33
MPN: 477820655
GASKET - EVAPORATOR HOUSING
# -
-
GASKET
# -
-
CLAMP
# -
-
SCREW, HEX. HD. - M 6 X 15
# -
-
NUT - M 6 - DISCONTINUED PART
# -
-
NUT - M 6
# -
-
LOCK RING - B 6
# 34
MPN: 843820679
EXPANSION VALVE
# 35
MPN: 477820723
HOSE - COMPRESSOR - EVAPORATOR
# 35
MPN: 803260749B
O-RING
# 36
MPN: 477820725
HOSE - FLUID CONTAINER - EVAPORATOR
# 37
MPN: 477820727B
HOSE
# 38
MPN: 477820729
HOSE - CAPACITOR - FLUID CONTAINER - O-RING
# -
-
CLAMP
# -
-
TAPPING SCREW, FILL. HD. - B 4,8 X 9,5
# -
-
TAPPING SCREW, FILL. HD. - B 4,8 X 9,5
# 39
MPN: 477820731
HOSE - COMPRESSOR - CAPACITOR
# 39
MPN: 803260749A
O-RING
# 40
MPN: 477820751A
capacitor
# 40
MPN: 477820773
GROMMET
# 41
MPN: 477820752
GROMMET
# 42
MPN: 477820757
CLAMP
from £0.92
from £0.92
# 43
MPN: N 0120261
LOCK RING - B 6
# 44
MPN: 90007601002
NUT - M 6 - DISCONTINUED PART
# 44
MPN: 9000760100B
NUT - M 6
from £0.73
from £0.73
# -
-
VERSION - REINFORCED - FOR - COMPRESSOR - INSTALLATION - SEE ILLUSTRATION: - CAN - INSTEAD OF - POS.24-42 - MOUNTED - BECOME
