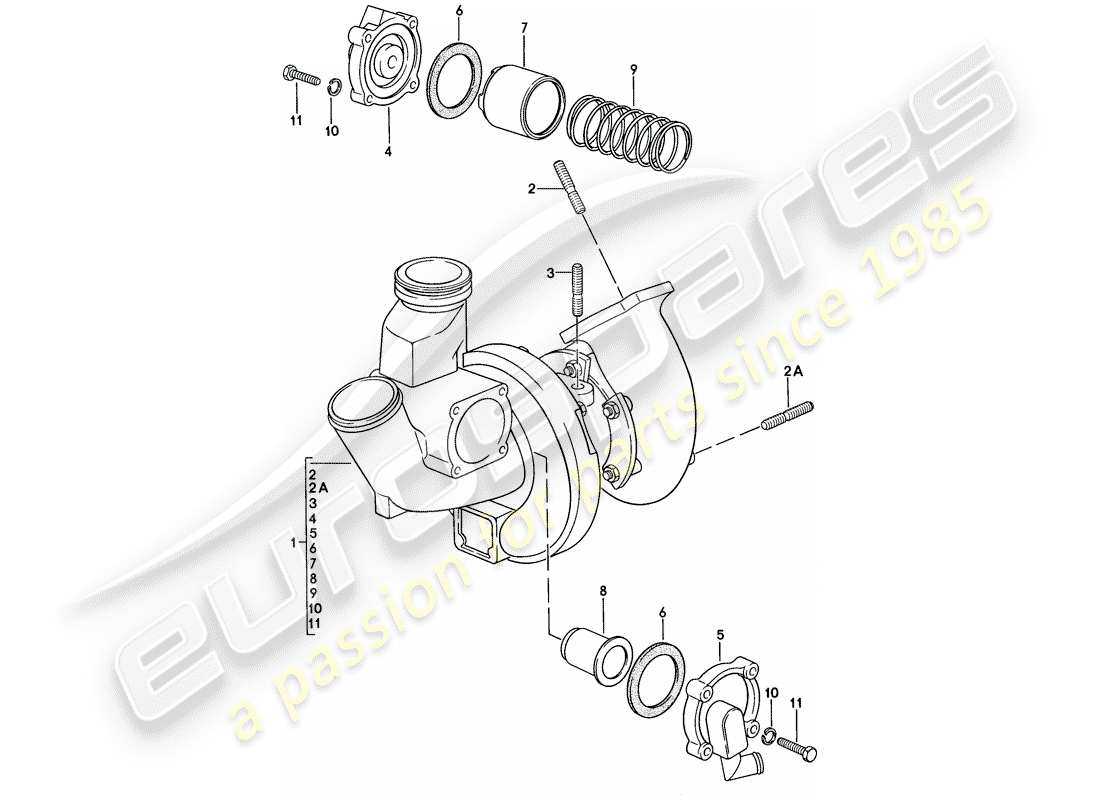

202-025 - EXHAUST GAS TURBOCHARGER
Porsche 1979 (924) EXHAUST GAS TURBOCHARGER Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 93112300209
EXHAUST GAS TURBOCHARGER - ALSO USE:
-00004300400 (3101)
# 2
MPN: 90008105300
stud - M 10 X 25
from £46.68
from £46.68
# 2
MPN: 90008105002
stud - M 10 X 28
# 3
MPN: 90008104408
stud - M 8 X 35
# 4
MPN: 93011015606
SEALING CAP - DISCONTINUED PART
# 4
MPN: 93011015609
SEALING CAP
from £66.76
from £66.76
# 5
MPN: 93111005600
SEALING CAP
# 6
MPN: 93011014900
GASKET
from £2.57
from £2.57
# 7
MPN: 93112314900
PISTON
# 8
MPN: 93112314702
SPRING GUIDE
# 9
MPN: 93112315101
PRESSURE SPRING
# 10
MPN: N 0120064
LOCK RING
from £0.70
from £0.70
# 11
MPN: N 0102203
SCREW, HEX. HD. - M 6 X 30
