811-005 - LIFTING ROOF

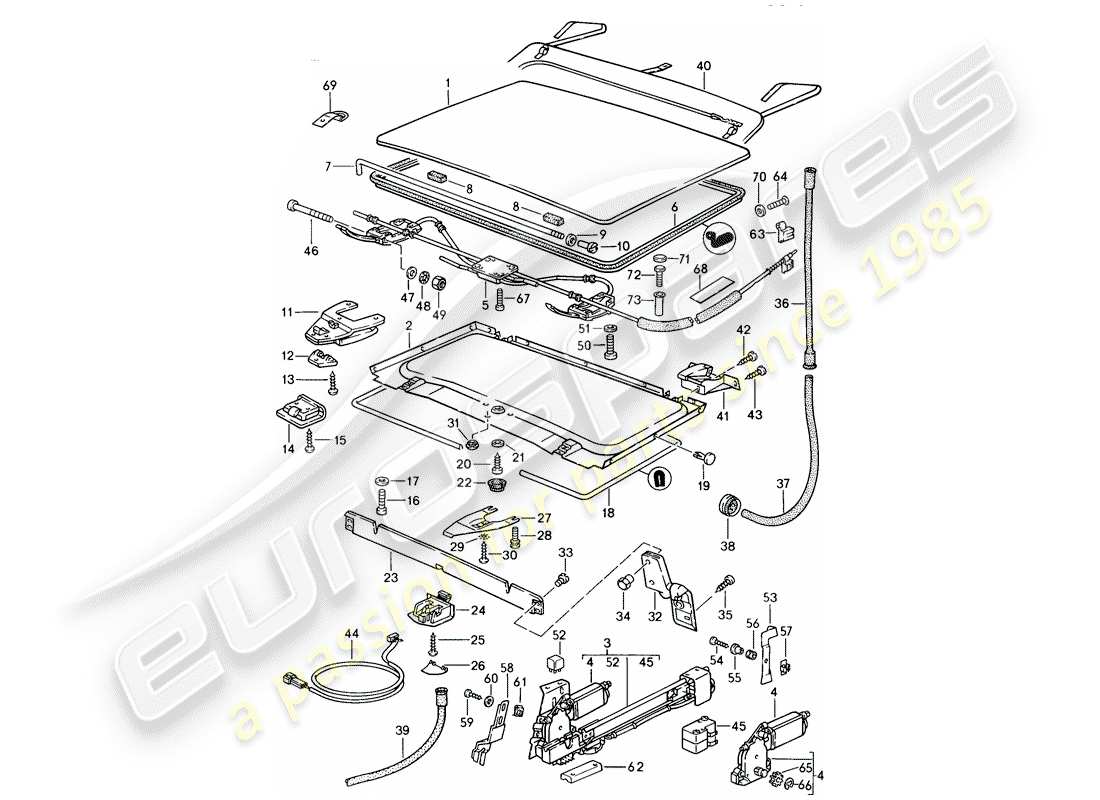

Porsche 1987 (924S) LIFTING ROOF Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 94456402101
ROOF
# 2
MPN: 94456404701
LINING
# 3
MPN: 94462405500
ELECTRIC DRIVE - F >> 92-GN402 704
from £876.95
from £876.95
# 4
MPN: 94462401100
ELECTRIC MOTOR - F >> 92-GN402 704
from £572.65
from £572.65
# 5
MPN: 94456494100
ASSEMBLY KIT - SEE TPI - GROUP: - 8 - NR. 43 - F >> 92-GN402 704
Supersession
Supersession
# 6
MPN: 94456411401
gasket - F >> 92-GN402 704
from £95.65
from £95.65
# 6
MPN: 94456411404
GASKET - F 92-GN402 705>> - DISCONTINUED PART
# 6
MPN: 94456411405
gasket - Discontinued part
from £79.81
from £79.81
# 6
MPN: 94456411406
GASKET
from £90.09
from £90.09
# 7
MPN: 477871761
TENSIONING DEVICE
from £2.22
from £2.22
# 8
MPN: 477871789
SEALING STRIP
from £1.43
from £1.43
# 9
MPN: N 0122265
SPRING WASHER - B 6
from £0.70
from £0.70
# 10
MPN: 477871763A
THREADED BUSHING
from £4.60
from £4.60
# 11
MPN: 477871217
ROOF COVER
FRONT
from £96.81
from £96.81
# 12
MPN: 477871219
BRACKET
from £1.97
from £1.97
# 13
MPN: N 0331741
SCREW, CSK. HD. - M 3 X 6 - DISCONTINUED PART
# 13
MPN: 90026900101
SCREW, CSK. HD. - M 3 X 6
from £1.24
from £1.24
# 14
MPN: 477871665A
CENTRAL RETAINER
FRONT
# 15
MPN: N 0139644
TAPPING SCREW, FILL. HD. - B 4,2 X 16
Supersession
Supersession
# 16
MPN: 90027006407
SCREW, CSK. HD. - M 5 X 16
from £0.50
from £0.50
# 17
MPN: 99970460617
WASHER
from £1.44
from £1.44
# 18
MPN: 94456462100
PROTECTIVE EDGING - F >> 92-GN402 840 - DISCONTINUED PART
# 18
MPN: 94456462302
PROTECTIVE EDGING - F >> 92-GN402 840
from £11.73
from £11.73
# 18
MPN: 94456462300
PROTECTIVE EDGING - F 92-GN402 841>> - DISCONTINUED PART
# 18
MPN: 94456462302
PROTECTIVE EDGING - F 92-GN402 841>>
from £11.73
from £11.73
# 19
MPN: 477871053
RIVET
from £1.24
from £1.24
# 20
MPN: 311867167
TAPPING SCREW, FILL. HD.
from £0.88
from £0.88
# 21
MPN: 90015102802
Washer - Discontinued part
Supersession
Supersession
# 21
MPN: 90015102801
WASHER
from £1.64
from £1.64
This part replaces part number 90015102802
# 22
MPN: 311867169
CAP FOR SCREW
# 23
MPN: 94456409300
WIND DEFLECTOR
# 24
MPN: 94456468300
MOUNTING
# 25
MPN: N 0139644
tapping screw, fill. hd. - 4,2 X 16
Supersession
Supersession
# 26
MPN: 94456468500
flap
from £1.43
from £1.43
# 27
MPN: 94456422300
ATTACHMENT ELEMENT
# 28
MPN: 94456422400
ADJUSTING SCREW
from £4.97
from £4.97
# 29
MPN: N 0122224
spring washer - A 5
# 30
MPN: N 0141338
fillister hd. screw - M 5 X 12 - Discontinued part
# 30
MPN: N 014133I
fillister hd. screw - M 5 X 12
from £1.70
from £1.70
# 31
MPN: 94456423300
CAP - DISCONTINUED PART
# 31
MPN: 91455223310
INSERT
# 32
MPN: 477871635A
HINGE
LEFT
from £15.92
from £15.92
# 32
MPN: 477871636A
HINGE
RIGHT
from £15.92
from £15.92
# 33
MPN: 477837959
FILL. HD. SELF-LOCKING SCREW
from £0.88
from £0.88
# 34
MPN: 477871701A
CAP NUT
from £3.97
from £3.97
# 35
MPN: 90014303102
TAPPING SCREW, FILL. HD. - B 4,2 X 9,5
from £0.82
from £0.82
# 36
MPN: 94456423500
WATER DRAIN HOSE
LEFT REAR
from £3.96
from £3.96
# 36
MPN: 94456406400
WATER DRAIN HOSE
RIGHT REAR
from £24.52
from £24.52
# 37
MPN: 94456423700
WATER DRAIN PIPE
LEFT REAR
# 37
MPN: 94456423800
WATER DRAIN PIPE
RIGHT REAR
# 38
MPN: 021119569
RUBBER GROMMET
from £9.88
from £9.88
# 39
MPN: 321877233C
WATER DRAIN HOSE
FRONT
# 40
MPN: 477871027
BAG
# 41
MPN: 94456416100
GUIDE
LEFT REAR
Supersession
Supersession
# 41
MPN: 94456416200
GUIDE
RIGHT REAR
# 41
MPN: 94456416202
GUIDE
RIGHT REAR
from £46.30
from £46.30
# 42
MPN: N 0141338
fillister hd. screw - M 5 X 12 - Discontinued part
# 42
MPN: N 014133I
fillister hd. screw - M 5 X 12
from £1.70
from £1.70
# 43
MPN: N 0142644
FILLISTER HD. SCREW - AM 5 X 10
from £0.60
from £0.60
# 44
MPN: 94461303300
MICRO SWITCH
FRONT
from £48.98
from £48.98
# 45
MPN: 94461312700
MICRO SWITCH - F >> 92-GN402 704
rear
from £11.18
from £11.18
# 46
MPN: N 10071801
screw, cheese hd. - M 5 X 70 - F >> 92-GN402 704
# 47
MPN: 90002500302
WASHER - A 5,3 - F >> 92-GN402 704
# 48
MPN: N 0121042
SERRATED WASHER - 5,3 - F >> 92-GN402 704
from £0.47
from £0.47
# 49
MPN: N 01100514
HEX. NUT - M 5 - F >> 92-GN402 704 - DISCONTINUED PART
# 49
MPN: 90007609101
HEX. NUT - M 5 - F >> 92-GN402 704
from £1.00
from £1.00
# 50
MPN: 99921800502
SCREW, CHEESE HD. - M 6 - F >> 92-GN402 704 - DISCONTINUED PART
# 50
MPN: 99921800501
SCREW, CHEESE HD. - M 6 - F >> 92-GN402 704
from £1.51
from £1.51
# 51
MPN: N 0115247
WASHER - A 6,4 - F >> 92-GN402 704 - DISCONTINUED PART
# 51
MPN: N 01152427
WASHER - A 6,4 - F >> 92-GN402 704
from £0.47
from £0.47
# 52
MPN: 431951253D
CONTACT CLOSE RELAY - F >> 92-GN402 704 - DISCONTINUED PART
from £40.87
from £40.87
# 52
MPN: 99965701690
RELAY - F >> 92-GN402 704
Supersession
Supersession
# 53
MPN: 94456452100
bracket - F >> 92-GN402 704
from £3.97
from £3.97
# 54
MPN: N 0139675
TAPPING SCREW - BZ 4,2 X 19 - F >> 92-GN402 704
# 55
MPN: 94462441500
SPACER BUSHING - F >> 92-GN402 704
from £1.66
from £1.66
# 56
MPN: 94462441700
RUBBER GROMMET - F >> 92-GN402 704
from £1.20
from £1.20
# 57
MPN: N 90257701
SPEED NUT - B 4,2 - F >> 92-GN402 704
from £0.47
from £0.47
# 58
MPN: 94456443300
bracket - F >> 92-GN402 704
from £8.60
from £8.60
# 59
MPN: N 0138844
TAPPING SCREW,HEX.HD. - BZ 4,8 X 13 - F >> 92-GN402 704
# 60
MPN: N 0122012
WASHER - 5,5 - F >> 92-GN402 704
# 61
MPN: 99959172202
SPEED NUT - B 4,8 X 19 - F >> 92-GN402 704
# 62
MPN: 94456451700
cover - F >> 92-GN402 704
from £3.97
from £3.97
# 63
MPN: 94456442501
CARRIER - F >> 92-GN402 704
from £5.61
from £5.61
# 64
MPN: 94456442700
clamping sleeve - F >> 92-GN402 704
# 65
MPN: 94456443700
PINION - F >> 92-GN402 704
from £45.28
from £45.28
# 66
MPN: 90011600302
LOCK WASHER - F >> 92-GN402 704 - DISCONTINUED PART
# 66
MPN: 90011600309
LOCK WASHER - F >> 92-GN402 704
from £1.27
from £1.27
# 67
MPN: N 0147452
BOLT, WITH HEX. SOCKET - HD. - M 6 X 14 - MICRO-SELF-LOCKING - F >> 92-GN402 704
# 68
MPN: 94455644100
FELT STRIP - F >> 92-GN402 704
from £6.62
from £6.62
# 69
MPN: 477871029
BRACKET - RETAINING POCKET
# 70
MPN: 99952311502
WASHER - 3,5 - F >> 92-GN402 704
from £0.60
from £0.60
# 71
MPN: 99970334740
CAP - F 92-GN402 841>>
from £5.00
from £5.00
# 72
MPN: 99911901640
SET SCREW - M 4 X 10 - F 92-GN402 841>>
# 73
MPN: 99950003317
RIVETTED CAP NUT - M 4 - F 92-GN402 841>>
from £1.66
from £1.66
-part-diagram-811-010.webp "PORSCHE 1987 (924S) LIFTING ROOF - DRIVING MECHANISM - F 92-GN402 705>> PARTS DIAGRAM")
-part-diagram-812-000.webp "PORSCHE 1987 (924S) SEAT BELT PARTS DIAGRAM")
-part-diagram-812-005.webp "PORSCHE 1987 (924S) SEAT BELT PARTS DIAGRAM")
-part-diagram-813-025.webp "PORSCHE 1987 (924S) AIR CONDITIONER PARTS DIAGRAM")
-part-diagram-813-035.webp "PORSCHE 1987 (924S) AIR CONDITIONER PARTS DIAGRAM")
-part-diagram-813-040.webp "PORSCHE 1987 (924S) COMPRESSOR PARTS DIAGRAM")
-part-diagram-813-045.webp "PORSCHE 1987 (924S) HEATER - FAN - HEATER CORE PARTS DIAGRAM")
-part-diagram-813-050.webp "PORSCHE 1987 (924S) AIR DUCT PARTS DIAGRAM")
-part-diagram-813-055.webp "PORSCHE 1987 (924S) VACUUM CONTROL PARTS DIAGRAM")
-part-diagram-813-060.webp "PORSCHE 1987 (924S) AIR CONDITIONER PARTS DIAGRAM")
-part-diagram-901-000.webp "PORSCHE 1987 (924S) ENGINE ELECTRICS 1 PARTS DIAGRAM")
-part-diagram-901-005.webp "PORSCHE 1987 (924S) ENGINE ELECTRICS 2 PARTS DIAGRAM")
-part-diagram-902-000.webp "PORSCHE 1987 (924S) ALTERNATOR - WITH: - FASTENERS PARTS DIAGRAM")
-part-diagram-902-010.webp "PORSCHE 1987 (924S) STARTER - BATTERY - WIRING HARNESSES PARTS DIAGRAM")
-part-diagram-902-020.webp "PORSCHE 1987 (924S) WIRING HARNESSES - ENGINE BAY PARTS DIAGRAM")
-part-diagram-902-025.webp "PORSCHE 1987 (924S) WIRING HARNESSES - DASHBOARD - CENTER CONSOLE - LIFTING ROOF PARTS DIAGRAM")
-part-diagram-902-030.webp "PORSCHE 1987 (924S) WIRING HARNESSES - REAR END PARTS DIAGRAM")
-part-diagram-902-037.webp "PORSCHE 1987 (924S) GROMMET - TIE WRAP PARTS DIAGRAM")
-part-diagram-902-050.webp "PORSCHE 1987 (924S) PIN (MALE) TERMINAL - CONTACT PIN - CABLE SHOE PARTS DIAGRAM")
-part-diagram-902-052.webp "PORSCHE 1987 (924S) MALE BLADE TERMINAL - PUSH-ON CONNECTOR PARTS DIAGRAM")
-part-diagram-902-054.webp "PORSCHE 1987 (924S) BUTT CONNECTOR - CONNECTOR HOUSING - SINGLE POLE PARTS DIAGRAM")
-part-diagram-902-056.webp "PORSCHE 1987 (924S) CONNECTOR HOUSING PARTS DIAGRAM")
-part-diagram-902-058.webp "PORSCHE 1987 (924S) CONNECTOR HOUSING - 3-POLE PARTS DIAGRAM")
-part-diagram-902-060.webp "PORSCHE 1987 (924S) CONNECTOR HOUSING - 4-POLE PARTS DIAGRAM")
-part-diagram-902-062.webp "PORSCHE 1987 (924S) CONNECTOR HOUSING PARTS DIAGRAM")
-part-diagram-902-064.webp "PORSCHE 1987 (924S) CONNECTOR HOUSING - 8-POLE - 9-POLE PARTS DIAGRAM")
-part-diagram-902-066.webp "PORSCHE 1987 (924S) CONNECTOR HOUSING PARTS DIAGRAM")
-part-diagram-903-000.webp "PORSCHE 1987 (924S) SWITCH - RELAY PARTS DIAGRAM")
-part-diagram-903-006.webp "PORSCHE 1987 (924S) STEERING LOCK HOUSING - STEERING COLUMN SWITCH PARTS DIAGRAM")
-part-diagram-903-010.webp "PORSCHE 1987 (924S) HORN PARTS DIAGRAM")
-part-diagram-904-000.webp "PORSCHE 1987 (924S) WINDSCREEN WIPER SYSTEM PARTS DIAGRAM")
-part-diagram-904-005.webp "PORSCHE 1987 (924S) REAR WINDOW WIPER PARTS DIAGRAM")
-part-diagram-904-010.webp "PORSCHE 1987 (924S) WINDSHIELD WASHER UNIT PARTS DIAGRAM")
-part-diagram-904-015.webp "PORSCHE 1987 (924S) HEADLIGHT WASHER SYSTEM PARTS DIAGRAM")
-part-diagram-905-000.webp "PORSCHE 1987 (924S) HEADLAMP - ELECTRIC MOTOR - POP-UP HEADLIGHT PARTS DIAGRAM")
-part-diagram-905-010.webp "PORSCHE 1987 (924S) TURN SIGNAL PARTS DIAGRAM")
-part-diagram-905-015.webp "PORSCHE 1987 (924S) LICENSE PLATE LIGHT - REAR LIGHT PARTS DIAGRAM")
-part-diagram-905-020.webp "PORSCHE 1987 (924S) INTERIOR LIGHT - TURN SIGNAL REPEATER PARTS DIAGRAM")
-part-diagram-906-000.webp "PORSCHE 1987 (924S) INSTRUMENT CLUSTER - SENSOR PARTS DIAGRAM")
-part-diagram-906-005.webp "PORSCHE 1987 (924S) SPEEDOMETER PARTS DIAGRAM")
-part-diagram-907-000.webp "PORSCHE 1987 (924S) CRUISE CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-909-000.webp "PORSCHE 1987 (924S) ALARM SYSTEM PARTS DIAGRAM")
-part-diagram-001-000.webp "PORSCHE 1987 (924S) ACCESSORIES - TOOL - FIRST AID KIT PARTS DIAGRAM")
-part-diagram-001-003.webp "PORSCHE 1987 (924S) CLEANING AGENT - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-001-004.webp "PORSCHE 1987 (924S) ACCESSORIES - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-001-005.webp "PORSCHE 1987 (924S) SIGNS/NOTICES PARTS DIAGRAM")
-part-diagram-001-010.webp "PORSCHE 1987 (924S) IDENTIFICATION PLATE PARTS DIAGRAM")
-part-diagram-002-000.webp "PORSCHE 1987 (924S) ACCESSORIES PARTS DIAGRAM")
-part-diagram-002-006.webp "PORSCHE 1987 (924S) ROOF TRANSPORT SYSTEM PARTS DIAGRAM")
-part-diagram-002-007.webp "PORSCHE 1987 (924S) ROOF TRANSPORT SYSTEM PARTS DIAGRAM")
-part-diagram-002-010.webp "PORSCHE 1987 (924S) ACCESSORIES PARTS DIAGRAM")
-part-diagram-003-000.webp "PORSCHE 1987 (924S) RADIO UNIT - ACCESSORIES PARTS DIAGRAM")
-part-diagram-004-000.webp "PORSCHE 1987 (924S) LACQUERS - BASIC MATERIALS PARTS DIAGRAM")
-part-diagram-005-003.webp "PORSCHE 1987 (924S) INSTRUCTION MANUAL - CARE PASS PARTS DIAGRAM")
-part-diagram-005-005.webp "PORSCHE 1987 (924S) OWNER'S MANUAL - CARE PASS PARTS DIAGRAM")
-part-diagram-101-000.webp "PORSCHE 1987 (924S) SHORT ENGINE - CRANKCASE PARTS DIAGRAM")
-part-diagram-101-005.webp "PORSCHE 1987 (924S) PROTECTIVE PLATE F. ENGINE PARTS DIAGRAM")
-part-diagram-101-010.webp "PORSCHE 1987 (924S) CRANKCASE - FASTENERS PARTS DIAGRAM")
-part-diagram-101-015.webp "PORSCHE 1987 (924S) CRANKCASE - FASTENERS PARTS DIAGRAM")
-part-diagram-102-000.webp "PORSCHE 1987 (924S) CRANKSHAFT - CONNECTING ROD PARTS DIAGRAM")
-part-diagram-102-005.webp "PORSCHE 1987 (924S) PISTON - PISTON RING PARTS DIAGRAM")
-part-diagram-103-000.webp "PORSCHE 1987 (924S) CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-103-005.webp "PORSCHE 1987 (924S) CAMSHAFT HOUSING - CAMSHAFT PARTS DIAGRAM")
-part-diagram-103-010.webp "PORSCHE 1987 (924S) CAMSHAFT - DRIVING MECHANISM - D >> - MJ 1986 PARTS DIAGRAM")
-part-diagram-103-012.webp "PORSCHE 1987 (924S) CAMSHAFT - DRIVING MECHANISM - D - MJ 1987>> PARTS DIAGRAM")
-part-diagram-103-015.webp "PORSCHE 1987 (924S) SHAFT - DRIVING MECHANISM PARTS DIAGRAM")
-part-diagram-104-000.webp "PORSCHE 1987 (924S) ENGINE LUBRICATION PARTS DIAGRAM")
-part-diagram-105-000.webp "PORSCHE 1987 (924S) WATER PUMP PARTS DIAGRAM")
-part-diagram-105-005.webp "PORSCHE 1987 (924S) WATER COOLING PARTS DIAGRAM")
-part-diagram-106-000.webp "PORSCHE 1987 (924S) AIR CLEANER SYSTEM PARTS DIAGRAM")
-part-diagram-107-000.webp "PORSCHE 1987 (924S) L-JETRONIC - 1 PARTS DIAGRAM")
-part-diagram-107-005.webp "PORSCHE 1987 (924S) L-JETRONIC - 2 PARTS DIAGRAM")
-part-diagram-107-010.webp "PORSCHE 1987 (924S) L-JETRONIC - 3 PARTS DIAGRAM")
-part-diagram-109-000.webp "PORSCHE 1987 (924S) ENGINE SUSPENSION PARTS DIAGRAM")
-part-diagram-198-005.webp "PORSCHE 1987 (924S) ENGINE OIL - PORSCHE CLASSIC 10W50 PARTS DIAGRAM")
-part-diagram-201-000.webp "PORSCHE 1987 (924S) FUEL TANK - 1 PARTS DIAGRAM")
-part-diagram-201-003.webp "PORSCHE 1987 (924S) FUEL TANK - 2 PARTS DIAGRAM")
-part-diagram-201-005.webp "PORSCHE 1987 (924S) EVAPORATIVE EMISSION CANISTER - TANK VENTILATION PARTS DIAGRAM")
-part-diagram-201-010.webp "PORSCHE 1987 (924S) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-202-000.webp "PORSCHE 1987 (924S) EXHAUST SYSTEM - EXHAUST SILENCER, FRONT PARTS DIAGRAM")
-part-diagram-202-005.webp "PORSCHE 1987 (924S) EXHAUST SYSTEM - CATALYST PARTS DIAGRAM")
-part-diagram-202-010.webp "PORSCHE 1987 (924S) EXHAUST SYSTEM - EXHAUST SILENCER, REAR PARTS DIAGRAM")
-part-diagram-202-015.webp "PORSCHE 1987 (924S) EXHAUST SYSTEM - EXHAUST SILENCER, FRONT PARTS DIAGRAM")
-part-diagram-202-020.webp "PORSCHE 1987 (924S) EXHAUST SYSTEM - CATALYST PARTS DIAGRAM")
-part-diagram-202-025.webp "PORSCHE 1987 (924S) EXHAUST SYSTEM - EXHAUST SILENCER, REAR PARTS DIAGRAM")
-part-diagram-298-005.webp "PORSCHE 1987 (924S) PORSCHE CLASSIC - ADDITIVE - FOR FUEL PARTS DIAGRAM")
-part-diagram-301-000.webp "PORSCHE 1987 (924S) CENTRAL TUBE - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-301-005.webp "PORSCHE 1987 (924S) CLUTCH PARTS DIAGRAM")
-part-diagram-302-000.webp "PORSCHE 1987 (924S) REPLACEMENT TRANSMISSION - TRANSMISSION CASE - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-303-000.webp "PORSCHE 1987 (924S) GEARS AND SHAFTS - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-304-000.webp "PORSCHE 1987 (924S) TRANSMISSION CONTROL - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-305-000.webp "PORSCHE 1987 (924S) DIFFERENTIAL - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-305-005.webp "PORSCHE 1987 (924S) LIMITED SLIP DIFFERENTIAL PARTS DIAGRAM")
-part-diagram-306-000.webp "PORSCHE 1987 (924S) TRANSMISSION SUSPENSION - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-307-000.webp "PORSCHE 1987 (924S) CENTRAL TUBE - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-308-000.webp "PORSCHE 1987 (924S) REPLACEMENT TRANSMISSION - FINAL DRIVE HOUSING - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-309-000.webp "PORSCHE 1987 (924S) TRANSMISSION CASE - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-309-005.webp "PORSCHE 1987 (924S) OIL INLET - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-309-010.webp "PORSCHE 1987 (924S) OIL COOLING - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-310-000.webp "PORSCHE 1987 (924S) TRANSMISSION CONTROL - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-310-005.webp "PORSCHE 1987 (924S) VALVE BODY - OIL STRAINER - GOVERNOR - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-311-000.webp "PORSCHE 1987 (924S) DIFFERENTIAL - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-312-000.webp "PORSCHE 1987 (924S) TRANSMISSION SUSPENSION - FOR - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-401-010.webp "PORSCHE 1987 (924S) STEERING KNUCKLE - LUBRICANTS PARTS DIAGRAM")
-part-diagram-402-000.webp "PORSCHE 1987 (924S) SUSPENSION - SHOCK ABSORBER PARTS DIAGRAM")
-part-diagram-402-010.webp "PORSCHE 1987 (924S) STABILIZER PARTS DIAGRAM")
-part-diagram-403-000.webp "PORSCHE 1987 (924S) STEERING GEAR - STEERING TRACK ROD PARTS DIAGRAM")
-part-diagram-403-002.webp "PORSCHE 1987 (924S) POWER STEERING - STEERING GEAR - POWER STEERING PUMP - LINES PARTS DIAGRAM")
-part-diagram-403-005.webp "PORSCHE 1987 (924S) STEERING WHEEL - STEERING COLUMN PARTS DIAGRAM")
-part-diagram-501-000.webp "PORSCHE 1987 (924S) REAR AXLE CARRIER - REAR AXLE STEERING PARTS DIAGRAM")
-part-diagram-501-005.webp "PORSCHE 1987 (924S) REAR WHEEL SHAFT - LUBRICANTS PARTS DIAGRAM")
-part-diagram-501-010.webp "PORSCHE 1987 (924S) DRIVE SHAFT PARTS DIAGRAM")
-part-diagram-502-000.webp "PORSCHE 1987 (924S) VIBRATION DAMPER - STABILIZER PARTS DIAGRAM")
-part-diagram-602-000.webp "PORSCHE 1987 (924S) DISC BRAKES - FRONT AXLE PARTS DIAGRAM")
-part-diagram-603-000.webp "PORSCHE 1987 (924S) DISC BRAKES - REAR AXLE PARTS DIAGRAM")
-part-diagram-604-000.webp "PORSCHE 1987 (924S) BRAKE MASTER CYLINDER - BRAKE BOOSTER - RESERVOIR PARTS DIAGRAM")
-part-diagram-604-010.webp "PORSCHE 1987 (924S) BRAKE LINES PARTS DIAGRAM")
-part-diagram-698-005.webp "PORSCHE 1987 (924S) BRAKE FLUID - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-701-000.webp "PORSCHE 1987 (924S) SHIFT MECHANISM - FOR - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-701-010.webp "PORSCHE 1987 (924S) SHIFT MECHANISM - FOR - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-701-015.webp "PORSCHE 1987 (924S) HAND BRAKE LEVER PARTS DIAGRAM")
-part-diagram-702-000.webp "PORSCHE 1987 (924S) BRAKE - CLUTCH - PEDALS PARTS DIAGRAM")
-part-diagram-702-005.webp "PORSCHE 1987 (924S) BRAKE - CLUTCH - PEDALS PARTS DIAGRAM")
-part-diagram-702-010.webp "PORSCHE 1987 (924S) THROTTLE CONTROL - FOR - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-702-015.webp "PORSCHE 1987 (924S) THROTTLE CONTROL - FOR - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-801-000.webp "PORSCHE 1987 (924S) CAR BODY PARTS DIAGRAM")
-part-diagram-801-010.webp "PORSCHE 1987 (924S) BODY FRONT SECTION PARTS DIAGRAM")
-part-diagram-801-015.webp "PORSCHE 1987 (924S) SIDE PANEL PARTS DIAGRAM")
-part-diagram-801-025.webp "PORSCHE 1987 (924S) FENDER PARTS DIAGRAM")
-part-diagram-802-000.webp "PORSCHE 1987 (924S) BUMPER - WITHOUT: - BUFFER PARTS DIAGRAM")
-part-diagram-802-005.webp "PORSCHE 1987 (924S) BUMPER - WITH: - BUFFER PARTS DIAGRAM")
-part-diagram-803-000.webp "PORSCHE 1987 (924S) COVER - ACTUATOR PARTS DIAGRAM")
-part-diagram-803-010.webp "PORSCHE 1987 (924S) REAR TRUNK LID - REAR SPOILER PARTS DIAGRAM")
-part-diagram-804-000.webp "PORSCHE 1987 (924S) DOOR PARTS DIAGRAM")
-part-diagram-804-005.webp "PORSCHE 1987 (924S) DOOR HANDLE, OUTER - DOOR LATCH PARTS DIAGRAM")
-part-diagram-804-015.webp "PORSCHE 1987 (924S) WINDOW REGULATOR - GLASS CHANNEL PARTS DIAGRAM")
-part-diagram-805-000.webp "PORSCHE 1987 (924S) WINDOW GLAZING PARTS DIAGRAM")
-part-diagram-806-000.webp "PORSCHE 1987 (924S) POP-UP HEADLIGHT PARTS DIAGRAM")
-part-diagram-807-000.webp "PORSCHE 1987 (924S) SOUND ABSORBER PARTS DIAGRAM")
-part-diagram-807-002.webp "PORSCHE 1987 (924S) TRIMS PARTS DIAGRAM")
-part-diagram-807-005.webp "PORSCHE 1987 (924S) TRIMS PARTS DIAGRAM")
-part-diagram-808-000.webp "PORSCHE 1987 (924S) FRONT SEAT - COMPLETE PARTS DIAGRAM")
-part-diagram-808-001.webp "PORSCHE 1987 (924S) FRONT SEAT - SINGLE PARTS - CLOTH PARTS DIAGRAM")
-part-diagram-808-005.webp "PORSCHE 1987 (924S) SPORTS SEAT - COMPLETE PARTS DIAGRAM")
-part-diagram-808-010.webp "PORSCHE 1987 (924S) SPORTS SEAT - BACKREST - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-808-015.webp "PORSCHE 1987 (924S) SPORTS SEAT - SEAT CUSHION - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-808-020.webp "PORSCHE 1987 (924S) EMERGENCY SEAT - COMPLETE PARTS DIAGRAM")
-part-diagram-808-025.webp "PORSCHE 1987 (924S) EMERGENCY SEAT - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-808-030.webp "PORSCHE 1987 (924S) EMERGENCY SEAT - DIVIDED PARTS DIAGRAM")
-part-diagram-808-035.webp "PORSCHE 1987 (924S) EMERGENCY SEAT - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-809-000.webp "PORSCHE 1987 (924S) DASHBOARD - CENTER CONSOLE PARTS DIAGRAM")
-part-diagram-809-001.webp "PORSCHE 1987 (924S) CASSETTE HOLDER PARTS DIAGRAM")
-part-diagram-809-005.webp "PORSCHE 1987 (924S) REAR-VIEW MIRROR - SUN VIZOR PARTS DIAGRAM")
-part-diagram-809-010.webp "PORSCHE 1987 (924S) LUGGAGE COMPARTMENT COVER PARTS DIAGRAM")
-part-diagram-810-000.webp "PORSCHE 1987 (924S) DECORATIVE MOULDING PARTS DIAGRAM")
-part-diagram-810-005.webp "PORSCHE 1987 (924S) COVER - NAMEPLATES PARTS DIAGRAM")
