porsche 1982 (944) cylinder head - valves parts diagram

103-000 - CYLINDER HEAD - VALVES

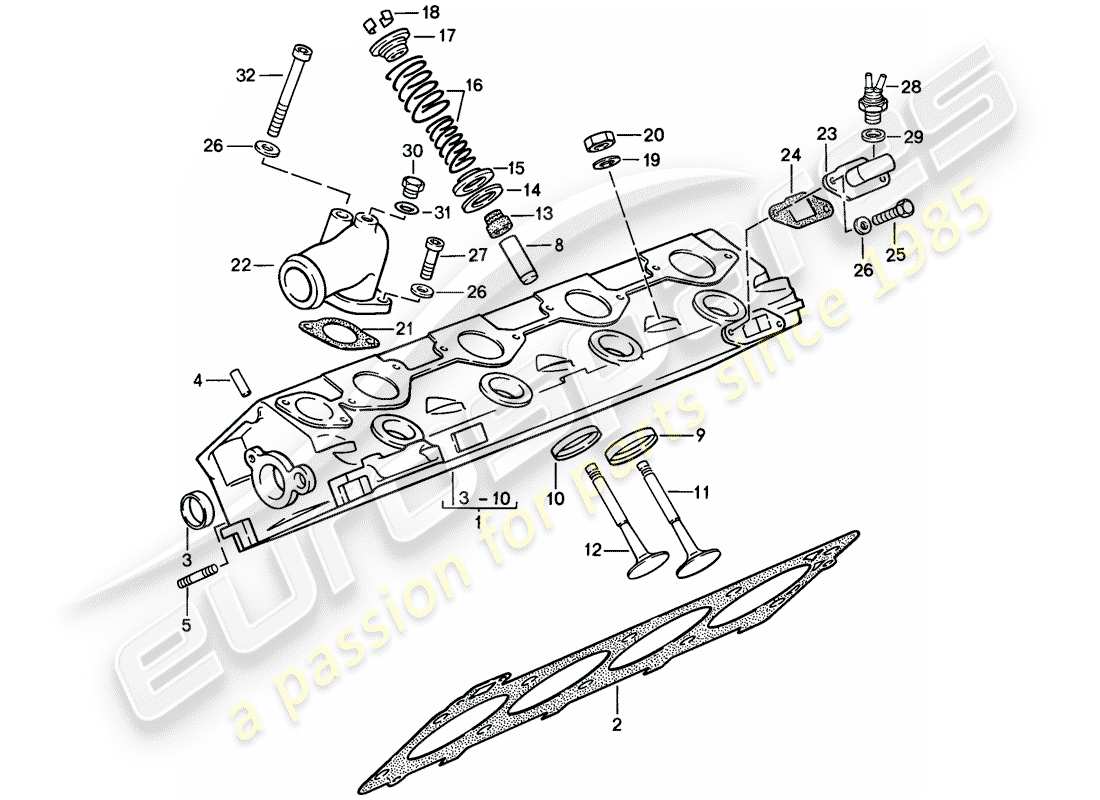

Porsche 1982 (944) CYLINDER HEAD - VALVES Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Key
                                                      Price
                                                      # 1
                                                      MPN: 94410403305
                                                      CYLINDER HEAD
                                                      from £1,650.34
                                                      from £1,650.34
                                                      CYLINDER HEAD Genuine Porsche Part - New (to order)
                                                      # 2
                                                      MPN: 95110437402
                                                      CYLINDER HEAD GASKET
                                                      from £50.23
                                                      from £50.23
                                                      cylinder head gasket - Repair set for maintenance - see illustration: Genuine Porsche Part - New (to order)
                                                      # 2
                                                      MPN: 95110437450
                                                      CYLINDER HEAD GASKET - FOR - RECOND. CYLINDER HEADS
                                                      from £67.51
                                                      from £67.51
                                                      CYLINDER HEAD GASKET - FOR - RECOND. CYLINDER HEADS Genuine Porsche Part - New (to order)
                                                      # 3
                                                      MPN: 90003600502
                                                      SEALING CAP
                                                      from £2.04
                                                      from £2.04
                                                      SEALING CAP Genuine Porsche Part - New (to order)
                                                      # 4
                                                      MPN: 90030201900
                                                      DOWEL PIN
                                                      from £1.47
                                                      from £1.47
                                                      DOWEL PIN - 8 M 6 X 24 Genuine Porsche Part - New (to order)
                                                      # 5
                                                      MPN: 99906204402
                                                      stud - M 8 X 30
                                                      from £3.48
                                                      from £3.48
                                                      stud - M 8 X 30 - for - Tensioner for toothed belt Genuine Porsche Part - New (to order)
                                                      # 8
                                                      MPN: 94410432851
                                                      VALVE GUIDE - DISCONTINUED PART
                                                      from £9.08
                                                      from £9.08
                                                      valve guide - oversize Genuine Porsche Part - New (to order)
                                                      # 8
                                                      MPN: 94410432851
                                                      valve guide - oversize
                                                      from £9.08
                                                      from £9.08
                                                      valve guide - oversize Genuine Porsche Part - New (to order)
                                                      # 9
                                                      MPN: 94410433151
                                                      VALVE SEAT RING - INTAKE - OVERSIZE
                                                      from £5.81
                                                      from £5.81
                                                      Valve seat ring - Oversize 0.25 mm - Intake Genuine Porsche Part - New (to order)
                                                      # 10
                                                      MPN: 94410433350
                                                      VALVE SEAT RING - EXHAUST - OVERSIZE
                                                      Valve seat ring - Oversize 0.25 mm - Exhaust Genuine Porsche Part - New (to order)
                                                      # 11
                                                      MPN: 92810540902
                                                      INTAKE VALVE
                                                      from £126.21
                                                      from £126.21
                                                      INTAKE VALVE Genuine Porsche Part - New (to order)
                                                      # 12
                                                      MPN: 92810541004
                                                      EXHAUST VALVE
                                                      from £126.22
                                                      from £126.22
                                                      EXHAUST VALVE Genuine Porsche Part - New (to order)
                                                      # 13
                                                      MPN: 92810419312
                                                      VALVE GUIDE SEAL - DISCONTINUED PART
                                                      VALVE GUIDE SEAL - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                      # 13
                                                      MPN: 92810419313
                                                      VALVE GUIDE SEAL - DISCONTINUED PART
                                                      VALVE GUIDE SEAL - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                      # 13
                                                      MPN: 96410411107
                                                      VALVE GUIDE SEAL
                                                      from £9.68
                                                      from £9.68
                                                      valve guide seal - Repair set for maintenance - see illustration: Genuine Porsche Part - New (to order)
                                                      # 14
                                                      MPN: 92810546803
                                                      WASHER - 0,5 MM
                                                      from £0.65
                                                      from £0.65
                                                      Washer - 0,5 MM - M 821 0516 >> - M 821 5503 >> - D - MJ 1981>> Genuine Porsche Part - New (to order)
                                                      # 14
                                                      MPN: 92810547003
                                                      WASHER - 1,0 MM
                                                      from £0.86
                                                      from £0.86
                                                      Washer - M 821 0516 >> - M 821 5503 >> - D - MJ 1981>> Genuine Porsche Part - New (to order)
                                                      # 15
                                                      MPN: 92810546906
                                                      WASHER
                                                      from £6.56
                                                      from £6.56
                                                      Washer - M 82C 0554 >> - M 82C 5593 >> - D - MJ 1982>> - MJ 1982 Genuine Porsche Part - New (to order)
                                                      # 16
                                                      MPN: 92810590509
                                                      SET OF VALVE SPRINGS
                                                      from £31.70
                                                      from £31.70
                                                      Set of valve springs - M 821 0516 >> - M 821 5503 >> Genuine Porsche Part - New (to order)
                                                      # 17
                                                      MPN: 92810544904
                                                      SPRING SEAT
                                                      from £3.55
                                                      from £3.55
                                                      spring seat - M 821 0516 >> - M 821 5503 >> Genuine Porsche Part - New (to order)
                                                      # 18
                                                      MPN: 90110541700
                                                      COTTER, SPLIT
                                                      from £2.03
                                                      from £2.03
                                                      cotter, split - Divided - D - MJ 1969>> Genuine Porsche Part - New In stock
                                                      # 19
                                                      MPN: 94410422900
                                                      WASHER
                                                      from £2.34
                                                      from £2.34
                                                      Washer - M 12 X 1,5 Genuine Porsche Part - New (to order)
                                                      # 20
                                                      MPN: 99907604302
                                                      HEX. NUT - M 12 X 1,5
                                                      from £2.37
                                                      from £2.37
                                                      HEX. NUT - M 12 X 1,5 Genuine Porsche Part - New (to order)
                                                      # 21
                                                      MPN: 94410431100
                                                      GASKET
                                                      GASKET Genuine Porsche Part - New (to order)
                                                      # 22
                                                      MPN: 94410431504
                                                      Cooling water socket - M >> 41D 1285 - M >> 41D 5164 - M >> 43D 3439 - M >> 43D 5517 - Discontinued part
                                                      ( 4401,4403, 4402,4404)
                                                      Supersession
                                                      Supersession
                                                      Genuine Porsche Part (no longer available to order)
                                                      # 22
                                                      MPN: 94410431505
                                                      Cooling water socket - M >> 41D 1285 - M >> 41D 5164 - M >> 43D 3439 - M >> 43D 5517
                                                      ( 4401,4403, 4402,4404)
                                                      from £238.43
                                                      from £238.43
                                                      This part replaces part number 94410431504
                                                      Cooling water socket - M >> 41D 1285 - M >> 41D 5164 - M >> 43D 3439 - M >> 43D 5517 Genuine Porsche Part - New (to order)
                                                      # -
                                                      -
                                                      ALSO USE:
                                                      944 106 239 02
                                                      # 23
                                                      MPN: 94410431704
                                                      UNION
                                                      from £92.74
                                                      from £92.74
                                                      UNION Genuine Porsche Part - New (to order)
                                                      # 23
                                                      MPN: 94410431705
                                                      UNION
                                                      (\\J..\\,\\AUS\\)
                                                      from £89.36
                                                      from £89.36
                                                      UNION Genuine Porsche Part - New (to order)
                                                      # 24
                                                      MPN: 92810619704
                                                      GASKET
                                                      from £2.28
                                                      from £2.28
                                                      gasket - Regulator housing Genuine Porsche Part - New (to order)
                                                      # 25
                                                      MPN: 90007507902
                                                      SCREW, HEX. HD. - M 8 X 20
                                                      Supersession
                                                      Supersession
                                                      Genuine Porsche Part (no longer available to order)
                                                      # 26
                                                      MPN: N 01152513
                                                      Washer - A 8,4
                                                      Washer - D - MJ 1988>> Genuine Porsche Part - New (to order)
                                                      # 27
                                                      MPN: 90011904802
                                                      screw, cheese hd. - M 8 X 25 - D >> - MJ 1983
                                                      SCREW, CHEESE HD. - M 8 X 25 - D >>- MJ 1983 Genuine Porsche Part - New (to order)
                                                      # 27
                                                      MPN: N 0147252
                                                      screw, cheese hd. - M 8 X 25 - D - MJ 1984>> - Discontinued part
                                                      screw, cheese hd. - M 8X25 DIN 912-8G VERZ. - Discontinued part Genuine Porsche Part - New (to order)
                                                      # 27
                                                      MPN: 90006701803
                                                      screw, cheese hd. - M 8 X 25 - D - MJ 1984>>
                                                      from £1.11
                                                      from £1.11
                                                      SCREW, CHEESE HD. - M 8X25 DIN 912-8G VERZ Genuine Porsche Part - New In stock
                                                      # 28
                                                      MPN: 058131851A
                                                      THERMO-PNEUMATIC VALVE
                                                      (\\J..\\,\\AUS\\)
                                                      from £32.46
                                                      from £32.46
                                                      THERMO-PNEUMATIC VALVE Genuine Porsche Part - New (to order)
                                                      # 29
                                                      MPN: N 0138083
                                                      SEAL RING - A 10 X 16
                                                      (\\J..\\,\\AUS\\)
                                                      from £0.73
                                                      from £0.73
                                                      seal ring - A 10X16 CU Genuine Porsche Part - New (to order)
                                                      # 30
                                                      MPN: 93110615600
                                                      THREADED PLUG
                                                      from £3.28
                                                      from £3.28
                                                      THREADED PLUG Genuine Porsche Part - New (to order)
                                                      # 31
                                                      MPN: N 0138307
                                                      SEAL RING - A 8 X 12
                                                      from £2.65
                                                      from £2.65
                                                      seal ring - A 8 X 12 - D - MJ 1981>> Genuine Porsche Part - New (to order)
                                                      # 32
                                                      MPN: 90011908602
                                                      screw, cheese hd. - M 8 X 75 - D >> - MJ 1983
                                                      SCREW, CHEESE HD. - M 8 X 75 - D >>- MJ 1983 Genuine Porsche Part - New (to order)
                                                      # 32
                                                      MPN: N 0447321
                                                      bolt, with hex. socket - hd. - M 8 X 75 - D - MJ 1984>>
                                                      from £1.87
                                                      from £1.87
                                                      bolt, with hex. socket - hd. - M 8 X 75 - D - MJ 1984>> Genuine Porsche Part - New (to order)
