porsche 2015 (991-1 turbo) wiring looms switch control units electric motor sports seat plus d - mj 2017>> parts diagram

817-035 - Wiring looms Switch Control units Electric motor Sports seat Plus D - MJ 2017>>

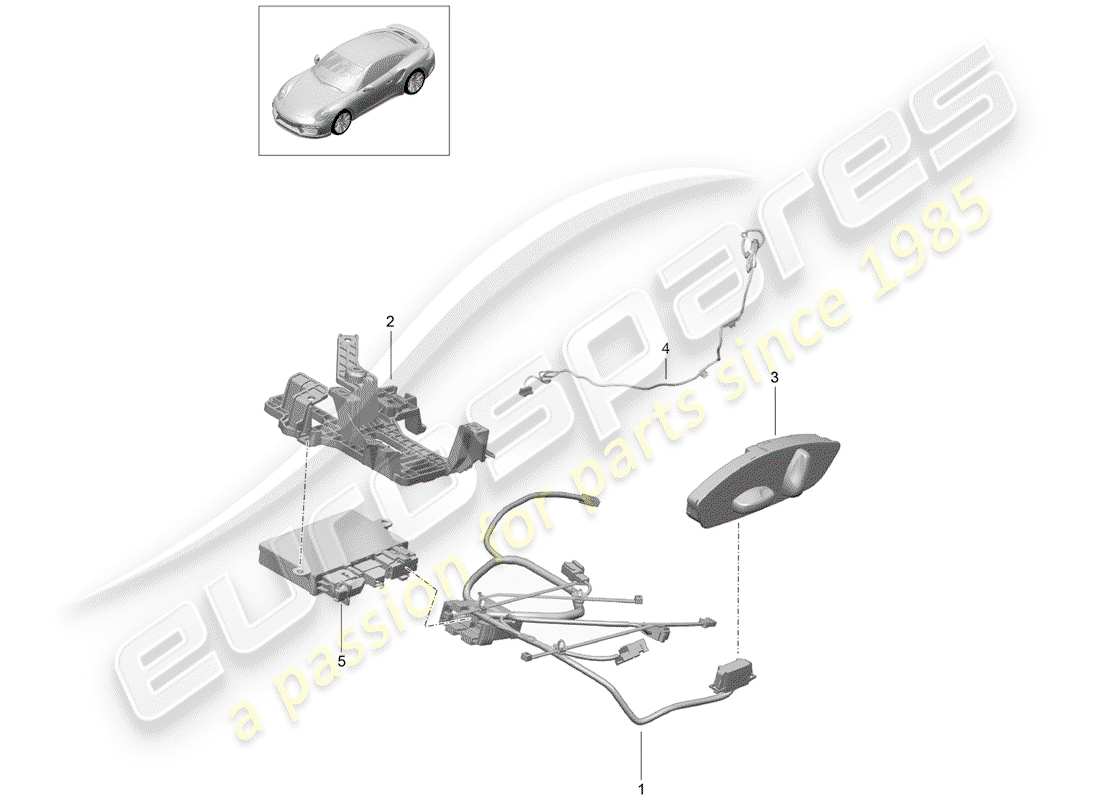

Porsche 2015 (991-1 Turbo) Wiring looms Switch Control units Electric motor Sports seat Plus D - MJ 2017>> Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 1
MPN: 9P1971365A
Wire set left Seat adjuster
P319 (Sports seat Plus, left, partially electrical, 4-way) | P560 (Advanced airbag) | P without 342
harness Genuine Porsche Part - New (to order)
# 1
MPN: 9P1971366A
Wire set right Seat adjuster
P320 (Sports seat Plus, right, partially electrical, 4-way) | P560 (Advanced airbag) | P without 342
harness Genuine Porsche Part - New (to order)
# 1
MPN: 9P1971365B
Wire set left Seat adjuster
P319 (Sports seat Plus, left, partially electrical, 4-way) | P342 (Seat heating, left/right seat) | P without 560
from £76.15
from £76.15
harness Genuine Porsche Part - New (to order)
# 1
MPN: 9P1971366B
WIRE SET RIGHT SEAT ADJUSTER MODIFY IN WORKSHOP
P320 (Sports seat Plus, right, partially electrical, 4-way) | P without 560
from £102.55
from £102.55
harness Genuine Porsche Part - New (to order)
# 1
MPN: 9P3971391C
Wire set left Seat adjuster
P098 (Left-hand drive version) | P321 (Sports seat, left, electrical, 14-way) | P323 (Sports seat Plus, left, electrical, 18-way) | P342 (Seat heating, left/right seat) | P without 560
harness Genuine Porsche Part - New (to order)
# 1
MPN: 9P1971391C
Wire set left Seat adjuster
P321 (Sports seat, left, electrical, 14-way) | P323 (Sports seat Plus, left, electrical, 18-way) | P342 (Seat heating, left/right seat) | P560 (Advanced airbag)
from £118.12
from £118.12
harness Genuine Porsche Part - New (to order)
# 1
MPN: 9P3971392C
Wire set right Seat adjuster
P098 (Left-hand drive version) | P322 (Sports seat, right, electrical, 14-way) | P324 (Sports seat Plus, right, electrical, 18-way) | P342 (Seat heating, left/right seat) | P without 560
from £110.17
from £110.17
harness Genuine Porsche Part - New (to order)
# 1
MPN: 9P1971392C
Wire set right Seat adjuster
P322 (Sports seat, right, electrical, 14-way) | P324 (Sports seat Plus, right, electrical, 18-way) | P342 (Seat heating, left/right seat) | P560 (Advanced airbag)
Supersession
Supersession
Genuine Porsche Part (no longer available to order)
# 1
MPN: 9P1971365C
WIRE SET LEFT SEAT ADJUSTER MODIFY IN WORKSHOP
P319 (Sports seat Plus, left, partially electrical, 4-way)
from £122.45
from £122.45
harness Genuine Porsche Part - New (to order)
# 1
MPN: 9P1971366C
WIRE SET RIGHT SEAT ADJUSTER MODIFY IN WORKSHOP
P320 (Sports seat Plus, right, partially electrical, 4-way) | P560 (Advanced airbag)
from £122.45
from £122.45
harness Genuine Porsche Part - New (to order)
# 2
MPN: 99152164302
BRACKET CONTROL UNITS SEAT FRAME SPORTS SEAT PLUS
P321 (Sports seat, left, electrical, 14-way) | P322 (Sports seat, right, electrical, 14-way) | P323 (Sports seat Plus, left, electrical, 18-way) | P324 (Sports seat Plus, right, electrical, 18-way)
from £32.48
from £32.48
BRACKET Genuine Porsche Part - New (to order)
# 2
MPN: 99152164301
BRACKET CONTROL UNITS SEAT FRAME SPORTS SEAT PLUS
P319 (Sports seat Plus, left, partially electrical, 4-way) | P320 (Sports seat Plus, right, partially electrical, 4-way) | P541 (Active seat ventilation (incl. heated seats))
from £32.48
from £32.48
BRACKET Genuine Porsche Part - New (to order)
# 3
MPN: 99161371301DMN
SWITCH FOR SEAT ADJUSTMENT LEFT - GALVANO SILVER
P319 (Sports seat Plus, left, partially electrical, 4-way)
from £313.60
from £313.60
This part replaces part number 99161371301
GALVANO SILVER Genuine Porsche Part - New (to order)
# 3
MPN: 99161371401DMN
SWITCH FOR SEAT ADJUSTMENT RIGHT - GALVANO SILVER
P320 (Sports seat Plus, right, partially electrical, 4-way)
from £313.60
from £313.60
This part replaces part number 99161371401
GALVANO SILVER Genuine Porsche Part - New (to order)
# 3
MPN: 7PP959747ABDMN
Switch module for seat left Seat adjuster - Galvano silver
Switch module for seat left Seat adjuster - Galvano silver
from £321.09
from £321.09
This part replaces part number 7PP959747AB
GALVANO SILVER Genuine Porsche Part - New (to order)
# 3
MPN: 9A7959747C L0H
Switch module for seat left Seat adjuster - Galvano silver
P323 (Sports seat Plus, left, electrical, 18-way)
from £464.40
from £464.40
SWITCH MODULE FOR SEAT GALVANO SILVER Genuine Porsche Part - New (to order)
# 3
MPN: 7PP959748ABDMN
SWITCH MODULE FOR SEAT RIGHT SEAT ADJUSTER - GALVANO SILVER
P324 (Sports seat Plus, right, electrical, 18-way)
from £322.05
from £322.05
This part replaces part number 7PP959748AB
GALVANO SILVER Genuine Porsche Part - New (to order)
# 4
MPN: 9P1972171
WIRE SET LEFT AIRBAG SEAT
P319 (Sports seat Plus, left, partially electrical, 4-way) | P321 (Sports seat, left, electrical, 14-way) | P323 (Sports seat Plus, left, electrical, 18-way)
from £97.12
from £97.12
harness Genuine Porsche Part - New (to order)
# 4
MPN: 99162279600
Wire set right Airbag Seat D >>- 22.06.2015
P320 (Sports seat Plus, right, partially electrical, 4-way) | P322 (Sports seat, right, electrical, 14-way) | P324 (Sports seat Plus, right, electrical, 18-way)
harness Genuine Porsche Part - New (to order)
# 4
MPN: 9P1972173
Wire set right Airbag Seat D - 23.06.2015>>- 03.11.2016
P320 (Sports seat Plus, right, partially electrical, 4-way) | P322 (Sports seat, right, electrical, 14-way) | P324 (Sports seat Plus, right, electrical, 18-way)
harness Genuine Porsche Part - New (to order)
# 4
MPN: 9P1972173A
WIRE SET RIGHT AIRBAG SEAT D - 04.11.2016>>
P320 (Sports seat Plus, right, partially electrical, 4-way) | P322 (Sports seat, right, electrical, 14-way) | P324 (Sports seat Plus, right, electrical, 18-way)
from £132.36
from £132.36
harness Genuine Porsche Part - New (to order)
# 5
MPN: 97061853712
CONTROL UNIT SEAT FRAME
P321 (Sports seat, left, electrical, 14-way) | P322 (Sports seat, right, electrical, 14-way) | P323 (Sports seat Plus, left, electrical, 18-way) | P324 (Sports seat Plus, right, electrical, 18-way)
electronic control module Genuine Porsche Part - New (to order)
