porsche 2016 (991-1) side window parts diagram

805-005 - SIDE WINDOW

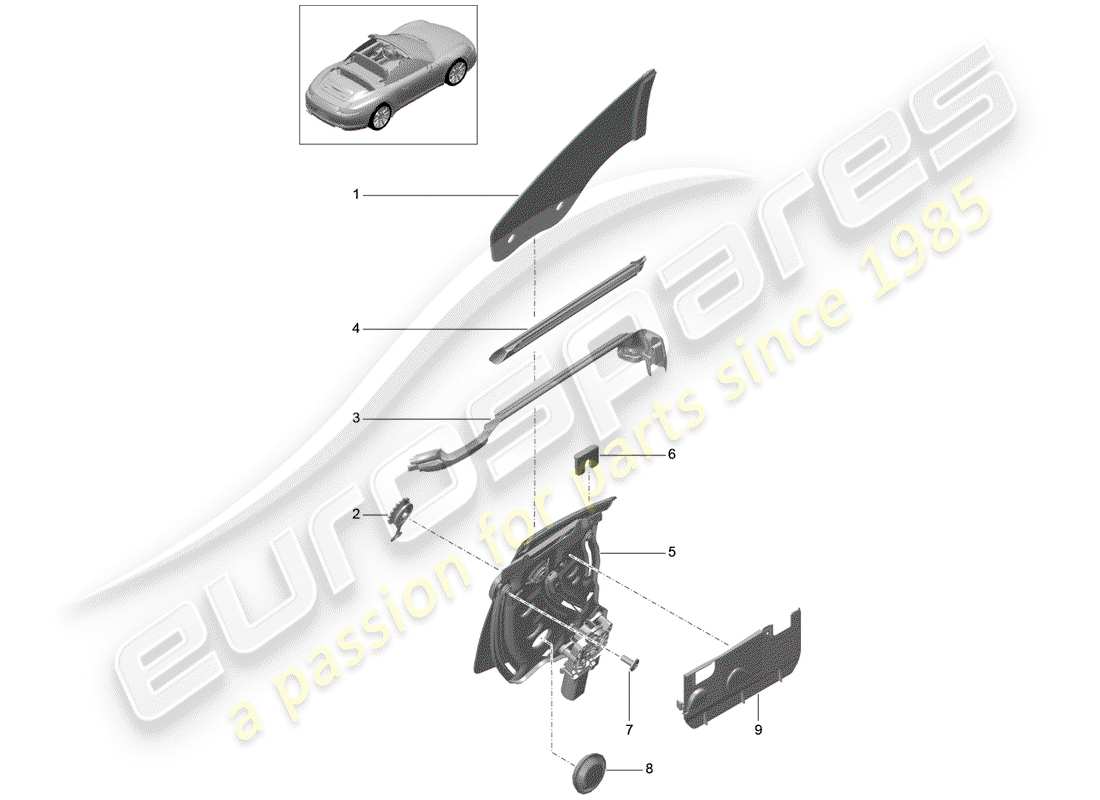

Porsche 2016 (991-1) Side window Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: 99154311105
                    SIDE WINDOW LEFT
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 1
                    MPN: 99154311205
                    SIDE WINDOW RIGHT
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 2
                    MPN: 99154353100
                    STAR NUT SIDE WINDOW
                    from £9.59
                    from £9.59
                    NUT Genuine Porsche Part - New (to order)
                    # 3
                    MPN: 99154347500
                    SEAL LEFT OUTER
                    GASKET Genuine Porsche Part - New (to order)
                    # 3
                    MPN: 99154347600
                    SEAL RIGHT OUTER
                    GASKET Genuine Porsche Part - New (to order)
                    # 4
                    MPN: 99154347700
                    SEAL LEFT INNER
                    GASKET Genuine Porsche Part - New (to order)
                    # 4
                    MPN: 99154347800
                    SEAL RIGHT INNER
                    GASKET Genuine Porsche Part - New (to order)
                    # 5
                    MPN: 99154301500
                    WINDOW REGULATOR LEFT SIDE WINDOW CONNECTOR 6 PIN D >>- 04.09.2012
                    WINDOW REGULATOR Genuine Porsche Part - New (to order)
                    # 5
                    MPN: 99154301501
                    WINDOW REGULATOR LEFT SIDE WINDOW CONNECTOR 2 PIN D - 05.09.2012>>
                    from £437.95
                    from £437.95
                    WINDOW REGULATOR Genuine Porsche Part - New (to order)
                    # 5
                    MPN: 99154301600
                    WINDOW REGULATOR RIGHT SIDE WINDOW CONNECTOR 6 PIN D >>- 04.09.2012
                    WINDOW REGULATOR Genuine Porsche Part - New (to order)
                    # 5
                    MPN: 99154301601
                    WINDOW REGULATOR RIGHT SIDE WINDOW CONNECTOR 2 PIN D - 05.09.2012>>
                    from £437.95
                    from £437.95
                    WINDOW REGULATOR Genuine Porsche Part - New (to order)
                    # 6
                    MPN: 99154356100
                    DISTANCE PIECE GREY
                    from £3.99
                    from £3.99
                    SPACER Genuine Porsche Part - New (to order)
                    # 6
                    MPN: 99154356101
                    DISTANCE PIECE WHITE
                    from £3.99
                    from £3.99
                    SPACER Genuine Porsche Part - New (to order)
                    # 6
                    MPN: 99154356102
                    DISTANCE PIECE YELLOW
                    from £3.99
                    from £3.99
                    SPACER Genuine Porsche Part - New (to order)
                    # 6
                    MPN: 99154356103
                    DISTANCE PIECE GREEN
                    from £3.99
                    from £3.99
                    SPACER Genuine Porsche Part - New (to order)
                    # 6
                    MPN: 99154356104
                    DISTANCE PIECE BLUE
                    from £3.99
                    from £3.99
                    SPACER Genuine Porsche Part - New (to order)
                    # 6
                    MPN: 99154356105
                    DISTANCE PIECE BLACK
                    from £3.99
                    from £3.99
                    SPACER Genuine Porsche Part - New (to order)
                    # 7
                    MPN: 99907310302
                    FLAT ROUND HEAD BOLT M 6 X 16
                    from £0.91
                    from £0.91
                    SCREW, ROUND HD Genuine Porsche Part - New (to order)
                    # 8
                    MPN: N 10515101
                    Bungs 33,0 X 24,5
                    from £0.61
                    from £0.61
                    PLUG Genuine Porsche Part - New (to order)
                    COVER A25 Genuine Lamborghini - New (to order)
                    # 9
                    MPN: 99154347901
                    COVER LEFT WINDOW REGULATOR
                    from £22.57
                    from £22.57
                    COVER Genuine Porsche Part - New (to order)
                    # 9
                    MPN: 99154348001
                    COVER RIGHT WINDOW REGULATOR
                    from £22.57
                    from £22.57
                    COVER Genuine Porsche Part - New (to order)
