porsche 2016 (991-1) roll bar parts diagram

811-070 - ROLL BAR

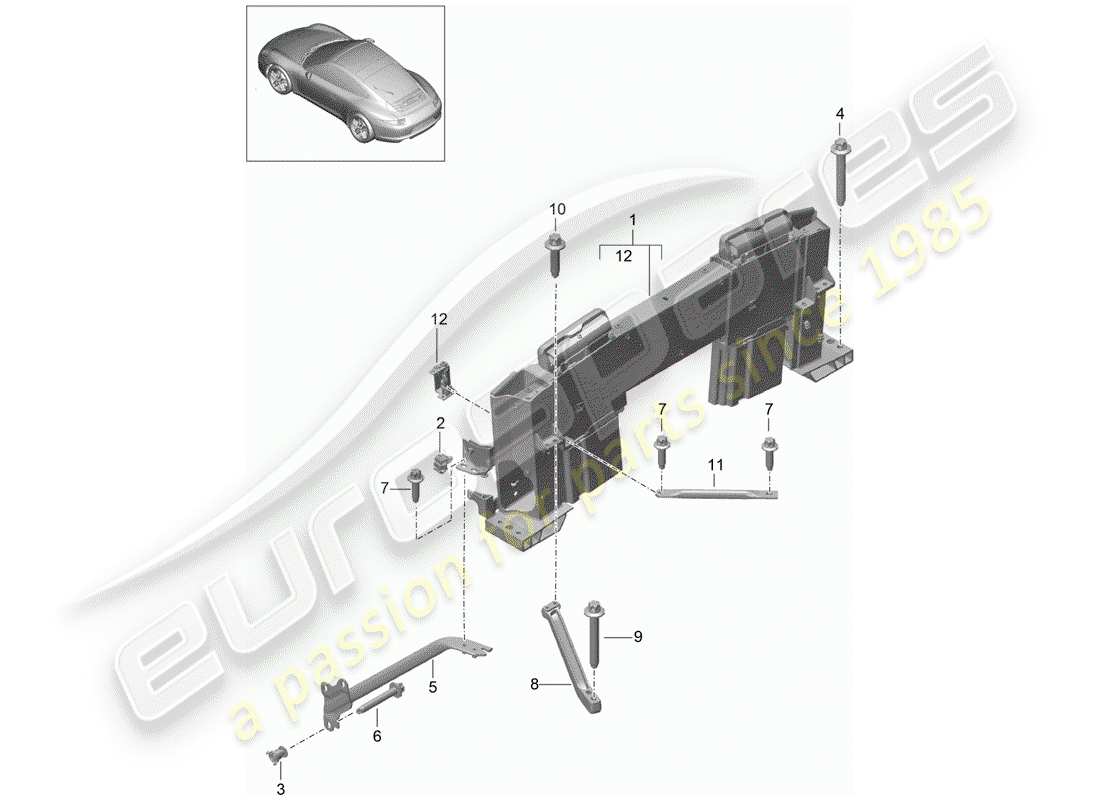

Porsche 2016 (991-1) roll bar Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 1
                        MPN: 99158001103
                        RETAINING FRAME WITH: IGNITION UNIT FOR CRASH-ACTIVE HEADREST FOR ROLL BAR
                        C2
                        retaining frame Genuine Porsche Part - New (to order)
                        # 1
                        MPN: 99158001104
                        RETAINING FRAME WITH: IGNITION UNIT FOR CRASH-ACTIVE HEADREST FOR ROLL BAR
                        C4
                        from £1,763.76
                        from £1,763.76
                        retaining frame Genuine Porsche Part - New (to order)
                        # 2
                        MPN: 99950779940
                        CABLE HOLDER
                        from £0.59
                        from £0.59
                        CABLE HOLDER Genuine Porsche Part - New (to order)
                        # 3
                        MPN: 99158035300
                        COMPENSATION WASHER
                        from £6.69
                        from £6.69
                        SHIM Genuine Porsche Part - New (to order)
                        # 4
                        MPN: 90038515901
                        HEXAGON HEAD BOLT M10 X 70
                        from £2.32
                        from £2.32
                        HEXAGON HEAD BOLT Genuine Porsche Part - New (to order)
                        # 5
                        MPN: 99158035100
                        BRACE LEFT FRONT
                        from £31.27
                        from £31.27
                        cross support Genuine Porsche Part - New (to order)
                        # 5
                        MPN: 99158035200
                        BRACE RIGHT FRONT
                        from £28.76
                        from £28.76
                        cross support Genuine Porsche Part - New (to order)
                        # 6
                        MPN: 90038516601
                        HEXAGON HEAD BOLT M8 X 55
                        from £2.43
                        from £2.43
                        HEXAGON HEAD BOLT Genuine Porsche Part - New (to order)
                        # 6
                        MPN: 99938500601
                        HEXAGON HEAD BOLT M10 X 35
                        from £3.92
                        from £3.92
                        HEXAGON HEAD BOLT Genuine Porsche Part - New (to order)
                        # 7
                        MPN: 90038527801
                        HEXAGON HEAD BOLT M8 X 30
                        from £0.80
                        from £0.80
                        HEXAGON HEAD BOLT Genuine Porsche Part - New (to order)
                        # 8
                        MPN: 99158033100
                        SUPPORT LEFT
                        from £32.71
                        from £32.71
                        SUPPORT Genuine Porsche Part - New (to order)
                        # 8
                        MPN: 99158033200
                        SUPPORT RIGHT
                        from £32.71
                        from £32.71
                        SUPPORT Genuine Porsche Part - New (to order)
                        # 9
                        MPN: 90038515901
                        HEXAGON HEAD BOLT M10 X 70
                        from £2.32
                        from £2.32
                        HEXAGON HEAD BOLT Genuine Porsche Part - New (to order)
                        # 10
                        MPN: 90038528501
                        HEXAGON HEAD BOLT M10 X 40
                        from £3.83
                        from £3.83
                        HEXAGON HEAD BOLT Genuine Porsche Part - New (to order)
                        # 11
                        MPN: 99158034100
                        BRACE REAR
                        cross support Genuine Porsche Part - New (to order)
                        # 12
                        MPN: 99158092100
                        REPAIR KIT FOR ROLLOVER PROTECTION TRIGGER
                        from £170.00
                        from £170.00
                        repair kit Genuine Porsche Part - New (to order)
                        # 13
                        MPN: 9P1887789
                        BRACKET AUSTRALIA FOR CHILD SEAT MOUNTING
                        P335 (Automatic seat belt, 3-point, rear) | P479 (Version for Australia)
                        from £11.17
                        from £11.17
                        BRACKET Genuine Porsche Part - New (to order)
                        # 14
                        MPN: WHT008608
                        POP RIVET AUSTRALIA
                        P335 (Automatic seat belt, 3-point, rear) | P479 (Version for Australia)
                        from £1.04
                        from £1.04
                        BLIND RIVET Genuine Porsche Part - New (to order)
