porsche 2016 (991-1 r/gt3/rs) control units front end rear end handheld transmitter ignition/starter switch aerial parts diagram

901-004 - Control units Front end Rear end Handheld transmitter Ignition/starter switch Aerial

Porsche 2016 (991-1 R/GT3/RS) Control units Front end Rear end Handheld transmitter Ignition/starter switch Aerial Parts Diagram

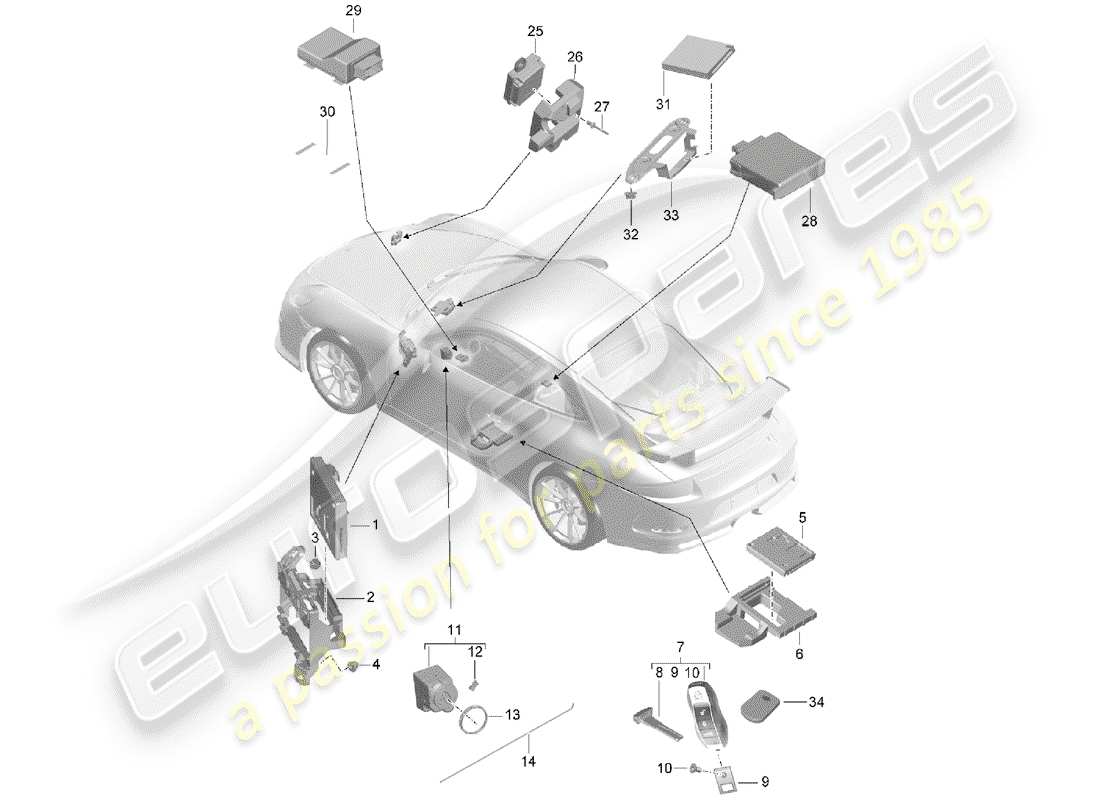

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: 7PP907064HC
                    Control unit (BCM) for conv. system & OB power supply Front end D >>- MJ 2017
                    P523 (Immobiliser, 434 MHz)
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 1
                    MPN: 9A790706400
                    CONTROL UNIT (BCM) FOR CONV. SYSTEM & OB POWER SUPPLY FRONT END D - MJ 2018>>
                    P523 (Immobiliser, 434 MHz)
                    CENTRAL CONTROL UNIT (BCM) FOR Genuine Porsche Part - New (to order)
                    # 1
                    MPN: 7PP907064HD
                    Control unit (BCM) for conv. system & OB power supply Front end
                    Control unit (BCM) for conv. system & OB power supply Front end
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 1
                    MPN: 7PP907064HK
                    Control unit (BCM) for conv. system & OB power supply Front end D >>- MJ 2017
                    P524 (Immobilizer, central locking, 433 MHz)
                    electronic control module Genuine Porsche Part - New (to order)
                    # 1
                    MPN: 9A790706401
                    CONTROL UNIT (BCM) FOR CONV. SYSTEM & OB POWER SUPPLY FRONT END D - MJ 2018>>
                    P524 (Immobilizer, central locking, 433 MHz)
                    from £307.13
                    from £307.13
                    CENTRAL CONTROL UNIT (BCM) FOR Genuine Porsche Part - New (to order)
                    # 1
                    MPN: 7PP907064HE
                    Control unit (BCM) for conv. system & OB power supply Front end D >>- MJ 2017
                    P525 (Immobilizer, central locking, 315 MHz)
                    CENTRAL CONTROL UNIT (BCM) FOR Genuine Porsche Part - New (to order)
                    # 1
                    MPN: 9A790706402
                    CONTROL UNIT (BCM) FOR CONV. SYSTEM & OB POWER SUPPLY FRONT END D - MJ 2018>>
                    P525 (Immobilizer, central locking, 315 MHz)
                    from £307.13
                    from £307.13
                    CENTRAL CONTROL UNIT (BCM) FOR Genuine Porsche Part - New (to order)
                    # 2
                    MPN: 99161011100
                    RETAINER FOR CONTROL UNITS
                    P098 (Left-hand drive version)
                    from £25.52
                    from £25.52
                    BRACKET FOR CONTROL UNIT Genuine Porsche Part - New (to order)
                    # 2
                    MPN: 99161011300
                    RETAINER FOR CONTROL UNITS
                    P099 (Right-hand drive version)
                    from £25.52
                    from £25.52
                    BRACKET FOR CONTROL UNIT Genuine Porsche Part - New (to order)
                    # 3
                    MPN: 99908463801
                    HEXAGON NUT M6
                    from £2.21
                    from £2.21
                    HEX. NUT Genuine Porsche Part - New In stock
                    # 3
                    MPN: PAF108333
                    HEXAGON NUT M6
                    HEXAGON NUT M6
                    from £2.14
                    from £2.14
                    HEX. NUT Genuine Porsche Part - New In stock
                    # 4
                    MPN: 99907608140
                    HEXAGON PLASTIC COLLAR NUT T5/16X11,2
                    from £0.91
                    from £0.91
                    SHOULDERED HEX. NUT PLASTIC Genuine Porsche Part - New (to order)
                    # 5
                    MPN: 7PP907279BD
                    CONTROL UNIT (BCM) FOR CONV. SYSTEM & OB POWER SUPPLY REAR END D - MJ 2014>>
                    P without IY2
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 5
                    MPN: 7PP907279BF
                    CONTROL UNIT (BCM) FOR CONV. SYSTEM & OB POWER SUPPLY REAR END D - MJ 2014>>- MJ 2014
                    PIY2 (Model year period from week 45 to week 22)
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 5
                    MPN: 7PP907279BF
                    CONTROL UNIT (BCM) FOR CONV. SYSTEM & OB POWER SUPPLY REAR END D - MJ 2015>>
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 5
                    MPN: 9A790727900
                    CONTROL UNIT (BCM) FOR CONV. SYSTEM & OB POWER SUPPLY REAR END D - MJ 2016>>
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 6
                    MPN: 99161832500
                    RETAINER FOR CONTROL UNITS
                    from £7.15
                    from £7.15
                    BRACKET FOR CONTROL UNIT Genuine Porsche Part - New (to order)
                    # 7
                    MPN: 99163795003
                    Handheld transmitter * Part number must be ordered * manually by indicating * vehicle ID number. See technical information 5708 31/12 See main group 5
                    P524 (Immobilizer, central locking, 433 MHz)
                    handheld transmitter Genuine Porsche Part - New (to order)
                    # 7
                    MPN: 99163796303
                    Handheld transmitter * Part number must be ordered * manually by indicating * vehicle ID number. See technical information 5708 31/12 See main group 5
                    P523 (Immobiliser, 434 MHz)
                    handheld transmitter Genuine Porsche Part - New (to order)
                    # 7
                    MPN: 99163795103
                    Handheld transmitter * Part number must be ordered * manually by indicating * vehicle ID number. See technical information 5708 31/12 See main group 5
                    P525 (Immobilizer, central locking, 315 MHz) | P072 (Version for Mexico)
                    from £245.68
                    from £245.68
                    handheld transmitter Genuine Porsche Part - New (to order)
                    # 7
                    MPN: 99163795203
                    Handheld transmitter * Part number must be ordered * manually by indicating * vehicle ID number. See technical information 5708 31/12 See main group 5
                    P525 (Immobilizer, central locking, 315 MHz) | P without 072, P without 553
                    handheld transmitter Genuine Porsche Part - New (to order)
                    # 7
                    MPN: 991 637 941 03
                    Handheld transmitter * Part number must be ordered * manually by indicating * vehicle ID number. See technical information 5708 31/12 See main group 5
                    Handheld transmitter * Part number must be ordered * manually by indicating * vehicle ID number. See technical information 5708 31/12 See main group 5 Genuine Porsche Part - New (to order)
                    # 7
                    MPN: 99163799000
                    Handheld transmitter with stipulated lock number * Part number must be ordered * manually by indicating * vehicle ID number.
                    PXWW (Heritage Line) | P524 (Immobilizer, central locking, 433 MHz)
                    from £251.49
                    from £251.49
                    handheld transmitter Genuine Porsche Part - New (to order)
                    # 7
                    MPN: 99163799100
                    Handheld transmitter with stipulated lock number * Part number must be ordered * manually by indicating * vehicle ID number.
                    PXWW (Heritage Line) | P525 (Immobilizer, central locking, 315 MHz) | P072 (Version for Mexico)
                    from £251.49
                    from £251.49
                    handheld transmitter Genuine Porsche Part - New (to order)
                    # 7
                    MPN: 99163799200
                    Handheld transmitter with stipulated lock number * Part number must be ordered * manually by indicating * vehicle ID number.
                    PXWW (Heritage Line) | P525 (Immobilizer, central locking, 315 MHz) | P without 072, P without 553
                    from £251.49
                    from £251.49
                    handheld transmitter Genuine Porsche Part - New (to order)
                    # 7
                    MPN: 99163799300
                    Handheld transmitter with stipulated lock number * Part number must be ordered * manually by indicating * vehicle ID number.
                    PXWW (Heritage Line) | P523 (Immobiliser, 434 MHz)
                    from £251.49
                    from £251.49
                    ## *UKCA* HANDHELD TRANSMITTER Genuine Porsche Part - New (to order)
                    # 8
                    MPN: 95853891600
                    EMERGENCY KEY WITH STIPULATED LOCK NUMBER WHEN ORDERING, PROVIDE VEHICLE IDENTIFICATION NUMBER.
                    from £53.29
                    from £53.29
                    emergency key Genuine Porsche Part - New (to order)
                    # 8
                    MPN: 99961110800
                    BATTERY FOR HAND SENDER
                    from £6.88
                    from £6.88
                    BATTERY FOR HAND-HELD - SEE TECHNICAL INFORMATION - GR. 9 , NR. 20/03 Genuine Porsche Part - New In stock
                    # 9
                    MPN: 99163730100
                    EYE
                    from £11.60
                    from £11.60
                    EYE Genuine Porsche Part - New (to order)
                    # 10
                    MPN: 99163730300
                    COUNTERSUNK BOLT
                    from £0.75
                    from £0.75
                    SCREW, COUNTERSUNK HD Genuine Porsche Part - New (to order)
                    # 11
                    MPN: 7PP905865F
                    CONTROL UNIT IGNITION/STARTER SWITCH
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 12
                    MPN: 97061895900
                    COVER EMERGENCY RELEASE HANDHELD TRANSMITTER
                    from £14.99
                    from £14.99
                    COVER Genuine Porsche Part - New (to order)
                    # 13
                    MPN: 7PP911094
                    NUT
                    from £5.34
                    from £5.34
                    NUT Genuine Porsche Part - New (to order)
                    # 14
                    MPN: 7PP907256
                    EMERGENCY OPERATION RELEASE ELEMENT IGNITION/STARTER SWITCH
                    from £18.05
                    from £18.05
                    This part replaces part number 99761876100
                    EMERGENCY OPERATION Genuine Porsche Part - New (to order)
                    # 25
                    MPN: 8K0907410
                    CONTROL UNIT FOR OPENING GARAGE DOOR
                    P608 (Garage door opener Homelink 433 MHz)
                    from £449.99
                    from £449.99
                    CONTROL UNIT FOR RADIO Genuine Porsche Part - New (to order)
                    CONTROL UNIT, Genuine Lamborghini - New In stock
                    CONTROL UNIT, Genuine Lamborghini - Used In stock
                    # 25
                    MPN: 8K0907410C
                    CONTROL UNIT FOR OPENING GARAGE DOOR
                    P607 (Garage door opener Homelink, 315 MHz)
                    from £498.94
                    from £498.94
                    CONTROL UNIT FOR RADIO Genuine Porsche Part - New (to order)
                    CONTROL UNIT, Genuine Lamborghini - New In stock
                    # 26
                    MPN: 99161827700
                    BRACKET
                    P607 (Garage door opener Homelink, 315 MHz) | P608 (Garage door opener Homelink 433 MHz)
                    from £11.76
                    from £11.76
                    BRACKET Genuine Porsche Part - New (to order)
                    # 27
                    MPN: 99919031030
                    POP RIVET
                    P607 (Garage door opener Homelink, 315 MHz) | P608 (Garage door opener Homelink 433 MHz)
                    from £0.91
                    from £0.91
                    POP-RIVET Genuine Porsche Part - New (to order)
                    # 28
                    MPN: 99161821005
                    SENSOR FOR INTERIOR MONITORING
                    P534 (Theft security system, 433 MHz) | P without 193
                    from £84.03
                    from £84.03
                    SENSOR FOR Genuine Porsche Part - New (to order)
                    # 28
                    MPN: 99161820901
                    SENSOR FOR INTERIOR MONITORING
                    P534 (Theft security system, 433 MHz) | P193 (japan version)
                    from £84.03
                    from £84.03
                    SENSOR FOR Genuine Porsche Part - New (to order)
                    # 28
                    -
                    ALARM HORN SEE ILLUSTRATION: 903-000
                    # 29
                    MPN: 9P1919653A
                    CONTROL UNIT Porsche ADDITIONAL EQUIPMENT MOTORSPORT
                    P639 (Sport Chrono package) | P640 (Sport Chrono Plus package) | P643 (Track app)
                    electronic control module Genuine Porsche Part - New (to order)
                    # 30
                    MPN: 99161875380
                    VELCRO
                    P639 (Sport Chrono package) | P640 (Sport Chrono Plus package)
                    from £11.56
                    from £11.56
                    VELCRO STRIP Genuine Porsche Part - New (to order)
                    # 31
                    MPN: 9A763762000
                    CONTROL UNIT TELEMATICS CONTROL UNIT
                    P7G9 (VTS preparation and Porsche Car Connect (pcc)) | P7I0 (VTS security package (incl. PCC) and keypad) | P7I2 (VTS security package (with PCC))
                    electronic control module Genuine Porsche Part - New (to order)
                    # 32
                    MPN: 90037701001
                    HEXAGON NUT
                    P7G9 (VTS preparation and Porsche Car Connect (pcc))
                    from £0.59
                    from £0.59
                    This part replaces part number 90037701009
                    hex. nut - M 6 Genuine Porsche Part - New In stock
                    # 33
                    MPN: 9P1035317
                    RETAINER FOR CONTROL UNITS VTS VEHICLE TRACKING
                    P7G9 (VTS preparation and Porsche Car Connect (pcc))
                    from £33.33
                    from £33.33
                    BRACKET FOR CONTROL UNIT Genuine Porsche Part - New (to order)
                    # 34
                    MPN: 7PP862077
                    Driver Card VTS vehicle tracking
                    P7I2 (VTS security package (with PCC))
                    from £102.05
                    from £102.05
                    DRIVER CARD Genuine Porsche Part - New (to order)
