porsche 2016 (991-1 turbo) air conditioning refrigerant line drier 2. generation d - mj 2017>> parts diagram

813-023 - Air conditioning Refrigerant line Drier 2. GENERATION D - MJ 2017>>

Porsche 2016 (991-1 Turbo) Air conditioning Refrigerant line Drier 2. GENERATION D - MJ 2017>> Parts Diagram

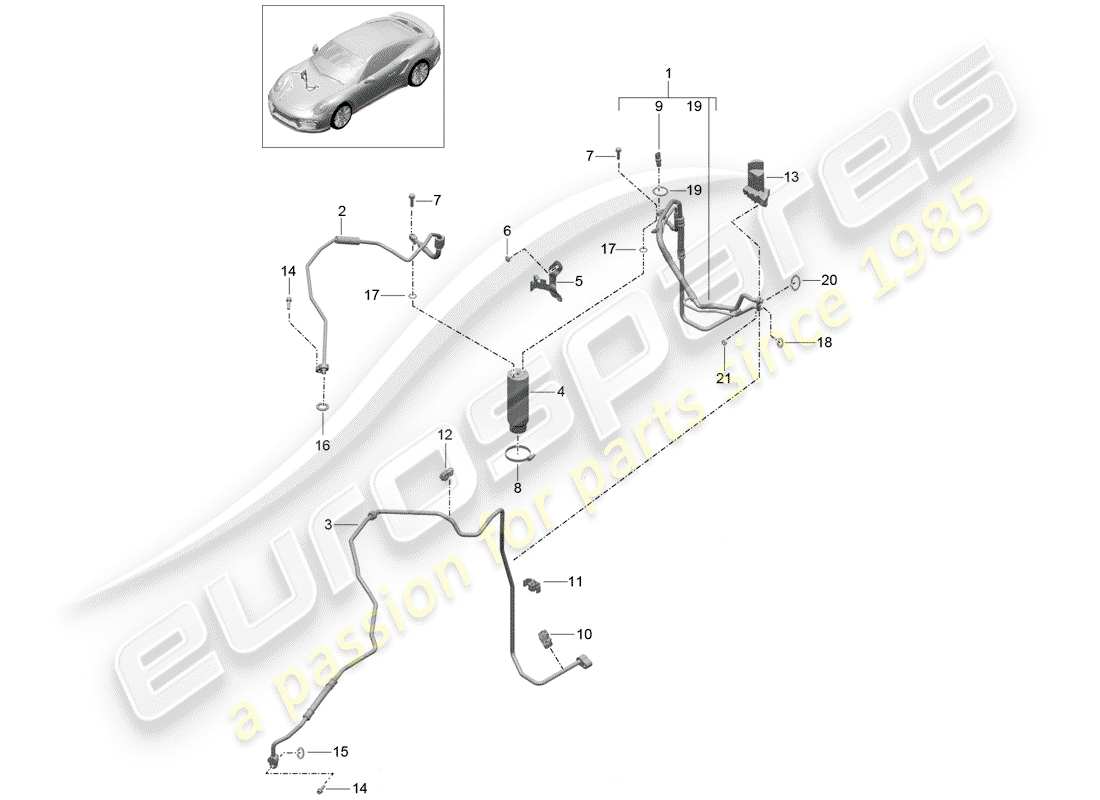

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Key
                                        Price
                                        # 1
                                        MPN: 99157310200
                                        HEAT EXCHANGER LHD REFRIGERANT LINE R134A
                                        PKK1 (Refrigerant R134a) | P098 (Left-hand drive version) | P573 (Air conditioner)
                                        from £296.53
                                        from £296.53
                                        HEATER CORE Genuine Porsche Part - New (to order)
                                        # 1
                                        MPN: 99157310202
                                        HEAT EXCHANGER LHD REFRIGERANT LINE R1234YF
                                        PKK3 (Refrigerant R1234yf) | P098 (Left-hand drive version) | P573 (Air conditioner)
                                        HEATER CORE Genuine Porsche Part - New (to order)
                                        # 1
                                        MPN: 99157310201
                                        HEAT EXCHANGER RHD REFRIGERANT LINE R134A
                                        PKK1 (Refrigerant R134a) | P099 (Right-hand drive version) | P573 (Air conditioner)
                                        HEATER CORE Genuine Porsche Part - New (to order)
                                        # 1
                                        MPN: 99157310207
                                        heat exchanger Refrigerant line Air conditioning
                                        PKK3 (Refrigerant R1234yf) | P099 (Right-hand drive version) | P573 (Air conditioner)
                                        from £320.61
                                        from £320.61
                                        HEATER CORE Genuine Porsche Part - New (to order)
                                        # 2
                                        MPN: 99157310803
                                        Pressure line Drier Expansion valve
                                        from £166.38
                                        from £166.38
                                        PRESSURE LINE Genuine Porsche Part - New (to order)
                                        # 2
                                        MPN: 99157310891
                                        Pressure line Drier Expansion valve
                                        from £437.04
                                        from £437.04
                                        PRESSURE LINE Genuine Porsche Part - New (to order)
                                        # 3
                                        MPN: 99157309404
                                        PRESSURE LINE FRONT UNDERBODY CONDENSER
                                        from £116.29
                                        from £116.29
                                        This part replaces part number 99157309401
                                        PRESSURE LINE Genuine Porsche Part - New (to order)
                                        # 3
                                        MPN: 99157309491
                                        PRESSURE LINE FRONT UNDERBODY CONDENSER
                                        from £147.49
                                        from £147.49
                                        PRESSURE LINE Genuine Porsche Part - New (to order)
                                        # 4
                                        MPN: 94457314301
                                        DRIER
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 5
                                        MPN: 99157345101
                                        BRACKET FOR DRIER
                                        from £10.13
                                        from £10.13
                                        BRACKET FOR DRIER Genuine Porsche Part - New (to order)
                                        # 6
                                        MPN: 90007551001
                                        BOLT WITH WASHER M6X20-PA-S1-L
                                        from £0.91
                                        from £0.91
                                        BOLT WITH WASHER Genuine Porsche Part - New (to order)
                                        # 7
                                        MPN: 90007534001
                                        BOLT WITH WASHER M6X22
                                        from £2.86
                                        from £2.86
                                        BOLT WITH WASHER Genuine Porsche Part - New (to order)
                                        # 8
                                        MPN: 99951234901
                                        HOSE CLAMP A50-70/9
                                        from £4.52
                                        from £4.52
                                        This part replaces part number 99951234902
                                        Hose Clamp - SGT 50-70/9 Genuine Porsche Part - New (to order)
                                        # 9
                                        MPN: 95561313703
                                        PRESSURE SENSOR
                                        from £88.34
                                        from £88.34
                                        This part replaces part number 95561313702
                                        PRESSURE SENSOR Genuine Porsche Part - New (to order)
                                        # 10
                                        MPN: 99157384300
                                        Bracket Refrigerant line Underbody
                                        BRACKET Genuine Porsche Part - New (to order)
                                        # 11
                                        MPN: 99157382501
                                        BRACKET FOR COOLANT LINE WHEEL HOUSING
                                        from £5.14
                                        from £5.14
                                        BRACKET FOR COOLANT Genuine Porsche Part - New (to order)
                                        # 12
                                        MPN: 971260197
                                        BRACKET FOR REFRIGERANT PIPE REFRIGERANT LINE WHEEL HOUSING
                                        from £4.03
                                        from £4.03
                                        This part replaces part number 99157383700
                                        BRACKET FOR REFRIGERANT PIPE Genuine Porsche Part - New (to order)
                                        BRACKET FOR REFRIGERANT PIPE Genuine Bentley Part - New (to order)
                                        # 13
                                        MPN: 99157251200
                                        FOAM PART LHD
                                        P098 (Left-hand drive version)
                                        from £10.48
                                        from £10.48
                                        foam part Genuine Porsche Part - New (to order)
                                        # 13
                                        MPN: 99157251301
                                        FOAM PART RHD
                                        P099 (Right-hand drive version)
                                        from £21.39
                                        from £21.39
                                        foam part Genuine Porsche Part - New (to order)
                                        # 14
                                        MPN: N 10414402
                                        Socket head bolt with M8X28 hexagon socket head
                                        from £1.38
                                        from £1.38
                                        BOLT, WITH HEX. SOCKET Genuine Porsche Part - New (to order)
                                        SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD Genuine Bentley Part - New (to order)
                                        HEXALOBULAR SOCKETM8X28-S10-N Genuine Lamborghini - New In stock
                                        # 15
                                        MPN: 99970755741
                                        O-RING 11,00X2,50NX
                                        from £2.29
                                        from £2.29
                                        O-RING - 11.00X2.50 Genuine Porsche Part - New In stock
                                        # 16
                                        MPN: 99970755641
                                        O-RING 9,50X2,50N*
                                        from £2.29
                                        from £2.29
                                        O-RING - 9,50X2,50 Genuine Porsche Part - New In stock
                                        # 17
                                        MPN: 99970766040
                                        O-RING 7,00X1,90N*
                                        from £4.52
                                        from £4.52
                                        This part replaces part number 99970726240
                                        O-RING Genuine Porsche Part - New In stock
                                        # 18
                                        MPN: 99970765240
                                        O-RING 7,50X2,10N*
                                        from £7.32
                                        from £7.32
                                        O-RING Genuine Porsche Part - New (to order)
                                        # 19
                                        MPN: 99970755541
                                        O-RING 10,80X1,82N*
                                        from £2.29
                                        from £2.29
                                        O-RING - 10,80X1,82 Genuine Porsche Part - New (to order)
                                        # 20
                                        MPN: 99970755841
                                        O-RING 13,70X2,50NX
                                        from £4.52
                                        from £4.52
                                        O-RING - 13,70X2,50N Genuine Porsche Part - New (to order)
                                        # 21
                                        MPN: 90037701809
                                        HEXAGON NUT M6
                                        from £0.47
                                        from £0.47
                                        HEX. NUT Genuine Porsche Part - New (to order)
