813-025 - refrigerant circuit Underbody and Rear end D >>- MJ 2016

Porsche 2016 (991-1 Turbo) refrigerant circuit Underbody and Rear end D >>- MJ 2016 Parts Diagram

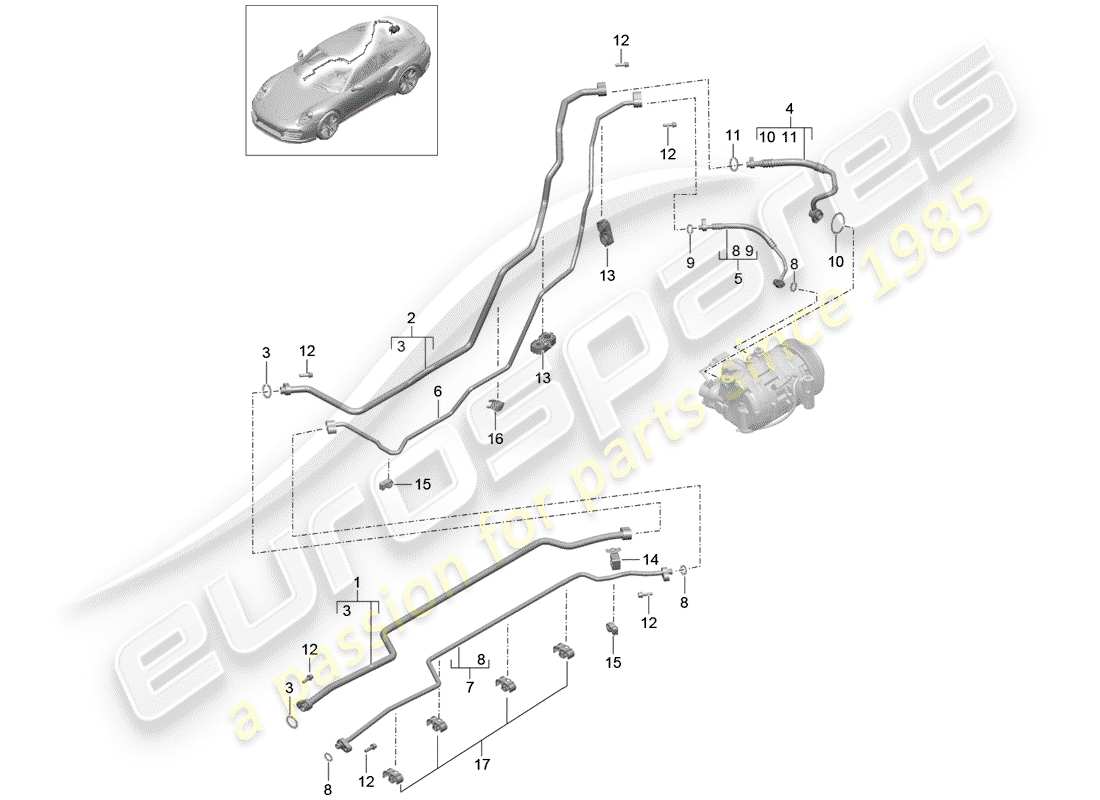

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Key
                                    Price
                                    # 1
                                    MPN: 99157309101
                                    suction line front Wheel housing Underbody
                                    SUCTION PIPE Genuine Porsche Part - New (to order)
                                    # 2
                                    MPN: 99157309504
                                    SUCTION LINE WHEEL HOUSING COMPRESSOR
                                    SUCTION PIPE Genuine Porsche Part - New (to order)
                                    # 3
                                    MPN: 99970765340
                                    O-RING 16,70X2,50N*
                                    from £7.32
                                    from £7.32
                                    O-RING Genuine Porsche Part - New In stock
                                    # 4
                                    MPN: 9A157309907
                                    suction line Compressor
                                    from £89.75
                                    from £89.75
                                    SUCTION PIPE Genuine Porsche Part - New (to order)
                                    # 5
                                    MPN: 9A157309705
                                    PRESSURE LINE COMPRESSOR
                                    from £150.35
                                    from £150.35
                                    PRESSURE LINE Genuine Porsche Part - New (to order)
                                    # 6
                                    MPN: 99157309604
                                    PRESSURE LINE ENGINE BAY COMPRESSOR CARRIER
                                    from £104.36
                                    from £104.36
                                    PRESSURE LINE Genuine Porsche Part - New (to order)
                                    # 7
                                    MPN: 99157309201
                                    Pressure line front Underbody Wheel housing
                                    PRESSURE LINE Genuine Porsche Part - New (to order)
                                    # 8
                                    MPN: 99970755741
                                    O-RING 11,00X2,50NX
                                    from £2.29
                                    from £2.29
                                    O-RING - 11.00X2.50 Genuine Porsche Part - New In stock
                                    # 9
                                    MPN: 99970743441
                                    O-RING 1O-R0X2,
                                    from £5.61
                                    from £5.61
                                    O-Ring - NW 10 Genuine Porsche Part - New In stock
                                    # 10
                                    MPN: 99970743941
                                    O-RING 23,80X2,40N*
                                    from £6.45
                                    from £6.45
                                    O-RING - 23,80X2,40 Genuine Porsche Part - New In stock
                                    # 11
                                    MPN: 99970765340
                                    O-RING 16,70X2,50N*
                                    from £7.32
                                    from £7.32
                                    O-RING Genuine Porsche Part - New In stock
                                    # 12
                                    MPN: N 10414402
                                    Socket head bolt with M8X28 hexagon socket head
                                    from £1.38
                                    from £1.38
                                    BOLT, WITH HEX. SOCKET Genuine Porsche Part - New (to order)
                                    SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD Genuine Bentley Part - New (to order)
                                    HEXALOBULAR SOCKETM8X28-S10-N Genuine Lamborghini - New In stock
                                    # 13
                                    MPN: 99157384300
                                    BRACKET
                                    BRACKET Genuine Porsche Part - New (to order)
                                    # 14
                                    MPN: 99157383700
                                    BRACKET
                                    Supersession
                                    Supersession
                                    Genuine Porsche Part (no longer available to order)
                                    # 15
                                    MPN: 99157383500
                                    BRACKET FOR COOLANT LINE
                                    from £3.65
                                    from £3.65
                                    BRACKET FOR COOLANT Genuine Porsche Part - New (to order)
                                    # 16
                                    MPN: 99157382901
                                    BRACKET FOR COOLANT LINE
                                    from £5.14
                                    from £5.14
                                    BRACKET FOR COOLANT Genuine Porsche Part - New (to order)
                                    # 17
                                    MPN: 99157382501
                                    BRACKET FOR COOLANT LINE
                                    from £5.14
                                    from £5.14
                                    BRACKET FOR COOLANT Genuine Porsche Part - New (to order)
