902-020 - Wiring looms rear Assembly frame Additional brake light Trim Engine Rear axle

Porsche 2017 (991-2 R/GT3/RS) Wiring looms rear Assembly frame Additional brake light Trim Engine Rear axle Parts Diagram

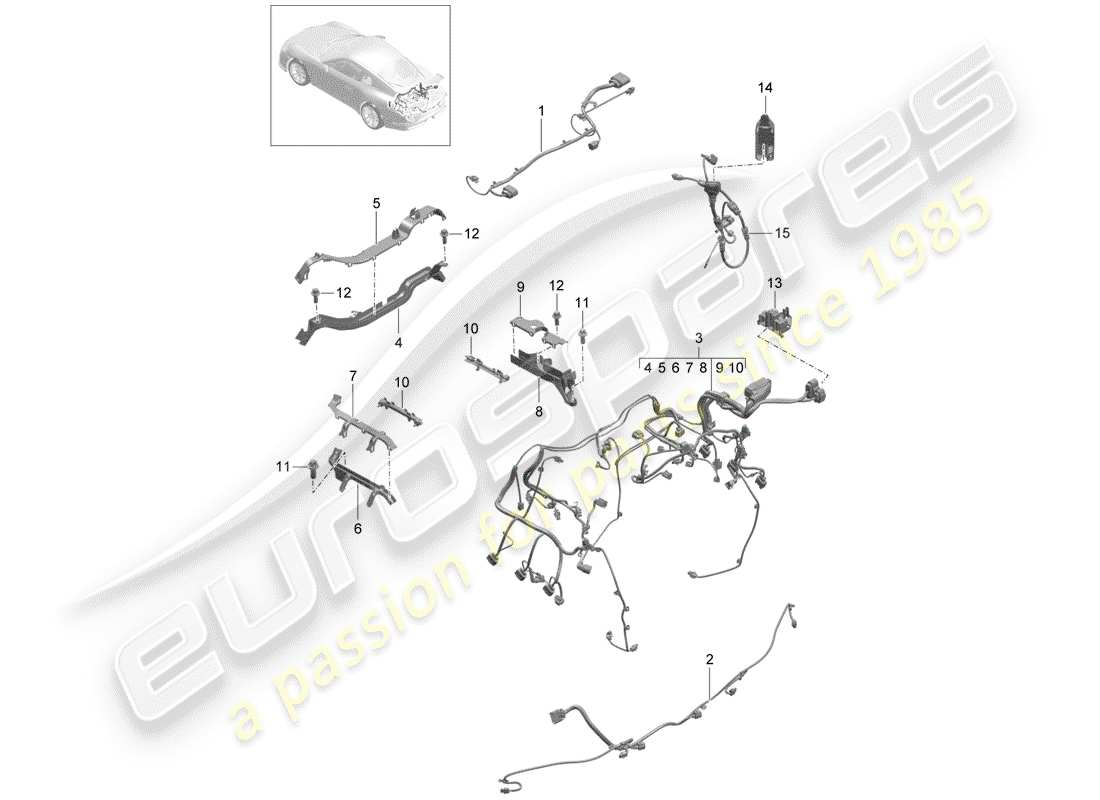

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 1
                MPN: 99161288480
                WIRE SET ASSEMBLY FRAME D >>- MJ 2017
                from £70.71
                from £70.71
                harness Genuine Porsche Part - New (to order)
                # 1
                MPN: 9P1971587B
                WIRE SET ASSEMBLY FRAME D - MJ 2018>>
                from £71.56
                from £71.56
                harness Genuine Porsche Part - New (to order)
                # 1
                MPN: 99161288882
                WIRE SET ADDITIONAL BRAKE LIGHT D >>- MJ 2017
                from £141.91
                from £141.91
                harness Genuine Porsche Part - New (to order)
                # 1
                MPN: 9P1971182
                WIRE SET ADDITIONAL BRAKE LIGHT D - MJ 2018>>
                from £89.37
                from £89.37
                harness Genuine Porsche Part - New (to order)
                # 2
                MPN: 99161289503
                WIRE SET REAR TRIM D >>- MJ 2017
                P without 635, P without 636
                from £35.15
                from £35.15
                harness Genuine Porsche Part - New (to order)
                # 2
                MPN: 9P1971174F
                WIRE SET REAR TRIM D - MJ 2018>>
                from £270.48
                from £270.48
                harness Genuine Porsche Part - New (to order)
                # 2
                MPN: 9P1971174H
                WIRE SET REAR TRIM D - MJ 2018>>
                from £270.48
                from £270.48
                harness Genuine Porsche Part - New (to order)
                # 3
                MPN: 9A160701481
                Wire set Engine D >>- MJ 2013
                from £1,116.02
                from £1,116.02
                harness Genuine Porsche Part - New (to order)
                # 3
                MPN: 9A160701481
                Wire set Engine D - MJ 2014>>- MJ 2014
                PIY1 (Model year period from week 22 to week 45)
                from £1,116.02
                from £1,116.02
                harness Genuine Porsche Part - New (to order)
                # 3
                MPN: 9A160701482
                Wire set Engine D - MJ 2014>>- MJ 2014
                PIY2 (Model year period from week 45 to week 22)
                harness Genuine Porsche Part - New (to order)
                # 3
                MPN: 9A160701482
                Wire set Engine D - MJ 2015>>- MJ 2017
                harness Genuine Porsche Part - New (to order)
                # 3
                MPN: 9A160701484
                Wire set Engine D - MJ 2015>>- MJ 2017
                from £1,126.75
                from £1,126.75
                harness Genuine Porsche Part - New (to order)
                # 3
                MPN: 9A160701483
                WIRE SET ENGINE D - MJ 2018>>
                from £668.27
                from £668.27
                harness Genuine Porsche Part - New (to order)
                # 3
                MPN: 9GT971595
                WIRING SET FOR ENGINE D - MJ 2019>>
                from £1,714.29
                from £1,714.29
                WIRING SET FOR ENGINE Genuine Porsche Part - New (to order)
                # 6
                MPN: 9A160711180
                CABLE GUIDE CYLINDERS 1-3
                from £541.71
                from £541.71
                WIRING CONDUIT Genuine Porsche Part - New (to order)
                # 6
                MPN: 9A160741180
                CABLE HOLDER CYLINDERS 1-3
                from £19.10
                from £19.10
                CABLE HOLDER Genuine Porsche Part - New (to order)
                # 6
                MPN: 9A160741880
                CABLE HOLDER CYLINDERS 1-3
                CABLE HOLDER Genuine Porsche Part - New (to order)
                # 11
                MPN: 90038500103
                TORX SCREW BM8X20
                from £1.17
                from £1.17
                TORX SCREW Genuine Porsche Part - New (to order)
                # 12
                MPN: 90038500901
                HEXAGON HEAD BOLT BM6X16
                Supersession
                Supersession
                Genuine Porsche Part (no longer available to order)
                # 13
                MPN: 99161013900
                BRACKET CONNECTION POINT WIRE SET ENGINE
                from £7.28
                from £7.28
                BRACKET Genuine Porsche Part - New (to order)
                # 14
                MPN: 99161013500
                COVER CONNECTION POINT WIRE SET REAR AXLE
                from £5.39
                from £5.39
                COVER Genuine Porsche Part - New (to order)
                # 14
                MPN: 99904903340
                PLASTIC NUT T6X16
                PLASTIC NUT Genuine Porsche Part - New (to order)
                # 15
                MPN: 99160913380
                Wire set Rear axle
                P475 (PASM electronic damper control)
                from £101.02
                from £101.02
                harness Genuine Porsche Part - New (to order)
                # 16
                MPN: 99950708540
                CLIP GEH-CLIP
                from £0.59
                from £0.59
                CLIP Genuine Porsche Part - New (to order)
                # 16
                -
