102-000 - crankshaft

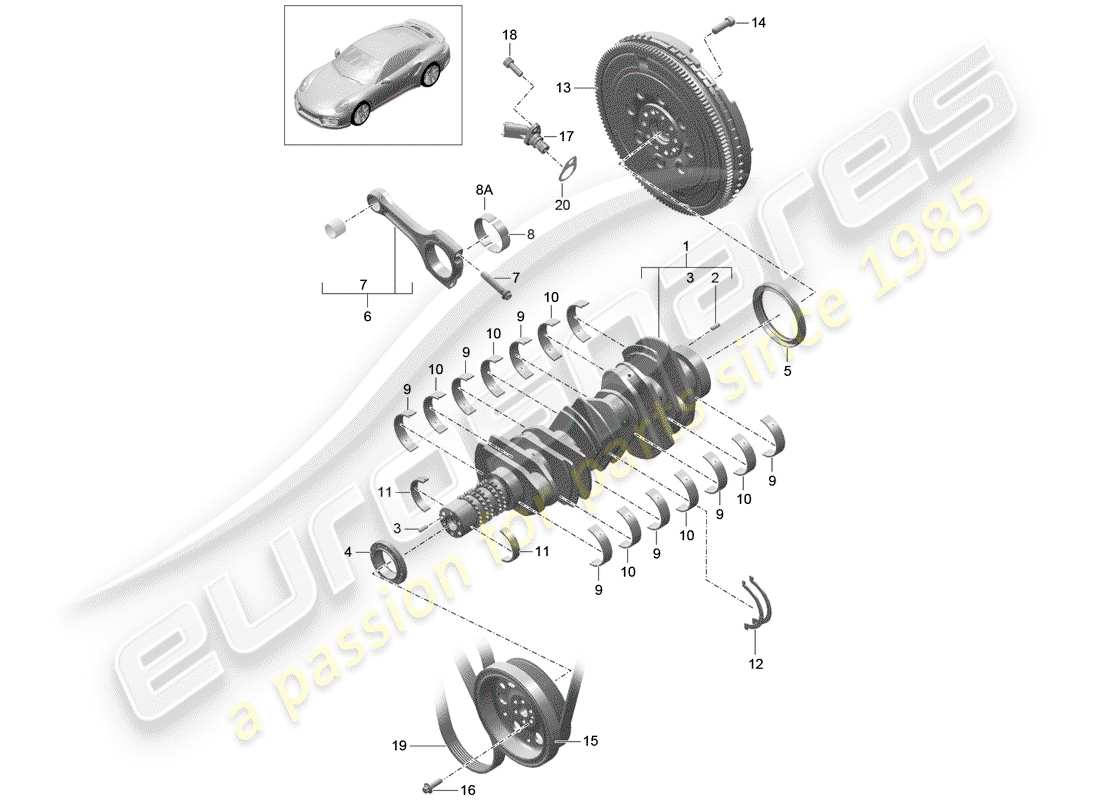

Porsche 2017 (991-2 Turbo) Crankshaft Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 9A110207770
crankshaft
from £5,638.25
from £5,638.25
# 2
MPN: 90009503100
SPRING PIN 6X16
from £0.56
from £0.56
# 3
MPN: 90030201600
CYLINDER PIN 6,0X16
from £1.20
from £1.20
# 4
MPN: 9A110122202
SHAFT OIL SEAL 52X72X9
A171 (3.8 Litre 6 Cyliner Engine (520 Horsepower / 383 Kilowatt with Engine Code: A171 and installed 05/2013-05/2016) | DABA (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DABA and installed 05/2016-05/2020) | DAB (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DAB and installed 05/2017-05/2020) | DBCA (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBCA and installed 05/2016-05/2020) | DBC (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBC and installed 05/2017-05/2020) | DBCB (3.8 Litre 6 Cyliner Engine (606 Horsepower / 446 Kilowatt with Engine Code: DBCB and installed 05/2017-05/2020)
Supersession
Supersession
# 4
MPN: 0PB105247
SHAFT OIL SEAL 52X72X9
DHNA (3.8 Litre 6 Cyliner Engine (700 Horsepower / 515 Kilowatt with Engine Code: DHNA and installed 05/2017-05/2020)
from £28.18
from £28.18
This part replaces part number 9A110122202
# 5
MPN: 99710121201
SHAFT OIL SEAL 85X105X11
A171 (3.8 Litre 6 Cyliner Engine (520 Horsepower / 383 Kilowatt with Engine Code: A171 and installed 05/2013-05/2016) | DABA (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DABA and installed 05/2016-05/2020) | DAB (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DAB and installed 05/2017-05/2020) | DBCA (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBCA and installed 05/2016-05/2020) | DBC (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBC and installed 05/2017-05/2020) | DBCB (3.8 Litre 6 Cyliner Engine (606 Horsepower / 446 Kilowatt with Engine Code: DBCB and installed 05/2017-05/2020)
Supersession
Supersession
# 5
MPN: 0PB105249
SHAFT OIL SEAL 85X105X11
DHNA (3.8 Litre 6 Cyliner Engine (700 Horsepower / 515 Kilowatt with Engine Code: DHNA and installed 05/2017-05/2020)
from £31.01
from £31.01
This part replaces part number 99710121200 - and 1 more. Click to view details
# 6
MPN: 9A110391470
1 SET: CONNECTING RODS
A171 (3.8 Litre 6 Cyliner Engine (520 Horsepower / 383 Kilowatt with Engine Code: A171 and installed 05/2013-05/2016)
from £739.12
from £739.12
# 6
MPN: 9A110300670
1 SET: CONNECTING RODS
DABA (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DABA and installed 05/2016-05/2020) | DAB (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DAB and installed 05/2017-05/2020) | DBCA (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBCA and installed 05/2016-05/2020) | DBC (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBC and installed 05/2017-05/2020) | DBCB (3.8 Litre 6 Cyliner Engine (606 Horsepower / 446 Kilowatt with Engine Code: DBCB and installed 05/2017-05/2020) | DHNA (3.8 Litre 6 Cyliner Engine (700 Horsepower / 515 Kilowatt with Engine Code: DHNA and installed 05/2017-05/2020)
# 7
MPN: 9A110311502
bolt - connecting rod M10X1,25X51
# 8
MPN: 9A110305300
connecting rod bearing shell Identification: >>>>red
connecting rod bearing shell Identification: >>>>red
Supersession
Supersession
# 8
MPN: 9A110305303
connecting rod bearing shell Identification: >>>>red
A171 (3.8 Litre 6 Cyliner Engine (520 Horsepower / 383 Kilowatt with Engine Code: A171 and installed 05/2013-05/2016) | DABA (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DABA and installed 05/2016-05/2020) | DAB (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DAB and installed 05/2017-05/2020) | DBCA (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBCA and installed 05/2016-05/2020) | DBC (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBC and installed 05/2017-05/2020) | DBCB (3.8 Litre 6 Cyliner Engine (606 Horsepower / 446 Kilowatt with Engine Code: DBCB and installed 05/2017-05/2020)
Supersession
Supersession
# 8
MPN: 0PB105701A
connecting rod bearing shell Identification: >>>>red
DHNA (3.8 Litre 6 Cyliner Engine (700 Horsepower / 515 Kilowatt with Engine Code: DHNA and installed 05/2017-05/2020)
from £15.61
from £15.61
This part replaces part number 9A110305303
# 8
MPN: 9A110305301
connecting rod bearing shell Identification: >>>>yellow
connecting rod bearing shell Identification: >>>>yellow
Supersession
Supersession
# 8
MPN: 9A110305304
connecting rod bearing shell Identification: >>>>yellow
A171 (3.8 Litre 6 Cyliner Engine (520 Horsepower / 383 Kilowatt with Engine Code: A171 and installed 05/2013-05/2016) | DABA (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DABA and installed 05/2016-05/2020) | DAB (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DAB and installed 05/2017-05/2020) | DBCA (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBCA and installed 05/2016-05/2020) | DBC (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBC and installed 05/2017-05/2020) | DBCB (3.8 Litre 6 Cyliner Engine (606 Horsepower / 446 Kilowatt with Engine Code: DBCB and installed 05/2017-05/2020)
from £9.40
from £9.40
# 8
MPN: 0PB105701B
connecting rod bearing shell Identification: >>>>yellow
DHNA (3.8 Litre 6 Cyliner Engine (700 Horsepower / 515 Kilowatt with Engine Code: DHNA and installed 05/2017-05/2020)
from £15.33
from £15.33
This part replaces part number 9A110305301
# 8
MPN: 9A110305302
connecting rod bearing shell Identification: >>>>blue
A171 (3.8 Litre 6 Cyliner Engine (520 Horsepower / 383 Kilowatt with Engine Code: A171 and installed 05/2013-05/2016)
Supersession
Supersession
# 8
MPN: 9A110305305
connecting rod bearing shell Identification: >>>>blue
DABA (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DABA and installed 05/2016-05/2020) | DAB (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DAB and installed 05/2017-05/2020) | DBCA (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBCA and installed 05/2016-05/2020) | DBC (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBC and installed 05/2017-05/2020) | DBCB (3.8 Litre 6 Cyliner Engine (606 Horsepower / 446 Kilowatt with Engine Code: DBCB and installed 05/2017-05/2020)
from £10.53
from £10.53
This part replaces part number 9A110305302
# 8
MPN: 0PB105701C
connecting rod bearing shell Identification: >>>>blue
DHNA (3.8 Litre 6 Cyliner Engine (700 Horsepower / 515 Kilowatt with Engine Code: DHNA and installed 05/2017-05/2020)
from £15.44
from £15.44
# 8A
MPN: 9A110307306
connecting rod bearing shell Identification: >>>>red
A171 (3.8 Litre 6 Cyliner Engine (520 Horsepower / 383 Kilowatt with Engine Code: A171 and installed 05/2013-05/2016) | DABA (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DABA and installed 05/2016-05/2020) | DAB (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DAB and installed 05/2017-05/2020) | DBCA (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBCA and installed 05/2016-05/2020) | DBC (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBC and installed 05/2017-05/2020) | DBCB (3.8 Litre 6 Cyliner Engine (606 Horsepower / 446 Kilowatt with Engine Code: DBCB and installed 05/2017-05/2020)
from £31.12
from £31.12
# 8A
MPN: 0PB105702A
connecting rod bearing shell Identification: >>>>red
DHNA (3.8 Litre 6 Cyliner Engine (700 Horsepower / 515 Kilowatt with Engine Code: DHNA and installed 05/2017-05/2020)
from £36.67
from £36.67
# 8A
MPN: 9A110307307
connecting rod bearing shell Identification: >>>>yellow
A171 (3.8 Litre 6 Cyliner Engine (520 Horsepower / 383 Kilowatt with Engine Code: A171 and installed 05/2013-05/2016) | DABA (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DABA and installed 05/2016-05/2020) | DAB (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DAB and installed 05/2017-05/2020) | DBCA (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBCA and installed 05/2016-05/2020) | DBC (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBC and installed 05/2017-05/2020) | DBCB (3.8 Litre 6 Cyliner Engine (606 Horsepower / 446 Kilowatt with Engine Code: DBCB and installed 05/2017-05/2020)
Supersession
Supersession
# 8A
MPN: 0PB105702B
connecting rod bearing shell Identification: >>>>yellow
DHNA (3.8 Litre 6 Cyliner Engine (700 Horsepower / 515 Kilowatt with Engine Code: DHNA and installed 05/2017-05/2020)
Supersession
Supersession
# 8A
MPN: 9A110307308
connecting rod bearing shell Identification: >>>>blue
A171 (3.8 Litre 6 Cyliner Engine (520 Horsepower / 383 Kilowatt with Engine Code: A171 and installed 05/2013-05/2016) | DABA (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DABA and installed 05/2016-05/2020) | DAB (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DAB and installed 05/2017-05/2020) | DBCA (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBCA and installed 05/2016-05/2020) | DBC (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBC and installed 05/2017-05/2020) | DBCB (3.8 Litre 6 Cyliner Engine (606 Horsepower / 446 Kilowatt with Engine Code: DBCB and installed 05/2017-05/2020)
from £39.56
from £39.56
# 8A
MPN: 0PB105702C
connecting rod bearing shell Identification: >>>>blue
DHNA (3.8 Litre 6 Cyliner Engine (700 Horsepower / 515 Kilowatt with Engine Code: DHNA and installed 05/2017-05/2020)
from £45.90
from £45.90
# 9
MPN: 9A110106400
crankshaft bearing Identification: >>>>red
A171 (3.8 Litre 6 Cyliner Engine (520 Horsepower / 383 Kilowatt with Engine Code: A171 and installed 05/2013-05/2016) | DABA (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DABA and installed 05/2016-05/2020) | DAB (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DAB and installed 05/2017-05/2020) | DBCA (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBCA and installed 05/2016-05/2020) | DBC (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBC and installed 05/2017-05/2020) | DBCB (3.8 Litre 6 Cyliner Engine (606 Horsepower / 446 Kilowatt with Engine Code: DBCB and installed 05/2017-05/2020)
Supersession
Supersession
# 9
MPN: 0PB105591E
crankshaft bearing Identification: >>>>red
DHNA (3.8 Litre 6 Cyliner Engine (700 Horsepower / 515 Kilowatt with Engine Code: DHNA and installed 05/2017-05/2020)
from £17.80
from £17.80
This part replaces part number 9A110106400
# 9
MPN: 9A110106401
crankshaft bearing Identification: >>>>yellow
A171 (3.8 Litre 6 Cyliner Engine (520 Horsepower / 383 Kilowatt with Engine Code: A171 and installed 05/2013-05/2016) | DABA (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DABA and installed 05/2016-05/2020) | DAB (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DAB and installed 05/2017-05/2020) | DBCA (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBCA and installed 05/2016-05/2020) | DBC (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBC and installed 05/2017-05/2020) | DBCB (3.8 Litre 6 Cyliner Engine (606 Horsepower / 446 Kilowatt with Engine Code: DBCB and installed 05/2017-05/2020)
Supersession
Supersession
# 9
MPN: 0PB105591F
crankshaft bearing Identification: >>>>yellow
DHNA (3.8 Litre 6 Cyliner Engine (700 Horsepower / 515 Kilowatt with Engine Code: DHNA and installed 05/2017-05/2020)
Supersession
Supersession
# 9
MPN: 9A110106402
crankshaft bearing Identification: >>>>blue
A171 (3.8 Litre 6 Cyliner Engine (520 Horsepower / 383 Kilowatt with Engine Code: A171 and installed 05/2013-05/2016) | DABA (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DABA and installed 05/2016-05/2020) | DAB (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DAB and installed 05/2017-05/2020) | DBCA (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBCA and installed 05/2016-05/2020) | DBC (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBC and installed 05/2017-05/2020) | DBCB (3.8 Litre 6 Cyliner Engine (606 Horsepower / 446 Kilowatt with Engine Code: DBCB and installed 05/2017-05/2020)
from £13.21
from £13.21
# 9
MPN: 0PB105591G
crankshaft bearing Identification: >>>>blue
DHNA (3.8 Litre 6 Cyliner Engine (700 Horsepower / 515 Kilowatt with Engine Code: DHNA and installed 05/2017-05/2020)
from £17.80
from £17.80
# 10
MPN: 9A110106300
CRANKSHAFT BEARING INCLUDED PARTIAL-GROOVE IDENTIFICATION: >>>>RED
Supersession
Supersession
# 10
MPN: 9A110106301
CRANKSHAFT BEARING INCLUDED PARTIAL-GROOVE IDENTIFICATION: >>>>YELLOW
Supersession
Supersession
# 10
MPN: 9A110106302
CRANKSHAFT BEARING INCLUDED PARTIAL-GROOVE IDENTIFICATION: >>>>BLUE
# 11
MPN: 9A110105200
crankshaft bearing Identification: >>>>red
A171 (3.8 Litre 6 Cyliner Engine (520 Horsepower / 383 Kilowatt with Engine Code: A171 and installed 05/2013-05/2016)
Supersession
Supersession
# 11
MPN: 9A110105203
crankshaft bearing Identification: >>>>red
DABA (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DABA and installed 05/2016-05/2020) | DAB (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DAB and installed 05/2017-05/2020) | DBCA (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBCA and installed 05/2016-05/2020) | DBC (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBC and installed 05/2017-05/2020) | DBCB (3.8 Litre 6 Cyliner Engine (606 Horsepower / 446 Kilowatt with Engine Code: DBCB and installed 05/2017-05/2020) | DHNA (3.8 Litre 6 Cyliner Engine (700 Horsepower / 515 Kilowatt with Engine Code: DHNA and installed 05/2017-05/2020)
from £12.98
from £12.98
# 11
MPN: 0PB105589E
crankshaft bearing Identification: >>>>red
DABA (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DABA and installed 05/2016-05/2020) | DAB (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DAB and installed 05/2017-05/2020) | DBCA (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBCA and installed 05/2016-05/2020) | DBC (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBC and installed 05/2017-05/2020) | DBCB (3.8 Litre 6 Cyliner Engine (606 Horsepower / 446 Kilowatt with Engine Code: DBCB and installed 05/2017-05/2020) | DHNA (3.8 Litre 6 Cyliner Engine (700 Horsepower / 515 Kilowatt with Engine Code: DHNA and installed 05/2017-05/2020)
from £17.80
from £17.80
This part replaces part number 9A110105200
# 11
MPN: 9A110105201
crankshaft bearing Identification: >>>>yellow
A171 (3.8 Litre 6 Cyliner Engine (520 Horsepower / 383 Kilowatt with Engine Code: A171 and installed 05/2013-05/2016)
Supersession
Supersession
# 11
MPN: 9A110105204
crankshaft bearing Identification: >>>>yellow
DABA (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DABA and installed 05/2016-05/2020) | DAB (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DAB and installed 05/2017-05/2020) | DBCA (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBCA and installed 05/2016-05/2020) | DBC (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBC and installed 05/2017-05/2020) | DBCB (3.8 Litre 6 Cyliner Engine (606 Horsepower / 446 Kilowatt with Engine Code: DBCB and installed 05/2017-05/2020) | DHNA (3.8 Litre 6 Cyliner Engine (700 Horsepower / 515 Kilowatt with Engine Code: DHNA and installed 05/2017-05/2020)
from £12.82
from £12.82
# 11
MPN: 9A110105202
crankshaft bearing Identification: >>>>blue
A171 (3.8 Litre 6 Cyliner Engine (520 Horsepower / 383 Kilowatt with Engine Code: A171 and installed 05/2013-05/2016)
# 11
MPN: 9A110105205
crankshaft bearing Identification: >>>>blue
DABA (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DABA and installed 05/2016-05/2020) | DAB (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DAB and installed 05/2017-05/2020) | DBCA (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBCA and installed 05/2016-05/2020) | DBC (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBC and installed 05/2017-05/2020) | DBCB (3.8 Litre 6 Cyliner Engine (606 Horsepower / 446 Kilowatt with Engine Code: DBCB and installed 05/2017-05/2020) | DHNA (3.8 Litre 6 Cyliner Engine (700 Horsepower / 515 Kilowatt with Engine Code: DHNA and installed 05/2017-05/2020)
# 12
MPN: 99610113200
thrust washer D=63
A171 (3.8 Litre 6 Cyliner Engine (520 Horsepower / 383 Kilowatt with Engine Code: A171 and installed 05/2013-05/2016)
Supersession
Supersession
# 12
MPN: 0PB105638
thrust washer D=63
DABA (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DABA and installed 05/2016-05/2020) | DAB (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DAB and installed 05/2017-05/2020) | DBCA (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBCA and installed 05/2016-05/2020) | DBC (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBC and installed 05/2017-05/2020) | DBCB (3.8 Litre 6 Cyliner Engine (606 Horsepower / 446 Kilowatt with Engine Code: DBCB and installed 05/2017-05/2020) | DHNA (3.8 Litre 6 Cyliner Engine (700 Horsepower / 515 Kilowatt with Engine Code: DHNA and installed 05/2017-05/2020) | DHN (3.8 Litre 6 Cyliner Engine (700 Horsepower / 515 Kilowatt with Engine Code: DHN and installed 01/2013-05/2020)
from £19.80
from £19.80
This part replaces part number 99610113200
# 13
MPN: 99111402050
DUAL-MASS FLYWHEEL
A171 (3.8 Litre 6 Cyliner Engine (520 Horsepower / 383 Kilowatt with Engine Code: A171 and installed 05/2013-05/2016) with, P250 (PDK transmission (dual clutch))
Supersession
Supersession
# 13
MPN: 9P1105264A
DUAL-MASS FLYWHEEL
DABA (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DABA and installed 05/2016-05/2020) | DAB (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DAB and installed 05/2017-05/2020) | DBCA (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBCA and installed 05/2016-05/2020) | DBC (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBC and installed 05/2017-05/2020) | DHNA (3.8 Litre 6 Cyliner Engine (700 Horsepower / 515 Kilowatt with Engine Code: DHNA and installed 05/2017-05/2020) | DHN (3.8 Litre 6 Cyliner Engine (700 Horsepower / 515 Kilowatt with Engine Code: DHN and installed 01/2013-05/2020) | P250 (PDK transmission (dual clutch))
from £1,456.18
from £1,456.18
# 14
MPN: N 90665101
SOCKET HEAD BOLT WITH INNER M10X1X29 MULTIPOINT HEAD
P250 (PDK transmission (dual clutch))
from £2.21
from £2.21
# 15
MPN: 9A110214602
PULLEY INCLUDED VIBRATION DAMPER
A171 (3.8 Litre 6 Cyliner Engine (520 Horsepower / 383 Kilowatt with Engine Code: A171 and installed 05/2013-05/2016)
Supersession
Supersession
# 15
MPN: 9A110214603
PULLEY INCLUDED VIBRATION DAMPER
DABA (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DABA and installed 05/2016-05/2020) | DAB (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DAB and installed 05/2017-05/2020) | DBCA (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBCA and installed 05/2016-05/2020) | DBC (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBC and installed 05/2017-05/2020) | DBCB (3.8 Litre 6 Cyliner Engine (606 Horsepower / 446 Kilowatt with Engine Code: DBCB and installed 05/2017-05/2020) | DHNA (3.8 Litre 6 Cyliner Engine (700 Horsepower / 515 Kilowatt with Engine Code: DHNA and installed 05/2017-05/2020)
from £212.41
from £212.41
# 16
MPN: 90038512701
HEXAGON HEAD BOLT BM8X1X25
A171 (3.8 Litre 6 Cyliner Engine (520 Horsepower / 383 Kilowatt with Engine Code: A171 and installed 05/2013-05/2016)
# 16
MPN: 90038512702
HEXAGON HEAD BOLT BM8X1X25
DABA (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DABA and installed 05/2016-05/2020) | DAB (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DAB and installed 05/2017-05/2020) | DBCA (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBCA and installed 05/2016-05/2020) | DBC (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBC and installed 05/2017-05/2020) | DBCB (3.8 Litre 6 Cyliner Engine (606 Horsepower / 446 Kilowatt with Engine Code: DBCB and installed 05/2017-05/2020) | DHNA (3.8 Litre 6 Cyliner Engine (700 Horsepower / 515 Kilowatt with Engine Code: DHNA and installed 05/2017-05/2020) | DHN (3.8 Litre 6 Cyliner Engine (700 Horsepower / 515 Kilowatt with Engine Code: DHN and installed 01/2013-05/2020)
from £0.91
from £0.91
# 17
MPN: 99160611200
speed sensor also use: 1X 991 606 912 00
CG155 (7C Gearbox with Transmission Code: CG155 and installed 05/13-05/16) with, A171 (3.8 Litre 6 Cyliner Engine (520 Horsepower / 383 Kilowatt with Engine Code: A171 and installed 05/2013-05/2016)
from £91.15
from £91.15
# 17
MPN: 99160611202
SPEED SENSOR ALSO USE: 1X 991 606 912 00 D >>- 23.06.2016
CG160 (7C Gearbox with Transmission Code: CG160 and installed 05/16-05/20) with, DABA (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DABA and installed 05/2016-05/2020) | DAB (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DAB and installed 05/2017-05/2020) | DBCA (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBCA and installed 05/2016-05/2020) | DBC (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBC and installed 05/2017-05/2020)
from £130.00
from £130.00
# 17
MPN: 99160611202
SPEED SENSOR D - 24.06.2016>>
CG160 (7C Gearbox with Transmission Code: CG160 and installed 05/16-05/20) | CG180 (7C Gearbox with Transmission Code: CG180 and installed 05/17-05/20) with, DABA (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DABA and installed 05/2016-05/2020) | DAB (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DAB and installed 05/2017-05/2020) | DBCA (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBCA and installed 05/2016-05/2020) | DBC (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBC and installed 05/2017-05/2020) | DBCB (3.8 Litre 6 Cyliner Engine (606 Horsepower / 446 Kilowatt with Engine Code: DBCB and installed 05/2017-05/2020) | DHNA (3.8 Litre 6 Cyliner Engine (700 Horsepower / 515 Kilowatt with Engine Code: DHNA and installed 05/2017-05/2020)
from £130.00
from £130.00
# 18
MPN: N 10546403
Hexagon socket head M6X16 bolt
from £1.26
from £1.26
# 19
-
V-BELT SEE ILLUSTRATION: 101-010
# 20
MPN: 99160691200
SHIM SPEED SENSOR
CG155 (7C Gearbox with Transmission Code: CG155 and installed 05/13-05/16) with, A171 (3.8 Litre 6 Cyliner Engine (520 Horsepower / 383 Kilowatt with Engine Code: A171 and installed 05/2013-05/2016)
from £1.87
from £1.87
# 20
MPN: 99160691200
SHIM SPEED SENSOR D >>- 23.06.2016
CG160 (7C Gearbox with Transmission Code: CG160 and installed 05/16-05/20) with, DABA (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DABA and installed 05/2016-05/2020) | DAB (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DAB and installed 05/2017-05/2020) | DBCA (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBCA and installed 05/2016-05/2020) | DBC (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBC and installed 05/2017-05/2020)
from £1.87
from £1.87
-part-diagram-102-005.webp "PORSCHE 2017 (991-2 TURBO) PISTON PARTS DIAGRAM")
-part-diagram-103-000.webp "PORSCHE 2017 (991-2 TURBO) CYLINDER HEAD WITH: INLET/OUTLET VALVE CYLINDER HEAD GASKET VALVE COVER PARTS DIAGRAM")
-part-diagram-103-005.webp "PORSCHE 2017 (991-2 TURBO) CYLINDER HEAD ACCESSORIES INLET/OUTLET VALVE PARTS DIAGRAM")
-part-diagram-103-010.webp "PORSCHE 2017 (991-2 TURBO) CAMSHAFT HYDRAULIC TAPPET CAMSHAFT ADJUSTER UNIT PARTS DIAGRAM")
-part-diagram-103-015.webp "PORSCHE 2017 (991-2 TURBO) SLIDE RAIL TIMING CHAIN PARTS DIAGRAM")
-part-diagram-104-000.webp "PORSCHE 2017 (991-2 TURBO) OIL PUMP PARTS DIAGRAM")
-part-diagram-104-002.webp "PORSCHE 2017 (991-2 TURBO) OIL SUMP PARTS DIAGRAM")
-part-diagram-104-010.webp "PORSCHE 2017 (991-2 TURBO) CRANKCASE HOUSING OIL SEPARATOR TANK VENTILATION VACUUM PUMP PARTS DIAGRAM")
-part-diagram-104-015.webp "PORSCHE 2017 (991-2 TURBO) OIL FILTER CONSOLE PARTS DIAGRAM")
-part-diagram-105-000.webp "PORSCHE 2017 (991-2 TURBO) COOLANT PUMP THERMOSTAT HOUSING PARTS DIAGRAM")
-part-diagram-105-003.webp "PORSCHE 2017 (991-2 TURBO) ASSEMBLY CARRIER WATER PIPE PARTS DIAGRAM")
-part-diagram-105-005.webp "PORSCHE 2017 (991-2 TURBO) WATER PIPE COOLANT COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-105-007.webp "PORSCHE 2017 (991-2 TURBO) COOLANT COOLING SYSTEM REAR END PARTS DIAGRAM")
-part-diagram-105-010.webp "PORSCHE 2017 (991-2 TURBO) COOLANT COOLING SYSTEM FRONT END PARTS DIAGRAM")
-part-diagram-105-015.webp "PORSCHE 2017 (991-2 TURBO) COOLANT COOLING SYSTEM COOLER FOR COOLANT RADIATOR FAN PARTS DIAGRAM")
-part-diagram-105-020.webp "PORSCHE 2017 (991-2 TURBO) COOLER FOR COOLANT CENTER PARTS DIAGRAM")
-part-diagram-105-025.webp "PORSCHE 2017 (991-2 TURBO) COOLANT COOLING SYSTEM FLUID RESERVOIR PARTS DIAGRAM")
-part-diagram-106-000.webp "PORSCHE 2017 (991-2 TURBO) AIR FILTER PARTS DIAGRAM")
-part-diagram-106-002.webp "PORSCHE 2017 (991-2 TURBO) AIR FILTER PARTS DIAGRAM")
-part-diagram-106-005.webp "PORSCHE 2017 (991-2 TURBO) AIR FILTER VACUUM SYSTEM PARTS DIAGRAM")
-part-diagram-106-010.webp "PORSCHE 2017 (991-2 TURBO) AIR FILTER VACUUM SYSTEM PARTS DIAGRAM")
-part-diagram-107-005.webp "PORSCHE 2017 (991-2 TURBO) FUEL COLLECTION PIPE HIGH PRESSURE PUMP PARTS DIAGRAM")
-part-diagram-107-010.webp "PORSCHE 2017 (991-2 TURBO) INTAKE AIR DISTRIBUTOR THROTTLE VALVE ADAPTER PARTS DIAGRAM")
-part-diagram-107-015.webp "PORSCHE 2017 (991-2 TURBO) VACUUM SYSTEM ENGINE PARTS DIAGRAM")
-part-diagram-107-020.webp "PORSCHE 2017 (991-2 TURBO) AIR GUIDE FOR CHARGE AIR COOLER CHARGE AIR COOLER PARTS DIAGRAM")
-part-diagram-107-030.webp "PORSCHE 2017 (991-2 TURBO) WATER RESERVOIR FOR WATER WATER-SPRAY SYSTEM CHARGE AIR COOLER PARTS DIAGRAM")
-part-diagram-108-000.webp "PORSCHE 2017 (991-2 TURBO) SECONDARY AIR PUMP PARTS DIAGRAM")
-part-diagram-109-000.webp "PORSCHE 2017 (991-2 TURBO) ENGINE LIFTING TACKLE PARTS DIAGRAM")
-part-diagram-201-000.webp "PORSCHE 2017 (991-2 TURBO) FUEL TANK PARTS DIAGRAM")
-part-diagram-201-005.webp "PORSCHE 2017 (991-2 TURBO) FUEL LINE FRONT FUEL SUPPLY SYSTEM PARTS DIAGRAM")
-part-diagram-201-010.webp "PORSCHE 2017 (991-2 TURBO) FUEL LINE REAR FUEL SUPPLY SYSTEM PARTS DIAGRAM")
-part-diagram-201-020.webp "PORSCHE 2017 (991-2 TURBO) ACTIVATED CHARCOAL CONTAINER PARTS DIAGRAM")
-part-diagram-202-000.webp "PORSCHE 2017 (991-2 TURBO) EXHAUST SYSTEM EXHAUST GAS TREATMENT SYSTEM EXHAUST GAS TURBOCHARGER PARTS DIAGRAM")
-part-diagram-202-001.webp "PORSCHE 2017 (991-2 TURBO) EXHAUST SYSTEM EXHAUST GAS TREATMENT SYSTEM EXHAUST GAS TURBOCHARGER PARTS DIAGRAM")
-part-diagram-202-002.webp "PORSCHE 2017 (991-2 TURBO) EXHAUST SYSTEM EXHAUST GAS TREATMENT SYSTEM EXHAUST GAS TURBOCHARGER PARTS DIAGRAM")
-part-diagram-202-005.webp "PORSCHE 2017 (991-2 TURBO) EXHAUST GAS TURBOCHARGER COOLANT COOLING SYSTEM OIL PIPE COOLANT PIPE PARTS DIAGRAM")
-part-diagram-305-010.webp "PORSCHE 2017 (991-2 TURBO) FRONT AXLE DIFFERENTIAL CARDAN SHAFT PARTS DIAGRAM")
-part-diagram-305-015.webp "PORSCHE 2017 (991-2 TURBO) FRONT AXLE DIFFERENTIAL INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-305-020.webp "PORSCHE 2017 (991-2 TURBO) FRONT AXLE DIFFERENTIAL COOLANT COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-306-000.webp "PORSCHE 2017 (991-2 TURBO) SUPPORT FRAME TRANSMISSION SECURING PARTS PARTS DIAGRAM")
-part-diagram-320-000.webp "PORSCHE 2017 (991-2 TURBO) - PDK - GEARBOX (EXCHANGE PART) PARTS DIAGRAM")
-part-diagram-320-005.webp "PORSCHE 2017 (991-2 TURBO) - PDK - GEARBOX INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-320-010.webp "PORSCHE 2017 (991-2 TURBO) - PDK - GEARBOX CLUTCH FOR DUAL CLUTCH GEARBOX PARTS DIAGRAM")
-part-diagram-360-000.webp "PORSCHE 2017 (991-2 TURBO) - PDK - GEARBOX HEAT EXCHANGER OIL PIPE WATER PIPE PARTS DIAGRAM")
-part-diagram-360-010.webp "PORSCHE 2017 (991-2 TURBO) - PDK - GEARBOX HEAT EXCHANGER OIL PIPE WATER PIPE PARTS DIAGRAM")
-part-diagram-401-000.webp "PORSCHE 2017 (991-2 TURBO) CROSS MEMBER WISHBONE D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-401-002.webp "PORSCHE 2017 (991-2 TURBO) CROSS MEMBER WISHBONE D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-401-003.webp "PORSCHE 2017 (991-2 TURBO) CROSS MEMBER WISHBONE PARTS DIAGRAM")
-part-diagram-401-005.webp "PORSCHE 2017 (991-2 TURBO) WHEEL CARRIER WHEEL HUB D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-401-007.webp "PORSCHE 2017 (991-2 TURBO) WHEEL CARRIER WHEEL HUB D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-401-008.webp "PORSCHE 2017 (991-2 TURBO) WHEEL CARRIER WHEEL HUB PARTS DIAGRAM")
-part-diagram-401-010.webp "PORSCHE 2017 (991-2 TURBO) DRIVE SHAFT D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-401-012.webp "PORSCHE 2017 (991-2 TURBO) DRIVE SHAFT D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-402-000.webp "PORSCHE 2017 (991-2 TURBO) SUSPENSION SUSPENSION STRUT COMPLETE D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-402-001.webp "PORSCHE 2017 (991-2 TURBO) VIBRATION DAMPER PARTS DIAGRAM")
-part-diagram-402-002.webp "PORSCHE 2017 (991-2 TURBO) SUSPENSION SUSPENSION STRUT COMPLETE D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-402-003.webp "PORSCHE 2017 (991-2 TURBO) ADAPTIVE SUSPENSION D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-402-004.webp "PORSCHE 2017 (991-2 TURBO) ADAPTIVE SUSPENSION PARTS DIAGRAM")
-part-diagram-402-005.webp "PORSCHE 2017 (991-2 TURBO) ANTI-ROLL BAR D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-402-007.webp "PORSCHE 2017 (991-2 TURBO) ANTI-ROLL BAR D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-402-008.webp "PORSCHE 2017 (991-2 TURBO) ANTI-ROLL BAR PARTS DIAGRAM")
-part-diagram-402-010.webp "PORSCHE 2017 (991-2 TURBO) ANTI-ROLL BAR PDCC D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-402-012.webp "PORSCHE 2017 (991-2 TURBO) ANTI-ROLL BAR PDCC D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-402-020.webp "PORSCHE 2017 (991-2 TURBO) HYDRAULIC LINE VALVE BLOCK FRONT END PDCC D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-402-022.webp "PORSCHE 2017 (991-2 TURBO) HYDRAULIC LINE VALVE BLOCK FRONT END PDCC D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-402-030.webp "PORSCHE 2017 (991-2 TURBO) HYDRAULIC LINE FRONT END DAMPER PDCC D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-402-032.webp "PORSCHE 2017 (991-2 TURBO) HYDRAULIC LINE FRONT END DAMPER PDCC D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-402-040.webp "PORSCHE 2017 (991-2 TURBO) HYDRAULIC LINE CENTER UNDERBODY PDCC D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-402-042.webp "PORSCHE 2017 (991-2 TURBO) HYDRAULIC LINE CENTER UNDERBODY PDCC D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-402-050.webp "PORSCHE 2017 (991-2 TURBO) HYDRAULIC LINE REAR END DAMPER PDCC D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-402-052.webp "PORSCHE 2017 (991-2 TURBO) HYDRAULIC LINE REAR END DAMPER PDCC D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-402-060.webp "PORSCHE 2017 (991-2 TURBO) HYDRAULIC LINE ENGINE PDCC D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-402-062.webp "PORSCHE 2017 (991-2 TURBO) HYDRAULIC LINE ENGINE PDCC D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-403-000.webp "PORSCHE 2017 (991-2 TURBO) STEERING GEAR D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-403-002.webp "PORSCHE 2017 (991-2 TURBO) STEERING GEAR D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-403-004.webp "PORSCHE 2017 (991-2 TURBO) STEERING WHEEL D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-403-005.webp "PORSCHE 2017 (991-2 TURBO) STEERING WHEEL D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-403-006.webp "PORSCHE 2017 (991-2 TURBO) STEERING COLUMN INTERMEDIATE STEERING SHAFT D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-403-008.webp "PORSCHE 2017 (991-2 TURBO) STEERING COLUMN INTERMEDIATE STEERING SHAFT D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-403-010.webp "PORSCHE 2017 (991-2 TURBO) STEERING GEAR PARTS DIAGRAM")
-part-diagram-403-014.webp "PORSCHE 2017 (991-2 TURBO) STEERING WHEEL PARTS DIAGRAM")
-part-diagram-403-016.webp "PORSCHE 2017 (991-2 TURBO) STEERING COLUMN INTERMEDIATE STEERING SHAFT PARTS DIAGRAM")
-part-diagram-501-000.webp "PORSCHE 2017 (991-2 TURBO) REAR AXLE WHEEL CARRIER WHEEL HUB D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-501-001.webp "PORSCHE 2017 (991-2 TURBO) REAR AXLE SIDE PART CARRIER GUIDE D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-501-003.webp "PORSCHE 2017 (991-2 TURBO) ANTI-ROLL BAR D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-501-004.webp "PORSCHE 2017 (991-2 TURBO) ANTI-ROLL BAR PDCC D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-501-005.webp "PORSCHE 2017 (991-2 TURBO) DRIVE SHAFT D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-501-010.webp "PORSCHE 2017 (991-2 TURBO) REAR AXLE WHEEL CARRIER WHEEL HUB D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-501-011.webp "PORSCHE 2017 (991-2 TURBO) REAR AXLE SIDE PART CARRIER GUIDE D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-501-012.webp "PORSCHE 2017 (991-2 TURBO) ANTI-ROLL BAR D - MJ 2018>> PARTS DIAGRAM")
-part-diagram-501-013.webp "PORSCHE 2017 (991-2 TURBO) ANTI-ROLL BAR D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-501-014.webp "PORSCHE 2017 (991-2 TURBO) ANTI-ROLL BAR PDCC D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-501-015.webp "PORSCHE 2017 (991-2 TURBO) DRIVE SHAFT WHEEL HUB D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-501-020.webp "PORSCHE 2017 (991-2 TURBO) WHEEL CARRIER WHEEL HUB PARTS DIAGRAM")
-part-diagram-501-021.webp "PORSCHE 2017 (991-2 TURBO) CROSS MEMBER SIDE PART GUIDE PARTS DIAGRAM")
-part-diagram-501-023.webp "PORSCHE 2017 (991-2 TURBO) ANTI-ROLL BAR PARTS DIAGRAM")
-part-diagram-501-025.webp "PORSCHE 2017 (991-2 TURBO) DRIVE SHAFT PARTS DIAGRAM")
-part-diagram-502-000.webp "PORSCHE 2017 (991-2 TURBO) SHOCK ABSORBERS COIL SPRING D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-502-002.webp "PORSCHE 2017 (991-2 TURBO) SHOCK ABSORBERS COIL SPRING D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-502-003.webp "PORSCHE 2017 (991-2 TURBO) SHOCK ABSORBERS COIL SPRING PARTS DIAGRAM")
-part-diagram-601-000.webp "PORSCHE 2017 (991-2 TURBO) ALUMINIUM RIM SPARE WHEEL TYRE SEALANT D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-601-001.webp "PORSCHE 2017 (991-2 TURBO) ALLOY WHEEL WITH CENTRAL LOCKING D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-601-002.webp "PORSCHE 2017 (991-2 TURBO) ALUMINIUM RIM SPARE WHEEL TYRE SEALANT D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-601-003.webp "PORSCHE 2017 (991-2 TURBO) ALUMINIUM RIM CENTRAL LOCKING D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-601-004.webp "PORSCHE 2017 (991-2 TURBO) ALUMINIUM RIM SPARE WHEEL CENTRAL LOCKING PARTS DIAGRAM")
-part-diagram-601-005.webp "PORSCHE 2017 (991-2 TURBO) TYRE PRESSURE CONTROL SYSTEM D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-601-007.webp "PORSCHE 2017 (991-2 TURBO) TYRE PRESSURE CONTROL SYSTEM D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-601-008.webp "PORSCHE 2017 (991-2 TURBO) TYRE PRESSURE CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-602-000.webp "PORSCHE 2017 (991-2 TURBO) DISC BRAKE FRONT AXLE D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-602-002.webp "PORSCHE 2017 (991-2 TURBO) DISC BRAKE FRONT AXLE D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-602-003.webp "PORSCHE 2017 (991-2 TURBO) DISC BRAKE FRONT AXLE PCCB PARTS DIAGRAM")
-part-diagram-603-000.webp "PORSCHE 2017 (991-2 TURBO) DISC BRAKE REAR AXLE D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-603-002.webp "PORSCHE 2017 (991-2 TURBO) DISC BRAKE REAR AXLE D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-603-003.webp "PORSCHE 2017 (991-2 TURBO) DISC BRAKE REAR AXLE PCCB PARTS DIAGRAM")
-part-diagram-603-005.webp "PORSCHE 2017 (991-2 TURBO) PARKING BRAKE D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-603-007.webp "PORSCHE 2017 (991-2 TURBO) PARKING BRAKE D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-603-008.webp "PORSCHE 2017 (991-2 TURBO) PARKING BRAKE PARTS DIAGRAM")
-part-diagram-604-000.webp "PORSCHE 2017 (991-2 TURBO) BRAKE MASTER CYLINDER BRAKE SERVO D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-604-002.webp "PORSCHE 2017 (991-2 TURBO) BRAKE MASTER CYLINDER BRAKE SERVO D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-604-003.webp "PORSCHE 2017 (991-2 TURBO) BRAKE MASTER CYLINDER BRAKE SERVO PARTS DIAGRAM")
-part-diagram-604-005.webp "PORSCHE 2017 (991-2 TURBO) BRAKE LINE FRONT FRONT END D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-604-007.webp "PORSCHE 2017 (991-2 TURBO) BRAKE LINE FRONT FRONT END D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-604-008.webp "PORSCHE 2017 (991-2 TURBO) BRAKE LINE FRONT FRONT END PARTS DIAGRAM")
-part-diagram-604-010.webp "PORSCHE 2017 (991-2 TURBO) BRAKE LINE CENTER UNDERBODY REAR D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-604-012.webp "PORSCHE 2017 (991-2 TURBO) BRAKE LINE CENTER UNDERBODY REAR D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-604-013.webp "PORSCHE 2017 (991-2 TURBO) BRAKE LINE CENTER UNDERBODY REAR PARTS DIAGRAM")
-part-diagram-604-015.webp "PORSCHE 2017 (991-2 TURBO) VACUUM LINE FRONT CENTER REAR D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-604-017.webp "PORSCHE 2017 (991-2 TURBO) VACUUM LINE FRONT BRAKE SERVO CENTER REAR D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-604-018.webp "PORSCHE 2017 (991-2 TURBO) VACUUM LINE PARTS DIAGRAM")
-part-diagram-605-000.webp "PORSCHE 2017 (991-2 TURBO) HYDRAULIC UNIT ANTI-LOCKING BRAKE SYST. -ABS- CONTROL AND REGULATING UNIT D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-605-002.webp "PORSCHE 2017 (991-2 TURBO) HYDRAULIC UNIT ANTI-LOCKING BRAKE SYST. -ABS- CONTROL AND REGULATING UNIT D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-605-003.webp "PORSCHE 2017 (991-2 TURBO) HYDRAULIC UNIT ANTI-LOCKING BRAKE SYST. -ABS- CONTROL AND REGULATING UNIT PARTS DIAGRAM")
-part-diagram-701-000.webp "PORSCHE 2017 (991-2 TURBO) SELECTOR LEVER - PDK - D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-701-002.webp "PORSCHE 2017 (991-2 TURBO) SELECTOR LEVER - PDK - D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-701-003.webp "PORSCHE 2017 (991-2 TURBO) SELECTOR LEVER - PDK - PARTS DIAGRAM")
-part-diagram-702-000.webp "PORSCHE 2017 (991-2 TURBO) BRAKE AND ACCEL. LEVER MECH. D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-702-002.webp "PORSCHE 2017 (991-2 TURBO) BRAKE AND ACCEL. LEVER MECH. BRAKE PEDAL D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-702-010.webp "PORSCHE 2017 (991-2 TURBO) BRAKE AND ACCEL. LEVER MECH. THROTTLE CONTROL D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-702-012.webp "PORSCHE 2017 (991-2 TURBO) BRAKE AND ACCEL. LEVER MECH. THROTTLE CONTROL D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-702-013.webp "PORSCHE 2017 (991-2 TURBO) BRAKE AND ACCEL. LEVER MECH. THROTTLE CONTROL PARTS DIAGRAM")
-part-diagram-801-000.webp "PORSCHE 2017 (991-2 TURBO) CAR BODY PARTS DIAGRAM")
-part-diagram-801-002.webp "PORSCHE 2017 (991-2 TURBO) BUNGS PARTS DIAGRAM")
-part-diagram-801-005.webp "PORSCHE 2017 (991-2 TURBO) FRONT END (COMPLETE) PARTS DIAGRAM")
-part-diagram-801-010.webp "PORSCHE 2017 (991-2 TURBO) FRONT END INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-801-015.webp "PORSCHE 2017 (991-2 TURBO) DOME STRUT PARTS DIAGRAM")
-part-diagram-801-020.webp "PORSCHE 2017 (991-2 TURBO) FLOOR PLATES CENTER PARTS DIAGRAM")
-part-diagram-801-035.webp "PORSCHE 2017 (991-2 TURBO) REAR END PARTS DIAGRAM")
-part-diagram-801-040.webp "PORSCHE 2017 (991-2 TURBO) WING PARTS DIAGRAM")
-part-diagram-801-041.webp "PORSCHE 2017 (991-2 TURBO) WING GT2 RS PARTS DIAGRAM")
-part-diagram-801-045.webp "PORSCHE 2017 (991-2 TURBO) SCUTTLE ROOF PARTS DIAGRAM")
-part-diagram-801-050.webp "PORSCHE 2017 (991-2 TURBO) SIDE PART INNER PARTS DIAGRAM")
-part-diagram-801-055.webp "PORSCHE 2017 (991-2 TURBO) SIDE PART OUTER PARTS DIAGRAM")
-part-diagram-801-057.webp "PORSCHE 2017 (991-2 TURBO) SIDE PART OUTER PARTS DIAGRAM")
-part-diagram-801-060.webp "PORSCHE 2017 (991-2 TURBO) SIDE PART INNER PARTS DIAGRAM")
-part-diagram-801-065.webp "PORSCHE 2017 (991-2 TURBO) SIDE PART OUTER PARTS DIAGRAM")
-part-diagram-801-070.webp "PORSCHE 2017 (991-2 TURBO) UNDERBODY TRIM D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-801-072.webp "PORSCHE 2017 (991-2 TURBO) UNDERBODY TRIM PARTS DIAGRAM")
-part-diagram-801-073.webp "PORSCHE 2017 (991-2 TURBO) UNDERBODY TRIMS D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-801-075.webp "PORSCHE 2017 (991-2 TURBO) WHEEL HOUSING LINER TRIMS D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-801-077.webp "PORSCHE 2017 (991-2 TURBO) WHEEL HOUSING LINER TRIMS D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-801-078.webp "PORSCHE 2017 (991-2 TURBO) WHEEL HOUSING LINER TRIM PARTS DIAGRAM")
-part-diagram-801-080.webp "PORSCHE 2017 (991-2 TURBO) TRIM ENGINE BAY D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-801-082.webp "PORSCHE 2017 (991-2 TURBO) TRIM ENGINE BAY D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-801-085.webp "PORSCHE 2017 (991-2 TURBO) TRIM ENGINE BAY PARTS DIAGRAM")
-part-diagram-802-000.webp "PORSCHE 2017 (991-2 TURBO) BUMPER FRONT D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-802-005.webp "PORSCHE 2017 (991-2 TURBO) BUMPER FRONT D - MJ 2017>>2ND GENERATION PARTS DIAGRAM")
-part-diagram-802-006.webp "PORSCHE 2017 (991-2 TURBO) BUMPER GT2 RS FRONT BODY PARTS DIAGRAM")
-part-diagram-802-007.webp "PORSCHE 2017 (991-2 TURBO) BUMPER FRONT PARTS DIAGRAM")
-part-diagram-802-008.webp "PORSCHE 2017 (991-2 TURBO) FRONT SPOILER PARTS DIAGRAM")
-part-diagram-802-009.webp "PORSCHE 2017 (991-2 TURBO) FRONT SPOILER AEROKIT PARTS DIAGRAM")
-part-diagram-802-010.webp "PORSCHE 2017 (991-2 TURBO) BUMPER REAR D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-802-015.webp "PORSCHE 2017 (991-2 TURBO) BUMPER REAR GENERATION 2 D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-802-017.webp "PORSCHE 2017 (991-2 TURBO) BUMPER REAR TRIM GT2 RS PARTS DIAGRAM")
-part-diagram-802-020.webp "PORSCHE 2017 (991-2 TURBO) BUMPER CARRIER FRONT PARTS DIAGRAM")
-part-diagram-802-025.webp "PORSCHE 2017 (991-2 TURBO) BUMPER CARRIER FRONT BODY GT2 RS PARTS DIAGRAM")
-part-diagram-802-030.webp "PORSCHE 2017 (991-2 TURBO) BUMPER CARRIER REAR D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-802-032.webp "PORSCHE 2017 (991-2 TURBO) BUMPER CARRIER REAR D - MJ 2017>>2ND GENERATION PARTS DIAGRAM")
-part-diagram-802-040.webp "PORSCHE 2017 (991-2 TURBO) BUMPER CARRIER REAR BODY GT2 RS PARTS DIAGRAM")
-part-diagram-803-000.webp "PORSCHE 2017 (991-2 TURBO) COVER FRONT PARTS DIAGRAM")
-part-diagram-803-001.webp "PORSCHE 2017 (991-2 TURBO) BONNET FRONT PARTS DIAGRAM")
-part-diagram-803-005.webp "PORSCHE 2017 (991-2 TURBO) COVER REAR D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-803-006.webp "PORSCHE 2017 (991-2 TURBO) COVER REAR VENTILATION GRILLE D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-803-007.webp "PORSCHE 2017 (991-2 TURBO) REAR SPOILER D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-803-010.webp "PORSCHE 2017 (991-2 TURBO) REAR SPOILER D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-803-015.webp "PORSCHE 2017 (991-2 TURBO) REAR LID REAR SPOILER ACCESSORIES PARTS DIAGRAM")
-part-diagram-804-000.webp "PORSCHE 2017 (991-2 TURBO) DOOR SHELL DOOR LOCK D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-804-005.webp "PORSCHE 2017 (991-2 TURBO) DOOR SHELL DOOR LOCK D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-804-010.webp "PORSCHE 2017 (991-2 TURBO) DOOR SEAL AND TRIM D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-804-012.webp "PORSCHE 2017 (991-2 TURBO) DOOR SEAL AND TRIM D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-804-015.webp "PORSCHE 2017 (991-2 TURBO) DOOR SEAL AND TRIM D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-804-017.webp "PORSCHE 2017 (991-2 TURBO) DOOR SEAL AND TRIM D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-804-020.webp "PORSCHE 2017 (991-2 TURBO) DOOR HANDLE, EXTERIOR D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-804-022.webp "PORSCHE 2017 (991-2 TURBO) DOOR HANDLE, EXTERIOR D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-804-030.webp "PORSCHE 2017 (991-2 TURBO) WINDOW REGULATOR D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-804-032.webp "PORSCHE 2017 (991-2 TURBO) WINDOW REGULATOR D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-805-000.webp "PORSCHE 2017 (991-2 TURBO) WINDSCREEN REAR WINDOW SIDE WINDOW D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-805-001.webp "PORSCHE 2017 (991-2 TURBO) WINDSCREEN SIDE WINDOW D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-805-005.webp "PORSCHE 2017 (991-2 TURBO) SIDE WINDOW PARTS DIAGRAM")
-part-diagram-807-000.webp "PORSCHE 2017 (991-2 TURBO) LUGGAGE COMPARTMENT TRIM D >>- MJ 2017 PARTS DIAGRAM")
-part-diagram-807-001.webp "PORSCHE 2017 (991-2 TURBO) LUGGAGE COMPARTMENT TRIM D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-807-010.webp "PORSCHE 2017 (991-2 TURBO) FLOORING TRIMS PARTS DIAGRAM")
-part-diagram-807-011.webp "PORSCHE 2017 (991-2 TURBO) FLOORING TRIMS D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-807-015.webp "PORSCHE 2017 (991-2 TURBO) TRIM SILL D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-807-017.webp "PORSCHE 2017 (991-2 TURBO) TRIM SILL D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-807-020.webp "PORSCHE 2017 (991-2 TURBO) SIDE PANEL TRIM SEAT WELL B-PILLAR D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-807-021.webp "PORSCHE 2017 (991-2 TURBO) SIDE PANEL TRIM B-PILLAR D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-807-022.webp "PORSCHE 2017 (991-2 TURBO) SIDE PANEL TRIM CARPET FLOOR D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-807-023.webp "PORSCHE 2017 (991-2 TURBO) SIDE PANEL TRIM REAR D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-807-025.webp "PORSCHE 2017 (991-2 TURBO) TRIMS REAR C-PILLAR D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-807-026.webp "PORSCHE 2017 (991-2 TURBO) TRIMS REAR C-PILLAR D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-807-035.webp "PORSCHE 2017 (991-2 TURBO) TRIM REAR PARTS DIAGRAM")
-part-diagram-807-040.webp "PORSCHE 2017 (991-2 TURBO) ROOF TRIM D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-807-045.webp "PORSCHE 2017 (991-2 TURBO) ROOF TRIM D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-807-051.webp "PORSCHE 2017 (991-2 TURBO) A-PILLAR TRIMS D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-807-052.webp "PORSCHE 2017 (991-2 TURBO) A-PILLAR WINDSHIELD FRAME D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-807-053.webp "PORSCHE 2017 (991-2 TURBO) A-PILLAR TRIMS D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-807-054.webp "PORSCHE 2017 (991-2 TURBO) A-PILLAR WINDSHIELD FRAME D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-807-055.webp "PORSCHE 2017 (991-2 TURBO) SILL TRIM STRIP SILL INSCRIPTION D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-807-057.webp "PORSCHE 2017 (991-2 TURBO) SILL TRIM STRIP SILL INSCRIPTION D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-807-058.webp "PORSCHE 2017 (991-2 TURBO) SILL TRIM STRIP SILL INSCRIPTION PARTS DIAGRAM")
-part-diagram-807-065.webp "PORSCHE 2017 (991-2 TURBO) SUN VIZORS D >>- 24.05.2015 PARTS DIAGRAM")
-part-diagram-807-067.webp "PORSCHE 2017 (991-2 TURBO) SUN VIZORS D >>- MJ 2015 PARTS DIAGRAM")
-part-diagram-807-068.webp "PORSCHE 2017 (991-2 TURBO) SUN VIZORS D - MJ 2016>> PARTS DIAGRAM")
-part-diagram-807-070.webp "PORSCHE 2017 (991-2 TURBO) SUN VIZORS D - 25.05.2015>> PARTS DIAGRAM")
-part-diagram-807-080.webp "PORSCHE 2017 (991-2 TURBO) BODY SOUND ABSORBERS D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-807-081.webp "PORSCHE 2017 (991-2 TURBO) BODY D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-807-082.webp "PORSCHE 2017 (991-2 TURBO) BODY SOUND ABSORBERS D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-807-083.webp "PORSCHE 2017 (991-2 TURBO) BODY SOUND ABSORBERS D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-808-000.webp "PORSCHE 2017 (991-2 TURBO) DOOR PANEL ACCESSORIES TRIM GALVANO SILVER D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-808-005.webp "PORSCHE 2017 (991-2 TURBO) DOOR PANEL ACCESSORIES TRIM GALVANO SILVER D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-808-010.webp "PORSCHE 2017 (991-2 TURBO) DOOR PANEL 2ND GENERATION ACCESSORIES TRIM GALVANO SILVER D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-808-015.webp "PORSCHE 2017 (991-2 TURBO) DOOR PANEL ACCESSORIES LEATHER TRIM GALVANO SILVER USA HEAD AIRBAG UNIT D - MJ 2018>> PARTS DIAGRAM")
-part-diagram-808-020.webp "PORSCHE 2017 (991-2 TURBO) DOOR PANEL ACCESSORIES TRIM LEATHER D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-808-025.webp "PORSCHE 2017 (991-2 TURBO) DOOR PANEL ACCESSORIES TRIM LEATHER D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-808-028.webp "PORSCHE 2017 (991-2 TURBO) DOOR PANEL 2ND GENERATION ACCESSORIES TRIM LEATHER D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-808-030.webp "PORSCHE 2017 (991-2 TURBO) DOOR PANEL ACCESSORIES TRIM MAHAGONI D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-808-035.webp "PORSCHE 2017 (991-2 TURBO) DOOR PANEL ACCESSORIES TRIM MAHAGONI D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-808-038.webp "PORSCHE 2017 (991-2 TURBO) DOOR PANEL 2ND GENERATION ACCESSORIES TRIM MAHAGONI D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-808-040.webp "PORSCHE 2017 (991-2 TURBO) DOOR PANEL ACCESSORIES TRIM CARBON D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-808-045.webp "PORSCHE 2017 (991-2 TURBO) DOOR PANEL ACCESSORIES TRIM CARBON D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-808-048.webp "PORSCHE 2017 (991-2 TURBO) DOOR PANEL 2ND GENERATION ACCESSORIES TRIM CARBON D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-808-050.webp "PORSCHE 2017 (991-2 TURBO) DOOR PANEL ACCESSORIES TRIM ALUMINIUM, BRUSHED D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-808-055.webp "PORSCHE 2017 (991-2 TURBO) DOOR PANEL ACCESSORIES TRIM ALUMINIUM, BRUSHED D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-808-058.webp "PORSCHE 2017 (991-2 TURBO) DOOR PANEL 2ND GENERATION ACCESSORIES TRIM ALUMINIUM, BRUSHED D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-808-060.webp "PORSCHE 2017 (991-2 TURBO) DOOR PANEL ACCESSORIES TRIM PAINTED D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-808-065.webp "PORSCHE 2017 (991-2 TURBO) DOOR PANEL ACCESSORIES TRIM PAINTED D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-808-068.webp "PORSCHE 2017 (991-2 TURBO) DOOR PANEL 2ND GENERATION ACCESSORIES TRIM PAINTED D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-808-070.webp "PORSCHE 2017 (991-2 TURBO) DOOR PANEL ACCESSORIES FOR VEHICLES WITH EXCLUSIVE EQUIPMENT BASIC EQUIPMENT PARTS DIAGRAM")
-part-diagram-808-080.webp "PORSCHE 2017 (991-2 TURBO) DOOR PANEL GT2RS ACCESSORIES LEATHERETTE PARTS DIAGRAM")
-part-diagram-808-090.webp "PORSCHE 2017 (991-2 TURBO) DOOR TRIM (LEATHER/ALCANTARA) ACCESSORIES TRIM LEATHER PARTS DIAGRAM")
-part-diagram-808-100.webp "PORSCHE 2017 (991-2 TURBO) DOOR TRIM (LEATHER/ALCANTARA) ACCESSORIES TRIM CARBON PARTS DIAGRAM")
-part-diagram-808-110.webp "PORSCHE 2017 (991-2 TURBO) DOOR TRIM (LEATHER/ALCANTARA) ACCESSORIES TRIM PANEL FOR DOOR TRIM PAINTED PARTS DIAGRAM")
-part-diagram-809-000.webp "PORSCHE 2017 (991-2 TURBO) INSTRUMENT PANEL TRIM UPPER PART WITH: FASTENERS D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-809-002.webp "PORSCHE 2017 (991-2 TURBO) INSTRUMENT PANEL TRIM UPPER PART WITH: FASTENERS D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-809-005.webp "PORSCHE 2017 (991-2 TURBO) ACCESSORIES INSTRUMENT PANEL TRIM UPPER PART D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-809-007.webp "PORSCHE 2017 (991-2 TURBO) ACCESSORIES INSTRUMENT PANEL TRIM D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-809-010.webp "PORSCHE 2017 (991-2 TURBO) GLOVE BOX AND TRIM (DRIVERS SIDE) D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-809-011.webp "PORSCHE 2017 (991-2 TURBO) GLOVE BOX AND TRIM (DRIVERS SIDE) D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-809-015.webp "PORSCHE 2017 (991-2 TURBO) RETAINING FRAME DASHBOARD PARTS DIAGRAM")
-part-diagram-809-020.webp "PORSCHE 2017 (991-2 TURBO) CENTRE CONSOLE D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-809-025.webp "PORSCHE 2017 (991-2 TURBO) CENTRE CONSOLE D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-809-050.webp "PORSCHE 2017 (991-2 TURBO) INTERIOR MIRROR EXTERIOR MIRROR D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-809-055.webp "PORSCHE 2017 (991-2 TURBO) INTERIOR MIRROR EXTERIOR MIRROR D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-809-060.webp "PORSCHE 2017 (991-2 TURBO) INTERIOR MIRROR EXTERIOR MIRROR SPORT DESIGN PACKAGE D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-809-065.webp "PORSCHE 2017 (991-2 TURBO) INTERIOR MIRROR EXTERIOR MIRROR SPORT DESIGN PACKAGE D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-810-000.webp "PORSCHE 2017 (991-2 TURBO) INSCRIPTIONS/LETTERING MOLDINGS STONE GUARD FILM PARTS DIAGRAM")
-part-diagram-810-002.webp "PORSCHE 2017 (991-2 TURBO) INSCRIPTIONS/LETTERING TRIM STONE GUARD FILM PARTS DIAGRAM")
-part-diagram-810-005.webp "PORSCHE 2017 (991-2 TURBO) SIDE MEMBER TRIM PARTS DIAGRAM")
-part-diagram-810-010.webp "PORSCHE 2017 (991-2 TURBO) SIDE MEMBER TRIM PARTS DIAGRAM")
-part-diagram-811-000.webp "PORSCHE 2017 (991-2 TURBO) SLIDING/POP-UP ROOF PARTS DIAGRAM")
-part-diagram-811-005.webp "PORSCHE 2017 (991-2 TURBO) GLASS ROOF PARTS DIAGRAM")
-part-diagram-811-015.webp "PORSCHE 2017 (991-2 TURBO) TOP FRAME FRONT ROOF FRAME CATCH PARTS DIAGRAM")
-part-diagram-811-020.webp "PORSCHE 2017 (991-2 TURBO) TOP FRAME INDIVIDUAL PARTS ROOF ARCH PARTS DIAGRAM")
-part-diagram-811-025.webp "PORSCHE 2017 (991-2 TURBO) TOP FRAME SIDE INDIVIDUAL PARTS AND ELECTRICS PARTS DIAGRAM")
-part-diagram-811-030.webp "PORSCHE 2017 (991-2 TURBO) CONVERTIBLE TOP SEAL PARTS DIAGRAM")
-part-diagram-811-035.webp "PORSCHE 2017 (991-2 TURBO) CONVERTIBLE TOP COVERING SOFT TOP HEADLINER PARTS DIAGRAM")
-part-diagram-811-040.webp "PORSCHE 2017 (991-2 TURBO) CONVERTIBLE TOP ROOF TRIM PARTS DIAGRAM")
-part-diagram-811-050.webp "PORSCHE 2017 (991-2 TURBO) FLAP SIDE FOLD-DOWN CONVERTIBLE ROOF PARTS DIAGRAM")
-part-diagram-811-055.webp "PORSCHE 2017 (991-2 TURBO) FOLD-DOWN CONVERTIBLE ROOF DRIVE UNIT PARTS DIAGRAM")
-part-diagram-811-060.webp "PORSCHE 2017 (991-2 TURBO) CONVERTIBLE TOP STOWAGE BOX COVER PARTS DIAGRAM")
-part-diagram-811-065.webp "PORSCHE 2017 (991-2 TURBO) WINDBREAK ELECTRIC PARTS DIAGRAM")
-part-diagram-811-070.webp "PORSCHE 2017 (991-2 TURBO) ROLL BAR PARTS DIAGRAM")
-part-diagram-812-000.webp "PORSCHE 2017 (991-2 TURBO) THREE-POINT SAFETY BELT FRONT D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-812-001.webp "PORSCHE 2017 (991-2 TURBO) THREE-POINT SAFETY BELT FRONT D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-812-005.webp "PORSCHE 2017 (991-2 TURBO) THREE-POINT SAFETY BELT REAR D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-812-006.webp "PORSCHE 2017 (991-2 TURBO) THREE-POINT SAFETY BELT REAR D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-812-050.webp "PORSCHE 2017 (991-2 TURBO) AIRBAG D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-812-055.webp "PORSCHE 2017 (991-2 TURBO) AIRBAG D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-813-000.webp "PORSCHE 2017 (991-2 TURBO) HEATER SUPPLY PIPE RETURN LINE PARTS DIAGRAM")
-part-diagram-813-005.webp "PORSCHE 2017 (991-2 TURBO) AIR GUIDE PARTS DIAGRAM")
-part-diagram-813-010.webp "PORSCHE 2017 (991-2 TURBO) AIR CONDITIONING AND INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-813-015.webp "PORSCHE 2017 (991-2 TURBO) COMPRESSOR AIR CONDITIONING R134A PARTS DIAGRAM")
-part-diagram-813-016.webp "PORSCHE 2017 (991-2 TURBO) COMPRESSOR AIR CONDITIONING R1234YF D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-813-020.webp "PORSCHE 2017 (991-2 TURBO) REFRIGERANT CIRCUIT FRONT D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-813-022.webp "PORSCHE 2017 (991-2 TURBO) REFRIGERANT CIRCUIT FRONT D - MJ 2017>>2ND GENERATION PARTS DIAGRAM")
-part-diagram-813-023.webp "PORSCHE 2017 (991-2 TURBO) AIR CONDITIONING REFRIGERANT LINE DRIER 2. GENERATION D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-813-025.webp "PORSCHE 2017 (991-2 TURBO) REFRIGERANT CIRCUIT UNDERBODY AND REAR END D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-813-027.webp "PORSCHE 2017 (991-2 TURBO) REFRIGERANT LINE 2ND GENERATION UNDERBODY AND REAR END D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-817-000.webp "PORSCHE 2017 (991-2 TURBO) BUCKET SEAT FOLDING (COMPLETE) NO LONGER AVAILABLE PARTS DIAGRAM")
-part-diagram-817-001.webp "PORSCHE 2017 (991-2 TURBO) BUCKET SEAT FOLDING (COMPLETE) NO LONGER AVAILABLE D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-817-002.webp "PORSCHE 2017 (991-2 TURBO) FOAM PART SEAT COVERS SEAT AND BACKREST SURFACE BUCKET SEAT FOLDING PARTS DIAGRAM")
-part-diagram-817-003.webp "PORSCHE 2017 (991-2 TURBO) FOAM PART SEAT COVERS SEAT AND BACKREST SURFACE BUCKET SEAT FOLDING D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-817-004.webp "PORSCHE 2017 (991-2 TURBO) BUCKET SEAT FOLDING SEAT FRAME ACCESSORIES PARTS DIAGRAM")
-part-diagram-817-005.webp "PORSCHE 2017 (991-2 TURBO) BUCKET SEAT FOLDING SEAT FRAME ACCESSORIES D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-817-006.webp "PORSCHE 2017 (991-2 TURBO) BACKREST SHELL FOLDING BUCKET SEAT ACCESSORIES PARTS DIAGRAM")
-part-diagram-817-007.webp "PORSCHE 2017 (991-2 TURBO) BACKREST SHELL FOLDING BUCKET SEAT ACCESSORIES D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-817-010.webp "PORSCHE 2017 (991-2 TURBO) BUCKET SEAT SEAT FRAME SEAT COVERS FOAM PART PARTS DIAGRAM")
-part-diagram-817-012.webp "PORSCHE 2017 (991-2 TURBO) HEATER ELEMENT BACKREST BOLSTER HEATER ELEM. BACKREST HEATER ELEMENT SEAT AND SEAT SIDE HEATER ELEMENT PARTS DIAGRAM")
-part-diagram-817-013.webp "PORSCHE 2017 (991-2 TURBO) HEATER ELEMENT BACKREST BOLSTER HEATER ELEM. BACKREST HEATER ELEMENT SEAT AND SEAT SIDE HEATER ELEMENT D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-817-017.webp "PORSCHE 2017 (991-2 TURBO) FOAM PART SEAT COVERS SPORTS SEAT PARTS DIAGRAM")
-part-diagram-817-018.webp "PORSCHE 2017 (991-2 TURBO) FOAM PART SEAT COVERS SPORTS SEAT D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-817-019.webp "PORSCHE 2017 (991-2 TURBO) BACKREST SHELL SPORTS SEAT ACCESSORIES PARTS DIAGRAM")
-part-diagram-817-020.webp "PORSCHE 2017 (991-2 TURBO) SPORTS SEAT PLUS FRONT (COMPLETE) NO LONGER AVAILABLE TRIM COVER PANEL PARTS DIAGRAM")
-part-diagram-817-022.webp "PORSCHE 2017 (991-2 TURBO) FOAM PART SEAT COVERS PARTS DIAGRAM")
-part-diagram-817-023.webp "PORSCHE 2017 (991-2 TURBO) FOAM PART SEAT COVERS SPORTS SEAT PLUS D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-817-024.webp "PORSCHE 2017 (991-2 TURBO) BACKREST SHELL SPORTS SEAT PLUS ACCESSORIES D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-817-025.webp "PORSCHE 2017 (991-2 TURBO) BACKREST SHELL SPORTS SEAT PLUS ACCESSORIES D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-817-026.webp "PORSCHE 2017 (991-2 TURBO) BACKREST FRAME SPORTS SEAT PLUS ACCESSORIES PARTS DIAGRAM")
-part-diagram-817-027.webp "PORSCHE 2017 (991-2 TURBO) BACKREST FRAME SPORTS SEAT PLUS ACCESSORIES D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-817-028.webp "PORSCHE 2017 (991-2 TURBO) LUMBAR SUPPORT ACCESSORIES PARTS DIAGRAM")
-part-diagram-817-029.webp "PORSCHE 2017 (991-2 TURBO) LUMBAR SUPPORT ACCESSORIES PARTS DIAGRAM")
-part-diagram-817-030.webp "PORSCHE 2017 (991-2 TURBO) SEAT FRAME SPORTS SEAT PLUS ACCESSORIES TRIM FOR SWITCH PARTS DIAGRAM")
-part-diagram-817-031.webp "PORSCHE 2017 (991-2 TURBO) SEAT FRAME SPORTS SEAT PLUS ACCESSORIES D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-817-032.webp "PORSCHE 2017 (991-2 TURBO) SEAT PADDING FRAME SPORTS SEAT PLUS REPAIR SET PARTS DIAGRAM")
-part-diagram-817-033.webp "PORSCHE 2017 (991-2 TURBO) SEAT PADDING FRAME SPORTS SEAT PLUS REPAIR SET PARTS DIAGRAM")
-part-diagram-817-034.webp "PORSCHE 2017 (991-2 TURBO) WIRING LOOMS SWITCH CONTROL UNITS ELECTRIC MOTOR SPORTS SEAT PLUS PARTS DIAGRAM")
-part-diagram-817-035.webp "PORSCHE 2017 (991-2 TURBO) WIRING LOOMS SWITCH CONTROL UNITS ELECTRIC MOTOR SPORTS SEAT PLUS D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-817-040.webp "PORSCHE 2017 (991-2 TURBO) EMERGENCY SEAT BACKREST ACCESSORIES PARTS DIAGRAM")
-part-diagram-817-041.webp "PORSCHE 2017 (991-2 TURBO) EMERGENCY SEAT BACKREST ACCESSORIES D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-817-044.webp "PORSCHE 2017 (991-2 TURBO) EMERGENCY SEAT BACKREST ACCESSORIES PARTS DIAGRAM")
-part-diagram-817-045.webp "PORSCHE 2017 (991-2 TURBO) EMERGENCY SEAT BACKREST ACCESSORIES D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-817-050.webp "PORSCHE 2017 (991-2 TURBO) COVER TRIM - REAR SEAT PARTS DIAGRAM")
-part-diagram-817-051.webp "PORSCHE 2017 (991-2 TURBO) BACK SEAT CUSHION D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-817-052.webp "PORSCHE 2017 (991-2 TURBO) BACK SEAT CUSHION PARTS DIAGRAM")
-part-diagram-898-000.webp "PORSCHE 2017 (991-2 TURBO) REPAIR SET 1 SET OF LOCK CYLINDERS D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-898-005.webp "PORSCHE 2017 (991-2 TURBO) REPAIR SET 1 SET OF LOCK CYLINDERS D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-901-000.webp "PORSCHE 2017 (991-2 TURBO) IGNITION SYSTEM PARTS DIAGRAM")
-part-diagram-901-003.webp "PORSCHE 2017 (991-2 TURBO) CONTROL UNITS PARTS DIAGRAM")
-part-diagram-901-004.webp "PORSCHE 2017 (991-2 TURBO) CONTROL UNITS FRONT END REAR END HANDHELD TRANSMITTER IGNITION/STARTER SWITCH AERIAL PARTS DIAGRAM")
-part-diagram-901-005.webp "PORSCHE 2017 (991-2 TURBO) CONTROL UNIT FOR AIRBAG PRESSURE SENSOR AIRBAG PARTS DIAGRAM")
-part-diagram-902-000.webp "PORSCHE 2017 (991-2 TURBO) CENTRAL ELECTRICS DASHBOARD PARTS DIAGRAM")
-part-diagram-902-001.webp "PORSCHE 2017 (991-2 TURBO) CENTRAL ELECTRICS REAR END PARTS DIAGRAM")
-part-diagram-902-005.webp "PORSCHE 2017 (991-2 TURBO) STARTER ALTERNATOR EARTH LINE PARTS DIAGRAM")
-part-diagram-902-006.webp "PORSCHE 2017 (991-2 TURBO) BATTERY POTENTIAL DISTRIBUTOR PARTS DIAGRAM")
-part-diagram-902-010.webp "PORSCHE 2017 (991-2 TURBO) WIRING LOOMS PASSENGER COMPARTMENT AND PART SECTION WIRING HARNESS D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-902-011.webp "PORSCHE 2017 (991-2 TURBO) WIRE SET FRONT DASHBOARD TRIM COVER STEERING FRONT AXLE FRONT AXLE DIFFERENTIAL D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-902-012.webp "PORSCHE 2017 (991-2 TURBO) WIRING LOOMS FRONT DASHBOARD TRIM COVER STEERING FRONT AXLE D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-902-013.webp "PORSCHE 2017 (991-2 TURBO) WIRING LOOMS PASSENGER COMPARTMENT AND PART SECTION WIRING HARNESS D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-902-015.webp "PORSCHE 2017 (991-2 TURBO) WIRING LOOMS DOORS CENTRE CONSOLE GLOVE BOX CONTROL UNITS DOORS CONVERTIBLE TOP CONTROL D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-902-016.webp "PORSCHE 2017 (991-2 TURBO) WIRING LOOMS DOORS CENTRE CONSOLE CONTROL UNIT DOORS CONVERTIBLE TOP CONTROL D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-902-020.webp "PORSCHE 2017 (991-2 TURBO) WIRING LOOMS REAR ASSEMBLY FRAME ADDITIONAL BRAKE LIGHT TRIM ENGINE REAR AXLE D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-902-021.webp "PORSCHE 2017 (991-2 TURBO) WIRING LOOMS REAR ASSEMBLY FRAME ADDITIONAL BRAKE LIGHT TRIM ENGINE REAR AXLE D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-902-050.webp "PORSCHE 2017 (991-2 TURBO) FIBRE OPTIC WAVE CONDUCTOR D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-902-060.webp "PORSCHE 2017 (991-2 TURBO) WIRING LOOMS AIRBAG FOR VEHICLES WITH SEAT BELTS PARTS DIAGRAM")
-part-diagram-903-000.webp "PORSCHE 2017 (991-2 TURBO) FANFARE SIGNAL HORN ALARM SYSTEM D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-903-001.webp "PORSCHE 2017 (991-2 TURBO) FANFARE SIGNAL HORN ALARM SYSTEM D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-903-004.webp "PORSCHE 2017 (991-2 TURBO) INTERIOR LIGHT DOOR WARNING LIGHT FOOTWELL LIGHT LUGGAGE COMPARTMENT LAMP GLOVE BOX LIGHT LIGHT EXTERIOR MIRROR PARTS DIAGRAM")
-part-diagram-903-005.webp "PORSCHE 2017 (991-2 TURBO) SWITCH CONTROL PANEL AIR CONDITIONING PARTS DIAGRAM")
-part-diagram-903-006.webp "PORSCHE 2017 (991-2 TURBO) CONSOLE ROOF PARTS DIAGRAM")
-part-diagram-903-010.webp "PORSCHE 2017 (991-2 TURBO) STEERING COLUMN SWITCH PARTS DIAGRAM")
-part-diagram-904-000.webp "PORSCHE 2017 (991-2 TURBO) WINDSCREEN WIPER SYSTEM, COMPL RAIN SENSOR PARTS DIAGRAM")
-part-diagram-904-005.webp "PORSCHE 2017 (991-2 TURBO) REAR WINDOW WIPER PARTS DIAGRAM")
-part-diagram-904-010.webp "PORSCHE 2017 (991-2 TURBO) WINDSCREEN WASHER SYSTEM PARTS DIAGRAM")
-part-diagram-904-020.webp "PORSCHE 2017 (991-2 TURBO) HEADLIGHT WASHER SYSTEM D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-904-021.webp "PORSCHE 2017 (991-2 TURBO) HEADLIGHT WASHER SYSTEM D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-905-001.webp "PORSCHE 2017 (991-2 TURBO) HEADLIGHTS ADDITIONAL HEADLIGHT TURN SIGNAL INDICATOR SIDE MARKER LIGHT TURN SIGNAL REPEATER D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-905-003.webp "PORSCHE 2017 (991-2 TURBO) LED HEADLIGHT ADDITIONAL HEADLIGHT TURN SIGNAL INDICATOR SIDE MARKER LIGHT TURN SIGNAL REPEATER D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-905-004.webp "PORSCHE 2017 (991-2 TURBO) LED HEADLIGHT ADDITIONAL HEADLIGHT TURN SIGNAL INDICATOR SIDE MARKER LIGHT TURN SIGNAL REPEATER D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-905-005.webp "PORSCHE 2017 (991-2 TURBO) REAR LIGHT LICENCE PLATE LIGHT ADDITIONAL BRAKE LIGHT D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-905-006.webp "PORSCHE 2017 (991-2 TURBO) REAR LIGHT LICENCE PLATE LIGHT ADDITIONAL BRAKE LIGHT D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-905-007.webp "PORSCHE 2017 (991-2 TURBO) HEADLIGHTS ADDITIONAL HEADLIGHT TURN SIGNAL INDICATOR SIDE MARKER LIGHT TURN SIGNAL REPEATER D - MJ 2018>> PARTS DIAGRAM")
-part-diagram-906-000.webp "PORSCHE 2017 (991-2 TURBO) COMBI-INSTRUMENT STOPWATCH D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-906-001.webp "PORSCHE 2017 (991-2 TURBO) COMBI-INSTRUMENT COLOURED DIAL D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-906-002.webp "PORSCHE 2017 (991-2 TURBO) COMBI-INSTRUMENT STOPWATCH D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-906-003.webp "PORSCHE 2017 (991-2 TURBO) COMBI-INSTRUMENT COLOURED DIAL D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-911-000.webp "PORSCHE 2017 (991-2 TURBO) CONTROL PANEL NAVIGATION SYSTEM RADIO UNIT RECEIVER UNIT FOR TV RECEPTION MICROPHONE REVERSING CAMERA D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-911-001.webp "PORSCHE 2017 (991-2 TURBO) ELECTRIC PARTS FOR NAVIGATION SYSTEM PREPARATION J.. JAPAN D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-911-002.webp "PORSCHE 2017 (991-2 TURBO) AERIAL AMPLIFIER AERIAL CONNECTING LINE D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-911-003.webp "PORSCHE 2017 (991-2 TURBO) DISPLAY CENTRAL COMPUTER NAVIGATION SYSTEM TV MICROPHONE MULTIMEDIA INTERFACE CAMERA CONNECTING LINE D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-911-004.webp "PORSCHE 2017 (991-2 TURBO) AERIAL SINGLE WIRE D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-911-005.webp "PORSCHE 2017 (991-2 TURBO) LOUDSPEAKER D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-911-006.webp "PORSCHE 2017 (991-2 TURBO) LOUDSPEAKER D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-911-007.webp "PORSCHE 2017 (991-2 TURBO) FOR MODELS WITH TELEPHONE AND EMERGENCY CALL PARTS DIAGRAM")
-part-diagram-911-008.webp "PORSCHE 2017 (991-2 TURBO) SD CARD FOR NAVIGATION SYSTEM UPDATE D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-911-010.webp "PORSCHE 2017 (991-2 TURBO) AMPLIFIERS TELEPHONE D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-911-011.webp "PORSCHE 2017 (991-2 TURBO) AMPLIFIERS D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-001-000.webp "PORSCHE 2017 (991-2 TURBO) TOOL JACK PARTS DIAGRAM")
-part-diagram-001-005.webp "PORSCHE 2017 (991-2 TURBO) SIGNS/NOTICES PARTS DIAGRAM")
-part-diagram-003-020.webp "PORSCHE 2017 (991-2 TURBO) SIGNS/NOTICES PARTS DIAGRAM")
-part-diagram-004-000.webp "PORSCHE 2017 (991-2 TURBO) PAINT TOUCH-UP APPLICATOR PAINTS PARTS DIAGRAM")
-part-diagram-101-000.webp "PORSCHE 2017 (991-2 TURBO) REPLACEMENT ENGINE BUT WITHOUT: CLUTCH PLATE - PDK - GEARBOX BUT WITHOUT: FLYWHEEL MANUAL GEARBOX INCLUDED COMPRESSOR AIR CONDITIONING EXHAUST GAS TURBOCHARGER PARTS DIAGRAM")
-part-diagram-101-001.webp "PORSCHE 2017 (991-2 TURBO) REPLACEMENT ENGINE BUT WITHOUT: CLUTCH PLATE - PDK - GEARBOX INCLUDED COMPRESSOR AIR CONDITIONING EXHAUST GAS TURBOCHARGER PARTS DIAGRAM")
-part-diagram-101-002.webp "PORSCHE 2017 (991-2 TURBO) REPLACEMENT ENGINE - PDK - GEARBOX INCLUDED COMPRESSOR AIR CONDITIONING EXHAUST GAS TURBOCHARGER PARTS DIAGRAM")
-part-diagram-101-005.webp "PORSCHE 2017 (991-2 TURBO) CRANKCASE HOUSING PARTS DIAGRAM")
-part-diagram-101-010.webp "PORSCHE 2017 (991-2 TURBO) BELT TENSIONER DAMPER V-BELT PARTS DIAGRAM")
