porsche 2017 (991-2 turbo) door seal and trim d - mj 2017>> parts diagram

804-012 - Door seal and Trim D - MJ 2017>>

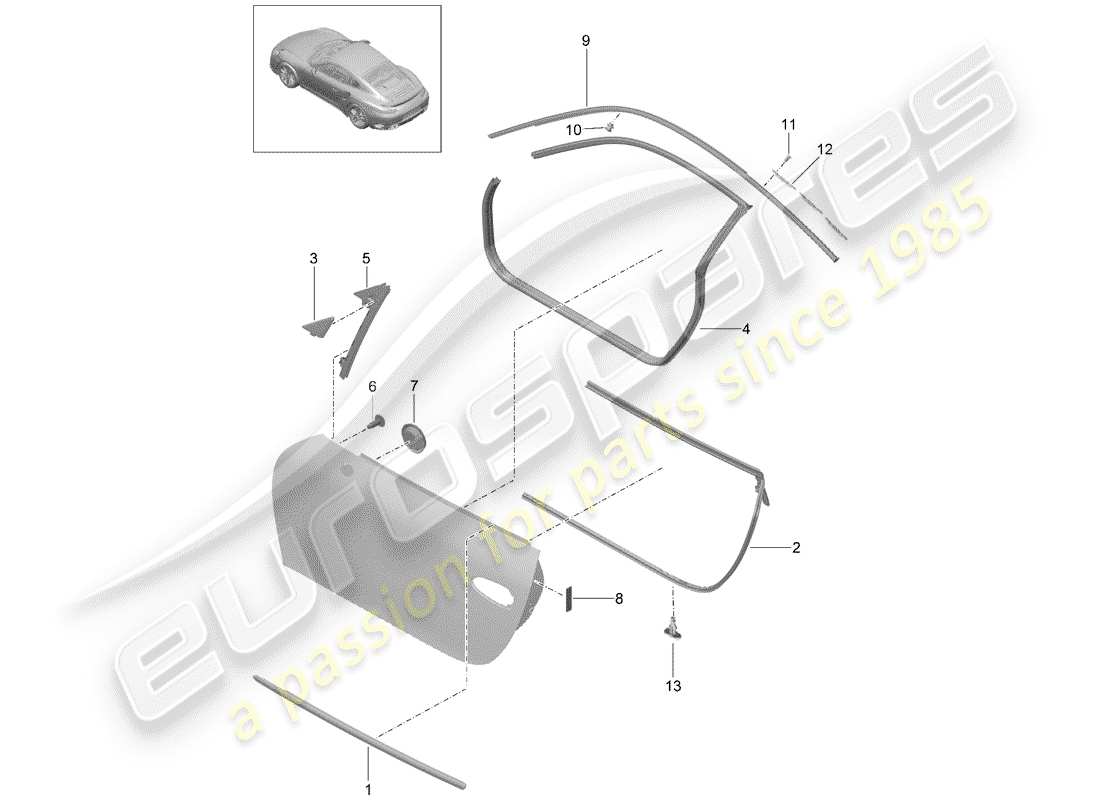

Porsche 2017 (991-2 Turbo) Door seal and Trim D - MJ 2017>> Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 1
                        MPN: 9915370850103C
                        SEAL LEFT OUTER WINDOW APERTURE SEAL - RALLY BLACK
                        P without 559
                        from £84.89
                        from £84.89
                        This part replaces part number 99153708501
                        GASKET left Door channel outer Rally black Genuine Porsche Part - New (to order)
                        # 1
                        MPN: 99153708502V09
                        SEAL LEFT OUTER WINDOW APERTURE SEAL - ALUSHINE
                        P559 (High-gloss mouldings)
                        from £90.59
                        from £90.59
                        This part replaces part number 99153708502
                        GASKET left Door channel outer (PR:559) Alushine Genuine Porsche Part - New (to order)
                        # 1
                        MPN: 9915370860103C
                        SEAL RIGHT OUTER WINDOW APERTURE SEAL - RALLY BLACK
                        P without 559
                        from £84.89
                        from £84.89
                        This part replaces part number 99153708601
                        GASKET right Door channel outer Rally black Genuine Porsche Part - New (to order)
                        # 1
                        MPN: 99153708602V09
                        SEAL RIGHT OUTER WINDOW APERTURE SEAL - ALUSHINE
                        P559 (High-gloss mouldings)
                        from £90.59
                        from £90.59
                        This part replaces part number 99153708602
                        GASKET right Door channel outer (PR:559) Alushine Genuine Porsche Part - New (to order)
                        # 2
                        MPN: 99153737700
                        SEAL LEFT INNER WINDOW APERTURE SEAL
                        Supersession
                        Supersession
                        Genuine Porsche Part (no longer available to order)
                        # 2
                        MPN: 99153737800
                        SEAL RIGHT INNER WINDOW APERTURE SEAL
                        from £127.90
                        from £127.90
                        GASKET right - window slot seal inner Genuine Porsche Part - New (to order)
                        # 2
                        MPN: 99991120140
                        SEALING TAPE 1000X10X3
                        from £7.32
                        from £7.32
                        SEALING TAPE Genuine Porsche Part - New (to order)
                        # 3
                        MPN: 991537551031E0
                        COVER LEFT OUTER - BLACK
                        from £4.01
                        from £4.01
                        This part replaces part number 99153755103
                        COVER left outer Black Genuine Porsche Part - New (to order)
                        # 3
                        MPN: 991537552031E0
                        COVER RIGHT OUTER - BLACK
                        from £4.01
                        from £4.01
                        This part replaces part number 99153755203
                        COVER right outer Black Genuine Porsche Part - New (to order)
                        # 4
                        MPN: 99153707504
                        DOOR SEAL left inner
                        Supersession
                        Supersession
                        Genuine Porsche Part (no longer available to order)
                        # 4
                        MPN: 99153707604
                        DOOR SEAL right inner
                        Supersession
                        Supersession
                        Genuine Porsche Part (no longer available to order)
                        # 5
                        MPN: 99153743102
                        Window guide left
                        GLASS CHANNEL Genuine Porsche Part - New (to order)
                        # 5
                        MPN: 99153743202
                        Window guide right
                        GLASS CHANNEL Genuine Porsche Part - New (to order)
                        # 6
                        MPN: 99907333309
                        FILLISTER HD. BOLT M6X16-SC
                        from £0.59
                        from £0.59
                        FILLISTER HD. SCREW Genuine Porsche Part - New (to order)
                        # 7
                        MPN: 99970354340
                        END CAP 25,0X35,0
                        from £2.14
                        from £2.14
                        SEALING CAP Genuine Porsche Part - New (to order)
                        # 8
                        MPN: 99653733700
                        PROTECTIVE FOIL FOR DOOR
                        from £14.61
                        from £14.61
                        PROTECTIVE FOIL FOR DOOR Genuine Porsche Part - New (to order)
                        # 9
                        MPN: 9915374810203C
                        TRIM SIDE, LEFT ROOF FRAME - RALLY BLACK
                        P without 559
                        from £189.68
                        from £189.68
                        This part replaces part number 99153748102
                        DECORATIVE MOULDING left - roof frame side (PR:-559) Rally black Genuine Porsche Part - New (to order)
                        # 9
                        MPN: 99153748103V09
                        TRIM SIDE, LEFT ROOF FRAME - ALUSHINE
                        P559 (High-gloss mouldings)
                        from £155.01
                        from £155.01
                        This part replaces part number 99153748103
                        DECORATIVE MOULDING left - roof frame side (PR:559) Alushine Genuine Porsche Part - New (to order)
                        # 9
                        MPN: 9915374820203C
                        TRIM SIDE, RIGHT ROOF FRAME - RALLY BLACK
                        P without 559
                        from £189.68
                        from £189.68
                        This part replaces part number 99153748202
                        DECORATIVE MOULDING right - roof frame side (PR:-559) Rally black Genuine Porsche Part - New (to order)
                        # 9
                        MPN: 99153748203V09
                        TRIM SIDE, RIGHT ROOF FRAME - ALUSHINE
                        P559 (High-gloss mouldings)
                        from £155.01
                        from £155.01
                        This part replaces part number 99153748203
                        DECORATIVE MOULDING right - roof frame side (PR:559) Alushine Genuine Porsche Part - New (to order)
                        # 10
                        MPN: 99153767100
                        CLIP
                        from £2.09
                        from £2.09
                        CLIP Genuine Porsche Part - New (to order)
                        # 11
                        MPN: N 90787802
                        CUP RIVET 3,2X6,5
                        from £0.53
                        from £0.53
                        RIVET Genuine Porsche Part - New (to order)
                        CUP RIVET Genuine Bentley Part - New (to order)
                        # 12
                        MPN: 3D5853707B
                        RETAINING CLIP WATER DEFLECTOR STRIP
                        from £8.22
                        from £8.22
                        Retaining Clip Genuine Porsche Part - New (to order)
                        Retaining Clip Genuine Bentley Part - New (to order)
                        # 13
                        MPN: 99950730441
                        CLIP
                        from £2.29
                        from £2.29
                        CLIP Genuine Porsche Part - New (to order)
