porsche 2018 (991-2) timing chain parts diagram

103-015 - TIMING CHAIN

Porsche 2018 (991-2) timing chain Parts Diagram

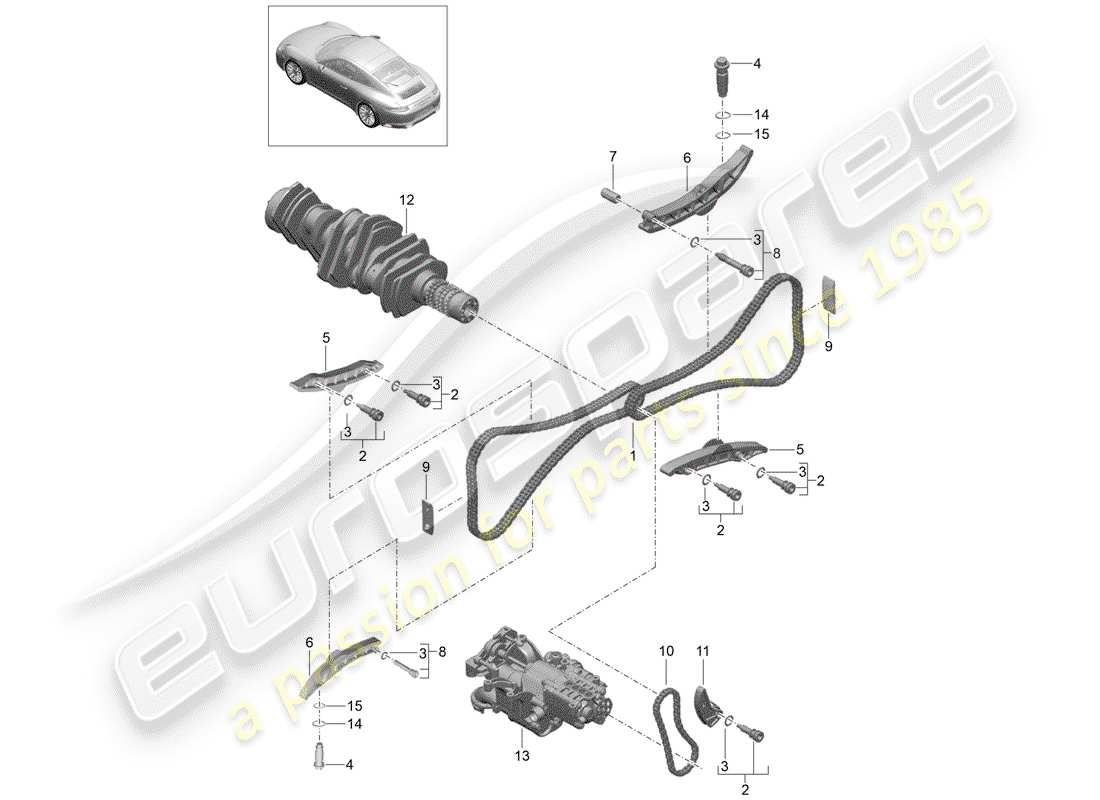

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 1
                              MPN: 9A210514801
                              TIMING CHAIN CAMSHAFT CRANKSHAFT
                              from £160.01
                              from £160.01
                              TIMING CHAIN Genuine Porsche Part - New (to order)
                              # 2
                              MPN: 9A110506201
                              SOCKET HEAD BOLT TENSIONER BLADE
                              SCREW, CHEESE HD Genuine Porsche Part - New (to order)
                              # 3
                              MPN: 99970734640
                              O-RING 15X3
                              Supersession
                              Supersession
                              Genuine Porsche Part (no longer available to order)
                              # 4
                              MPN: 9A210515701
                              chain tensioner Included seal ring
                              chain tensioner Included seal ring
                              TENSIONER - CHAIN Genuine Porsche Part - New (to order)
                              # 4
                              MPN: 0PB109507
                              CHAIN TENSIONER
                              Supersession
                              Supersession
                              Genuine Porsche Part (no longer available to order)
                              # 5
                              MPN: 9A210512301
                              SLIDE RAIL
                              GUIDE RAIL Genuine Porsche Part - New (to order)
                              # 6
                              MPN: 9A210512501
                              TENSIONER BLADE
                              TENSIONER BLADE Genuine Porsche Part - New (to order)
                              # 7
                              MPN: 9A110516502
                              SPACER SLEEVE
                              from £6.38
                              from £6.38
                              SPACER SLEEVE Genuine Porsche Part - New (to order)
                              # 8
                              MPN: 9A110506301
                              BOLT WITH WASHER
                              from £8.26
                              from £8.26
                              SCREW Genuine Porsche Part - New (to order)
                              # 9
                              MPN: 9A110510103
                              SLIDE RAIL
                              from £10.61
                              from £10.61
                              GUIDE RAIL Genuine Porsche Part - New (to order)
                              # 10
                              MPN: 9A110523302
                              TIMING CHAIN OIL PUMP CRANKSHAFT
                              from £47.14
                              from £47.14
                              TIMING CHAIN Genuine Porsche Part - New (to order)
                              # 11
                              MPN: 9A110523502
                              TENSIONER BLADE
                              Supersession
                              Supersession
                              Genuine Porsche Part (no longer available to order)
                              # 12
                              -
                              CRANKSHAFT SEE ILLUSTRATION: 102-000
                              # 13
                              -
                              OIL PUMP SEE ILLUSTRATION: 104-000
                              # 14
                              MPN: 90012301121
                              SEAL RING A22X27
                              Supersession
                              Supersession
                              Genuine Porsche Part (no longer available to order)
                              # 15
                              MPN: 99970106640
                              O-RING CHAIN TENSIONER
                              Supersession
                              Supersession
                              Genuine Porsche Part (no longer available to order)
