105-005 - Water pipe Coolant cooling system Exhaust gas turbocharger

Porsche 2018 (991-2) Water pipe Coolant cooling system Exhaust gas turbocharger Parts Diagram

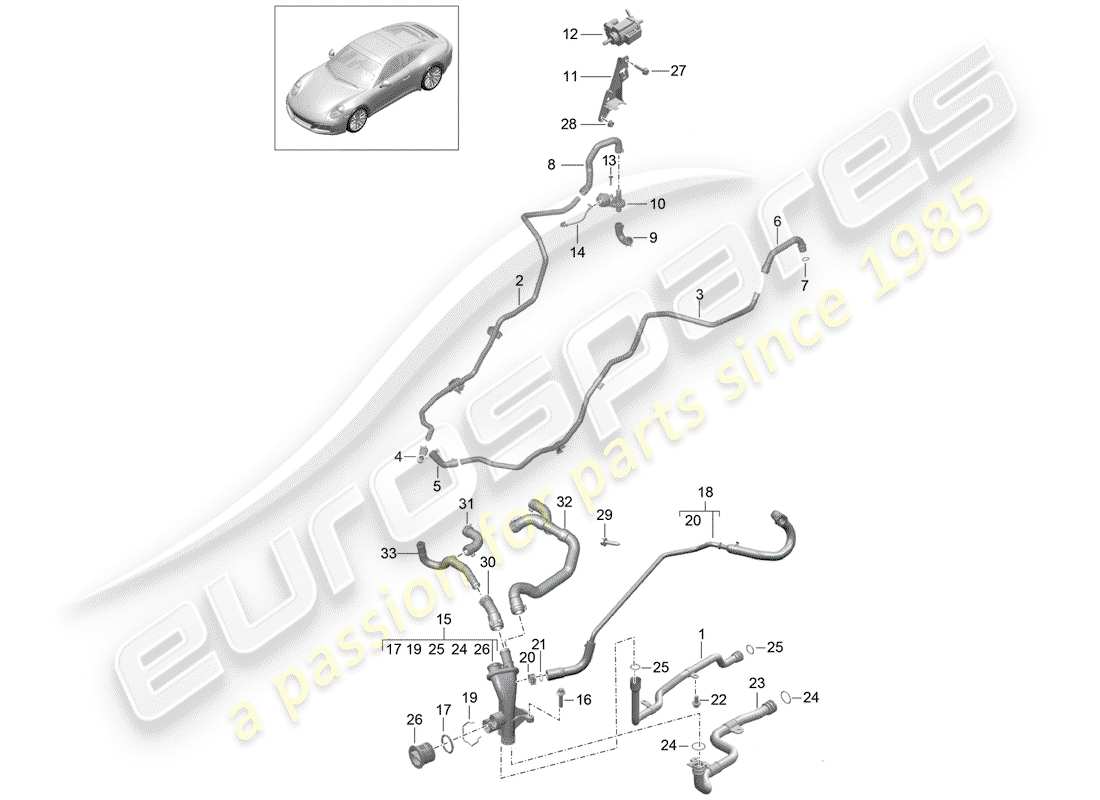

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                #
                                                                Part number
                                                                Description
                                                                Key
                                                                Price
                                                                # 1
                                                                MPN: 9A210662001
                                                                WATER PIPE FEED
                                                                from £62.60
                                                                from £62.60
                                                                WATER PIPE Genuine Porsche Part - New (to order)
                                                                # 2
                                                                MPN: 9P1121050A
                                                                COOLANT PIPE FEED
                                                                from £104.20
                                                                from £104.20
                                                                water tube Genuine Porsche Part - New (to order)
                                                                # 3
                                                                MPN: 9P1121070A
                                                                COOLANT PIPE RETURN
                                                                from £116.34
                                                                from £116.34
                                                                water tube Genuine Porsche Part - New (to order)
                                                                # 4
                                                                MPN: 99110621201
                                                                COOLANT HOSE
                                                                from £57.98
                                                                from £57.98
                                                                WATER HOSE Genuine Porsche Part - New (to order)
                                                                # 5
                                                                MPN: 99110622201
                                                                COOLANT HOSE
                                                                from £57.98
                                                                from £57.98
                                                                WATER HOSE Genuine Porsche Part - New (to order)
                                                                # 6
                                                                MPN: 99110682201
                                                                COOLANT HOSE RETURN
                                                                from £58.52
                                                                from £58.52
                                                                WATER HOSE Genuine Porsche Part - New (to order)
                                                                # 7
                                                                MPN: 99610680103
                                                                O-RING
                                                                from £3.83
                                                                from £3.83
                                                                O-RING Genuine Porsche Part - New (to order)
                                                                # 8
                                                                MPN: 9P1121626
                                                                COOLANT HOSE
                                                                from £26.94
                                                                from £26.94
                                                                WATER HOSE Genuine Porsche Part - New (to order)
                                                                # 9
                                                                MPN: 9P1121393
                                                                HEATING HOSE FEED
                                                                from £21.14
                                                                from £21.14
                                                                heater hose Genuine Porsche Part - New (to order)
                                                                # 10
                                                                MPN: 99130757300
                                                                VALVE UNIT
                                                                VALVE UNIT
                                                                Supersession
                                                                Supersession
                                                                Genuine Porsche Part (no longer available to order)
                                                                # 10
                                                                MPN: 9P1317233
                                                                REGULATING VALVE
                                                                from £28.90
                                                                from £28.90
                                                                This part replaces part number 99130757300
                                                                VALVE Genuine Porsche Part - New (to order)
                                                                # 11
                                                                MPN: 9P1121313
                                                                BRACKET
                                                                from £8.40
                                                                from £8.40
                                                                BRACKET Genuine Porsche Part - New (to order)
                                                                # 13
                                                                MPN: 99907341501
                                                                flat round head bolt M4X16
                                                                from £0.47
                                                                from £0.47
                                                                SCREW, ROUND HD Genuine Porsche Part - New (to order)
                                                                # 14
                                                                MPN: 99923904140
                                                                HOSE 3,5X2,0X120
                                                                from £5.17
                                                                from £5.17
                                                                HOSE Genuine Porsche Part - New (to order)
                                                                # 15
                                                                MPN: 9A110601002
                                                                DISTRIBUTOR FOR COOLANT (COMPLETE)
                                                                Supersession
                                                                Supersession
                                                                Genuine Porsche Part (no longer available to order)
                                                                # 16
                                                                MPN: 90038507201
                                                                TORX SCREW M6X25
                                                                Supersession
                                                                Supersession
                                                                Genuine Porsche Part (no longer available to order)
                                                                # 17
                                                                MPN: 99970759040
                                                                O-RING 21,35X3,0
                                                                from £7.12
                                                                from £7.12
                                                                O-RING Genuine Porsche Part - New (to order)
                                                                # 18
                                                                MPN: 9A110655000
                                                                breather line
                                                                from £30.19
                                                                from £30.19
                                                                breather line Genuine Porsche Part - New (to order)
                                                                # 19
                                                                MPN: 99710680204
                                                                SPRING CLIP
                                                                SPRING CLIP Genuine Porsche Part - New (to order)
                                                                # 20
                                                                MPN: 99951268609
                                                                HOSE CLAMP B17X12
                                                                from £2.29
                                                                from £2.29
                                                                HOSE CLAMP - B 17 X 12 - FOR - PLUG - AIR DUCT Genuine Porsche Part - New (to order)
                                                                # 21
                                                                MPN: 99970765840
                                                                O-RING 23X3
                                                                O-RING Genuine Porsche Part - New (to order)
                                                                # 22
                                                                MPN: 90038504101
                                                                HEXAGON HEAD BOLT BM6X12
                                                                Supersession
                                                                Supersession
                                                                Genuine Porsche Part (no longer available to order)
                                                                # 23
                                                                MPN: 9A210662501
                                                                WATER PIPE RETURN
                                                                from £63.86
                                                                from £63.86
                                                                WATER PIPE Genuine Porsche Part - New (to order)
                                                                # 24
                                                                MPN: 99970758940
                                                                O-RING 31,00X3,00N
                                                                Supersession
                                                                Supersession
                                                                Genuine Porsche Part (no longer available to order)
                                                                # 25
                                                                MPN: 99970751740
                                                                O-RING 22,0X3,00
                                                                Supersession
                                                                Supersession
                                                                Genuine Porsche Part (no longer available to order)
                                                                # 26
                                                                MPN: 9A110654600
                                                                BUNGS
                                                                PLUG Genuine Porsche Part - New (to order)
                                                                # 26
                                                                MPN: 0PB121099
                                                                BUNGS
                                                                from £5.94
                                                                from £5.94
                                                                PLUG Genuine Porsche Part - New (to order)
                                                                # 27
                                                                MPN: 90037831701
                                                                HEXAGON BOLT M6X25
                                                                from £0.95
                                                                from £0.95
                                                                SCREW, HEX. HD Genuine Porsche Part - New (to order)
                                                                # 28
                                                                MPN: 99908463801
                                                                HEXAGON NUT M6
                                                                HEXAGON NUT M6
                                                                from £2.21
                                                                from £2.21
                                                                HEX. NUT Genuine Porsche Part - New In stock
                                                                # 28
                                                                MPN: PAF008573
                                                                HEXAGON NUT M6
                                                                from £0.61
                                                                from £0.61
                                                                HEX. NUT Genuine Porsche Part - New (to order)
                                                                # 29
                                                                MPN: 90038507001
                                                                TORX SCREW BM6X50
                                                                TORX SCREW Genuine Porsche Part - New (to order)
                                                                # 29
                                                                MPN: PAF00868500
                                                                HEXAGON HEAD BOLT BM6X50
                                                                from £0.91
                                                                from £0.91
                                                                This part replaces part number 90038501009
                                                                TORX SCREW Genuine Porsche Part - New (to order)
                                                                # 30
                                                                MPN: 9A110651370
                                                                MOLDED HOSE RETURN HEAT EXCHANGER
                                                                from £14.57
                                                                from £14.57
                                                                MOLDED HOSE Genuine Porsche Part - New (to order)
                                                                # 31
                                                                MPN: 9A110651570
                                                                MOLDED HOSE RETURN
                                                                from £19.23
                                                                from £19.23
                                                                MOLDED HOSE Genuine Porsche Part - New (to order)
                                                                # 32
                                                                MPN: 9A210651271
                                                                MOLDED HOSE FEED HEAT EXCHANGER
                                                                from £30.22
                                                                from £30.22
                                                                MOLDED HOSE Genuine Porsche Part - New (to order)
                                                                # 33
                                                                MPN: 9A110651671
                                                                COOLANT PIPE RETURN DISTRIBUTOR TUBE
                                                                from £23.83
                                                                from £23.83
                                                                COOLANT PIPE Genuine Porsche Part - New (to order)
