porsche 2019 (991-2 r/gt3/rs) rear axle side part carrier guide d >>- mj 2017 parts diagram

501-001 - Rear axle Side part Carrier Guide D >>- MJ 2017

Porsche 2019 (991-2 R/GT3/RS) Rear axle Side part Carrier Guide D >>- MJ 2017 Parts Diagram

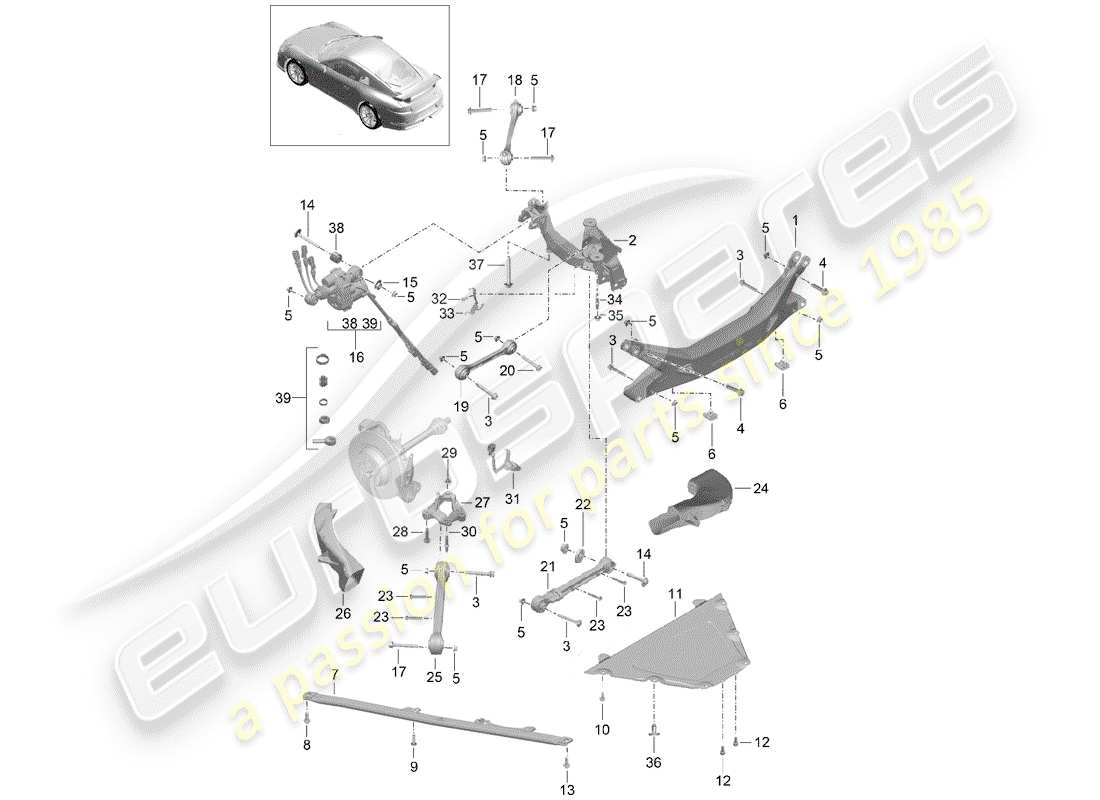

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Key
                                                    Price
                                                    # 1
                                                    MPN: 99133126180
                                                    CROSS MEMBER
                                                    CROSS MEMBER
                                                    from £158.75
                                                    from £158.75
                                                    CROSS MEMBER Genuine Porsche Part - New (to order)
                                                    # 1
                                                    MPN: 9GT505105
                                                    CROSS MEMBER
                                                    from £204.80
                                                    from £204.80
                                                    CROSS MEMBER Genuine Porsche Part - New (to order)
                                                    # 2
                                                    MPN: 99133115180
                                                    SIDE PART LEFT
                                                    SIDE PART LEFT
                                                    SIDE PANEL Genuine Porsche Part - New (to order)
                                                    # 2
                                                    MPN: 9GT505063
                                                    SIDE PART LEFT
                                                    from £1,175.68
                                                    from £1,175.68
                                                    SIDE PANEL Genuine Porsche Part - New (to order)
                                                    # 2
                                                    MPN: 99133115280
                                                    Side part right
                                                    Side part right
                                                    from £732.27
                                                    from £732.27
                                                    SIDE PANEL Genuine Porsche Part - New (to order)
                                                    # 2
                                                    MPN: 9GT505064
                                                    Side part right
                                                    from £1,175.68
                                                    from £1,175.68
                                                    SIDE PANEL Genuine Porsche Part - New (to order)
                                                    # 2
                                                    MPN: 9GT505064E
                                                    Side part right
                                                    PFM7
                                                    from £680.87
                                                    from £680.87
                                                    SIDE PART Genuine Porsche Part - New (to order)
                                                    SIDE PART Genuine Porsche Part - Used In stock
                                                    # 3
                                                    MPN: 99907286801
                                                    HEXAGON BOLT M12X1,5X80
                                                    HEXAGON BOLT M12X1,5X80
                                                    Supersession
                                                    Supersession
                                                    Genuine Porsche Part (no longer available to order)
                                                    # 3
                                                    MPN: 9A700867700
                                                    HEXAGON BOLT M12X1,5X80
                                                    from £5.09
                                                    from £5.09
                                                    This part replaces part number 99907286801
                                                    SCREW, HEX. HD Genuine Porsche Part - New (to order)
                                                    # 4
                                                    MPN: 99907285901
                                                    HEXAGON BOLT M12X1,5X58
                                                    from £5.30
                                                    from £5.30
                                                    SCREW, HEX. HD Genuine Porsche Part - New (to order)
                                                    # 5
                                                    MPN: 99908444501
                                                    LOCKNUT M12X1,5
                                                    from £2.29
                                                    from £2.29
                                                    This part replaces part number 99908444509
                                                    lock nut - VM 12 X 1,5 Genuine Porsche Part - New In stock
                                                    # 6
                                                    MPN: 99950779509
                                                    panel nut ST4,8
                                                    panel nut ST4,8
                                                    Supersession
                                                    Supersession
                                                    Genuine Porsche Part (no longer available to order)
                                                    # 6
                                                    MPN: 99950730902
                                                    panel nut ST4,8
                                                    Supersession
                                                    Supersession
                                                    Genuine Porsche Part (no longer available to order)
                                                    # 7
                                                    MPN: 99133108707
                                                    BRACE LEFT
                                                    from £188.61
                                                    from £188.61
                                                    cross support Genuine Porsche Part - New (to order)
                                                    # 7
                                                    MPN: 99133108807
                                                    BRACE RIGHT
                                                    from £188.61
                                                    from £188.61
                                                    cross support Genuine Porsche Part - New (to order)
                                                    # 8
                                                    MPN: 99907344301
                                                    BOLT WITH WASHER M12X1,5X40
                                                    Supersession
                                                    Supersession
                                                    Genuine Porsche Part (no longer available to order)
                                                    # 9
                                                    MPN: 99907309501
                                                    FILLISTER HD. BOLT M8X30
                                                    from £2.29
                                                    from £2.29
                                                    FILLISTER HD. SCREW - M8 X 30 Genuine Porsche Part - New (to order)
                                                    # 10
                                                    MPN: N 0195308
                                                    Hex collared bolt M8X25
                                                    from £2.27
                                                    from £2.27
                                                    BOLT, HEX. HD. WITH SHOULDER Genuine Porsche Part - New (to order)
                                                    HEX COLLARED BOLT Genuine Bentley Part - New (to order)
                                                    HEXAGON FLANGE M8X25 Genuine Lamborghini - New In stock
                                                    # 11
                                                    MPN: 99133107080
                                                    CARRIER
                                                    from £159.55
                                                    from £159.55
                                                    BRACKET Genuine Porsche Part - New (to order)
                                                    # 12
                                                    MPN: 99921711601
                                                    HEXAGON BOLT M6X16
                                                    HEXAGON BOLT M6X16
                                                    Supersession
                                                    Supersession
                                                    Genuine Porsche Part (no longer available to order)
                                                    # 12
                                                    MPN: PAF100829
                                                    HEXAGON HEAD BOLT (COMBI)
                                                    from £0.61
                                                    from £0.61
                                                    This part replaces part number 99921711601 - and 1 more. Click to view details
                                                    BOLT, HEX. HD. (COMBI.) Genuine Porsche Part - New In stock
                                                    # 13
                                                    MPN: 99907286901
                                                    HEXAGON BOLT M12X1,5X45
                                                    HEXAGON BOLT M12X1,5X45
                                                    Supersession
                                                    Supersession
                                                    Genuine Porsche Part (no longer available to order)
                                                    # 13
                                                    MPN: WHT008676
                                                    HEXAGON BOLT M12X1,5X45
                                                    from £4.03
                                                    from £4.03
                                                    This part replaces part number 99907286901
                                                    SCREW, HEX. HD Genuine Porsche Part - New (to order)
                                                    # 14
                                                    MPN: 97034121700
                                                    ECCENTRIC BOLT
                                                    Supersession
                                                    Supersession
                                                    Genuine Porsche Part (no longer available to order)
                                                    # 15
                                                    MPN: 97033121900
                                                    ECCENTRIC WASHER
                                                    ECCENTRIC WASHER
                                                    ECCENTRIC WASHER Genuine Porsche Part - New (to order)
                                                    # 15
                                                    MPN: WHT007492
                                                    ECCENTRIC WASHER 38X5
                                                    P470 (Rear-axle steering)
                                                    from £6.15
                                                    from £6.15
                                                    ECCENTRIC WASHER Genuine Porsche Part - New (to order)
                                                    ECCENTRIC WASHER Genuine Bentley Part - New (to order)
                                                    # 16
                                                    MPN: 99133105702
                                                    TRACK ROD LEFT
                                                    TRACK ROD LEFT
                                                    TIE ROD Genuine Porsche Part - New (to order)
                                                    # 16
                                                    MPN: 99133105704
                                                    TRACK ROD LEFT
                                                    TRACK ROD LEFT
                                                    TIE ROD Genuine Porsche Part - New (to order)
                                                    # 16
                                                    MPN: 99133105705
                                                    TRACK ROD LEFT
                                                    TRACK ROD LEFT
                                                    TIE ROD Genuine Porsche Part - New (to order)
                                                    # 16
                                                    MPN: 99133105706
                                                    TRACK ROD LEFT
                                                    TRACK ROD LEFT
                                                    TIE ROD Genuine Porsche Part - New (to order)
                                                    # 16
                                                    MPN: 99133105707
                                                    TRACK ROD LEFT
                                                    TRACK ROD LEFT
                                                    TIE ROD Genuine Porsche Part - New (to order)
                                                    # 16
                                                    MPN: 99133105708
                                                    TRACK ROD LEFT
                                                    TRACK ROD LEFT
                                                    TIE ROD Genuine Porsche Part - New (to order)
                                                    # 16
                                                    MPN: 99133105734
                                                    Track rod left See technical information TI 163/18 See main group 4
                                                    P470 (Rear-axle steering)
                                                    from £1,623.20
                                                    from £1,623.20
                                                    TIE ROD Genuine Porsche Part - New (to order)
                                                    # 16
                                                    MPN: 99133105802
                                                    TRACK ROD RIGHT
                                                    TRACK ROD RIGHT
                                                    TIE ROD Genuine Porsche Part - New (to order)
                                                    # 16
                                                    MPN: 99133105804
                                                    TRACK ROD RIGHT
                                                    TRACK ROD RIGHT
                                                    TIE ROD Genuine Porsche Part - New (to order)
                                                    # 16
                                                    MPN: 99133105805
                                                    TRACK ROD RIGHT
                                                    TRACK ROD RIGHT
                                                    TIE ROD Genuine Porsche Part - New (to order)
                                                    # 16
                                                    MPN: 99133105806
                                                    TRACK ROD RIGHT
                                                    TRACK ROD RIGHT
                                                    TIE ROD Genuine Porsche Part - New (to order)
                                                    # 16
                                                    MPN: 99133105807
                                                    TRACK ROD RIGHT
                                                    TRACK ROD RIGHT
                                                    TIE ROD Genuine Porsche Part - New (to order)
                                                    # 16
                                                    MPN: 99133105808
                                                    TRACK ROD RIGHT
                                                    TRACK ROD RIGHT
                                                    TIE ROD Genuine Porsche Part - New (to order)
                                                    # 16
                                                    MPN: 99133105834
                                                    TRACK ROD RIGHT SEE TECHNICAL INFORMATION SEE MAIN GROUP 4 TI 163/18
                                                    P470 (Rear-axle steering)
                                                    Supersession
                                                    Supersession
                                                    Genuine Porsche Part (no longer available to order)
                                                    # 16
                                                    MPN: 99133105734
                                                    Track rod left adjustable
                                                    P470 (Rear-axle steering)
                                                    from £1,623.20
                                                    from £1,623.20
                                                    TIE ROD Genuine Porsche Part - New (to order)
                                                    # 16
                                                    MPN: 99133105834
                                                    TRACK ROD RIGHT ADJUSTABLE
                                                    P470 (Rear-axle steering)
                                                    Supersession
                                                    Supersession
                                                    Genuine Porsche Part (no longer available to order)
                                                    # 17
                                                    MPN: 99907208601
                                                    HEXAGON BOLT M12X1,5X75
                                                    from £5.52
                                                    from £5.52
                                                    SCREW, HEX. HD Genuine Porsche Part - New (to order)
                                                    # 18
                                                    MPN: 99133106180
                                                    TRAILING ARM UPPER
                                                    from £293.96
                                                    from £293.96
                                                    UPPER LINK Genuine Porsche Part - New (to order)
                                                    # 19
                                                    MPN: 99133104703
                                                    WISHBONE UPPER
                                                    Supersession
                                                    Supersession
                                                    Genuine Porsche Part (no longer available to order)
                                                    # 20
                                                    MPN: 99907285201
                                                    Hexagon bolt M12X1,5X90 D >>- 17.10.2013
                                                    Hexagon bolt M12X1,5X90 D >>- 17.10.2013
                                                    SCREW, HEX. HD Genuine Porsche Part - New (to order)
                                                    # 20
                                                    MPN: 9A700820900
                                                    Hexagon bolt M12X1,5X90 D >>- 17.10.2013
                                                    from £4.91
                                                    from £4.91
                                                    SCREW, HEX. HD Genuine Porsche Part - New In stock
                                                    # 20
                                                    MPN: 99907286601
                                                    HEXAGON BOLT M12X1,5X95 D - 18.10.2013>>- 12.10.2015
                                                    from £3.57
                                                    from £3.57
                                                    SCREW, HEX. HD Genuine Porsche Part - New (to order)
                                                    # 20
                                                    MPN: 99907287501
                                                    HEXAGON BOLT M12X95 D - 13.10.2015>>
                                                    Supersession
                                                    Supersession
                                                    Genuine Porsche Part (no longer available to order)
                                                    # 21
                                                    MPN: 99133105380
                                                    WISHBONE LOWER
                                                    track control arm Genuine Porsche Part - New (to order)
                                                    # 21
                                                    MPN: 99133105381
                                                    WISHBONE LOWER
                                                    from £491.80
                                                    from £491.80
                                                    track control arm Genuine Porsche Part - New (to order)
                                                    # 22
                                                    MPN: 99633121900
                                                    ECCENTRIC WASHER
                                                    ECCENTRIC WASHER
                                                    Supersession
                                                    Supersession
                                                    Genuine Porsche Part (no longer available to order)
                                                    # 22
                                                    MPN: PAF007648
                                                    ECCENTRIC WASHER
                                                    from £7.25
                                                    from £7.25
                                                    This part replaces part number 99633121900
                                                    ECCENTRIC WASHER Genuine Porsche Part - New (to order)
                                                    # 23
                                                    MPN: 99991919702
                                                    FILLISTER HD. BOLT 6,0X40
                                                    from £3.31
                                                    from £3.31
                                                    FILLISTER HD. SCREW Genuine Porsche Part - New (to order)
                                                    # 24
                                                    MPN: 99157543180
                                                    AIR GUIDE CHANNEL LEFT WISHBONE
                                                    from £65.77
                                                    from £65.77
                                                    AIR DUCT Genuine Porsche Part - New (to order)
                                                    # 24
                                                    MPN: 99157543280
                                                    Air guide channel right Wishbone
                                                    from £36.17
                                                    from £36.17
                                                    AIR DUCT Genuine Porsche Part - New (to order)
                                                    AIR DUCT Genuine Porsche Part - Used In stock
                                                    # 25
                                                    MPN: 99133104380
                                                    TRAILING ARM LOWER
                                                    from £293.96
                                                    from £293.96
                                                    TRAILING ARM Genuine Porsche Part - New (to order)
                                                    # 26
                                                    MPN: 99133148180
                                                    AIR DUCT FOR LEFT BRAKE COOLING
                                                    AIR DUCT FOR LEFT BRAKE COOLING
                                                    BRAKE COOLING AIR Genuine Porsche Part - New (to order)
                                                    # 26
                                                    MPN: 99133148181
                                                    AIR DUCT FOR LEFT BRAKE COOLING
                                                    from £36.33
                                                    from £36.33
                                                    BRAKE COOLING AIR Genuine Porsche Part - New (to order)
                                                    BRAKE COOLING AIR Genuine Porsche Part - Used In stock
                                                    # 26
                                                    MPN: 99133148280
                                                    AIR DUCT FOR RIGHT BRAKE COOLING
                                                    AIR DUCT FOR RIGHT BRAKE COOLING
                                                    BRAKE COOLING AIR Genuine Porsche Part - New (to order)
                                                    # 26
                                                    MPN: 99133148281
                                                    AIR DUCT FOR RIGHT BRAKE COOLING
                                                    from £36.33
                                                    from £36.33
                                                    BRAKE COOLING AIR Genuine Porsche Part - New (to order)
                                                    BRAKE COOLING AIR Genuine Porsche Part - Used In stock
                                                    # 27
                                                    MPN: 99133132980
                                                    SUPPORT LEFT GUIDE
                                                    from £139.92
                                                    from £139.92
                                                    MOUNTING Genuine Porsche Part - New (to order)
                                                    # 27
                                                    MPN: 99133133080
                                                    SUPPORT RIGHT GUIDE
                                                    from £139.92
                                                    from £139.92
                                                    MOUNTING Genuine Porsche Part - New (to order)
                                                    # 28
                                                    MPN: 99907208301
                                                    BOLT WITH WASHER M10X58
                                                    from £2.68
                                                    from £2.68
                                                    BOLT WITH WASHER Genuine Porsche Part - New (to order)
                                                    # 29
                                                    MPN: 99907605301
                                                    HEXAGON NUT M10
                                                    Supersession
                                                    Supersession
                                                    Genuine Porsche Part (no longer available to order)
                                                    # 29
                                                    MPN: PAF008868
                                                    HEXAGON NUT M10
                                                    from £2.29
                                                    from £2.29
                                                    This part replaces part number 99907605301
                                                    HEX. NUT Genuine Porsche Part - New In stock
                                                    # 30
                                                    MPN: 99906112401
                                                    THREADED PIN M10X1,5
                                                    from £4.03
                                                    from £4.03
                                                    STUD Genuine Porsche Part - New (to order)
                                                    # 31
                                                    MPN: 99133302100
                                                    LEVEL SENSOR
                                                    LEVEL SENSOR
                                                    SELF LEVELLING SENSOR Genuine Porsche Part - New (to order)
                                                    # 31
                                                    MPN: 99133302104
                                                    LEVEL SENSOR IF REQUIRED USE ALSO ITEM: 32 FOR LEFT
                                                    P475 (PASM electronic damper control)
                                                    from £84.83
                                                    from £84.83
                                                    SELF LEVELLING SENSOR Genuine Porsche Part - New (to order)
                                                    # 31
                                                    MPN: 99133332700
                                                    CONNECTING ROD
                                                    from £34.82
                                                    from £34.82
                                                    CONNECTING ROD Genuine Porsche Part - New (to order)
                                                    # 31
                                                    MPN: N 10485703
                                                    Hexagon socket flat M5X12 head bolt
                                                    from £0.48
                                                    from £0.48
                                                    HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
                                                    HEXAGON SOCKET FLAT HEAD BOLT Genuine Bentley Part - New (to order)
                                                    PAN HEAD BOLT Genuine Lamborghini - New (to order)
                                                    # 32
                                                    MPN: 99921711601
                                                    HEXAGON BOLT M6X16
                                                    Supersession
                                                    Supersession
                                                    Genuine Porsche Part (no longer available to order)
                                                    # 33
                                                    MPN: 99160940702
                                                    BRACKET LEFT
                                                    from £7.46
                                                    from £7.46
                                                    BRACKET Genuine Porsche Part - New (to order)
                                                    # 33
                                                    MPN: 99160940802
                                                    BRACKET RIGHT
                                                    from £7.46
                                                    from £7.46
                                                    This part replaces part number 99160940801
                                                    BRACKET Genuine Porsche Part - New (to order)
                                                    # 34
                                                    MPN: 99906112701
                                                    THREADED PIN M12X1,5
                                                    STUD Genuine Porsche Part - New (to order)
                                                    # 35
                                                    MPN: N 90916701
                                                    HEXAGON COLLAR NUT M12X1,5 SELF-LOCKING
                                                    from £2.79
                                                    from £2.79
                                                    SHOULDERED HEX. NUT, Genuine Porsche Part - New In stock
                                                    # 36
                                                    MPN: N 10700901
                                                    SPREADER RIVET BD4,5X11,5
                                                    from £0.64
                                                    from £0.64
                                                    RIVET Genuine Porsche Part - New (to order)
                                                    SPREADER RIVET Genuine Bentley Part - New (to order)
                                                    SPREADER RIVET Genuine Lamborghini - New (to order)
                                                    # 37
                                                    MPN: 99907286601
                                                    HEXAGON BOLT M12X1.5X95
                                                    from £3.57
                                                    from £3.57
                                                    SCREW, HEX. HD Genuine Porsche Part - New (to order)
                                                    # 37
                                                    MPN: 99907287501
                                                    HEXAGON BOLT M12X1.5X95
                                                    Supersession
                                                    Supersession
                                                    Genuine Porsche Part (no longer available to order)
                                                    # 38
                                                    MPN: 99133137500
                                                    RUBBER BUSH STEERING REAR AXLE
                                                    P470 (Rear-axle steering)
                                                    from £531.98
                                                    from £531.98
                                                    RUBBER ISOLATOR Genuine Porsche Part - New (to order)
                                                    # 39
                                                    MPN: 99133152100
                                                    ASSEMBLY KIT STEERING REAR AXLE COMPRISING: BELLOWS 1 PC BALL JOINT 1 PC LOCKNUT 1 PC CLAMP 2 PARTS
                                                    P470 (Rear-axle steering)
                                                    from £397.36
                                                    from £397.36
                                                    ASSEMBLY KIT Genuine Porsche Part - New (to order)
