PE7S (992 Dakar)
porsche 2019 (992-1) rear axle cross member parts diagram

501-007 - REAR AXLE CROSS MEMBER

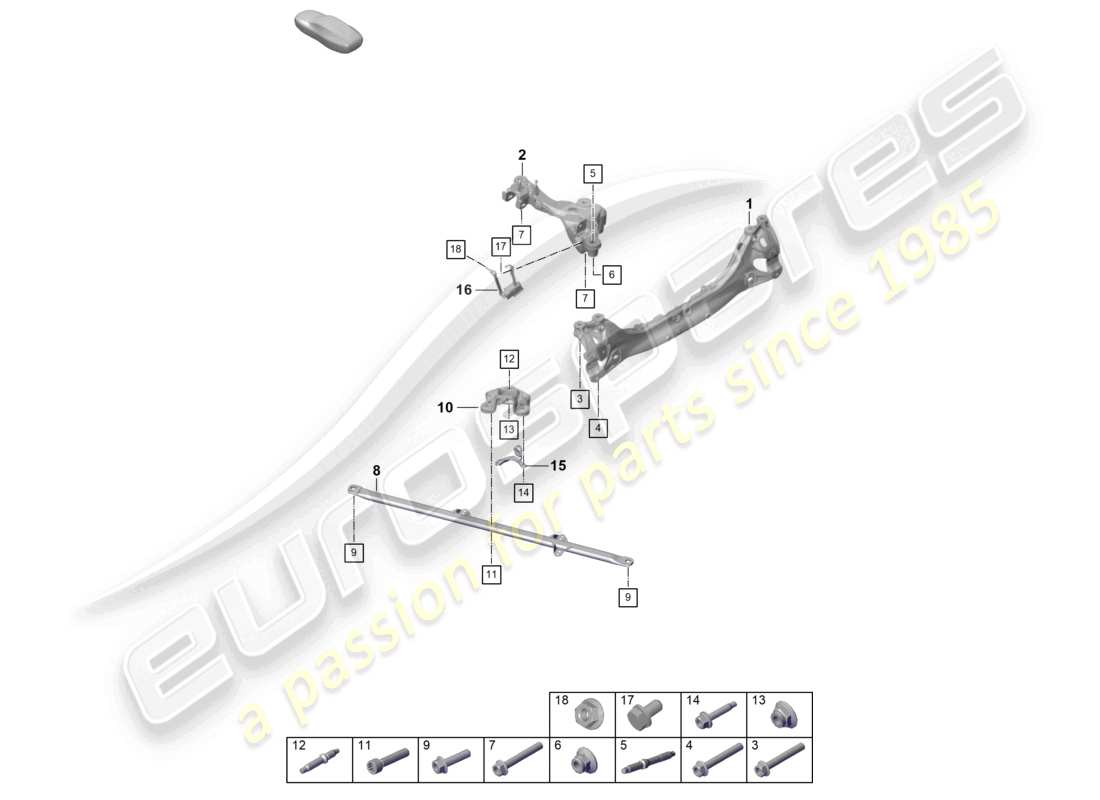

Porsche 2019 (992-1) Rear axle Cross member Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 1
                                      MPN: 992505105C
                                      CROSS MEMBER
                                      from £405.86
                                      from £405.86
                                      CROSS MEMBER Genuine Porsche Part - New (to order)
                                      # 2
                                      MPN: 992505063D
                                      SIDE PART LEFT
                                      from £483.90
                                      from £483.90
                                      SIDE PART Genuine Porsche Part - New (to order)
                                      # 2
                                      MPN: 992505064D
                                      Side part right
                                      from £483.90
                                      from £483.90
                                      SIDE PART Genuine Porsche Part - New (to order)
                                      # 3
                                      MPN: PAF008735
                                      HEXAGON BOLT M12X1,5X95 OUTER
                                      from £4.67
                                      from £4.67
                                      This part replaces part number 99907287501
                                      SCREW, HEX. HD Genuine Porsche Part - New (to order)
                                      # 4
                                      MPN: PAF008673
                                      HEXAGON BOLT M12X1,5X110 INNER
                                      from £5.37
                                      from £5.37
                                      SCREW, HEX. HD Genuine Porsche Part - New (to order)
                                      # 5
                                      MPN: WHT008655
                                      THREADED PIN M12X1,5X126
                                      from £6.08
                                      from £6.08
                                      STUD Genuine Porsche Part - New (to order)
                                      # 6
                                      MPN: N 90916701
                                      HEXAGON COLLAR NUT M12X1,5 SELF-LOCKING
                                      from £2.79
                                      from £2.79
                                      SHOULDERED HEX. NUT, Genuine Porsche Part - New In stock
                                      # 7
                                      MPN: PAF008735
                                      HEXAGON BOLT M12X1,5X95
                                      from £4.67
                                      from £4.67
                                      This part replaces part number 99907287501
                                      SCREW, HEX. HD Genuine Porsche Part - New (to order)
                                      # 8
                                      MPN: 992505475G
                                      PANHARD ROD LEFT
                                      from £144.98
                                      from £144.98
                                      TRACK BAR Genuine Porsche Part - New (to order)
                                      # 8
                                      MPN: 992505476G
                                      PANHARD ROD RIGHT
                                      from £144.98
                                      from £144.98
                                      TRACK BAR Genuine Porsche Part - New (to order)
                                      # 9
                                      MPN: WHT008676
                                      Hexagon bolt M12X1,5X45 Brace
                                      from £4.03
                                      from £4.03
                                      This part replaces part number 99907286901
                                      SCREW, HEX. HD Genuine Porsche Part - New (to order)
                                      # 10
                                      MPN: 992505261C
                                      Support lower
                                      from £57.78
                                      from £57.78
                                      SUPPORT Genuine Porsche Part - New (to order)
                                      # 11
                                      MPN: PAF909417
                                      SOCKET HEAD BOLT WITH INNER M10X45 MULTIPOINT HEAD
                                      from £2.79
                                      from £2.79
                                      SCREW Genuine Porsche Part - New (to order)
                                      # 12
                                      MPN: PAF008654
                                      THREADED PIN M10X68,5
                                      from £4.52
                                      from £4.52
                                      STUD Genuine Porsche Part - New (to order)
                                      # 13
                                      MPN: PAF008868
                                      HEXAGON NUT M10
                                      from £2.29
                                      from £2.29
                                      This part replaces part number 99907605301
                                      HEX. NUT Genuine Porsche Part - New In stock
                                      # 14
                                      MPN: PAF008642
                                      HEXAGON BOLT M10X50
                                      from £1.95
                                      from £1.95
                                      SCREW, HEX. HD Genuine Porsche Part - New (to order)
                                      # 15
                                      -
                                      BRACKET SEE ILLUSTRATION: 402-110
                                      # 16
                                      MPN: 992616571A
                                      LEVEL SENSOR LEFT REAR AXLE
                                      from £201.15
                                      from £201.15
                                      LEVEL SENSOR Genuine Porsche Part - New (to order)
                                      # 16
                                      MPN: 992616572A
                                      Level sensor right Rear axle
                                      from £201.15
                                      from £201.15
                                      LEVEL SENSOR Genuine Porsche Part - New (to order)
                                      # 17
                                      MPN: N 10005306
                                      hexagon head bolt (combi) M6X12 Bolt with washer
                                      from £0.95
                                      from £0.95
                                      BOLT, HEX. HD. (COMBI.) Genuine Porsche Part - New (to order)
                                      # 18
                                      MPN: PAF015082
                                      HEXAGON COLLAR NUT M6
                                      from £1.58
                                      from £1.58
                                      This part replaces part number N 01508210
                                      shouldered hex. nut Genuine Porsche Part - New In stock
