porsche 2019 (992-1) disc brake 17 front axle red/black parts diagram

602-020 - Disc brake 17 Front axle red/black

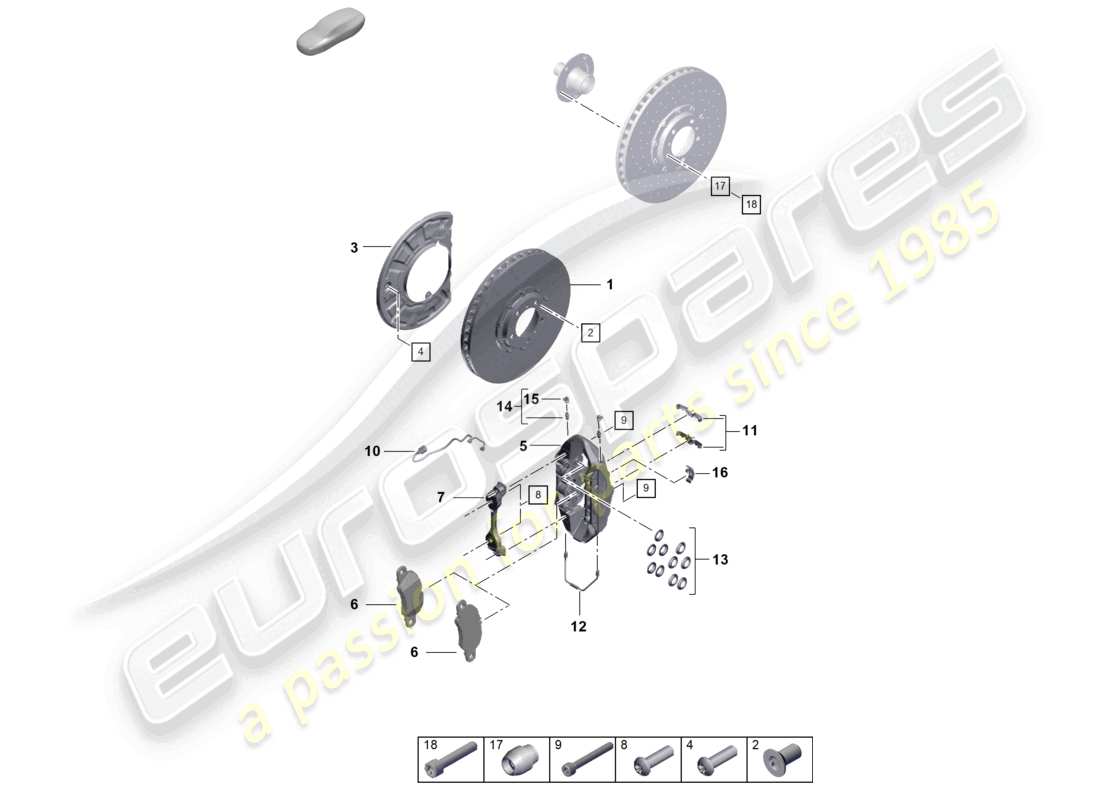

Porsche 2019 (992-1) Disc brake 17 Front axle red/black Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Key
                            Price
                            # 1
                            MPN: 992615301T
                            BRAKE DISC LEFT ALSO USE: 1X 992 615 302 T 2X N 104 560 04 ADDITIONALLY TO BE USED ITEMS: 1X 6 2X WHT 008 186
                            from £788.21
                            from £788.21
                            BRAKE DISC Genuine Porsche Part - New (to order)
                            # 1
                            MPN: 992615302T
                            BRAKE DISC RIGHT ALSO USE: 1X 992 615 301 T 2X N 104 560 04 ADDITIONALLY TO BE USED ITEMS: 1X 6 2X WHT 008 186
                            Supersession
                            Supersession
                            Genuine Porsche Part (no longer available to order)
                            # 2
                            MPN: N 10456004
                            Hexagon socket head bolt, M6X12 self-locking
                            from £0.47
                            from £0.47
                            HEXAGON SOCKET HEAD BOLT, Genuine Porsche Part - New (to order)
                            # 3
                            MPN: 9P1615311B
                            COVER PLATE LEFT USE IF REQUIRED: 3X PAF 100 829
                            from £40.24
                            from £40.24
                            COVER PLATE Genuine Porsche Part - New (to order)
                            # 3
                            MPN: 9P1615312B
                            COVER PLATE RIGHT USE IF REQUIRED: 3X PAF 100 829
                            from £40.24
                            from £40.24
                            COVER PLATE Genuine Porsche Part - New (to order)
                            # 4
                            MPN: PAF100829
                            HEXAGON HEAD BOLT (COMBI) M6X16
                            from £0.61
                            from £0.61
                            This part replaces part number 99921711601 - and 1 more. Click to view details
                            BOLT, HEX. HD. (COMBI.) Genuine Porsche Part - New In stock
                            # 5
                            MPN: 992615123AF
                            CALIPER WITHOUT BRAKE PADS LEFT RED ALSO USE: 2X WHT 008 186 1X 9P1 698 995
                            P1LS (Disc brakes in front, with integrated brake carrier)
                            from £756.89
                            from £756.89
                            CALIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
                            # 5
                            MPN: 992615124AF
                            CALIPER WITHOUT BRAKE PADS RIGHT RED ALSO USE: 2X WHT 008 186 1X 9P1 698 995
                            P1LS (Disc brakes in front, with integrated brake carrier)
                            from £756.89
                            from £756.89
                            CALIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
                            # 5
                            MPN: 992615123J
                            caliper without brake pads left Black also use: 2x WHT 008 186 D >>- 14.09.2020 1x 9P1 698 995
                            caliper without brake pads left Black also use: 2x WHT 008 186 D >>- 14.09.2020 1x 9P1 698 995
                            from £794.24
                            from £794.24
                            CALIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
                            # 5
                            MPN: 992615123AJ
                            CALIPER WITHOUT BRAKE PADS LEFT BLACK ALSO USE: 2X WHT 008 186 D - 15.09.2020>>1X 9P1 698 995
                            P1LR (Disc brakes in front, with integrated brake carrier)
                            Supersession
                            Supersession
                            Genuine Porsche Part (no longer available to order)
                            # 5
                            MPN: 992615124J
                            caliper without brake pads right Black also use: 2x WHT 008 186 D >>- 14.09.2020 1x 9P1 698 995
                            caliper without brake pads right Black also use: 2x WHT 008 186 D >>- 14.09.2020 1x 9P1 698 995
                            from £794.24
                            from £794.24
                            CALIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
                            # 5
                            MPN: 992615124AJ
                            CALIPER WITHOUT BRAKE PADS RIGHT BLACK ALSO USE: 2X WHT 008 186 D - 15.09.2020>>1X 9P1 698 995
                            P1LR (Disc brakes in front, with integrated brake carrier)
                            from £782.73
                            from £782.73
                            CALIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
                            # 6
                            MPN: 992698151F
                            1 set of brake pads for disk brake also use: 4x WHT 008 186 2x 9P1 698 995 2x 9P1 907 637 B D >>- 03.11.2024
                            1 set of brake pads for disk brake also use: 4x WHT 008 186 2x 9P1 698 995 2x 9P1 907 637 B D >>- 03.11.2024
                            from £313.22
                            from £313.22
                            1 SET OF BRAKE PADS FOR DISK BRAKE Genuine Porsche Part - New (to order)
                            # 6
                            MPN: 992698151S
                            1 SET OF BRAKE PADS FOR DISK BRAKE FRONT AXLE 4X WHT 008 186 ALSO USE: 2X 9P1 698 995 2X 9P1 907 637 B D - 27.12.2024>>
                            from £295.94
                            from £295.94
                            1 SET OF BRAKE PADS FOR DISK BRAKE Genuine Porsche Part - New (to order)
                            # 7
                            MPN: 9P1611315
                            Adapter Fixed calliper also use: 2x PAF 008 187
                            Adapter Fixed calliper also use: 2x PAF 008 187
                            Supersession
                            Supersession
                            Genuine Porsche Part (no longer available to order)
                            # 7
                            MPN: 9P1611315B
                            ADAPTER FRONT AXLE FIXED CALLIPER
                            from £112.60
                            from £112.60
                            This part replaces part number 9P1611315
                            ADAPTER Genuine Porsche Part - New (to order)
                            # 8
                            MPN: PAF008187
                            HEXAGON SOCKET FLAT M12X1,5X37 HEAD BOLT
                            from £1.00
                            from £1.00
                            HEXAGON SOCKET FLAT HEAD BOLT Genuine Porsche Part - New (to order)
                            # 9
                            MPN: WHT008186
                            Socket head bolt M12X1,5X62
                            from £17.29
                            from £17.29
                            This part replaces part number 99906705409
                            SCREW, CHEESE HD Genuine Porsche Part - New (to order)
                            # 10
                            MPN: 9P1907637B
                            SENDER WIRE (PAD WEAR INDICATOR)
                            from £26.79
                            from £26.79
                            This part replaces part number 99160918100
                            SENDER WIRE Genuine Porsche Part - New (to order)
                            SENDER WIRE (PAD WEAR INDICATOR) Genuine Lamborghini - New (to order)
                            # 11
                            MPN: 9P1698995
                            1 SET SPRINGS REPAIR SET
                            from £29.18
                            from £29.18
                            1 SET OF SPRINGS Genuine Porsche Part - New (to order)
                            # 12
                            MPN: 9P1615701A
                            CONNECTING LINE LEFT FIXED CALLIPER
                            from £26.70
                            from £26.70
                            connecting line Genuine Porsche Part - New (to order)
                            # 12
                            MPN: 9P1615702
                            CONNECTING LINE RIGHT FIXED CALLIPER
                            from £26.70
                            from £26.70
                            connecting line Genuine Porsche Part - New (to order)
                            # 13
                            MPN: 9P1698671D
                            1 SET PROTECTIVE CAPS 30 MM CONTAINS: 6 PCS
                            from £13.50
                            from £13.50
                            1 set protective caps Genuine Porsche Part - New (to order)
                            # 14
                            MPN: 8A0615273
                            1 SET BLEEDER VALVES WITH DUST CAP
                            from £9.05
                            from £9.05
                            BLEEDER VALVE Genuine Porsche Part - New (to order)
                            BLEEDER SCREW Genuine Lamborghini - New (to order)
                            # 15
                            MPN: 211611483
                            DUST CAP CONTAINS: 20 PC
                            from £3.60
                            from £3.60
                            dust cap - D >> - MJ 1983 Genuine Porsche Part - New (to order)
                            DUST CAP Genuine Lamborghini - New (to order)
                            # 16
                            MPN: 9P1615133A
                            CABLE HOLDER SENDER WIRE (PAD WEAR INDICATOR)
                            from £8.33
                            from £8.33
                            CABLE HOLDER Genuine Porsche Part - New (to order)
                            # 17
                            MPN: 9P1401111A
                            OPERATING PIN CENTRAL LOCKING
                            P1PJ (Central locking system)
                            from £7.52
                            from £7.52
                            OPERATING PIN Genuine Porsche Part - New (to order)
                            # 18
                            MPN: PAF008885
                            Torx M6X30 socket head bolt
                            P1PJ (Central locking system)
                            from £0.65
                            from £0.65
                            TORX SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
