porsche 2022 (992-1 gt3/rs/st) crankshaft conrod flywheel parts diagram

102-000 - Crankshaft conrod flywheel

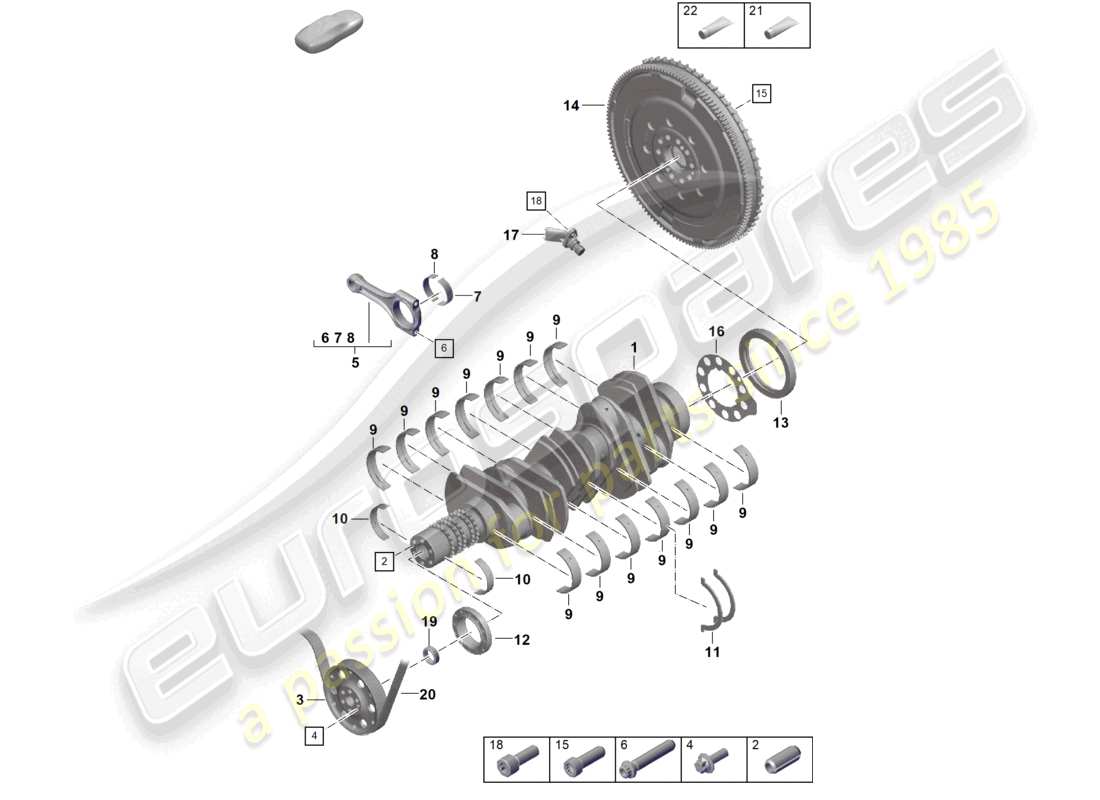

Porsche 2022 (992-1 GT3/RS/ST) Crankshaft conrod flywheel Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Key
                                            Price
                                            # 1
                                            MPN: 0PB105021Q
                                            crankshaft
                                            from £3,721.61
                                            from £3,721.61
                                            crankshaft Genuine Porsche Part - New (to order)
                                            # 2
                                            MPN: PAF108180
                                            CYLINDER PIN 6X16
                                            from £1.95
                                            from £1.95
                                            CYLINDER PIN Genuine Porsche Part - New (to order)
                                            # 3
                                            MPN: 0PB145235B
                                            PULLEY
                                            from £388.38
                                            from £388.38
                                            PULLEY Genuine Porsche Part - New (to order)
                                            # 4
                                            MPN: PAF008157
                                            HEXAGON HEAD BOLT M8X1X25
                                            from £0.91
                                            from £0.91
                                            HEXAGON HEAD BOLT Genuine Porsche Part - New (to order)
                                            # 5
                                            MPN: 0PB105405A
                                            CONROD
                                            from £1,393.56
                                            from £1,393.56
                                            CONROD Genuine Porsche Part - New (to order)
                                            # 6
                                            MPN: PAF009441
                                            BOLT - CONNECTING ROD
                                            from £72.19
                                            from £72.19
                                            BOLT - CONNECTING ROD Genuine Porsche Part - New (to order)
                                            # 7
                                            MPN: 0PB105707
                                            CONNECTING ROD BEARING SHELL COVER COLOUR DESIGNATION: RED
                                            from £55.43
                                            from £55.43
                                            CONNECTING ROD BEARING SHELL Genuine Porsche Part - New (to order)
                                            # 7
                                            MPN: 0PB105707A
                                            CONNECTING ROD BEARING SHELL COVER COLOUR DESIGNATION: YELLOW
                                            from £56.80
                                            from £56.80
                                            CONNECTING ROD BEARING SHELL Genuine Porsche Part - New (to order)
                                            # 7
                                            MPN: 0PB105707B
                                            CONNECTING ROD BEARING SHELL COVER COLOUR DESIGNATION: BLUE
                                            from £55.43
                                            from £55.43
                                            CONNECTING ROD BEARING SHELL Genuine Porsche Part - New (to order)
                                            # 8
                                            MPN: 0PB105708
                                            CONNECTING ROD BEARING SHELL ROD COLOUR DESIGNATION: RED
                                            from £47.20
                                            from £47.20
                                            CONNECTING ROD BEARING SHELL Genuine Porsche Part - New (to order)
                                            # 8
                                            MPN: 0PB105708A
                                            connecting rod bearing shell rod Colour designation: yellow
                                            from £47.20
                                            from £47.20
                                            CONNECTING ROD BEARING SHELL Genuine Porsche Part - New (to order)
                                            # 8
                                            MPN: 0PB105708B
                                            CONNECTING ROD BEARING SHELL ROD COLOUR DESIGNATION: BLUE
                                            from £47.20
                                            from £47.20
                                            CONNECTING ROD BEARING SHELL Genuine Porsche Part - New (to order)
                                            # 9
                                            MPN: 0PB105591M
                                            CRANKSHAFT BEARING COLOUR DESIGNATION: RED
                                            from £52.83
                                            from £52.83
                                            This part replaces part number 9A110107390
                                            CRANKSHAFT BEARING Genuine Porsche Part - New (to order)
                                            # 9
                                            MPN: 0PB105591N
                                            crankshaft bearing Colour designation: yellow
                                            from £92.96
                                            from £92.96
                                            This part replaces part number 9A110107391
                                            CRANKSHAFT BEARING Genuine Porsche Part - New (to order)
                                            # 9
                                            MPN: 0PB105591P
                                            CRANKSHAFT BEARING COLOUR DESIGNATION: BLUE
                                            from £51.54
                                            from £51.54
                                            CRANKSHAFT BEARING Genuine Porsche Part - New (to order)
                                            # 10
                                            MPN: 0PB105589E
                                            CRANKSHAFT BEARING COLOUR DESIGNATION: RED
                                            from £17.71
                                            from £17.71
                                            This part replaces part number 9A110105200
                                            CRANKSHAFT BEARING Genuine Porsche Part - New (to order)
                                            # 10
                                            MPN: 0PB105589F
                                            crankshaft bearing Colour designation: yellow
                                            from £17.71
                                            from £17.71
                                            This part replaces part number 9A110105201
                                            CRANKSHAFT BEARING Genuine Porsche Part - New (to order)
                                            # 10
                                            MPN: 0PB105589G
                                            CRANKSHAFT BEARING COLOUR DESIGNATION: BLUE
                                            from £17.71
                                            from £17.71
                                            CRANKSHAFT BEARING Genuine Porsche Part - New (to order)
                                            # 11
                                            MPN: 0PB105791
                                            THRUST WASHER D = 74,5 D >>- 25.08.2024 USE ONLY IN CONJUNCTION WITH: 0PB 101 040 A
                                            from £18.86
                                            from £18.86
                                            This part replaces part number 9A110113191
                                            THRUST WASHER Genuine Porsche Part - New (to order)
                                            # 11
                                            MPN: 0PD 105 638 A
                                            THRUST WASHER D = 74,5 D - 26.08.2024>>USE ONLY IN CONJUNCTION WITH: 0PB 101 040 B
                                            THRUST WASHER D = 74,5 D - 26.08.2024>>USE ONLY IN CONJUNCTION WITH: 0PB 101 040 B Genuine Porsche Part - New (to order)
                                            # 12
                                            MPN: 0PB105247A
                                            SHAFT OIL SEAL
                                            from £45.49
                                            from £45.49
                                            This part replaces part number 9A110122290
                                            SHAFT OIL SEAL Genuine Porsche Part - New (to order)
                                            # 13
                                            MPN: 0PB105247B
                                            SHAFT OIL SEAL
                                            from £52.13
                                            from £52.13
                                            This part replaces part number 9A110122390
                                            SHAFT OIL SEAL Genuine Porsche Part - New (to order)
                                            # 14
                                            MPN: 9P1105262F
                                            DUAL-MASS FLYWHEEL FOR MANUAL GEARBOX
                                            from £1,198.20
                                            from £1,198.20
                                            DUAL-MASS FLYWHEEL Genuine Porsche Part - New (to order)
                                            # 14
                                            MPN: 9P1105264C
                                            DUAL-MASS FLYWHEEL - PDK -
                                            from £1,316.14
                                            from £1,316.14
                                            DUAL-MASS FLYWHEEL Genuine Porsche Part - New (to order)
                                            # 14
                                            MPN: 9GT105273
                                            SINGLE-MASS FLYWHEEL FOR MANUAL GEARBOX
                                            S/T
                                            from £4,639.35
                                            from £4,639.35
                                            SINGLE-MASS FLYWHEEL Genuine Porsche Part - New (to order)
                                            # 15
                                            MPN: PAF906651
                                            SOCKET HEAD BOLT WITH INNER M10X1X29 MULTIPOINT HEAD
                                            from £3.48
                                            from £3.48
                                            This part replaces part number N 90665101
                                            SCREW Genuine Porsche Part - New In stock
                                            # 16
                                            MPN: PAF009117
                                            FRICTION WASHER FLYWHEEL
                                            from £145.56
                                            from £145.56
                                            FRICTION WASHER Genuine Porsche Part - New (to order)
                                            # 17
                                            MPN: 992906401A
                                            SPEED SENSOR D >>- 13.02.2022
                                            from £122.40
                                            from £122.40
                                            SPEED SENSOR Genuine Porsche Part - New (to order)
                                            # 17
                                            MPN: 992906401B
                                            SPEED SENSOR D - 14.02.2022>>
                                            from £122.40
                                            from £122.40
                                            SPEED SENSOR Genuine Porsche Part - New (to order)
                                            # 18
                                            MPN: N 91126601
                                            OVAL HEXAGON SOCKET HEAD BOLT M6X16
                                            from £0.58
                                            from £0.58
                                            OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                            HEXALOBULAR SOCKETM6X16 Genuine Lamborghini - New In stock
                                            # 19
                                            MPN: 0PB105248
                                            RADIAL SHAFT SEAL 16X24X7 INNER
                                            from £23.38
                                            from £23.38
                                            RADIAL SHAFT SEAL Genuine Porsche Part - New (to order)
                                            # 20
                                            -
                                            V-BELT SEE ILLUSTRATION: 102-200
                                            # 21
                                            MPN: 00004330614
                                            GREASE 100 GRAM FOR TITANIUM BOLT - CONNECTING ROD
                                            from £727.67
                                            from £727.67
                                            GREASE Genuine Porsche Part - New (to order)
                                            # 22
                                            MPN: 00004330556
                                            EXTREME-PRESSURE GREASE 100 GRAM 1 TUBE CONROD
                                            from £35.60
                                            from £35.60
                                            EXTREME-PRESSURE GREASE - 100 GR. Genuine Porsche Part - New (to order)
