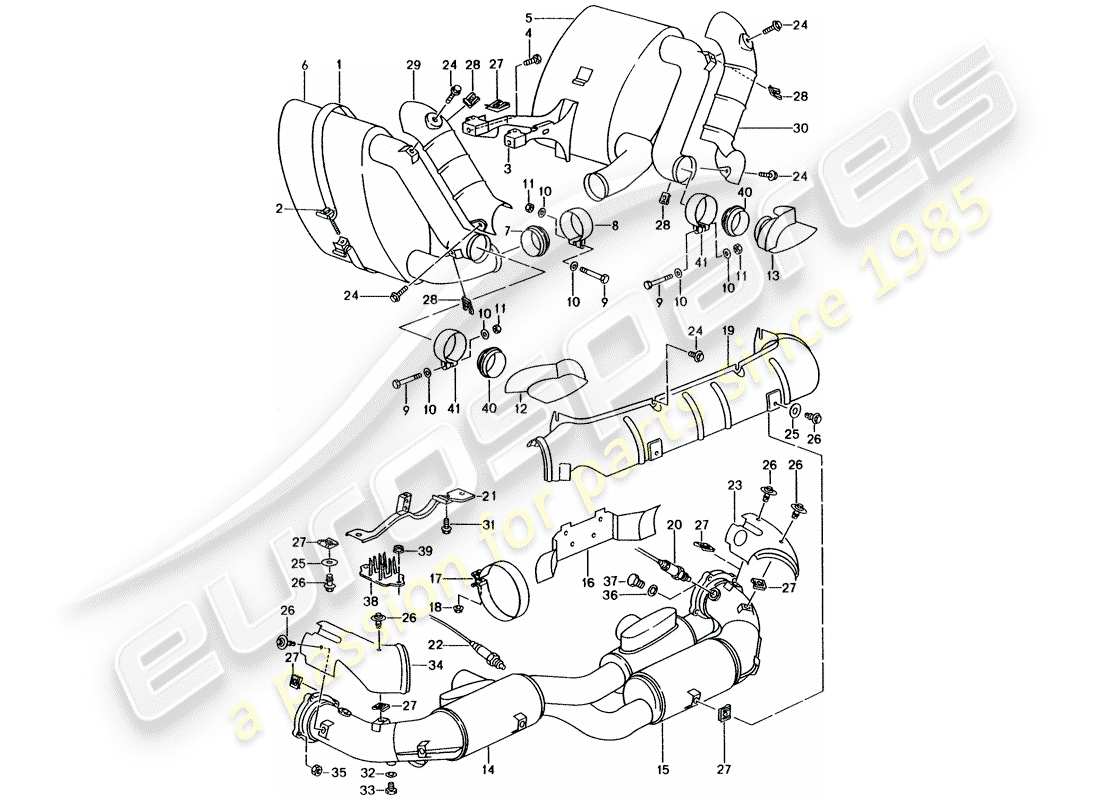

202-015 - EXHAUST SYSTEM - MUFFLER - EXHAUST - CATALYST
Porsche 1996 (993) EXHAUST SYSTEM - MUFFLER - EXHAUST - CATALYST Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 99311111907
STRAP
from £74.29
from £74.29
# 2
MPN: 90006736202
SCREW, CHEESE HD. - AM 8 X 50
# 3
MPN: 99311111353
bracket - Discontinued part
LEFT
# 3
MPN: 99311111383
BRACKET
LEFT
from £248.44
from £248.44
# 3
MPN: 99311111453
bracket - Discontinued part
RIGHT
# 3
MPN: 99311111484
BRACKET
RIGHT
from £248.44
from £248.44
# 4
MPN: 90007435602
BOLT WITH WASHER - M 8 X 20
from £3.08
from £3.08
# 5
MPN: 99311104654
muffler - exhaust - D >> - MJ 1996 - also use:
right--00004300400
Supersession
Supersession
# 5
MPN: 99311104654
muffler - exhaust - D - MJ 1997>> - also use:
right--00004300400
Supersession
Supersession
# 6
MPN: 99311104554
muffler - exhaust - D >> - MJ 1996 - also use:
left--00004300400
Supersession
Supersession
# 6
MPN: 99311104554
muffler - exhaust - D - MJ 1997>> - also use:
left--00004300400
Supersession
Supersession
# 7
MPN: 99311124651
SEAL RING - DISCONTINUED PART
# 7
MPN: 99311124652
SEAL RING
from £42.46
from £42.46
# 8
MPN: 95911133500
CLAMP
from £44.79
from £44.79
# 9
MPN: 90007425202
SCREW - M 8 X 65
from £5.63
from £5.63
# 10
MPN: 99902512509
WASHER - 8,4 X 17 X 3,0 - DISCONTINUED PART
# 10
MPN: 99902512501
Washer - 8,4 X 17 X 3,0
from £1.39
from £1.39
# 11
MPN: 99908405202
LOCK NUT - M 8
from £5.33
from £5.33
This part replaces part number 99908404602
# 12
MPN: 99311125150
TAILPIPE - DISCONTINUED PART
LEFT
# 12
MPN: 99311125154
Tailpipe - D >> - MJ 1996
LEFT
# 12
MPN: 99311125154
Tailpipe - D - MJ 1997>>
LEFT
# 13
MPN: 99311125250
TAILPIPE - DISCONTINUED PART
RIGHT
# 13
MPN: 99311125254
TAILPIPE - D >> - MJ 1996 - DISCONTINUED PART
RIGHT
# 13
MPN: 99311125255
TAILPIPE
RIGHT
from £269.01
from £269.01
# 13
MPN: 99311125254
Tailpipe - D - MJ 1997>> - Discontinued part
RIGHT
# 13
MPN: 99311125255
Tailpipe - D - MJ 1997>>
RIGHT
from £269.01
from £269.01
# 14
MPN: 99311321357
catalyst - D >> - MJ 1996
LEFT
# 14
MPN: 99311321357
catalyst - D - MJ 1997>>
LEFT
# 15
MPN: 99311321457
catalyst - D >> - MJ 1996 - Discontinued part
RIGHT
# 15
MPN: 99311321458
CATALYST - ALSO USE:
right-00004300400
from £1,959.96
from £1,959.96
# 15
MPN: 99311321457
catalyst - D - MJ 1997>> - Discontinued part
RIGHT
# 15
MPN: 99311321458
catalyst - D - MJ 1997>> - also use:
right--00004300400
from £1,959.96
from £1,959.96
# 16
MPN: 99311322352
BRACKET
from £33.98
from £33.98
# 17
MPN: 99311322551
STRAP
from £22.24
from £22.24
# 18
MPN: 90091002202
lock nut - VF M 8
Supersession
Supersession
# 19
MPN: 99311324751
SHIELD FOR CATALYST - ALSO USE:
-00004300400
from £64.57
from £64.57
# 20
MPN: 99360612801
oxygen sensor - D >> - MJ 1996
from £188.14
from £188.14
# 20
MPN: 99360612801
oxygen sensor - D - MJ 1997>>
from £188.14
from £188.14
# 21
MPN: 99311910651
BRACKET
from £80.98
from £80.98
# 22
MPN: 99360612701
oxygen sensor - D >> - MJ 1996
from £216.89
from £216.89
# 22
MPN: 99360612701
oxygen sensor - D - MJ 1997>>
from £216.89
from £216.89
# 23
MPN: 99311324451
COVER
RIGHT
from £36.36
from £36.36
# 24
MPN: 90007537402
BOLT WITH WASHER - M 6 X 14 - DISCONTINUED PART
# 24
MPN: 90007537401
BOLT WITH WASHER - M 6 X 14
from £2.26
from £2.26
# 25
MPN: 90015100702
Washer - Discontinued part
# 25
MPN: 90015100703
WASHER
from £0.91
from £0.91
# 26
MPN: 99950743009
LOCKING PIN - 6 X 12
Supersession
Supersession
# 27
MPN: 99950741309
RETAINING CLIP - 6 - DISCONTINUED PART
# 27
MPN: 99950741308
speed nut - 6
from £4.48
from £4.48
# 28
MPN: 99950707300
NUT - M 6
from £14.06
from £14.06
This part replaces part number 99950732602
# 29
MPN: 99311121152
HEAT PROTECTION PLATE
LEFT
# 30
MPN: 99311121252
HEAT PROTECTION PLATE
RIGHT
# 31
MPN: 90007544802
BOLT WITH WASHER - M 6 X 14
from £2.04
from £2.04
# 32
MPN: 90012305020
SEAL RING - A 8 X 11,5
from £0.82
from £0.82
# 33
MPN: 90008308000
screw, hex. hd. - M 8 X 1 X 10
from £2.68
from £2.68
# 34
MPN: 99311324351
COVER
LEFT
from £36.36
from £36.36
# 35
MPN: 99908462702
LOCK NUT - M 8
from £2.70
from £2.70
# 36
MPN: 90012300920
SEAL RING - A 18 X 24
(PR:150)
from £0.91
from £0.91
# 37
MPN: 90021901500
THREADED PLUG - M 18 X 1,5
(PR:150)
from £22.86
from £22.86
# 38
MPN: 99360610500
BRACKET FOR OXYGEN SENSOR
from £1.98
from £1.98
# 39
MPN: 99904900840
PLASTIC NUT - T5/16 X 10
from £1.06
from £1.06
# 40
MPN: 92811124605
SEAL RING - DISCONTINUED PART
from £24.05
from £24.05
# 40
MPN: 92811124606
SEAL RING
from £22.14
from £22.14
# 41
MPN: 92811142700
CLAMP
from £35.97
from £35.97
-part-diagram-202-016.webp "PORSCHE 1996 (993) EXHAUST GAS TURBOCHARGER - OIL PUMP - FOR - EXHAUST GAS TURBOCHARGER PARTS DIAGRAM")
-part-diagram-202-018.webp "PORSCHE 1996 (993) TAIL PIPE - SPORT - D - MJ 1995>> - MJ 1998 PARTS DIAGRAM")
-part-diagram-202-020.webp "PORSCHE 1996 (993) HEATING AIR SUPPLY PARTS DIAGRAM")
-part-diagram-298-000.webp "PORSCHE 1996 (993) MAINTENANCE SET - REPAIR KIT - GASKET SET PARTS DIAGRAM")
-part-diagram-298-005.webp "PORSCHE 1996 (993) PORSCHE CLASSIC - ADDITIVE - FOR FUEL PARTS DIAGRAM")
-part-diagram-301-000.webp "PORSCHE 1996 (993) CLUTCH PARTS DIAGRAM")
-part-diagram-301-005.webp "PORSCHE 1996 (993) CLUTCH RELEASE PARTS DIAGRAM")
-part-diagram-301-010.webp "PORSCHE 1996 (993) CENTRAL TUBE - - D - MJ 1995>> PARTS DIAGRAM")
-part-diagram-302-000.webp "PORSCHE 1996 (993) REPLACEMENT TRANSMISSION - READY FOR INSTALLATION - TRANSMISSION CASE PARTS DIAGRAM")
-part-diagram-302-001.webp "PORSCHE 1996 (993) REPLACEMENT TRANSMISSION - READY FOR INSTALLATION - TRANSMISSION CASE PARTS DIAGRAM")
-part-diagram-302-005.webp "PORSCHE 1996 (993) GEAR HOUSING - TRANSMISSION COVER PARTS DIAGRAM")
-part-diagram-303-000.webp "PORSCHE 1996 (993) GEAR WHEEL SETS PARTS DIAGRAM")
-part-diagram-303-001.webp "PORSCHE 1996 (993) GEAR WHEEL SETS PARTS DIAGRAM")
-part-diagram-303-002.webp "PORSCHE 1996 (993) GEAR WHEEL SETS PARTS DIAGRAM")
-part-diagram-303-003.webp "PORSCHE 1996 (993) GEAR WHEEL SETS PARTS DIAGRAM")
-part-diagram-303-010.webp "PORSCHE 1996 (993) GEARS AND SHAFTS PARTS DIAGRAM")
-part-diagram-304-000.webp "PORSCHE 1996 (993) SELECTOR SHAFT - SELECTOR FORK PARTS DIAGRAM")
-part-diagram-304-005.webp "PORSCHE 1996 (993) TENSIONING PLATE - SHIFT CONTROL LOCK DEVICE PARTS DIAGRAM")
-part-diagram-305-000.webp "PORSCHE 1996 (993) DIFFERENTIAL PARTS DIAGRAM")
-part-diagram-305-005.webp "PORSCHE 1996 (993) LIMITED SLIP DIFFERENTIAL PARTS DIAGRAM")
-part-diagram-305-010.webp "PORSCHE 1996 (993) VISCOUS CLUTCH PARTS DIAGRAM")
-part-diagram-305-015.webp "PORSCHE 1996 (993) FRONT AXLE DIFFERENTIAL - - - D - MJ 1995>> PARTS DIAGRAM")
-part-diagram-307-000.webp "PORSCHE 1996 (993) TRANSMISSION SUSPENSION - G64.20/21 - G64.51/52 PARTS DIAGRAM")
-part-diagram-320-000.webp "PORSCHE 1996 (993) TIPTRONIC - REPLACEMENT TRANSMISSION PARTS DIAGRAM")
-part-diagram-320-001.webp "PORSCHE 1996 (993) TIPTRONIC - SPUR GEARS - INTERMEDIATE PLATE PARTS DIAGRAM")
-part-diagram-320-002.webp "PORSCHE 1996 (993) TIPTRONIC - TRANSMISSION CASE - OIL PAN PARTS DIAGRAM")
-part-diagram-320-003.webp "PORSCHE 1996 (993) TIPTRONIC - DIFFERENTIAL - DIFFERENTIAL CASE PARTS DIAGRAM")
-part-diagram-320-004.webp "PORSCHE 1996 (993) TIPTRONIC - PARKING LOCK PARTS DIAGRAM")
-part-diagram-320-005.webp "PORSCHE 1996 (993) TIPTRONIC - SELECTOR SWITCH PARTS DIAGRAM")
-part-diagram-330-000.webp "PORSCHE 1996 (993) TIPTRONIC - TORQUE CONVERTER PARTS DIAGRAM")
-part-diagram-330-001.webp "PORSCHE 1996 (993) TIPTRONIC - OIL PUMP PARTS DIAGRAM")
-part-diagram-340-000.webp "PORSCHE 1996 (993) TIPTRONIC - DRIVE SHAFT PARTS DIAGRAM")
-part-diagram-340-001.webp "PORSCHE 1996 (993) TIPTRONIC - OIL STRAINER - INDUCTIVE SENDER - FASTENERS - FOR - SWITCH UNIT PARTS DIAGRAM")
-part-diagram-340-002.webp "PORSCHE 1996 (993) TIPTRONIC - SOLENOID VALVE PARTS DIAGRAM")
-part-diagram-360-000.webp "PORSCHE 1996 (993) TIPTRONIC - ATF COOLER - ATF LINES PARTS DIAGRAM")
-part-diagram-370-000.webp "PORSCHE 1996 (993) TIPTRONIC - TRANSMISSION SUSPENSION PARTS DIAGRAM")
-part-diagram-398-000.webp "PORSCHE 1996 (993) GASKET SET PARTS DIAGRAM")
-part-diagram-401-000.webp "PORSCHE 1996 (993) CROSS MEMBER - TRACK CONTROL ARM PARTS DIAGRAM")
-part-diagram-401-005.webp "PORSCHE 1996 (993) WHEEL CARRIER - WHEEL HUB PARTS DIAGRAM")
-part-diagram-401-010.webp "PORSCHE 1996 (993) DRIVE SHAFT PARTS DIAGRAM")
-part-diagram-402-000.webp "PORSCHE 1996 (993) SUSPENSION - SHOCK ABSORBER STRUT PARTS DIAGRAM")
-part-diagram-402-001.webp "PORSCHE 1996 (993) SUSPENSION - SHOCK ABSORBER STRUT - NEW DESIGN - SEE TECHNICAL INFORMATION - GROUP 4 - NR. 145/15 - NR. 7/16 - MODIFICATION - ACCESSORIES - ATTENTION PARTS DIAGRAM")
-part-diagram-402-005.webp "PORSCHE 1996 (993) STABILIZER PARTS DIAGRAM")
-part-diagram-403-000.webp "PORSCHE 1996 (993) STEERING GEAR - STEERING PARTS PARTS DIAGRAM")
-part-diagram-403-001.webp "PORSCHE 1996 (993) POWER STEERING - LINES PARTS DIAGRAM")
-part-diagram-403-002.webp "PORSCHE 1996 (993) POWER STEERING - LINES PARTS DIAGRAM")
-part-diagram-403-003.webp "PORSCHE 1996 (993) POWER STEERING - POWER-STEERING PUMP PARTS DIAGRAM")
-part-diagram-403-004.webp "PORSCHE 1996 (993) POWER STEERING - POWER-STEERING PUMP - CONTAINER PARTS DIAGRAM")
-part-diagram-403-005.webp "PORSCHE 1996 (993) STEERING PROTECTIVE PIPE - INTERMEDIATE STEERING SHAFT - STEERING WHEELS PARTS DIAGRAM")
-part-diagram-403-006.webp "PORSCHE 1996 (993) AIRBAG - SEE TECHNICAL INFORMATION - GR.6 NR.5/96 PARTS DIAGRAM")
-part-diagram-403-007.webp "PORSCHE 1996 (993) STEERING PROTECTIVE PIPE - INTERMEDIATE STEERING SHAFT - STEERING WHEELS PARTS DIAGRAM")
-part-diagram-501-000.webp "PORSCHE 1996 (993) REAR AXLE PARTS DIAGRAM")
-part-diagram-501-001.webp "PORSCHE 1996 (993) REAR AXLE CARRIER - STABILIZER PARTS DIAGRAM")
-part-diagram-501-002.webp "PORSCHE 1996 (993) WHEEL HUB PARTS DIAGRAM")
-part-diagram-501-005.webp "PORSCHE 1996 (993) DRIVE SHAFT - REAR-WHEEL HUB PARTS DIAGRAM")
-part-diagram-502-000.webp "PORSCHE 1996 (993) SHOCK ABSORBER - COIL SPRING PARTS DIAGRAM")
-part-diagram-502-001.webp "PORSCHE 1996 (993) SHOCK ABSORBER - COIL SPRING PARTS DIAGRAM")
-part-diagram-502-002.webp "PORSCHE 1996 (993) SHOCK ABSORBER - COIL SPRING - CONNECTING LINK - NEW DESIGN - SEE TECHNICAL INFORMATION - GROUP 4 - NR. 145/15 - NR. 7/16 - MODIFICATION - ACCESSORIES - ATTENTION PARTS DIAGRAM")
-part-diagram-601-000.webp "PORSCHE 1996 (993) ALLOY WHEEL PARTS DIAGRAM")
-part-diagram-603-005.webp "PORSCHE 1996 (993) HANDBRAKE PARTS DIAGRAM")
-part-diagram-604-000.webp "PORSCHE 1996 (993) RESERVOIR FOR - BRAKE FLUID - BRAKE MASTER CYLINDER - BRAKE BOOSTER - - - SEE TECHNICAL INFORMATION - GR.4 NR16/95 PARTS DIAGRAM")
-part-diagram-604-001.webp "PORSCHE 1996 (993) RESERVOIR FOR - BRAKE FLUID - BRAKE MASTER CYLINDER PARTS DIAGRAM")
-part-diagram-604-005.webp "PORSCHE 1996 (993) BRAKE LINES - FRONT END PARTS DIAGRAM")
-part-diagram-604-008.webp "PORSCHE 1996 (993) BRAKE LINES - FRONT END PARTS DIAGRAM")
-part-diagram-604-009.webp "PORSCHE 1996 (993) BRAKE LINES - FRONT END - - D - MJ 1995>> PARTS DIAGRAM")
-part-diagram-604-010.webp "PORSCHE 1996 (993) BRAKE LINE - FRONT AXLE - UNDERBODY - REAR AXLE PARTS DIAGRAM")
-part-diagram-604-012.webp "PORSCHE 1996 (993) BRAKE LINES - FRONT AXLE - UNDERBODY PARTS DIAGRAM")
-part-diagram-605-000.webp "PORSCHE 1996 (993) HYDRAULIC UNIT - ANTI-LOCKING BRAKE SYST. -ABS- - CONTROL - SEE TECHNICAL INFORMATION - GR.4 NR3/94 PARTS DIAGRAM")
-part-diagram-698-005.webp "PORSCHE 1996 (993) BRAKE FLUID - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-701-000.webp "PORSCHE 1996 (993) TRANSMISSION CONTROL PARTS DIAGRAM")
-part-diagram-701-001.webp "PORSCHE 1996 (993) SELECTOR LEVER - TIPTRONIC PARTS DIAGRAM")
-part-diagram-701-005.webp "PORSCHE 1996 (993) HANDBRAKE - ACTUATOR PARTS DIAGRAM")
-part-diagram-702-000.webp "PORSCHE 1996 (993) PEDALS - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-702-005.webp "PORSCHE 1996 (993) PEDALS - TIPTRONIC PARTS DIAGRAM")
-part-diagram-702-008.webp "PORSCHE 1996 (993) HYDRAULIC CLUTCH - OPERATION - CLUTCH MASTER CYLINDER PARTS DIAGRAM")
-part-diagram-702-009.webp "PORSCHE 1996 (993) CLUTCH ACTUATION - CLUTCH MASTER CYLINDER - CLUTCH SLAVE CYLINDER - PRESSURE UNIT - LINES - CONTAINER PARTS DIAGRAM")
-part-diagram-702-010.webp "PORSCHE 1996 (993) PEDALS - THROTTLE CONTROL PARTS DIAGRAM")
-part-diagram-801-000.webp "PORSCHE 1996 (993) CAR BODY PARTS DIAGRAM")
-part-diagram-801-005.webp "PORSCHE 1996 (993) FRONT END PARTS DIAGRAM")
-part-diagram-801-010.webp "PORSCHE 1996 (993) FRAME PARTS DIAGRAM")
-part-diagram-801-015.webp "PORSCHE 1996 (993) WHEEL HOUSING PARTS DIAGRAM")
-part-diagram-801-020.webp "PORSCHE 1996 (993) FRAME PARTS DIAGRAM")
-part-diagram-801-025.webp "PORSCHE 1996 (993) FRAME PARTS DIAGRAM")
-part-diagram-801-030.webp "PORSCHE 1996 (993) WHEEL HOUSING PARTS DIAGRAM")
-part-diagram-801-035.webp "PORSCHE 1996 (993) WHEEL HOUSING PARTS DIAGRAM")
-part-diagram-801-040.webp "PORSCHE 1996 (993) FENDER PARTS DIAGRAM")
-part-diagram-801-045.webp "PORSCHE 1996 (993) OUTER ROOF PANEL - WINDSHIELD FRAME PARTS DIAGRAM")
-part-diagram-801-055.webp "PORSCHE 1996 (993) SIDE PANEL PARTS DIAGRAM")
-part-diagram-801-060.webp "PORSCHE 1996 (993) SIDE PANEL PARTS DIAGRAM")
-part-diagram-801-065.webp "PORSCHE 1996 (993) DASH PANEL - FOR - FRONT END PARTS DIAGRAM")
-part-diagram-801-070.webp "PORSCHE 1996 (993) COVER - FOR - UNDERBODY PARTS DIAGRAM")
-part-diagram-801-075.webp "PORSCHE 1996 (993) COVER - FOR - WHEEL HOUSING PARTS DIAGRAM")
-part-diagram-802-000.webp "PORSCHE 1996 (993) BUMPER PARTS DIAGRAM")
-part-diagram-802-003.webp "PORSCHE 1996 (993) BUMPER PARTS DIAGRAM")
-part-diagram-802-005.webp "PORSCHE 1996 (993) BUMPER PARTS DIAGRAM")
-part-diagram-802-010.webp "PORSCHE 1996 (993) HEAT PROTECTION - FOR - BUMPER PARTS DIAGRAM")
-part-diagram-803-000.webp "PORSCHE 1996 (993) COVER PARTS DIAGRAM")
-part-diagram-803-005.webp "PORSCHE 1996 (993) COVER PARTS DIAGRAM")
-part-diagram-803-010.webp "PORSCHE 1996 (993) REAR SPOILER PARTS DIAGRAM")
-part-diagram-803-015.webp "PORSCHE 1996 (993) REAR SPOILER - DRIVING MECHANISM PARTS DIAGRAM")
-part-diagram-803-020.webp "PORSCHE 1996 (993) REAR SPOILER PARTS DIAGRAM")
-part-diagram-803-025.webp "PORSCHE 1996 (993) REAR SPOILER PARTS DIAGRAM")
-part-diagram-803-030.webp "PORSCHE 1996 (993) ROOF COVER MOULDING PARTS DIAGRAM")
-part-diagram-804-000.webp "PORSCHE 1996 (993) DOOR SHELL PARTS DIAGRAM")
-part-diagram-804-005.webp "PORSCHE 1996 (993) SEAL STRIP - DOORS PARTS DIAGRAM")
-part-diagram-804-010.webp "PORSCHE 1996 (993) DOOR LATCH PARTS DIAGRAM")
-part-diagram-804-015.webp "PORSCHE 1996 (993) CENTRAL LOCKING SYSTEM PARTS DIAGRAM")
-part-diagram-804-020.webp "PORSCHE 1996 (993) WINDOW REGULATOR - ELECTRIC PARTS DIAGRAM")
-part-diagram-804-022.webp "PORSCHE 1996 (993) WINDOW REGULATOR - MANUALLY PARTS DIAGRAM")
-part-diagram-804-025.webp "PORSCHE 1996 (993) WINDOW FRAME PARTS DIAGRAM")
-part-diagram-804-030.webp "PORSCHE 1996 (993) WINDOW FRAME PARTS DIAGRAM")
-part-diagram-805-000.webp "PORSCHE 1996 (993) WINDOW GLAZING PARTS DIAGRAM")
-part-diagram-805-005.webp "PORSCHE 1996 (993) WINDOW GLAZING PARTS DIAGRAM")
-part-diagram-807-000.webp "PORSCHE 1996 (993) INTERIOR EQUIPMENT - FRONT LUGGAGE COMPARTMENT PARTS DIAGRAM")
-part-diagram-807-001.webp "PORSCHE 1996 (993) TRIMS - FOOTWELL - DETACHABLE CARPETS PARTS DIAGRAM")
-part-diagram-807-002.webp "PORSCHE 1996 (993) INTERIOR EQUIPMENT - ADHESIVE CARPET PARTS DIAGRAM")
-part-diagram-807-005.webp "PORSCHE 1996 (993) INTERIOR EQUIPMENT PARTS DIAGRAM")
-part-diagram-807-006.webp "PORSCHE 1996 (993) INTERIOR EQUIPMENT - ROOF PARTS DIAGRAM")
-part-diagram-807-007.webp "PORSCHE 1996 (993) INTERIOR EQUIPMENT PARTS DIAGRAM")
-part-diagram-807-008.webp "PORSCHE 1996 (993) INTERIOR EQUIPMENT - D - MJ 1996>> PARTS DIAGRAM")
-part-diagram-807-009.webp "PORSCHE 1996 (993) INTERIOR EQUIPMENT - ROOF - D - MJ 1996>> PARTS DIAGRAM")
-part-diagram-807-010.webp "PORSCHE 1996 (993) INTERIOR EQUIPMENT - DOORS - D >> - MJ 1996 PARTS DIAGRAM")
-part-diagram-807-011.webp "PORSCHE 1996 (993) INTERIOR EQUIPMENT - DOORS - - D - MJ 1997>> PARTS DIAGRAM")
-part-diagram-807-012.webp "PORSCHE 1996 (993) INTERIOR EQUIPMENT - DOORS PARTS DIAGRAM")
-part-diagram-807-015.webp "PORSCHE 1996 (993) BODY SHELL - SOUND ABSORBERS PARTS DIAGRAM")
-part-diagram-809-000.webp "PORSCHE 1996 (993) DASHBOARD - FOR VEHICLES WITH - AIRBAG - (PASSENGER SIDE) PARTS DIAGRAM")
-part-diagram-809-001.webp "PORSCHE 1996 (993) KNEE PAD TRIM - FOR VEHICLES WITH - AIRBAG - (PASSENGER SIDE) PARTS DIAGRAM")
-part-diagram-809-002.webp "PORSCHE 1996 (993) DASHBOARD - KNEE PAD TRIM - FOR CARS WITHOUT - AIRBAG - (PASSENGER SIDE) PARTS DIAGRAM")
-part-diagram-809-005.webp "PORSCHE 1996 (993) SUN VIZORS PARTS DIAGRAM")
-part-diagram-809-010.webp "PORSCHE 1996 (993) REAR VIEW MIRROR INNER - REAR VIEW MIRROR PARTS DIAGRAM")
-part-diagram-809-012.webp "PORSCHE 1996 (993) REAR VIEW MIRROR INNER - REAR VIEW MIRROR PARTS DIAGRAM")
-part-diagram-809-015.webp "PORSCHE 1996 (993) CENTER CONSOLE PARTS DIAGRAM")
-part-diagram-810-000.webp "PORSCHE 1996 (993) NAMEPLATES - STONE PROTECTION FOIL PARTS DIAGRAM")
-part-diagram-810-005.webp "PORSCHE 1996 (993) TRIM COVER - SILL PARTS DIAGRAM")
-part-diagram-811-000.webp "PORSCHE 1996 (993) SUNROOF PARTS DIAGRAM")
-part-diagram-811-001.webp "PORSCHE 1996 (993) GLASS ROOF PARTS DIAGRAM")
-part-diagram-811-002.webp "PORSCHE 1996 (993) DRIVING MECHANISM - GLASS ROOF PARTS DIAGRAM")
-part-diagram-811-005.webp "PORSCHE 1996 (993) WINDSHIELD FRAME - ACCESSORIES PARTS DIAGRAM")
-part-diagram-811-010.webp "PORSCHE 1996 (993) CONVERTIBLE TOP COVERING - TOP FRAME - ROOFLINER PARTS DIAGRAM")
-part-diagram-811-015.webp "PORSCHE 1996 (993) REAR WINDOW GLASS - SEAL STRIP - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-811-020.webp "PORSCHE 1996 (993) TOP FRAME - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-811-025.webp "PORSCHE 1996 (993) FASTENERS - BRACKET - SEALING STRIP PARTS DIAGRAM")
-part-diagram-811-030.webp "PORSCHE 1996 (993) BOOT COVER - WINDSCREEN PARTS DIAGRAM")
-part-diagram-811-035.webp "PORSCHE 1996 (993) CONVERTIBLE TOP - DRIVING MECHANISM PARTS DIAGRAM")
-part-diagram-811-036.webp "PORSCHE 1996 (993) CONVERTIBLE TOP - CATCH PARTS DIAGRAM")
-part-diagram-812-000.webp "PORSCHE 1996 (993) SEAT BELT PARTS DIAGRAM")
-part-diagram-812-005.webp "PORSCHE 1996 (993) SEAT BELT PARTS DIAGRAM")
-part-diagram-813-000.webp "PORSCHE 1996 (993) VENTILATION - HEATING SYSTEM 1 PARTS DIAGRAM")
-part-diagram-813-001.webp "PORSCHE 1996 (993) VENTILATION - HEATING SYSTEM 2 PARTS DIAGRAM")
-part-diagram-813-005.webp "PORSCHE 1996 (993) HEATER - AIR CONDITIONER - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-813-010.webp "PORSCHE 1996 (993) WATER DRAIN PIPE - MOUNT - HARNESS - HEATER - AIR CONDITIONER PARTS DIAGRAM")
-part-diagram-813-015.webp "PORSCHE 1996 (993) COMPRESSOR PARTS DIAGRAM")
-part-diagram-813-020.webp "PORSCHE 1996 (993) COMPRESSOR - - MOUNTING - DRIVING MECHANISM PARTS DIAGRAM")
-part-diagram-813-025.webp "PORSCHE 1996 (993) REFRIGERANT CIRCUIT PARTS DIAGRAM")
-part-diagram-813-030.webp "PORSCHE 1996 (993) REFRIGERANT CIRCUIT PARTS DIAGRAM")
-part-diagram-813-040.webp "PORSCHE 1996 (993) CONTROL SWITCH - DRIVER PARTS DIAGRAM")
-part-diagram-813-045.webp "PORSCHE 1996 (993) CAPACITOR - FAN PARTS DIAGRAM")
-part-diagram-901-000.webp "PORSCHE 1996 (993) ENGINE ELECTRICS 1 PARTS DIAGRAM")
-part-diagram-901-001.webp "PORSCHE 1996 (993) ENGINE ELECTRICS PARTS DIAGRAM")
-part-diagram-901-002.webp "PORSCHE 1996 (993) ENGINE ELECTRICS 2 PARTS DIAGRAM")
-part-diagram-901-003.webp "PORSCHE 1996 (993) CONTROL UNITS PARTS DIAGRAM")
-part-diagram-901-005.webp "PORSCHE 1996 (993) FUSE BOX/RELAY PLATE - ENGINE COMPARTMENT PARTS DIAGRAM")
-part-diagram-902-000.webp "PORSCHE 1996 (993) FUSE BOX/RELAY PLATE - SEE TPI - GR.9 , NR.9 , 07/94 PARTS DIAGRAM")
-part-diagram-902-005.webp "PORSCHE 1996 (993) BATTERY - WIRING HARNESSES - STARTER - ALTERNATOR PARTS DIAGRAM")
-part-diagram-902-010.webp "PORSCHE 1996 (993) WIRING HARNESSES - PASSENGER COMPARTMENT - FRONT LUGGAGE COMPARTMENT PARTS DIAGRAM")
-part-diagram-902-015.webp "PORSCHE 1996 (993) WIRING HARNESSES - LUGGAGE COMPARTMENT LAMP - SUNROOF - CONVERTIBLE TOP CONTROL - DRIVER'S DOOR - PASSENGER'S DOOR - TURN SIGNAL REPEATER - ANTI-LOCKING BRAKE SYST. -ABS- PARTS DIAGRAM")
-part-diagram-902-020.webp "PORSCHE 1996 (993) WIRING HARNESSES - REAR END - ENGINE - - DME - PARTS DIAGRAM")
-part-diagram-903-000.webp "PORSCHE 1996 (993) FANFARE HORN - HORN PARTS DIAGRAM")
-part-diagram-903-004.webp "PORSCHE 1996 (993) INTERIOR LIGHTS - LUGGAGE COMPARTMENT LAMP - ENGINE COMPARTMENT LIGHT PARTS DIAGRAM")
-part-diagram-903-005.webp "PORSCHE 1996 (993) TRIM - SWITCH - CENTER CONSOLE PARTS DIAGRAM")
-part-diagram-903-006.webp "PORSCHE 1996 (993) SWITCH PARTS DIAGRAM")
-part-diagram-903-010.webp "PORSCHE 1996 (993) STEERING COLUMN SWITCH PARTS DIAGRAM")
-part-diagram-904-000.webp "PORSCHE 1996 (993) WINDSCREEN WIPER SYSTEM PARTS DIAGRAM")
-part-diagram-904-005.webp "PORSCHE 1996 (993) REAR WINDOW WIPER PARTS DIAGRAM")
-part-diagram-904-006.webp "PORSCHE 1996 (993) REAR WINDOW WIPER PARTS DIAGRAM")
-part-diagram-904-010.webp "PORSCHE 1996 (993) WINDSHIELD WASHER UNIT PARTS DIAGRAM")
-part-diagram-904-020.webp "PORSCHE 1996 (993) HEADLIGHT WASHER SYSTEM PARTS DIAGRAM")
-part-diagram-905-000.webp "PORSCHE 1996 (993) HEADLAMP - FOG LIGHTS - TURN SIGNAL - TURN SIGNAL REPEATER PARTS DIAGRAM")
-part-diagram-905-005.webp "PORSCHE 1996 (993) COMBINED LIGHTS PARTS DIAGRAM")
-part-diagram-905-010.webp "PORSCHE 1996 (993) ADDITIONAL BRAKE LIGHT PARTS DIAGRAM")
-part-diagram-906-000.webp "PORSCHE 1996 (993) INSTRUMENTS PARTS DIAGRAM")
-part-diagram-907-000.webp "PORSCHE 1996 (993) CRUISE CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-911-000.webp "PORSCHE 1996 (993) RADIO UNIT - AMPLIFIER - F >> 99-TS371 089 - D >> - MJ 1995 PARTS DIAGRAM")
-part-diagram-911-001.webp "PORSCHE 1996 (993) RADIO UNIT - AMPLIFIER - F 99-TS371 090>> - D - MJ 1996>> PARTS DIAGRAM")
-part-diagram-911-005.webp "PORSCHE 1996 (993) LOUDSPEAKER PARTS DIAGRAM")
-part-diagram-911-007.webp "PORSCHE 1996 (993) PORSCHE CLASSIC - LOUDSPEAKER KIT - SOUND SYSTEM PARTS DIAGRAM")
-part-diagram-911-010.webp "PORSCHE 1996 (993) PHONE PREPARATION PARTS DIAGRAM")
-part-diagram-001-000.webp "PORSCHE 1996 (993) TOOL - JACK PARTS DIAGRAM")
-part-diagram-001-003.webp "PORSCHE 1996 (993) CLEANING AGENT - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-001-004.webp "PORSCHE 1996 (993) INSTRUCTION MANUAL PARTS DIAGRAM")
-part-diagram-001-005.webp "PORSCHE 1996 (993) SIGNS/NOTICES PARTS DIAGRAM")
-part-diagram-001-010.webp "PORSCHE 1996 (993) ACCESSORIES - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-001-015.webp "PORSCHE 1996 (993) FLOOR MAT PARTS DIAGRAM")
-part-diagram-004-000.webp "PORSCHE 1996 (993) PAINT TOUCH-UP STICK PARTS DIAGRAM")
-part-diagram-101-000.webp "PORSCHE 1996 (993) REPLACEMENT ENGINE - READY FOR INSTALLATION PARTS DIAGRAM")
-part-diagram-101-005.webp "PORSCHE 1996 (993) CRANKCASE - REPAIR SET FOR MAINTENANCE - SEE ILLUSTRATION: PARTS DIAGRAM")
-part-diagram-101-010.webp "PORSCHE 1996 (993) CRANKCASE - REPAIR SET FOR MAINTENANCE - SEE ILLUSTRATION: PARTS DIAGRAM")
-part-diagram-102-000.webp "PORSCHE 1996 (993) CRANKSHAFT PARTS DIAGRAM")
-part-diagram-102-005.webp "PORSCHE 1996 (993) CYLINDER WITH PISTONS PARTS DIAGRAM")
-part-diagram-103-000.webp "PORSCHE 1996 (993) CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-103-005.webp "PORSCHE 1996 (993) CHAIN CASE - TENSIONER - CHAIN PARTS DIAGRAM")
-part-diagram-103-007.webp "PORSCHE 1996 (993) CAMSHAFT HOUSING PARTS DIAGRAM")
-part-diagram-103-010.webp "PORSCHE 1996 (993) VALVE CONTROL PARTS DIAGRAM")
-part-diagram-103-015.webp "PORSCHE 1996 (993) VALVE CONTROL PARTS DIAGRAM")
-part-diagram-104-000.webp "PORSCHE 1996 (993) OIL PUMP PARTS DIAGRAM")
-part-diagram-104-001.webp "PORSCHE 1996 (993) OIL TANK - LINES PARTS DIAGRAM")
-part-diagram-104-003.webp "PORSCHE 1996 (993) BRACKET - FOR - OIL FILTER - AND - THERMOSTAT PARTS DIAGRAM")
-part-diagram-104-005.webp "PORSCHE 1996 (993) OIL COOLER - LINES PARTS DIAGRAM")
-part-diagram-105-000.webp "PORSCHE 1996 (993) AIR COOLING PARTS DIAGRAM")
-part-diagram-105-005.webp "PORSCHE 1996 (993) AIR DUCT PARTS DIAGRAM")
-part-diagram-105-010.webp "PORSCHE 1996 (993) ENGINE COVER - UNDERSIDE PROTECTION PARTS DIAGRAM")
-part-diagram-106-000.webp "PORSCHE 1996 (993) AIR CLEANER PARTS DIAGRAM")
-part-diagram-107-000.webp "PORSCHE 1996 (993) L-JETRONIC - FLAP-NOZZLE PARTS DIAGRAM")
-part-diagram-107-005.webp "PORSCHE 1996 (993) L-JETRONIC - LINES PARTS DIAGRAM")
-part-diagram-107-010.webp "PORSCHE 1996 (993) L-JETRONIC - INTAKE AIR DISTRIBUTOR PARTS DIAGRAM")
-part-diagram-107-012.webp "PORSCHE 1996 (993) INTAKE AIR DISTRIBUTOR PARTS DIAGRAM")
-part-diagram-107-014.webp "PORSCHE 1996 (993) THROTTLE BODY PARTS DIAGRAM")
-part-diagram-107-015.webp "PORSCHE 1996 (993) THROTTLE BODY PARTS DIAGRAM")
-part-diagram-107-020.webp "PORSCHE 1996 (993) TURBOCHARGING PARTS DIAGRAM")
-part-diagram-107-045.webp "PORSCHE 1996 (993) CHARGE AIR COOLER PARTS DIAGRAM")
-part-diagram-108-000.webp "PORSCHE 1996 (993) DRIVING MECHANISM - POWER-STEERING PUMP PARTS DIAGRAM")
-part-diagram-108-007.webp "PORSCHE 1996 (993) AIR INJECTION PARTS DIAGRAM")
-part-diagram-108-010.webp "PORSCHE 1996 (993) ADDITIONAL BLOWER PARTS DIAGRAM")
-part-diagram-108-012.webp "PORSCHE 1996 (993) FRESH AIR INTAKE PARTS DIAGRAM")
-part-diagram-109-000.webp "PORSCHE 1996 (993) ENGINE SUSPENSION PARTS DIAGRAM")
-part-diagram-198-000.webp "PORSCHE 1996 (993) MAINTENANCE SET - GASKET SET - REPAIR KITS PARTS DIAGRAM")
-part-diagram-198-005.webp "PORSCHE 1996 (993) ENGINE OIL - PORSCHE CLASSIC 10W60 PARTS DIAGRAM")
-part-diagram-201-000.webp "PORSCHE 1996 (993) FUEL TANK PARTS DIAGRAM")
-part-diagram-201-005.webp "PORSCHE 1996 (993) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-201-020.webp "PORSCHE 1996 (993) EVAPORATIVE EMISSION CANISTER PARTS DIAGRAM")
-part-diagram-202-000.webp "PORSCHE 1996 (993) EXHAUST SYSTEM - MUFFLER - EXHAUST - CATALYST - SEE TECHNICAL INFORMATION - GROUP 2 - NR. 2/ 98 PARTS DIAGRAM")
-part-diagram-202-001.webp "PORSCHE 1996 (993) EXHAUST SYSTEM - REPAIR KITS - SEE TECHNICAL INFORMATION - GROUP 2 - NR. 2/98 PARTS DIAGRAM")
-part-diagram-202-005.webp "PORSCHE 1996 (993) EXHAUST SYSTEM - HEATER CORE - SEE TECHNICAL INFORMATION - GROUP 2 - NR. 2/ 98 PARTS DIAGRAM")
-part-diagram-202-010.webp "PORSCHE 1996 (993) EXHAUST SYSTEM - HEATER CORE PARTS DIAGRAM")
