801-070 - TRIMS - FOR - UNDERBODY

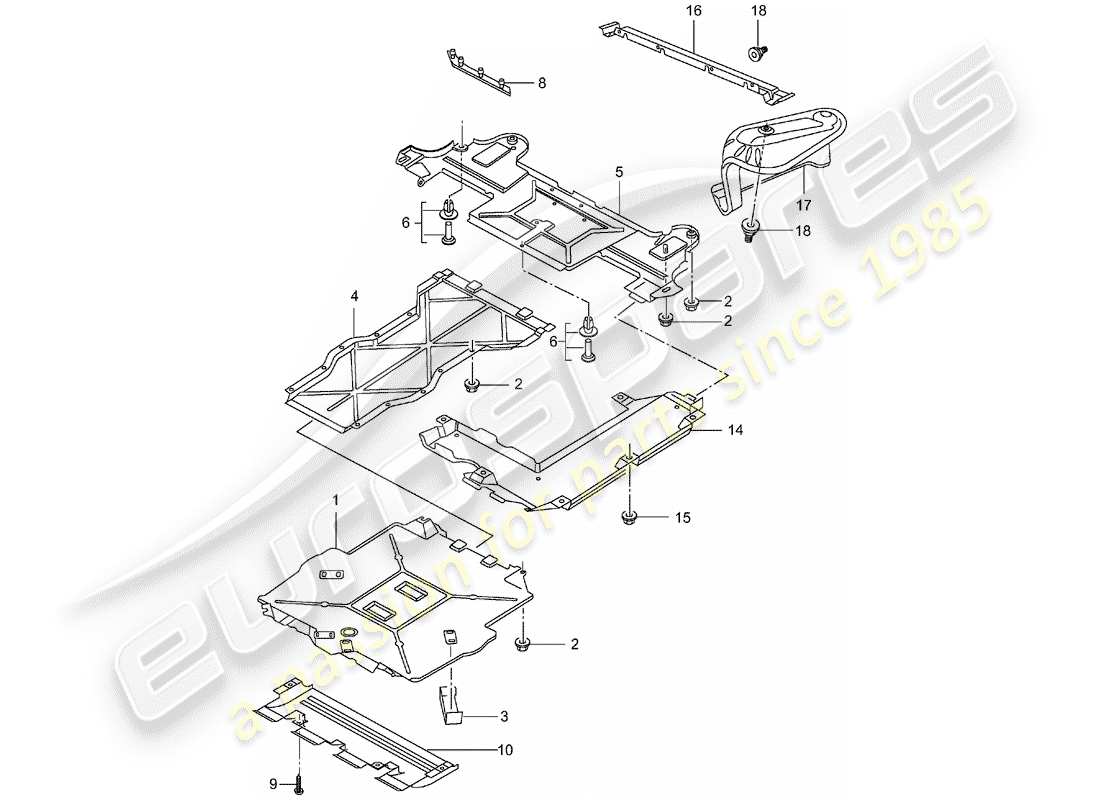

Porsche 2002 (996 Turbo / GT2) TRIMS - FOR - UNDERBODY Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 99650452701
COVER
from £158.70
from £158.70
# 2
MPN: 99904902240
PLASTIC NUT - T 5
Supersession
Supersession
# 3
MPN: 99950765709
CLAMP
from £1.28
from £1.28
# 4
MPN: 99650404302
COVER
center
from £102.06
from £102.06
# 5
MPN: 99650412901
COVER
(PR:249)
from £111.50
from £111.50
# 5
MPN: 99650412903
cover - D - MJ 2005>>
(PR:249,092)
from £82.50
from £82.50
# 5
MPN: 99650402900
COVER
rear (PR:480)
from £158.13
from £158.13
# 6
MPN: 99950749740
rivet - 8,0 X 14,0
from £0.59
from £0.59
# 8
MPN: 99650489300
RUBBER MOLDING
LEFT
from £16.31
from £16.31
# 8
MPN: 99650489400
RUBBER MOLDING
RIGHT
from £16.31
from £16.31
# 9
MPN: N 90648702
Oval hexagon socket head bolt - ST 4,8 X 16
from £0.53
from £0.53
# 10
MPN: 99657596100
AIR DUCT
(PR:X50)
from £184.56
from £184.56
# 10
MPN: 99657516101
AIR DUCT
from £107.82
from £107.82
# 14
MPN: 99650456100
COVER
from £72.02
from £72.02
# 15
MPN: 99904902240
Plastic nut - T5
Supersession
Supersession
# 16
MPN: 99650547100
heat deflector
center
from £52.24
from £52.24
# -
-
AIR DUCT - FOR - TRANSMISSION
(PR:480)
