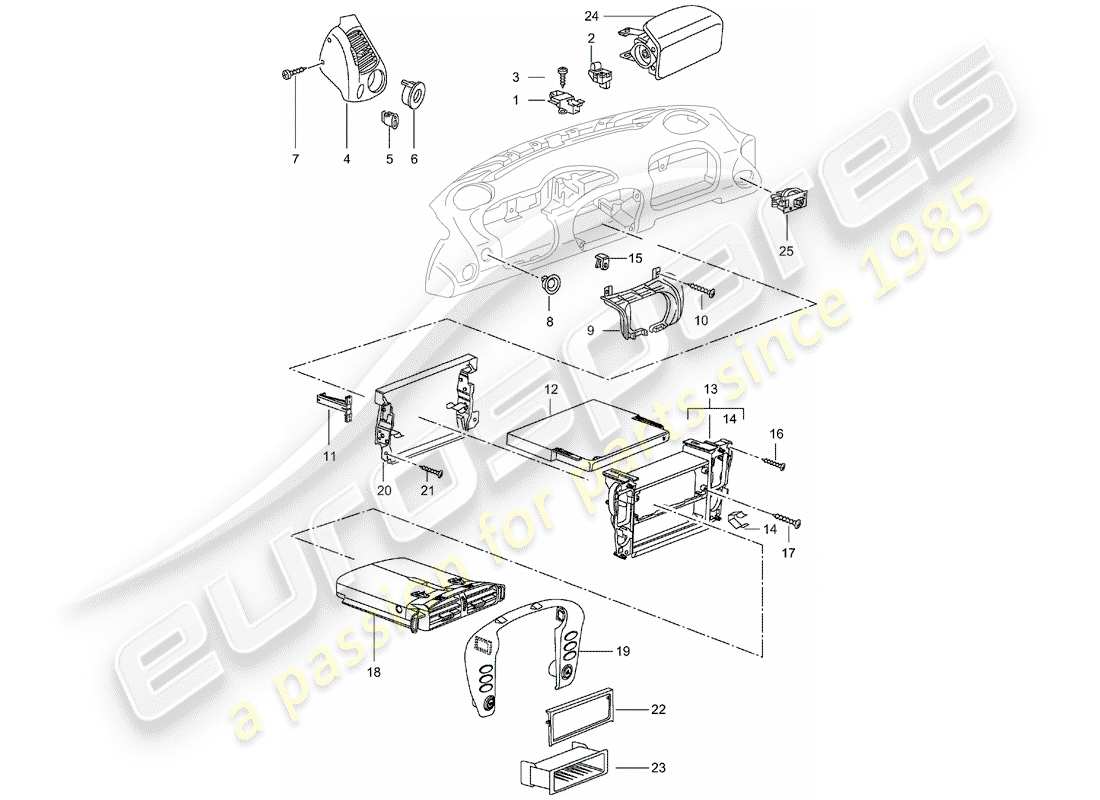

809-002 - ACCESSORIES - DASH PANEL TRIM
Porsche 2002 (996 Turbo / GT2) ACCESSORIES - DASH PANEL TRIM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 99655254102
MOUNTING - LIGHT
from £27.20
from £27.20
# 2
MPN: 99665325100
SUN SENSOR
(PR:573)
from £56.21
from £56.21
# 3
MPN: 99991912009
FILLISTER HD. SCREW - 4,0 X 18
Supersession
Supersession
# 4
MPN: 99655222506
AIR VENT - LACQUERED
LEFT
# 4
MPN: 99655222806
AIR VENT - LACQUERED
RIGHT
# 4
MPN: 99655298400
AIR VENT - LEATHER
left (PR:XN3)
# 4
MPN: 99655298500
AIR VENT - LEATHER
right (PR:XN3)
# 4
MPN: 99655298403
AIR VENT - CARBON - LEATHER
left (PR:XKD)
# 4
MPN: 99655298503
AIR VENT - CARBON - LEATHER
right (PR:XKD)
# 4
MPN: 99655298405
AIR VENT - ARCTIC SILVER - LEATHER
left (PR:XKE)
# 4
MPN: 99655298505
AIR VENT - ARCTIC SILVER - LEATHER
right (PR:XKE)
# 4
MPN: 99655298402
AIR VENT - ROOTWOOD - DARK GREY - LEATHER
left (PR:XKC)
# 4
MPN: 99655298502
AIR VENT - ROOTWOOD - DARK GREY - LEATHER
right (PR:XKC)
# 4
MPN: 99655298407
Air vent - Aluminium look - Leather - D - MJ 2003>>
left (PR:XCC)
# 4
MPN: 99655298507
Air vent - Aluminium look - Leather - D - MJ 2003>>
right (PR:XCC)
# 5
MPN: 99655262101
cover - beam length adjustment - Lacquered
Supersession
Supersession
# 5
MPN: 99655298600
COVER (LEATHER) - BEAM LENGTH ADJUSTMENT
(PR:XNH)
# 5
MPN: 99655298601
cover - beam length adjustment - Rootwood - Light
(TURBO PR:XKB)
from £106.07
from £106.07
# 5
MPN: 99655298602
cover - beam length adjustment - Rootwood - Dark
(TURBO PR:XKC)
from £106.07
from £106.07
# 5
MPN: 99655298603
COVER - BEAM LENGTH ADJUSTMENT - CARBON
(PR:XKD)
from £136.71
from £136.71
# 6
MPN: 99655241702
ESCUTCHEON - INTERIOR SENSOR - LACQUERED
# 6
MPN: 99655298700
ESCUTCHEON - INTERIOR SENSOR - LEATHER
(PR:XNH)
# 7
MPN: 99907321809
TAPPING SCREW - 4,2 X 16
# 8
MPN: 99655223503
ESCUTCHEON - IGNITION STARTER LOCK
LHD
from £73.70
from £73.70
# 8
MPN: 99655223603
ESCUTCHEON - IGNITION STARTER LOCK
RHD
Supersession
Supersession
# 8
MPN: 99655298000
ESCUTCHEON - IGNITION STARTER LOCK - LEATHER
lhd (PR:XJ4)
# 8
MPN: 99655298001
ESCUTCHEON - IGNITION STARTER LOCK - LEATHER
rhd (PR:XJ4)
# 9
MPN: 99655227103
TRIM - STEERING
# 9
MPN: 98655298803
HIDE PANEL - STEERING
(PR:XNS)
# 10
MPN: 99991912309
FILLISTER HD. SCREW - 5,0 X 20
# 12
MPN: 99655218300
CUP HOLDER - DISCONTINUED PART
LHD
# 12
MPN: 99655218302
CUP HOLDER
LHD
Supersession
Supersession
# 12
MPN: 99655218400
CUP HOLDER - DISCONTINUED PART
RHD
# 12
MPN: 99655295800
CUP HOLDER - - LEATHER
lhd (PR:XNN,XKS, XKR)
# 12
MPN: 99655295801
CUP HOLDER - - LEATHER
rhd (PR:XNN,XKS, XKR)
# 13
MPN: 99655223111
MOUNTING FRAME
# 13
MPN: 99655223113
Mounting frame - D - MJ 2002>> - MJ 2002
(PR:662)
# 13
MPN: 99655223112
Mounting frame - D - MJ 2003>>
(PR:665)
# 13
MPN: 99655296925
MOUNTING FRAME - LEATHER
(PR:XNN)
# 13
MPN: 99655296927
MOUNTING FRAME - LEATHER
(PR:662,XNN)
# 13
MPN: 99655296926
Mounting frame - Leather - D - MJ 2003>>
(PR:665,XNN)
# 13
MPN: 99655296928
Mounting frame - Rootwood - Light - D - MJ 2002>>
(PR:XKR)
from £941.13
from £941.13
# 13
MPN: 99655296930
Mounting frame - Rootwood - Light - D - MJ 2002>> - MJ 2002
(/662 PR:XKR)
from £269.21
from £269.21
# 13
MPN: 99655296929
Mounting frame - Rootwood - Light - D - MJ 2003>>
(/665 PR:XKR)
from £1,250.96
from £1,250.96
# 13
MPN: 99655296931
Mounting frame - Rootwood - Dark - D - MJ 2002>>
(PR:XKS)
from £297.91
from £297.91
# 13
MPN: 99655296933
Mounting frame - Rootwood - Dark - D - MJ 2002>> - MJ 2002
(/662 PR:XKS)
from £297.91
from £297.91
# 13
MPN: 99655296932
Mounting frame - Rootwood - Dark - D - MJ 2003>>
(/665 PR:XKS)
from £1,443.46
from £1,443.46
# 13
MPN: 99655296934
Mounting frame - Carbon - D - MJ 2002>>
(PR:XNR)
from £1,443.46
from £1,443.46
# 13
MPN: 99655296936
Mounting frame - Carbon - D - MJ 2002>> - MJ 2002
(/662 PR:XNR)
from £1,443.46
from £1,443.46
# 13
MPN: 99655296935
Mounting frame - Carbon - D - MJ 2003>>
(/665 PR:XNR)
from £1,443.46
from £1,443.46
# 15
MPN: 99950776802
SPEED NUT - 4,2
from £0.65
from £0.65
# 15
MPN: 99950776702
SPEED NUT - 4,2
from £0.82
from £0.82
# 16
MPN: 99907321809
TAPPING SCREW - 4,2 X 16
# 17
MPN: 90014307609
TAPPING SCREW - 4,2 X 25
(PR:573)
from £1.10
from £1.10
# 18
MPN: 99655226301
AIR VENT
# 18
MPN: 99655295000
Air vent - D - MJ 2002>>
-XN (N)
# 18
MPN: 99655295100
Air vent - Aluminium look - D - MJ 2003>>
(PR:XCD)
# 19
MPN: 99655223306
TRIM FOR SWITCH - UPPER PART/LOWER PART
# 19
MPN: 99655296708
TRIM FOR SWITCH - LEATHER
(PR:XNN)
# 19
MPN: 99655296709
trim for switch - Rootwood - Light
(PR:XKR)
from £3,015.24
from £3,015.24
# 19
MPN: 99655296710
trim for switch - Rootwood - Dark
(PR:XKS)
from £2,353.43
from £2,353.43
# 19
MPN: 99655296711
TRIM FOR SWITCH - CARBON
(PR:XNR)
from £2,595.51
from £2,595.51
# 19
MPN: 99655296713
TRIM FOR SWITCH - ARCTIC SILVER
(PR:XKW)
from £513.24
from £513.24
# 20
MPN: 99655267303
RETAINER - RADIO UNIT
from £39.00
from £39.00
# 20
MPN: 99655265303
retainer - D - MJ 2002>> - MJ 2002
(PR:662)
from £34.67
from £34.67
# 20
MPN: 99655265302
retainer - D - MJ 2003>>
(PR:665)
from £33.03
from £33.03
# 21
MPN: 99907321809
TAPPING SCREW - 4,2 X 16
# 22
MPN: 98655215300
frame - Air-conditioning switch
(PR:574)
# 22
MPN: 99655267701
TRIM - AIR-CONDITIONING SWITCH
(PR:573)
# 22
MPN: 99655299200
frame - Air-conditioning switch
(/573 PR:XNN,XKW)
Supersession
Supersession
# 23
MPN: 99655225301
storage bin - Instead of - Radio unit
Supersession
Supersession
# 23
MPN: 99655299401
storage bin - Leather - D - MJ 2002>> - MJ 2002
(PR:XMF)
# 24
-
SEE GROUP - 4/03/06
# 25
MPN: 99665324100
TEMPERATURE SENSOR
from £254.57
from £254.57
-part-diagram-809-003.webp "PORSCHE 2002 (996 TURBO / GT2) GLOVE BOX - D - MJ 2002>> PARTS DIAGRAM")
-part-diagram-809-010.webp "PORSCHE 2002 (996 TURBO / GT2) REAR VIEW MIRROR INNER - REAR VIEW MIRROR PARTS DIAGRAM")
-part-diagram-809-015.webp "PORSCHE 2002 (996 TURBO / GT2) CENTER CONSOLE PARTS DIAGRAM")
-part-diagram-809-020.webp "PORSCHE 2002 (996 TURBO / GT2) CENTER CONSOLE PARTS DIAGRAM")
-part-diagram-810-000.webp "PORSCHE 2002 (996 TURBO / GT2) NAMEPLATES - DECORATIVE FITTINGS PARTS DIAGRAM")
-part-diagram-810-005.webp "PORSCHE 2002 (996 TURBO / GT2) TRIM COVER - SILL - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-811-000.webp "PORSCHE 2002 (996 TURBO / GT2) SUNROOF PARTS DIAGRAM")
-part-diagram-811-005.webp "PORSCHE 2002 (996 TURBO / GT2) TOP FRAME - ROOF FRAME - CATCH PARTS DIAGRAM")
-part-diagram-811-006.webp "PORSCHE 2002 (996 TURBO / GT2) TOP FRAME - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-811-007.webp "PORSCHE 2002 (996 TURBO / GT2) TOP FRAME - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-811-009.webp "PORSCHE 2002 (996 TURBO / GT2) CONVERTIBLE TOP - SEAL STRIP PARTS DIAGRAM")
-part-diagram-811-010.webp "PORSCHE 2002 (996 TURBO / GT2) CONVERTIBLE TOP COVERING - ROOFLINER PARTS DIAGRAM")
-part-diagram-811-011.webp "PORSCHE 2002 (996 TURBO / GT2) FLAP - FOLDING TOP PARTS DIAGRAM")
-part-diagram-811-012.webp "PORSCHE 2002 (996 TURBO / GT2) CONVERTIBLE TOP - DRIVING MECHANISM - HYDRAULIC PARTS DIAGRAM")
-part-diagram-811-013.webp "PORSCHE 2002 (996 TURBO / GT2) TOP STOWAGE BOX - COVER - GASKETS PARTS DIAGRAM")
-part-diagram-811-014.webp "PORSCHE 2002 (996 TURBO / GT2) WINDSCREEN PARTS DIAGRAM")
-part-diagram-811-015.webp "PORSCHE 2002 (996 TURBO / GT2) ROLL BAR PARTS DIAGRAM")
-part-diagram-811-016.webp "PORSCHE 2002 (996 TURBO / GT2) HARDTOP - ACCESSORIES - GASKETS PARTS DIAGRAM")
-part-diagram-811-017.webp "PORSCHE 2002 (996 TURBO / GT2) HARDTOP - SOUND ABSORBER PARTS DIAGRAM")
-part-diagram-812-000.webp "PORSCHE 2002 (996 TURBO / GT2) SEAT BELT PARTS DIAGRAM")
-part-diagram-812-001.webp "PORSCHE 2002 (996 TURBO / GT2) SEAT BELT PARTS DIAGRAM")
-part-diagram-812-005.webp "PORSCHE 2002 (996 TURBO / GT2) SEAT BELT PARTS DIAGRAM")
-part-diagram-812-006.webp "PORSCHE 2002 (996 TURBO / GT2) SEAT BELT PARTS DIAGRAM")
-part-diagram-813-000.webp "PORSCHE 2002 (996 TURBO / GT2) HEATING SYSTEM 1 - FEED LINE - RETURN LINE PARTS DIAGRAM")
-part-diagram-813-001.webp "PORSCHE 2002 (996 TURBO / GT2) HEATER - AIR DISTRIBUTOR PARTS DIAGRAM")
-part-diagram-813-005.webp "PORSCHE 2002 (996 TURBO / GT2) AIR CONDITIONER - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-813-010.webp "PORSCHE 2002 (996 TURBO / GT2) WATER DRAIN PIPE - MOUNT - SOUND ABSORBER - HEATER - AIR CONDITIONER PARTS DIAGRAM")
-part-diagram-813-015.webp "PORSCHE 2002 (996 TURBO / GT2) COMPRESSOR PARTS DIAGRAM")
-part-diagram-813-020.webp "PORSCHE 2002 (996 TURBO / GT2) DUST AND POLLEN FILTER ELEMENT - COVERS - COWL PARTS DIAGRAM")
-part-diagram-813-025.webp "PORSCHE 2002 (996 TURBO / GT2) REFRIGERANT CIRCUIT PARTS DIAGRAM")
-part-diagram-813-026.webp "PORSCHE 2002 (996 TURBO / GT2) FUEL COOLING PARTS DIAGRAM")
-part-diagram-813-045.webp "PORSCHE 2002 (996 TURBO / GT2) CONTROL SWITCH PARTS DIAGRAM")
-part-diagram-817-000.webp "PORSCHE 2002 (996 TURBO / GT2) FRONT SEAT PARTS DIAGRAM")
-part-diagram-817-005.webp "PORSCHE 2002 (996 TURBO / GT2) COVER - FOAM PART - COMFORT SEAT - STANDARD SEAT PARTS DIAGRAM")
-part-diagram-817-007.webp "PORSCHE 2002 (996 TURBO / GT2) LUMBAR SUPPORT PARTS DIAGRAM")
-part-diagram-817-010.webp "PORSCHE 2002 (996 TURBO / GT2) BACKREST SHELL - STANDARD SEAT - COMFORT SEAT PARTS DIAGRAM")
-part-diagram-817-015.webp "PORSCHE 2002 (996 TURBO / GT2) FRAME - BACKREST - FRAME FOR SEAT - STANDARD SEAT - COMFORT SEAT PARTS DIAGRAM")
-part-diagram-817-018.webp "PORSCHE 2002 (996 TURBO / GT2) SEAT FRAME - STANDARD SEAT - WITH: - HEIGHT ADJUSTMENT - MECHANICAL PARTS DIAGRAM")
-part-diagram-817-019.webp "PORSCHE 2002 (996 TURBO / GT2) SEAT FRAME - COMFORT SEAT PARTS DIAGRAM")
-part-diagram-817-020.webp "PORSCHE 2002 (996 TURBO / GT2) SPORTS SEAT PARTS DIAGRAM")
-part-diagram-817-025.webp "PORSCHE 2002 (996 TURBO / GT2) COVER - FOAM PART - SPORTS SEAT PARTS DIAGRAM")
-part-diagram-817-030.webp "PORSCHE 2002 (996 TURBO / GT2) BACKREST SHELL - SPORTS SEAT PARTS DIAGRAM")
-part-diagram-817-040.webp "PORSCHE 2002 (996 TURBO / GT2) FRAME FOR SEAT - FRAME - BACKREST PARTS DIAGRAM")
-part-diagram-817-045.webp "PORSCHE 2002 (996 TURBO / GT2) SEAT FRAME - SPORTS SEAT - FOR VEHICLES WITH SEAT HEIGHT - ADJUSTMENT PARTS DIAGRAM")
-part-diagram-817-050.webp "PORSCHE 2002 (996 TURBO / GT2) SPORTS SEAT - SEAT FRAME WITHOUT HIGHT - ADJUSTMENT PARTS DIAGRAM")
-part-diagram-817-060.webp "PORSCHE 2002 (996 TURBO / GT2) WIRING HARNESSES - SWITCH - STANDARD SEAT - SPORTS SEAT PARTS DIAGRAM")
-part-diagram-817-065.webp "PORSCHE 2002 (996 TURBO / GT2) WIRING HARNESSES - SWITCH PARTS DIAGRAM")
-part-diagram-817-070.webp "PORSCHE 2002 (996 TURBO / GT2) EMERGENCY SEAT BACKREST PARTS DIAGRAM")
-part-diagram-817-075.webp "PORSCHE 2002 (996 TURBO / GT2) EMERGENCY SEAT BACKREST PARTS DIAGRAM")
-part-diagram-817-080.webp "PORSCHE 2002 (996 TURBO / GT2) BACK SEAT CUSHION PARTS DIAGRAM")
-part-diagram-817-085.webp "PORSCHE 2002 (996 TURBO / GT2) BACK SEAT CUSHION - EMERGENCY SEAT - CENTRE PART PARTS DIAGRAM")
-part-diagram-817-090.webp "PORSCHE 2002 (996 TURBO / GT2) SEAT - PERLON VELOUR PARTS DIAGRAM")
-part-diagram-817-095.webp "PORSCHE 2002 (996 TURBO / GT2) SEAT - LEATHER PARTS DIAGRAM")
-part-diagram-898-000.webp "PORSCHE 2002 (996 TURBO / GT2) REPAIR KITS - SET OF LOCKS - COMPRISING: - BRACKET - DOOR HANDLE, OUTER - GLOVE COMPARTMENT LOCK - KEY - KEY TAG PARTS DIAGRAM")
-part-diagram-901-000.webp "PORSCHE 2002 (996 TURBO / GT2) IGNITION SYSTEM PARTS DIAGRAM")
-part-diagram-901-003.webp "PORSCHE 2002 (996 TURBO / GT2) CONTROL UNITS PARTS DIAGRAM")
-part-diagram-902-000.webp "PORSCHE 2002 (996 TURBO / GT2) FUSE BOX/RELAY PLATE - DASHBOARD PARTS DIAGRAM")
-part-diagram-902-001.webp "PORSCHE 2002 (996 TURBO / GT2) FUSE BOX/RELAY PLATE - REAR END PARTS DIAGRAM")
-part-diagram-902-005.webp "PORSCHE 2002 (996 TURBO / GT2) BATTERY - JUNCTION BOX - STARTER - ALTERNATOR - MAIN BATTERY SWITCH PARTS DIAGRAM")
-part-diagram-902-010.webp "PORSCHE 2002 (996 TURBO / GT2) WIRING HARNESSES - PASSENGER COMPARTMENT - GLOVE BOX - FRONT LUGGAGE COMPARTMENT - REPAIR KIT - ANTI-LOCKING BRAKE SYST. -ABS- - BRAKE PAD WEAR INDICATOR - FRONT AXLE PARTS DIAGRAM")
-part-diagram-902-015.webp "PORSCHE 2002 (996 TURBO / GT2) WIRING HARNESSES - DRIVER'S DOOR - PASSENGER'S DOOR - CONVERTIBLE TOP CONTROL - SUB FRAME PARTS DIAGRAM")
-part-diagram-902-020.webp "PORSCHE 2002 (996 TURBO / GT2) WIRING HARNESSES - REAR END - ADDITIONAL BRAKE LIGHT - REAR TRUNK LID - LICENSE PLATE LIGHT - ENGINE - TRANSMISSION - REPAIR KIT - ANTI-LOCKING BRAKE SYST. -ABS- - BRAKE PAD WEAR INDICATOR - REAR AXLE PARTS DIAGRAM")
-part-diagram-902-050.webp "PORSCHE 2002 (996 TURBO / GT2) LIGHT FIBRE OPTIC - D - MJ 2003>> PARTS DIAGRAM")
-part-diagram-903-000.webp "PORSCHE 2002 (996 TURBO / GT2) FANFARE HORN - HORN - ALARM SYSTEM PARTS DIAGRAM")
-part-diagram-903-004.webp "PORSCHE 2002 (996 TURBO / GT2) INTERIOR LIGHT - LUGGAGE COMPARTMENT LAMP - ENGINE COMPARTMENT LIGHT - FOOTWELL LIGHT - GLOVE BOX LIGHT - DOOR HANDLE ILUMINATION - INTERIOR RELEASE PARTS DIAGRAM")
-part-diagram-903-005.webp "PORSCHE 2002 (996 TURBO / GT2) SWITCH PARTS DIAGRAM")
-part-diagram-903-010.webp "PORSCHE 2002 (996 TURBO / GT2) STEERING COLUMN SWITCH PARTS DIAGRAM")
-part-diagram-904-000.webp "PORSCHE 2002 (996 TURBO / GT2) WINDSCREEN WIPER SYSTEM - RAIN SENSOR PARTS DIAGRAM")
-part-diagram-904-005.webp "PORSCHE 2002 (996 TURBO / GT2) REAR WINDOW WIPER PARTS DIAGRAM")
-part-diagram-904-010.webp "PORSCHE 2002 (996 TURBO / GT2) WINDSHIELD WASHER UNIT PARTS DIAGRAM")
-part-diagram-904-020.webp "PORSCHE 2002 (996 TURBO / GT2) HEADLIGHT WASHER SYSTEM PARTS DIAGRAM")
-part-diagram-905-000.webp "PORSCHE 2002 (996 TURBO / GT2) HEADLAMP - TURN SIGNAL REPEATER PARTS DIAGRAM")
-part-diagram-905-005.webp "PORSCHE 2002 (996 TURBO / GT2) REAR LIGHT - LICENSE PLATE LIGHT - ADDITIONAL BRAKE LIGHT PARTS DIAGRAM")
-part-diagram-906-001.webp "PORSCHE 2002 (996 TURBO / GT2) INSTRUMENTS - COMPLETE - SEE MEMO TI: - GR.9 , NR.10/01 PARTS DIAGRAM")
-part-diagram-906-002.webp "PORSCHE 2002 (996 TURBO / GT2) INSTRUMENTS - COMPLETE - SEE MEMO TI: - GR.9 , NR.10/01 - D - MJ 2001>> PARTS DIAGRAM")
-part-diagram-911-000.webp "PORSCHE 2002 (996 TURBO / GT2) RADIO UNIT - AMPLIFIER - D >> - MJ 2002 PARTS DIAGRAM")
-part-diagram-911-001.webp "PORSCHE 2002 (996 TURBO / GT2) RADIO UNIT - NAVIGATION SYSTEM - TELEPHONE - D - MJ 2003>> PARTS DIAGRAM")
-part-diagram-911-005.webp "PORSCHE 2002 (996 TURBO / GT2) LOUDSPEAKER - LOUDSPEAKER - M 680/MJ.02- - SEE GROUP - 9/11/06 PARTS DIAGRAM")
-part-diagram-911-006.webp "PORSCHE 2002 (996 TURBO / GT2) LOUDSPEAKER - D - MJ 2002>> PARTS DIAGRAM")
-part-diagram-911-010.webp "PORSCHE 2002 (996 TURBO / GT2) PHONE PREPARATION PARTS DIAGRAM")
-part-diagram-911-015.webp "PORSCHE 2002 (996 TURBO / GT2) NAVIGATION SYSTEM - SUPPORT PART/RECEIVER - D >> - MJ 2002 PARTS DIAGRAM")
-part-diagram-001-000.webp "PORSCHE 2002 (996 TURBO / GT2) TOOL - JACK - FIRE EXTINGUISHER PARTS DIAGRAM")
-part-diagram-001-005.webp "PORSCHE 2002 (996 TURBO / GT2) SIGNS/NOTICES PARTS DIAGRAM")
-part-diagram-001-010.webp "PORSCHE 2002 (996 TURBO / GT2) ACCESSORIES - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-004-000.webp "PORSCHE 2002 (996 TURBO / GT2) PAINT TOUCH-UP STICK - LACQUERS PARTS DIAGRAM")
-part-diagram-101-000.webp "PORSCHE 2002 (996 TURBO / GT2) REPLACEMENT ENGINE - - - READY FOR INSTALLATION - ONLY - INCLUDED - FUEL RADIATOR PARTS DIAGRAM")
-part-diagram-101-005.webp "PORSCHE 2002 (996 TURBO / GT2) CRANKCASE PARTS DIAGRAM")
-part-diagram-101-010.webp "PORSCHE 2002 (996 TURBO / GT2) CRANKCASE PARTS DIAGRAM")
-part-diagram-101-015.webp "PORSCHE 2002 (996 TURBO / GT2) BELT TENSIONER - BELT DRIVE PARTS DIAGRAM")
-part-diagram-102-000.webp "PORSCHE 2002 (996 TURBO / GT2) CRANKSHAFT PARTS DIAGRAM")
-part-diagram-102-005.webp "PORSCHE 2002 (996 TURBO / GT2) CYLINDER WITH PISTONS - SEE WORKSHOP MANUAL PARTS DIAGRAM")
-part-diagram-103-000.webp "PORSCHE 2002 (996 TURBO / GT2) CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-103-005.webp "PORSCHE 2002 (996 TURBO / GT2) CHAIN CASE - TENSIONER - CHAIN PARTS DIAGRAM")
-part-diagram-103-010.webp "PORSCHE 2002 (996 TURBO / GT2) CAMSHAFT HOUSING PARTS DIAGRAM")
-part-diagram-103-015.webp "PORSCHE 2002 (996 TURBO / GT2) VALVE CONTROL PARTS DIAGRAM")
-part-diagram-104-000.webp "PORSCHE 2002 (996 TURBO / GT2) OIL PUMP PARTS DIAGRAM")
-part-diagram-104-005.webp "PORSCHE 2002 (996 TURBO / GT2) ENGINE LUBRICATION - OIL TANK PARTS DIAGRAM")
-part-diagram-104-010.webp "PORSCHE 2002 (996 TURBO / GT2) OIL FILTER - BRACKET PARTS DIAGRAM")
-part-diagram-104-020.webp "PORSCHE 2002 (996 TURBO / GT2) OIL SUPPLY - RETURN LINE PARTS DIAGRAM")
-part-diagram-105-000.webp "PORSCHE 2002 (996 TURBO / GT2) WATER PUMP - WATER PUMP HOUSING PARTS DIAGRAM")
-part-diagram-105-003.webp "PORSCHE 2002 (996 TURBO / GT2) LINES - HEATER PARTS DIAGRAM")
-part-diagram-105-005.webp "PORSCHE 2002 (996 TURBO / GT2) WATER COOLING 1 PARTS DIAGRAM")
-part-diagram-105-012.webp "PORSCHE 2002 (996 TURBO / GT2) WATER COOLING 2 PARTS DIAGRAM")
-part-diagram-105-015.webp "PORSCHE 2002 (996 TURBO / GT2) WATER COOLING 3 PARTS DIAGRAM")
-part-diagram-105-017.webp "PORSCHE 2002 (996 TURBO / GT2) RADIATOR PARTS DIAGRAM")
-part-diagram-105-020.webp "PORSCHE 2002 (996 TURBO / GT2) WATER COOLING 4 PARTS DIAGRAM")
-part-diagram-106-000.webp "PORSCHE 2002 (996 TURBO / GT2) AIR CLEANER PARTS DIAGRAM")
-part-diagram-107-000.webp "PORSCHE 2002 (996 TURBO / GT2) THROTTLE BODY PARTS DIAGRAM")
-part-diagram-107-005.webp "PORSCHE 2002 (996 TURBO / GT2) FUEL COLLECTION PIPE PARTS DIAGRAM")
-part-diagram-107-010.webp "PORSCHE 2002 (996 TURBO / GT2) INTAKE AIR DISTRIBUTOR PARTS DIAGRAM")
-part-diagram-107-020.webp "PORSCHE 2002 (996 TURBO / GT2) TURBOCHARGING PARTS DIAGRAM")
-part-diagram-108-005.webp "PORSCHE 2002 (996 TURBO / GT2) AIR INJECTION PARTS DIAGRAM")
-part-diagram-109-000.webp "PORSCHE 2002 (996 TURBO / GT2) ENGINE SUSPENSION PARTS DIAGRAM")
-part-diagram-109-005.webp "PORSCHE 2002 (996 TURBO / GT2) ENGINE OIL - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-201-000.webp "PORSCHE 2002 (996 TURBO / GT2) FUEL TANK PARTS DIAGRAM")
-part-diagram-201-005.webp "PORSCHE 2002 (996 TURBO / GT2) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-201-010.webp "PORSCHE 2002 (996 TURBO / GT2) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-201-020.webp "PORSCHE 2002 (996 TURBO / GT2) EVAPORATIVE EMISSION CANISTER PARTS DIAGRAM")
-part-diagram-202-000.webp "PORSCHE 2002 (996 TURBO / GT2) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-202-005.webp "PORSCHE 2002 (996 TURBO / GT2) EXHAUST GAS TURBOCHARGER - OIL PIPE - FOR - EXHAUST GAS TURBOCHARGER PARTS DIAGRAM")
-part-diagram-298-005.webp "PORSCHE 2002 (996 TURBO / GT2) PORSCHE CLASSIC - ADDITIVE - FOR FUEL PARTS DIAGRAM")
-part-diagram-301-000.webp "PORSCHE 2002 (996 TURBO / GT2) CLUTCH PARTS DIAGRAM")
-part-diagram-301-001.webp "PORSCHE 2002 (996 TURBO / GT2) CLUTCH - M.96.70S PARTS DIAGRAM")
-part-diagram-301-005.webp "PORSCHE 2002 (996 TURBO / GT2) CLUTCH RELEASE - CLUTCH SLAVE CYLINDER - SEE MAIN AND SUB-GROUP: - 7/02/08 PARTS DIAGRAM")
-part-diagram-301-006.webp "PORSCHE 2002 (996 TURBO / GT2) CLUTCH RELEASE - CLUTCH SLAVE CYLINDER - SEE MAIN AND SUB-GROUP: - 7/02/08 PARTS DIAGRAM")
-part-diagram-302-000.webp "PORSCHE 2002 (996 TURBO / GT2) REPLACEMENT TRANSMISSION - - READY FOR INSTALLATION PARTS DIAGRAM")
-part-diagram-302-001.webp "PORSCHE 2002 (996 TURBO / GT2) TRANSMISSION CASE PARTS DIAGRAM")
-part-diagram-302-002.webp "PORSCHE 2002 (996 TURBO / GT2) TRANSMISSION CASE PARTS DIAGRAM")
-part-diagram-302-003.webp "PORSCHE 2002 (996 TURBO / GT2) GEAR HOUSING - TRANSMISSION COVER PARTS DIAGRAM")
-part-diagram-303-000.webp "PORSCHE 2002 (996 TURBO / GT2) GEAR WHEEL SETS PARTS DIAGRAM")
-part-diagram-303-001.webp "PORSCHE 2002 (996 TURBO / GT2) GEAR WHEEL SETS PARTS DIAGRAM")
-part-diagram-303-010.webp "PORSCHE 2002 (996 TURBO / GT2) GEARS AND SHAFTS PARTS DIAGRAM")
-part-diagram-303-011.webp "PORSCHE 2002 (996 TURBO / GT2) GEARS AND SHAFTS PARTS DIAGRAM")
-part-diagram-304-000.webp "PORSCHE 2002 (996 TURBO / GT2) SELECTOR SHAFT PARTS DIAGRAM")
-part-diagram-304-001.webp "PORSCHE 2002 (996 TURBO / GT2) SELECTOR SHAFT PARTS DIAGRAM")
-part-diagram-305-005.webp "PORSCHE 2002 (996 TURBO / GT2) LIMITED SLIP DIFFERENTIAL PARTS DIAGRAM")
-part-diagram-305-010.webp "PORSCHE 2002 (996 TURBO / GT2) FRONT AXLE DIFFERENTIAL - PROPELLER SHAFT PARTS DIAGRAM")
-part-diagram-305-015.webp "PORSCHE 2002 (996 TURBO / GT2) FRONT AXLE DIFFERENTIAL PARTS DIAGRAM")
-part-diagram-306-000.webp "PORSCHE 2002 (996 TURBO / GT2) TRANSMISSION SUSPENSION PARTS DIAGRAM")
-part-diagram-306-001.webp "PORSCHE 2002 (996 TURBO / GT2) TRANSMISSION SUSPENSION PARTS DIAGRAM")
-part-diagram-307-000.webp "PORSCHE 2002 (996 TURBO / GT2) GEAR OIL COOLER - LINES PARTS DIAGRAM")
-part-diagram-320-000.webp "PORSCHE 2002 (996 TURBO / GT2) TIPTRONIC - - REPLACEMENT TRANSMISSION PARTS DIAGRAM")
-part-diagram-320-001.webp "PORSCHE 2002 (996 TURBO / GT2) TIPTRONIC - ALL-WHEEL - DRIVING MECHANISM PARTS DIAGRAM")
-part-diagram-320-005.webp "PORSCHE 2002 (996 TURBO / GT2) TIPTRONIC - SELECTOR LEVER PARTS DIAGRAM")
-part-diagram-330-000.webp "PORSCHE 2002 (996 TURBO / GT2) TIPTRONIC - TORQUE CONVERTER - DRIVING DISK PARTS DIAGRAM")
-part-diagram-340-001.webp "PORSCHE 2002 (996 TURBO / GT2) TIPTRONIC - OIL FILTER - OIL PAN PARTS DIAGRAM")
-part-diagram-340-002.webp "PORSCHE 2002 (996 TURBO / GT2) TIPTRONIC - SWITCH UNIT - SOLENOID VALVE - PRESSURE REGULATOR PARTS DIAGRAM")
-part-diagram-360-000.webp "PORSCHE 2002 (996 TURBO / GT2) TIPTRONIC PARTS DIAGRAM")
-part-diagram-360-001.webp "PORSCHE 2002 (996 TURBO / GT2) FRONT AXLE DIFFERENTIAL - PROPELLER SHAFT PARTS DIAGRAM")
-part-diagram-360-002.webp "PORSCHE 2002 (996 TURBO / GT2) FRONT AXLE DIFFERENTIAL - VISCOUS CLUTCH - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-370-000.webp "PORSCHE 2002 (996 TURBO / GT2) TIPTRONIC - TRANSMISSION SUSPENSION - AND - MOUNT - INTERMEDIATE FLANGE PARTS DIAGRAM")
-part-diagram-401-000.webp "PORSCHE 2002 (996 TURBO / GT2) CROSS MEMBER - TRACK CONTROL ARM PARTS DIAGRAM")
-part-diagram-401-005.webp "PORSCHE 2002 (996 TURBO / GT2) WHEEL CARRIER - WHEEL HUB PARTS DIAGRAM")
-part-diagram-401-010.webp "PORSCHE 2002 (996 TURBO / GT2) DRIVE SHAFT PARTS DIAGRAM")
-part-diagram-402-000.webp "PORSCHE 2002 (996 TURBO / GT2) SUSPENSION - SHOCK ABSORBER STRUT PARTS DIAGRAM")
-part-diagram-402-001.webp "PORSCHE 2002 (996 TURBO / GT2) SUSPENSION - SHOCK ABSORBER STRUT PARTS DIAGRAM")
-part-diagram-402-005.webp "PORSCHE 2002 (996 TURBO / GT2) STABILIZER PARTS DIAGRAM")
-part-diagram-403-000.webp "PORSCHE 2002 (996 TURBO / GT2) POWER STEERING - STEERING GEAR - STEERING PARTS PARTS DIAGRAM")
-part-diagram-403-001.webp "PORSCHE 2002 (996 TURBO / GT2) POWER STEERING - LINES PARTS DIAGRAM")
-part-diagram-403-003.webp "PORSCHE 2002 (996 TURBO / GT2) POWER STEERING - POWER-STEERING PUMP - CONTAINER PARTS DIAGRAM")
-part-diagram-403-005.webp "PORSCHE 2002 (996 TURBO / GT2) STEERING PROTECTIVE PIPE - INTERMEDIATE STEERING SHAFT - STEERING WHEELS PARTS DIAGRAM")
-part-diagram-403-006.webp "PORSCHE 2002 (996 TURBO / GT2) AIRBAG PARTS DIAGRAM")
-part-diagram-501-000.webp "PORSCHE 2002 (996 TURBO / GT2) REAR AXLE - WHEEL CARRIER - UPPER LINK - WHEEL HUB PARTS DIAGRAM")
-part-diagram-501-001.webp "PORSCHE 2002 (996 TURBO / GT2) REAR AXLE - SIDE PANEL - BRACKET PARTS DIAGRAM")
-part-diagram-501-003.webp "PORSCHE 2002 (996 TURBO / GT2) STABILIZER PARTS DIAGRAM")
-part-diagram-501-005.webp "PORSCHE 2002 (996 TURBO / GT2) DRIVE SHAFT - WHEEL HUB PARTS DIAGRAM")
-part-diagram-502-000.webp "PORSCHE 2002 (996 TURBO / GT2) SHOCK ABSORBER - COIL SPRING PARTS DIAGRAM")
-part-diagram-502-001.webp "PORSCHE 2002 (996 TURBO / GT2) SHOCK ABSORBER - COIL SPRING PARTS DIAGRAM")
-part-diagram-601-000.webp "PORSCHE 2002 (996 TURBO / GT2) WHEELS PARTS DIAGRAM")
-part-diagram-603-005.webp "PORSCHE 2002 (996 TURBO / GT2) HANDBRAKE PARTS DIAGRAM")
-part-diagram-604-000.webp "PORSCHE 2002 (996 TURBO / GT2) BRAKE MASTER CYLINDER - BRAKE BOOSTER - CLUTCH PUMP PARTS DIAGRAM")
-part-diagram-604-005.webp "PORSCHE 2002 (996 TURBO / GT2) BRAKE LINES - FRONT END PARTS DIAGRAM")
-part-diagram-604-006.webp "PORSCHE 2002 (996 TURBO / GT2) BRAKE LINES - FRONT END PARTS DIAGRAM")
-part-diagram-604-010.webp "PORSCHE 2002 (996 TURBO / GT2) BRAKE LINE - FRONT AXLE - UNDERBODY - VACUUM LINE PARTS DIAGRAM")
-part-diagram-604-015.webp "PORSCHE 2002 (996 TURBO / GT2) BRAKE LINE - UNDERBODY - REAR AXLE - VACUUM LINE PARTS DIAGRAM")
-part-diagram-605-000.webp "PORSCHE 2002 (996 TURBO / GT2) HYDRAULIC UNIT - ANTI-LOCKING BRAKE SYST. -ABS- - CONTROL PARTS DIAGRAM")
-part-diagram-701-000.webp "PORSCHE 2002 (996 TURBO / GT2) TRANSMISSION CONTROL - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-701-001.webp "PORSCHE 2002 (996 TURBO / GT2) SELECTOR LEVER - TIPTRONIC PARTS DIAGRAM")
-part-diagram-701-005.webp "PORSCHE 2002 (996 TURBO / GT2) HANDBRAKE - ACTUATOR PARTS DIAGRAM")
-part-diagram-702-000.webp "PORSCHE 2002 (996 TURBO / GT2) PEDALS PARTS DIAGRAM")
-part-diagram-702-008.webp "PORSCHE 2002 (996 TURBO / GT2) HYDRAULIC CLUTCH - OPERATION - CLUTCH MASTER CYLINDER - HYDRAULIC CLUTCH PIPE PARTS DIAGRAM")
-part-diagram-702-009.webp "PORSCHE 2002 (996 TURBO / GT2) HYDRAULIC CLUTCH - OPERATION - HYDRAULIC CLUTCH PIPE - PRESSURE UNIT - CLUTCH SLAVE CYLINDER PARTS DIAGRAM")
-part-diagram-702-010.webp "PORSCHE 2002 (996 TURBO / GT2) PEDALS - THROTTLE CONTROL PARTS DIAGRAM")
-part-diagram-801-000.webp "PORSCHE 2002 (996 TURBO / GT2) CAR BODY PARTS DIAGRAM")
-part-diagram-801-005.webp "PORSCHE 2002 (996 TURBO / GT2) FRONT END PARTS DIAGRAM")
-part-diagram-801-010.webp "PORSCHE 2002 (996 TURBO / GT2) FRONT END - SINGLE PARTS PARTS DIAGRAM")
-part-diagram-801-015.webp "PORSCHE 2002 (996 TURBO / GT2) DOME STRUT PARTS DIAGRAM")
-part-diagram-801-020.webp "PORSCHE 2002 (996 TURBO / GT2) FLOOR PARTS DIAGRAM")
-part-diagram-801-035.webp "PORSCHE 2002 (996 TURBO / GT2) REAR END PARTS DIAGRAM")
-part-diagram-801-040.webp "PORSCHE 2002 (996 TURBO / GT2) FENDER PARTS DIAGRAM")
-part-diagram-801-045.webp "PORSCHE 2002 (996 TURBO / GT2) COWL PARTS DIAGRAM")
-part-diagram-801-050.webp "PORSCHE 2002 (996 TURBO / GT2) SIDE PANEL PARTS DIAGRAM")
-part-diagram-801-055.webp "PORSCHE 2002 (996 TURBO / GT2) SIDE PANEL PARTS DIAGRAM")
-part-diagram-801-060.webp "PORSCHE 2002 (996 TURBO / GT2) SIDE PANEL PARTS DIAGRAM")
-part-diagram-801-065.webp "PORSCHE 2002 (996 TURBO / GT2) SIDE PANEL - D - MJ 2004>> PARTS DIAGRAM")
-part-diagram-801-070.webp "PORSCHE 2002 (996 TURBO / GT2) TRIMS - FOR - UNDERBODY PARTS DIAGRAM")
-part-diagram-801-075.webp "PORSCHE 2002 (996 TURBO / GT2) TRIMS - FOR - WHEEL HOUSING PARTS DIAGRAM")
-part-diagram-802-000.webp "PORSCHE 2002 (996 TURBO / GT2) BUMPER PARTS DIAGRAM")
-part-diagram-802-002.webp "PORSCHE 2002 (996 TURBO / GT2) BUMPER PARTS DIAGRAM")
-part-diagram-802-005.webp "PORSCHE 2002 (996 TURBO / GT2) BUMPER PARTS DIAGRAM")
-part-diagram-803-000.webp "PORSCHE 2002 (996 TURBO / GT2) COVER PARTS DIAGRAM")
-part-diagram-803-005.webp "PORSCHE 2002 (996 TURBO / GT2) COVER PARTS DIAGRAM")
-part-diagram-803-007.webp "PORSCHE 2002 (996 TURBO / GT2) REAR SPOILER PARTS DIAGRAM")
-part-diagram-803-008.webp "PORSCHE 2002 (996 TURBO / GT2) REAR SPOILER PARTS DIAGRAM")
-part-diagram-804-000.webp "PORSCHE 2002 (996 TURBO / GT2) DOOR SHELL - INSTALLATION PARTS - DOOR LATCH PARTS DIAGRAM")
-part-diagram-804-010.webp "PORSCHE 2002 (996 TURBO / GT2) DOOR SEAL - GASKET - WINDSHIELD FRAME PARTS DIAGRAM")
-part-diagram-804-020.webp "PORSCHE 2002 (996 TURBO / GT2) DOOR HANDLE PARTS DIAGRAM")
-part-diagram-804-030.webp "PORSCHE 2002 (996 TURBO / GT2) WINDOW REGULATOR PARTS DIAGRAM")
-part-diagram-805-000.webp "PORSCHE 2002 (996 TURBO / GT2) WINDOW GLASSES PARTS DIAGRAM")
-part-diagram-805-005.webp "PORSCHE 2002 (996 TURBO / GT2) SIDE WINDOW PARTS DIAGRAM")
-part-diagram-807-000.webp "PORSCHE 2002 (996 TURBO / GT2) LUGGAGE COMPARTMENT PARTS DIAGRAM")
-part-diagram-807-002.webp "PORSCHE 2002 (996 TURBO / GT2) FLOOR COVER - TRIMS PARTS DIAGRAM")
-part-diagram-807-003.webp "PORSCHE 2002 (996 TURBO / GT2) LINING - SILL PARTS DIAGRAM")
-part-diagram-807-005.webp "PORSCHE 2002 (996 TURBO / GT2) TRIMS PARTS DIAGRAM")
-part-diagram-807-007.webp "PORSCHE 2002 (996 TURBO / GT2) TRIMS - D - MJ 2004>> PARTS DIAGRAM")
-part-diagram-807-008.webp "PORSCHE 2002 (996 TURBO / GT2) ROOF TRIM PANEL PARTS DIAGRAM")
-part-diagram-807-009.webp "PORSCHE 2002 (996 TURBO / GT2) WINDSHIELD FRAME - SUN VIZORS PARTS DIAGRAM")
-part-diagram-807-010.webp "PORSCHE 2002 (996 TURBO / GT2) DOOR PANEL - ACCESSORIES PARTS DIAGRAM")
-part-diagram-807-015.webp "PORSCHE 2002 (996 TURBO / GT2) BODY SHELL - SOUND ABSORBERS PARTS DIAGRAM")
-part-diagram-807-016.webp "PORSCHE 2002 (996 TURBO / GT2) BODY SHELL - SOUND PROOFING 1 PARTS DIAGRAM")
-part-diagram-809-000.webp "PORSCHE 2002 (996 TURBO / GT2) DASH PANEL TRIM - WITH: - RETAINING FRAME PARTS DIAGRAM")
-part-diagram-809-001.webp "PORSCHE 2002 (996 TURBO / GT2) ACCESSORIES - DASH PANEL TRIM PARTS DIAGRAM")
