porsche 2009 (997-2) disc brakes parts diagram

603-000 - disc brakes

Porsche 2009 (997-2) DISC BRAKES Parts Diagram

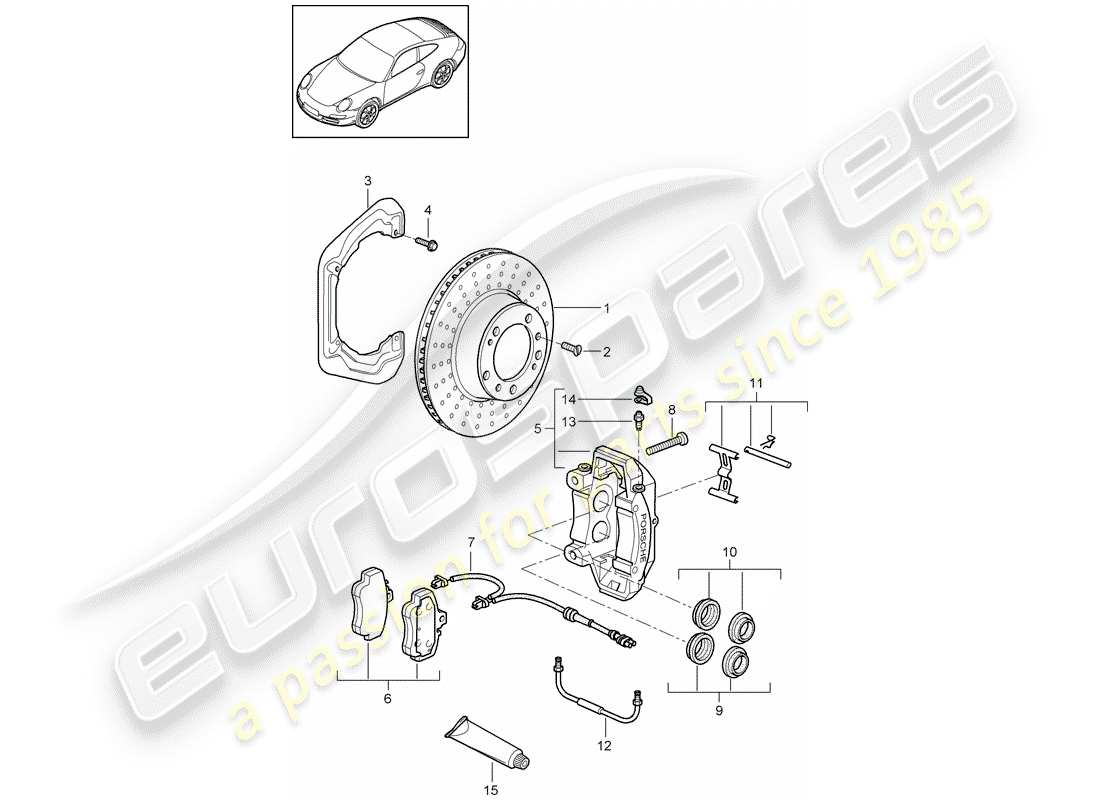

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # -
    -
    BRAKE DISC
    Only | in pairs | Replace | Technical manual | Attention (PR:450)
    # 1
    MPN: 99635240501
    BRAKE DISC
    left rear |
    D >> - MJ 2010
    BRAKE DISC Genuine Porsche Part - New (to order)
    # 1
    MPN: 99635240502
    BRAKE DISC
    left rear |
    D - MJ 2011>>
    from £206.24
    from £206.24
    This part replaces part number 99635240500
    BRAKE DISC Genuine Porsche Part - New (to order)
    # 1
    MPN: 99735203100
    BRAKE DISC
    left rear | Discontinued part (PR:450)
    BRAKE DISC Genuine Porsche Part - New (to order)
    # 1
    MPN: 99735203101
    BRAKE DISC
    left rear | Discontinued part (PR:450)
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # 1
    MPN: 298615601
    BRAKE DISC
    left rear | Discontinued part (PR:450)
    BRAKE DISC Genuine Porsche Part - New (to order)
    # 1
    MPN: 298615601C
    BRAKE DISC
    left rear (PR:450)
    BRAKE DISC Genuine Porsche Part - New (to order)
    # 1
    MPN: 99735203100
    BRAKE DISC
    left rear | Discontinued part (PR:756)
    BRAKE DISC Genuine Porsche Part - New (to order)
    # 1
    MPN: 99735203101
    BRAKE DISC
    left rear | Discontinued part (PR:756)
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # 1
    MPN: 298615601
    BRAKE DISC
    left rear | Discontinued part (PR:756)
    BRAKE DISC Genuine Porsche Part - New (to order)
    # 1
    MPN: 298615601C
    BRAKE DISC
    left rear (PR:756)
    BRAKE DISC Genuine Porsche Part - New (to order)
    # 1
    MPN: 99735203100
    BRAKE DISC
    left rear | Discontinued part (SPEEDSTER PR:503)
    BRAKE DISC Genuine Porsche Part - New (to order)
    # 1
    MPN: 99735203101
    BRAKE DISC
    left rear | Discontinued part (SPEEDSTER PR:503)
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # 1
    MPN: 298615601
    BRAKE DISC
    left rear | Discontinued part (SPEEDSTER PR:503)
    BRAKE DISC Genuine Porsche Part - New (to order)
    # 1
    MPN: 298615601C
    BRAKE DISC
    left rear (SPEEDSTER PR:503)
    BRAKE DISC Genuine Porsche Part - New (to order)
    # 1
    MPN: 99635240601
    BRAKE DISC
    right rear |
    D >> - MJ 2010
    BRAKE DISC Genuine Porsche Part - New (to order)
    # 1
    MPN: 99635240602
    BRAKE DISC
    right rear |
    D - MJ 2011>>
    from £206.24
    from £206.24
    This part replaces part number 99635240600
    BRAKE DISC Genuine Porsche Part - New (to order)
    # 1
    MPN: 99735203200
    BRAKE DISC
    right rear | Discontinued part (PR:450)
    BRAKE DISC Genuine Porsche Part - New (to order)
    # 1
    MPN: 99735203201
    BRAKE DISC
    right rear | Discontinued part (PR:450)
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # 1
    MPN: 298615602
    BRAKE DISC
    right rear | Discontinued part (PR:450)
    BRAKE DISC Genuine Porsche Part - New (to order)
    # 1
    MPN: 298615602C
    BRAKE DISC
    right rear (PR:450)
    BRAKE DISC Genuine Porsche Part - New (to order)
    # 1
    MPN: 99735203200
    BRAKE DISC
    right rear | Discontinued part (PR:756)
    BRAKE DISC Genuine Porsche Part - New (to order)
    # 1
    MPN: 99735203201
    BRAKE DISC
    right rear | Discontinued part (PR:756)
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # 1
    MPN: 298615602
    BRAKE DISC
    right rear | Discontinued part (PR:756)
    BRAKE DISC Genuine Porsche Part - New (to order)
    # 1
    MPN: 298615602C
    BRAKE DISC
    right rear (PR:756)
    BRAKE DISC Genuine Porsche Part - New (to order)
    # 1
    MPN: 99735203200
    BRAKE DISC
    right rear | Discontinued part (SPEEDSTER PR:503)
    BRAKE DISC Genuine Porsche Part - New (to order)
    # 1
    MPN: 99735203201
    BRAKE DISC
    right rear | Discontinued part (SPEEDSTER PR:503)
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # 1
    MPN: 298615602
    BRAKE DISC
    right rear | Discontinued part (SPEEDSTER PR:503)
    BRAKE DISC Genuine Porsche Part - New (to order)
    # 1
    MPN: 298615602C
    BRAKE DISC
    right rear (SPEEDSTER PR:503)
    BRAKE DISC Genuine Porsche Part - New (to order)
    # 2
    MPN: 90026904701
    SCREW, CSK. HD.
    M 6 X 12
    from £0.59
    from £0.59
    This part replaces part number 90026904709
    SCREW, COUNTERSUNK HD. - M 6 X 12 - D - MJ 2004>> Genuine Porsche Part - New In stock
    # 2
    MPN: 90026910601
    SCREW, CSK. HD.
    M 6 x 16 (PR:XRP CARRERA 2 CARRERA 2-S)
    from £2.29
    from £2.29
    SCREW, COUNTERSUNK HD. - M 6 X 16 Genuine Porsche Part - New (to order)
    # 3
    MPN: 99635280103
    COVER PLATE
    from £21.58
    from £21.58
    COVER PLATE Genuine Porsche Part - New (to order)
    # 3
    MPN: 99735280102
    COVER PLATE
    left (PR:450)
    from £36.55
    from £36.55
    COVER PLATE Genuine Porsche Part - New (to order)
    # 3
    MPN: 99735280102
    COVER PLATE
    left (PR:756)
    from £36.55
    from £36.55
    COVER PLATE Genuine Porsche Part - New (to order)
    # 3
    MPN: 99735280102
    COVER PLATE
    left (Speedster PR:503)
    from £36.55
    from £36.55
    COVER PLATE Genuine Porsche Part - New (to order)
    # 3
    MPN: 99735280202
    COVER PLATE
    right (PR:450)
    from £36.55
    from £36.55
    COVER PLATE Genuine Porsche Part - New (to order)
    # 3
    MPN: 99735280202
    COVER PLATE
    right (PR:756)
    from £36.55
    from £36.55
    COVER PLATE Genuine Porsche Part - New (to order)
    # 3
    MPN: 99735280202
    COVER PLATE
    right (Speedster PR:503)
    from £36.55
    from £36.55
    COVER PLATE Genuine Porsche Part - New (to order)
    # 4
    MPN: 99921711601
    SCREW, HEX. HD.
    M 6 x 16
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # 4
    MPN: N 90999502
    BOLT, HEX. HD. WITH SHOULDER
    screw, hex. hd. | M 6 x 16
    from £0.72
    from £0.72
    BOLT, HEX. HD. WITH SHOULDER Genuine Porsche Part - New (to order)
    HEX COLLARED BOLT Genuine Bentley Part - New (to order)
    HEXAGON FLANGE M6X25 Genuine Lamborghini - New In stock
    # 5
    MPN: 9973524210B
    CALLIPER WITHOUT BRAKE PADS
    left |
    also use: 2x 99906705309 (CARRERA 2)
    from £803.63
    from £803.63
    CALLIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
    # 5
    MPN: 99635242560
    CALLIPER WITHOUT BRAKE PADS
    left |
    also use: 2x 99906705009 (CARRERA 2-S)
    from £828.23
    from £828.23
    CALLIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
    # 5
    MPN: 99635242331
    CALLIPER WITHOUT BRAKE PADS
    left |
    also use: 2x 99906705309 (PR:450)
    from £580.44
    from £580.44
    CALLIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
    # 5
    MPN: 99635242331
    CALLIPER WITHOUT BRAKE PADS
    left |
    also use: 2x 99906705309 (PR:756)
    from £580.44
    from £580.44
    CALLIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
    # 5
    MPN: 99635242331
    CALLIPER WITHOUT BRAKE PADS
    left | |
    also use: 2x 99906705309 (SPEEDSTER PR:503)
    from £580.44
    from £580.44
    CALLIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
    # 5
    MPN: 9973524220B
    CALLIPER WITHOUT BRAKE PADS
    right |
    also use: 2x 99906705309 (CARRERA 2)
    from £803.63
    from £803.63
    CALLIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
    # 5
    MPN: 99635242660
    CALLIPER WITHOUT BRAKE PADS
    right |
    also use: 2x 99906705009 (CARRERA 2-S)
    from £828.23
    from £828.23
    CALLIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
    # 5
    MPN: 99635242431
    CALLIPER WITHOUT BRAKE PADS
    right |
    also use: 2x 99906705309 (PR:450)
    CALLIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
    # 5
    MPN: 99635242431
    CALLIPER WITHOUT BRAKE PADS
    right |
    also use: 2x 99906705309 (PR:756)
    CALLIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
    # 5
    MPN: 99635242431
    CALLIPER WITHOUT BRAKE PADS
    right | |
    also use: 2x 99906705309 (SPEEDSTER PR:503)
    CALLIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
    # 6
    MPN: 99735294904
    1 SET OF BRAKE PADS FOR DISC
    rear | brakes 4x |
    also use: 999 067 053 09 (CARRERA 2)
    from £191.72
    from £191.72
    1 SET OF BRAKE PADS FOR DISC Genuine Porsche Part - New (to order)
    # 6
    MPN: 99735193905
    1 SET OF BRAKE PADS FOR DISC
    rear | brakes |
    also use: (CARRERA 2-S)
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # 6
    MPN: 99735294800
    1 SET OF BRAKE PADS FOR DISC
    rear | brakes |
    also use: (PR:450)
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # 6
    MPN: 99735294800
    1 SET OF BRAKE PADS FOR DISC
    rear | brakes |
    also use: 4x 99906705309 (PR:756)
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # 6
    MPN: 99735294800
    1 SET OF BRAKE PADS FOR DISC
    rear | brakes |
    also use: 4x 99906705309 (SPEEDSTER PR:503)
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # -
    -
    DAMPING PLATE
    30 mm (CARRERA 2-S)
    # -
    -
    DAMPING PLATE
    28 MM (CARRERA 2-S)
    # 7
    MPN: 99761275400
    SENDER WIRE
    (pad wear indicator) (CARRERA 2)
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # 7
    MPN: 99761267601
    SENDER WIRE
    (pad wear indicator) (CARRERA 2-S)
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # 7
    MPN: 99761267601
    SENDER WIRE
    (pad wear indicator) (PR:450)
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # 7
    MPN: 99761267601
    SENDER WIRE
    (pad wear indicator) (PR:756)
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # 7
    MPN: 99761267601
    SENDER WIRE
    (pad wear indicator) (SPEEDSTER PR:503)
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # -
    -
    BRACKET FOR SPEED SENSOR
    WARNING CONTACT
    # 8
    MPN: 99906705309
    SCREW, CHEESE HD.
    M 12 X 1,5 X 85 (CARRERA 2)
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # 8
    MPN: 99906705009
    SCREW, CHEESE HD.
    m 12 x 1,5 x 77 (CARRERA 2-S)
    from £6.78
    from £6.78
    SCREW, CHEESE HD Genuine Porsche Part - New (to order)
    # 8
    MPN: 99906705309
    SCREW, CHEESE HD.
    M 12 X 1,5 X 85 (PR:450)
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # 8
    MPN: 99906705309
    SCREW, CHEESE HD.
    M 12 X 1,5 X 85 (PR:756)
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # 8
    MPN: 99906705309
    SCREW, CHEESE HD.
    M 12 X 1,5 X 85 (SPEEDSTER PR:503)
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # 9
    MPN: 96535291700
    REPAIR SET FOR
    rear axle | Protection caps | 34 MM (CARRERA 2)
    from £31.38
    from £31.38
    REPAIR SET FOR Genuine Porsche Part - New (to order)
    # 9
    MPN: 95135291701
    repair kit
    Protection caps 2x | 30 MM (CARRERA 2 CARRERA 2-S)
    from £10.88
    from £10.88
    repair kit - Protection caps - 30 MM Genuine Porsche Part - New (to order)
    # 10
    MPN: 95135291700
    repair kit
    Protection caps 2x | 28 MM (CARRERA 2 CARRERA 2-S)
    from £12.52
    from £12.52
    repair kit - Protection caps - 28 MM $ - D - MJ 2004>> Genuine Porsche Part - New (to order)
    # 10
    MPN: 95135291700
    repair kit
    Protection caps | 28 MM (PR:450)
    from £12.52
    from £12.52
    repair kit - Protection caps - 28 MM $ - D - MJ 2004>> Genuine Porsche Part - New (to order)
    # 10
    MPN: 95135291700
    repair kit
    Protection caps | 28 MM (PR:756)
    from £12.52
    from £12.52
    repair kit - Protection caps - 28 MM $ - D - MJ 2004>> Genuine Porsche Part - New (to order)
    # 10
    MPN: 95135291700
    repair kit
    Protection caps | 28 MM (SPEEDSTER PR:503)
    from £12.52
    from £12.52
    repair kit - Protection caps - 28 MM $ - D - MJ 2004>> Genuine Porsche Part - New (to order)
    # 11
    MPN: 99735295910
    SPRING
    (CARRERA 2)
    from £32.74
    from £32.74
    SPRING Genuine Porsche Part - New (to order)
    # 11
    MPN: 95535296000
    REPAIR SET FOR
    rear axle (CARRERA 2-S)
    from £44.78
    from £44.78
    Clip & pin repair set Genuine Porsche Part - New (to order)
    # 11
    MPN: 99635195901
    repair kit
    fasteners | pin 2x | speader spring 2x | securing clip 2x (PR:450)
    from £33.69
    from £33.69
    repair kit Genuine Porsche Part - New (to order)
    # 11
    MPN: 99635195901
    repair kit
    fasteners | pin 2x | speader spring 2x | securing clip 2x (PR:756)
    from £33.69
    from £33.69
    repair kit Genuine Porsche Part - New (to order)
    # 11
    MPN: 99635195901
    repair kit
    fasteners | pin 2x | speader spring 2x | securing clip 2x (SPEEDSTER PR:503)
    from £33.69
    from £33.69
    repair kit Genuine Porsche Part - New (to order)
    # 12
    MPN: 99635196200
    connecting line
    left (CARRERA 2-S)
    from £39.98
    from £39.98
    connecting line Genuine Porsche Part - New (to order)
    # 12
    MPN: 99635196100
    connecting line
    right (CARRERA 2-S)
    from £39.98
    from £39.98
    connecting line Genuine Porsche Part - New (to order)
    # 12
    MPN: 99635296130
    connecting line
    left (PR:450)
    from £26.94
    from £26.94
    connecting line Genuine Porsche Part - New (to order)
    # 12
    MPN: 99635296130
    connecting line
    left (PR:756)
    from £26.94
    from £26.94
    connecting line Genuine Porsche Part - New (to order)
    # 12
    MPN: 99635296130
    connecting line
    left (Speedster PR:503)
    from £26.94
    from £26.94
    connecting line Genuine Porsche Part - New (to order)
    # 12
    MPN: 99635296130
    connecting line
    right (PR:450)
    from £26.94
    from £26.94
    connecting line Genuine Porsche Part - New (to order)
    # 12
    MPN: 99635296130
    connecting line
    right (PR:756)
    from £26.94
    from £26.94
    connecting line Genuine Porsche Part - New (to order)
    # 12
    MPN: 99635296130
    connecting line
    right (Speedster PR:503)
    from £26.94
    from £26.94
    connecting line Genuine Porsche Part - New (to order)
    # 13
    MPN: 93035191901
    BLEEDER VALVE
    BLEEDER VALVE Genuine Porsche Part - New (to order)
    # 14
    MPN: 93035192700
    DUST CAP
    Discontinued part
    dust cap - Discontinued part Genuine Porsche Part - New (to order)
    # 14
    MPN: 93035192701
    DUST CAP
    from £1.73
    from £1.73
    DUST CAP Genuine Porsche Part - New (to order)
    # 15
    MPN: 00004311700
    BRAKE CYLINDER PASTE
    50 G
    brake cylinder paste - Discontinued part Genuine Porsche Part - New (to order)
    # 15
    MPN: 00004302000
    ASSEMBLY PASTE
    100 G
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
