porsche 2009 (997-2 gt3) crankcase parts diagram

101-011 - crankcase

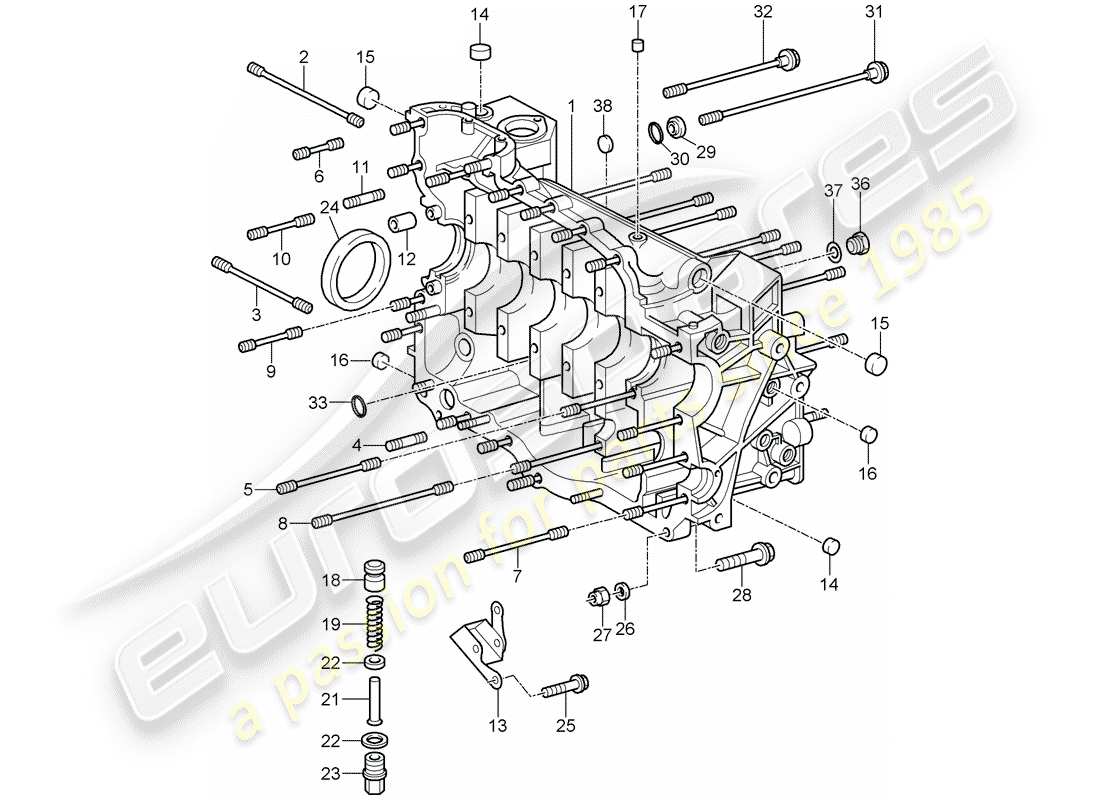

Porsche 2009 (997-2 GT3) CRANKCASE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: 99710197790
                  crankcase
                  with studs | Discontinued part (9777)
                  crankcase Genuine Porsche Part - New (to order)
                  # 1
                  MPN: 99710197791
                  crankcase
                  with studs (9777)
                  from £7,978.12
                  from £7,978.12
                  crankcase Genuine Porsche Part - New (to order)
                  # 1
                  MPN: 99710197791
                  crankcase
                  with studs (9774)
                  from £7,978.12
                  from £7,978.12
                  crankcase Genuine Porsche Part - New (to order)
                  # 2
                  MPN: 90006009501
                  STUD
                  M 10 X 140
                  from £9.57
                  from £9.57
                  stud - M 10 X 142 Genuine Porsche Part - New (to order)
                  # 3
                  MPN: 90006009601
                  STUD
                  M 10 X 105
                  from £5.20
                  from £5.20
                  stud - M 10 X 105 Genuine Porsche Part - New (to order)
                  # 4
                  MPN: 90006010601
                  STUD
                  M 8 x 22
                  from £5.26
                  from £5.26
                  stud - M 8 X 22 Genuine Porsche Part - New In stock
                  # 5
                  MPN: 99610117570
                  STUD
                  from £37.37
                  from £37.37
                  stud - D - MJ 1998>> Genuine Porsche Part - New (to order)
                  # 6
                  MPN: 90006010401
                  STUD
                  M 8 x 32
                  from £5.20
                  from £5.20
                  STUD Genuine Porsche Part - New In stock
                  # 7
                  MPN: 90006010101
                  STUD
                  M 8 X 78
                  from £5.20
                  from £5.20
                  stud - M 8 X 78 Genuine Porsche Part - New In stock
                  # 8
                  MPN: 90006009901
                  STUD
                  M 10 X 110
                  from £10.91
                  from £10.91
                  STUD Genuine Porsche Part - New (to order)
                  # 9
                  MPN: 90006010301
                  STUD
                  M 8 X 48
                  from £15.80
                  from £15.80
                  STUD Genuine Porsche Part - New (to order)
                  # 10
                  MPN: 90006010201
                  STUD
                  M 8 x 52
                  from £5.20
                  from £5.20
                  stud - M 8 X 52 Genuine Porsche Part - New (to order)
                  # 11
                  MPN: 90006010501
                  STUD
                  M 8 X 28
                  from £7.84
                  from £7.84
                  stud - M 8 X 28 - D - MJ 1991>> Genuine Porsche Part - New (to order)
                  # 12
                  MPN: 90110119500
                  SLEEVE
                  from £5.93
                  from £5.93
                  SLEEVE Genuine Porsche Part - New (to order)
                  # 13
                  MPN: 99610120671
                  HOOK
                  from £33.43
                  from £33.43
                  HOOK Genuine Porsche Part - New (to order)
                  # 15
                  MPN: 90003604601
                  SEALING CAP
                  A 22
                  from £2.96
                  from £2.96
                  SEALING CAP Genuine Porsche Part - New (to order)
                  # 16
                  MPN: 90003604701
                  SEALING CAP
                  A 13
                  from £3.12
                  from £3.12
                  SEALING CAP Genuine Porsche Part - New (to order)
                  # 17
                  MPN: 91110118602
                  SEALING CAP
                  7,5 X 8,0
                  from £3.15
                  from £3.15
                  SEALING CAP Genuine Porsche Part - New (to order)
                  # 18
                  MPN: 91110751200
                  PISTON
                  from £16.55
                  from £16.55
                  PISTON Genuine Porsche Part - New (to order)
                  # 19
                  MPN: 99610712780
                  PRESSURE SPRING
                  from £13.02
                  from £13.02
                  PRESSURE SPRING Genuine Porsche Part - New (to order)
                  # 20
                  MPN: 99610753282
                  SPACER RING
                  from £6.67
                  from £6.67
                  SPACER RING Genuine Porsche Part - New (to order)
                  # 21
                  MPN: 99610753391
                  GUIDE SLEEVE
                  from £42.77
                  from £42.77
                  GUIDE SLEEVE Genuine Porsche Part - New (to order)
                  # 22
                  MPN: 90012310630
                  SEAL RING
                  A 18 X 24
                  from £1.43
                  from £1.43
                  This part replaces part number 90012300930
                  OIL DRAIN PLUG SEAL RING, A 18 X 24 Genuine Porsche Part - New In stock
                  Alternative (#95110093000) Maintenance set - - for - Periodic maintenance - comprising: Genuine Porsche Part - New (to order)
                  # 23
                  MPN: 99610710582
                  THREADED PLUG
                  from £63.17
                  from £63.17
                  THREADED PLUG Genuine Porsche Part - New (to order)
                  # 24
                  MPN: 99710226491
                  SEAL
                  90 X 110 X 12
                  from £147.39
                  from £147.39
                  seal - 90 x 110 x 12 - also use: Genuine Porsche Part - New (to order)
                  # 25
                  MPN: 90037815001
                  SCREW, HEX. HD.
                  M 8 X 55
                  from £2.68
                  from £2.68
                  SCREW, HEX. HD Genuine Porsche Part - New (to order)
                  # 26
                  MPN: 90003110501
                  WASHER
                  8,4 X 15 X 1,6
                  from £0.74
                  from £0.74
                  WASHER Genuine Porsche Part - New (to order)
                  # 27
                  MPN: 99908420201
                  LOCK NUT
                  M 8
                  from £2.68
                  from £2.68
                  LOCK NUT Genuine Porsche Part - New (to order)
                  # 28
                  MPN: 90037815009
                  SCREW, HEX. HD.
                  M 8 X 55 | No longer use the part here
                  SCREW, HEX. HD. - M 8 X 55 Genuine Porsche Part - New (to order)
                  # 28
                  MPN: 99921711101
                  BOLT WITH WASHER
                  M 8 X 45
                  from £10.26
                  from £10.26
                  BOLT WITH WASHER Genuine Porsche Part - New (to order)
                  # 29
                  MPN: 96410131371
                  WASHER
                  Discontinued part
                  WASHER Genuine Porsche Part - New (to order)
                  # 29
                  MPN: 96410131305
                  WASHER
                  from £16.07
                  from £16.07
                  WASHER Genuine Porsche Part - New (to order)
                  # 30
                  MPN: 99970100641
                  O-RING
                  8 X 2
                  from £0.65
                  from £0.65
                  O-RING Genuine Porsche Part - New (to order)
                  # 31
                  MPN: 95910117370
                  SCREW
                  Discontinued part
                  SCREW Genuine Porsche Part - New (to order)
                  # 31
                  MPN: 95910117301
                  SCREW
                  SCREW - DISCONTINUED PART Genuine Porsche Part - New (to order)
                  # 32
                  MPN: 96410117470
                  SCREW
                  Discontinued part
                  SCREW Genuine Porsche Part - New (to order)
                  # 32
                  MPN: 96410117400
                  SCREW
                  SCREW Genuine Porsche Part - New (to order)
                  # 33
                  MPN: 99970159640
                  O-RING
                  8,3 X 2,4
                  from £5.33
                  from £5.33
                  O-Ring - OR 8,3 - 2,4 - D >> - MJ 1968 Genuine Porsche Part - New (to order)
                  # 34
                  MPN: 93010516500
                  COVER
                  No longer use the part here
                  from £24.12
                  from £24.12
                  Cover - M 63D 4070 >> - M 64D 3717 >> - M 63D 8155 >> - M 67D 0712 >> Genuine Porsche Part - New (to order)
                  # 35
                  MPN: 99970731541
                  O-RING
                  33,3 X 2,4 | No longer use the part here
                  from £2.68
                  from £2.68
                  O-RING Genuine Porsche Part - New (to order)
                  # 36
                  MPN: 90021900401
                  THREADED PLUG
                  M 16 X 1,5
                  from £4.52
                  from £4.52
                  THREADED PLUG Genuine Porsche Part - New In stock
                  # 37
                  MPN: 90012313130
                  SEAL RING
                  A 16 X 20 1x
                  from £2.29
                  from £2.29
                  SEAL RING - DISCONTINUED PART Genuine Porsche Part - New In stock
                  # 38
                  MPN: 90003600803
                  SEALING CAP
                  B 15
                  from £2.17
                  from £2.17
                  SEALING CAP Genuine Porsche Part - New (to order)
