302-005 - TRANSMISSION CASE

Porsche 2009 (997-2 GT3) TRANSMISSION CASE Parts Diagram

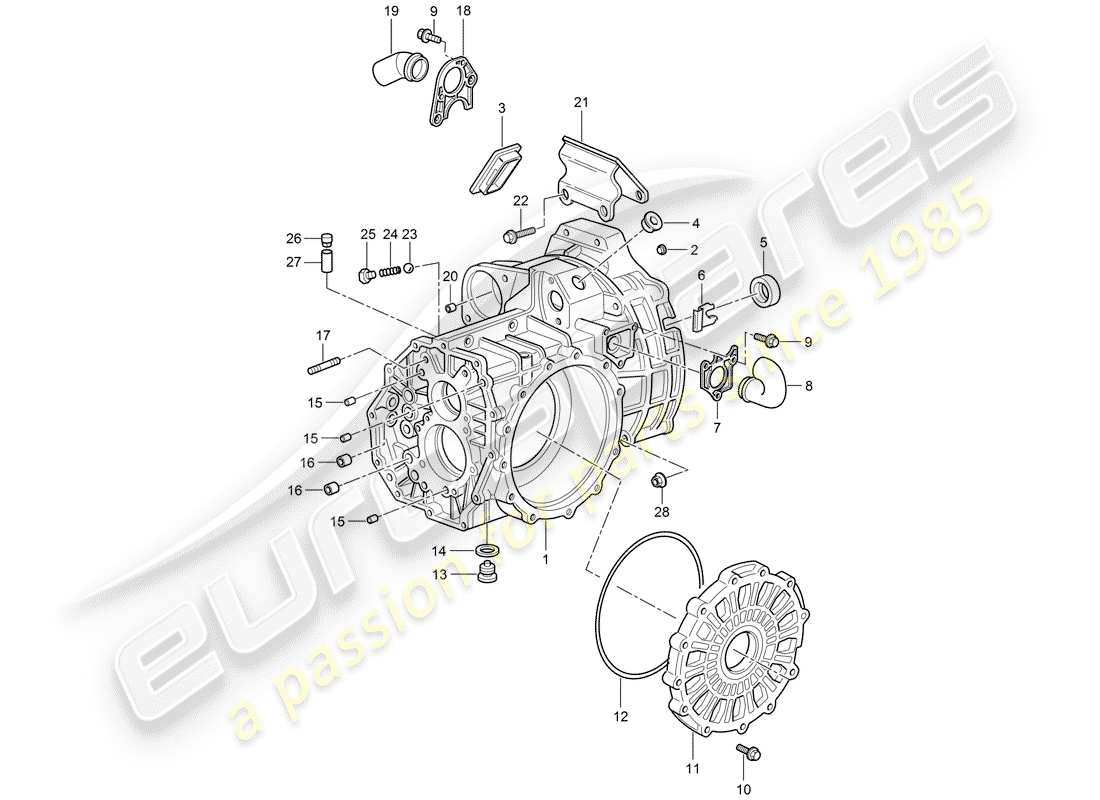

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: 99630110188
                  TRANSMISSION CASE
                  (G9790)
                  from £1,788.94
                  from £1,788.94
                  transmission case - D - MJ 2004>> Genuine Porsche Part - New (to order)
                  # 2
                  MPN: 99903600240
                  SEALING CAP
                  A 14
                  from £6.34
                  from £6.34
                  SEALING CAP - A 14 Genuine Porsche Part - New (to order)
                  # 3
                  MPN: 95030115101
                  CAP
                  from £11.36
                  from £11.36
                  CAP Genuine Porsche Part - New (to order)
                  # 4
                  MPN: 99970349040
                  SEALING CAP
                  30 X 42
                  from £5.33
                  from £5.33
                  SEALING CAP - 30 X 42 Genuine Porsche Part - New (to order)
                  # 5
                  MPN: 99911332641
                  SEAL
                  26,5 X 40
                  from £24.81
                  from £24.81
                  SEAL - 26,5 X 40 Genuine Porsche Part - New (to order)
                  # 6
                  MPN: 99311663000
                  CAP
                  from £4.91
                  from £4.91
                  CAP Genuine Porsche Part - New (to order)
                  # 7
                  MPN: 99611661200
                  FLANGE
                  from £5.66
                  from £5.66
                  FLANGE Genuine Porsche Part - New (to order)
                  # 8
                  MPN: 99311661000
                  INTAKE MANIFOLD
                  from £16.65
                  from £16.65
                  INTAKE MANIFOLD Genuine Porsche Part - New (to order)
                  # 9
                  MPN: 90037803509
                  SCREW, HEX. HD.
                  M 6 X 16
                  SCREW, HEX. HD. - M 6 X 16 Genuine Porsche Part - New (to order)
                  # 11
                  MPN: 99630131250
                  TRANSMISSION COVER
                  No longer use the part here
                  TRANSMISSION COVER - DISCONTINUED PART Genuine Porsche Part - New (to order)
                  # 11
                  MPN: 99630131251
                  TRANSMISSION COVER
                  from £253.78
                  from £253.78
                  TRANSMISSION COVER Genuine Porsche Part - New (to order)
                  # 12
                  MPN: 99970732840
                  O-RING
                  205 X 3,5
                  from £16.00
                  from £16.00
                  O-RING - 205 X 3,5 Genuine Porsche Part - New (to order)
                  # 13
                  MPN: 99906300802
                  THREADED PLUG
                  with magnet | M 22 X 1,5
                  from £20.65
                  from £20.65
                  THREADED PLUG - WITH MAGNET - M 22 X 1,5 Genuine Porsche Part - New (to order)
                  # 15
                  MPN: 90001214400
                  DOWEL PIN
                  12 M 6 X 14
                  from £2.77
                  from £2.77
                  DOWEL PIN - 12 M6 X 14 Genuine Porsche Part - New (to order)
                  # 16
                  MPN: 99630351300
                  BUSHING
                  15 X 21 X 22
                  from £9.38
                  from £9.38
                  BUSHING - 15 X 21 X 22 Genuine Porsche Part - New (to order)
                  # 17
                  MPN: 90008104202
                  STUD
                  BM 8 X 42
                  from £6.62
                  from £6.62
                  STUD - BM 8 X 42 Genuine Porsche Part - New (to order)
                  # 18
                  MPN: 99611671000
                  FLANGE SOCKET
                  from £5.45
                  from £5.45
                  FLANGE SOCKET Genuine Porsche Part - New (to order)
                  # 19
                  MPN: 99311661000
                  INTAKE MANIFOLD
                  from £16.65
                  from £16.65
                  INTAKE MANIFOLD Genuine Porsche Part - New (to order)
                  # 20
                  MPN: 99953101710
                  BUSHING
                  12,1 X 14
                  from £10.50
                  from £10.50
                  BUSHING - 12,1 X 14 Genuine Porsche Part - New (to order)
                  # 21
                  MPN: 99644910150
                  HOOK
                  No longer use the part here
                  HOOK - DISCONTINUED PART Genuine Porsche Part - New (to order)
                  # 21
                  MPN: 99744910150
                  HOOK
                  from £55.39
                  from £55.39
                  HOOK Genuine Porsche Part - New (to order)
                  # 22
                  MPN: 99907319009
                  FILLISTER HD. SCREW
                  M 8 X 60
                  from £3.25
                  from £3.25
                  fillister hd. screw - M 8 X 60 Genuine Porsche Part - New (to order)
                  # 23
                  MPN: 90010806400
                  BALL
                  8
                  from £0.65
                  from £0.65
                  BALL - 8 Genuine Porsche Part - New In stock
                  # 24
                  MPN: 99630324500
                  PRESSURE SPRING
                  from £2.67
                  from £2.67
                  PRESSURE SPRING Genuine Porsche Part - New (to order)
                  # 25
                  MPN: 90012402302
                  THREADED PLUG
                  M 10 X 1
                  from £3.33
                  from £3.33
                  THREADED PLUG - M 10 X 1 Genuine Porsche Part - New (to order)
                  # 26
                  MPN: 014301485
                  CAP FOR TRANSMISSION BREATHER
                  from £3.49
                  from £3.49
                  CAP FOR TRANSMISSION BREATHER Genuine Porsche Part - New (to order)
                  # 27
                  MPN: 014301473
                  SLEEVE
                  12 X 30 | discontinued part
                  sleeve - Discontinued part Genuine Porsche Part - New (to order)
                  # 27
                  MPN: 0A2301473
                  SLEEVE
                  from £5.33
                  from £5.33
                  SLEEVE - 12 M 6 X 28 Genuine Porsche Part - New (to order)
                  # 28
                  MPN: 90037701101
                  HEX. NUT
                  M10
                  from £3.57
                  from £3.57
                  hex. nut - M 10 - D - MJ 2002>> Genuine Porsche Part - New (to order)
