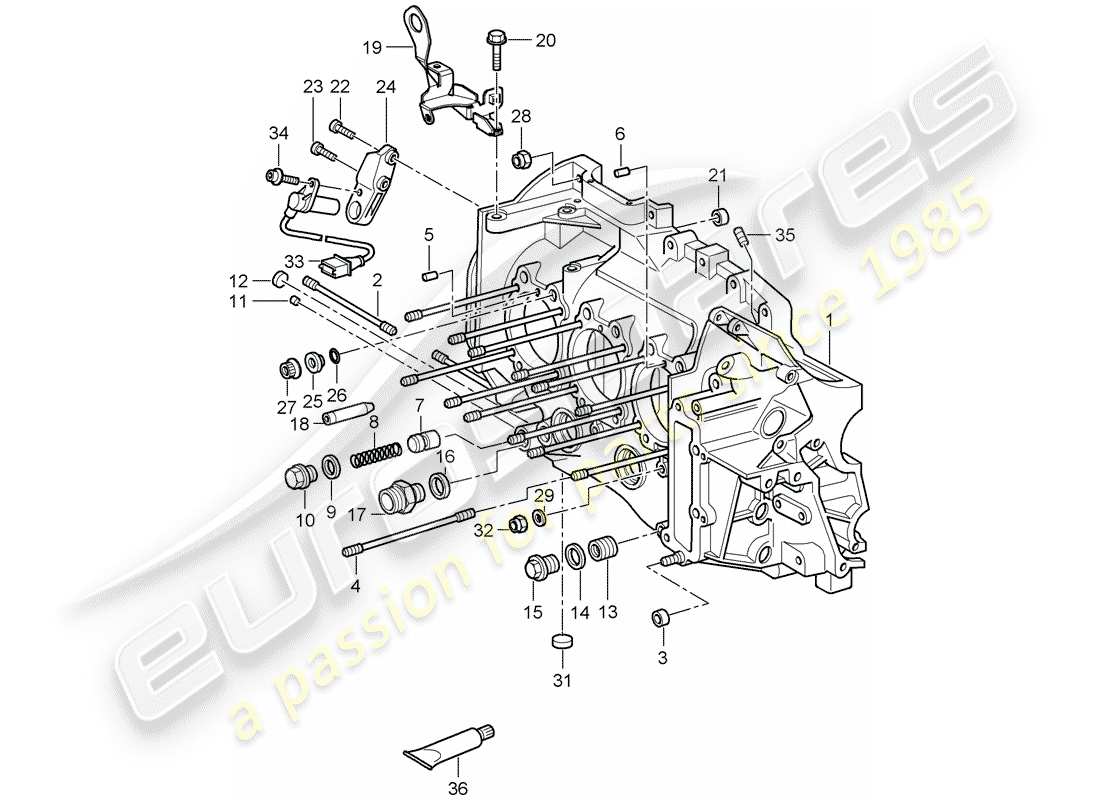

Porsche 2011 (997-2 GT3) CRANKCASE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 1
                MPN: 99710197790
                crankcase
                with studs |
                also use: Xx 00004330533 | Discontinued part (9777)
                crankcase Genuine Porsche Part - New (to order)
                # 1
                MPN: 99710197791
                crankcase
                with studs |
                also use: Xx 00004330533 (9777)
                from £7,978.12
                from £7,978.12
                crankcase Genuine Porsche Part - New (to order)
                # 1
                MPN: 99710197791
                crankcase
                with studs |
                also use: Xx 00004330533 (9774)
                from £7,978.12
                from £7,978.12
                crankcase Genuine Porsche Part - New (to order)
                # 2
                MPN: 90006009601
                STUD
                M 10 X 105
                from £5.20
                from £5.20
                stud - M 10 X 105 Genuine Porsche Part - New (to order)
                # 3
                MPN: 90110114500
                SLEEVE
                from £5.93
                from £5.93
                SLEEVE - FOR - CHAIN CASE Genuine Porsche Part - New (to order)
                # 4
                MPN: 99610117270
                STUD
                from £20.67
                from £20.67
                stud - M 10 X 185,5 Genuine Porsche Part - New (to order)
                # 5
                MPN: 90001205700
                DOWEL PIN
                A 8,0 X 14
                from £0.65
                from £0.65
                DOWEL PIN - A 6,0 X 14 Genuine Porsche Part - New (to order)
                # 6
                MPN: 90001204600
                DOWEL PIN
                A 6,0 X 14
                from £1.10
                from £1.10
                DOWEL PIN - A 8,0 X 14 Genuine Porsche Part - New (to order)
                # 7
                MPN: 91110751200
                PISTON
                from £16.55
                from £16.55
                PISTON Genuine Porsche Part - New (to order)
                # 8
                MPN: 90110753101
                PRESSURE SPRING
                from £5.93
                from £5.93
                PRESSURE SPRING Genuine Porsche Part - New (to order)
                # 9
                MPN: 90012310630
                SEAL RING
                A 18 X 24
                from £1.43
                from £1.43
                This part replaces part number 90012300930
                OIL DRAIN PLUG SEAL RING, A 18 X 24 Genuine Porsche Part - New In stock
                Alternative (#95110093000) Maintenance set - - for - Periodic maintenance - comprising: Genuine Porsche Part - New (to order)
                # 10
                MPN: 99710710590
                THREADED PLUG
                M 18 X 1,5
                from £14.00
                from £14.00
                THREADED PLUG Genuine Porsche Part - New (to order)
                # 11
                MPN: 91110118602
                SEALING CAP
                7,5 X 8,0
                from £3.15
                from £3.15
                SEALING CAP Genuine Porsche Part - New (to order)
                # 12
                MPN: 90003604701
                SEALING CAP
                13,00 X 8,5
                from £3.12
                from £3.12
                SEALING CAP Genuine Porsche Part - New (to order)
                # 13
                MPN: 99950412700
                THREADED INSERT
                20 X 1,5
                from £17.04
                from £17.04
                threaded insert - M 20 X 1,5 X 15 Genuine Porsche Part - New (to order)
                # 15
                MPN: 94410719703
                THREADED PLUG
                from £33.64
                from £33.64
                THREADED PLUG Genuine Porsche Part - New (to order)
                # 16
                MPN: 90012301130
                SEAL RING
                A 22 X 27
                from £2.68
                from £2.68
                seal ring - A 22X29X1,5 AL - for - oil filter Genuine Porsche Part - New In stock
                # 17
                MPN: 99913604401
                FITTING
                18
                from £24.81
                from £24.81
                fitting - 18 Genuine Porsche Part - New (to order)
                # 18
                MPN: 99710101892
                SPRAY JET
                1,2 mm
                from £78.18
                from £78.18
                SPRAY JET Genuine Porsche Part - New (to order)
                # 19
                MPN: 99710125173
                RETAINER
                from £33.78
                from £33.78
                RETAINER Genuine Porsche Part - New (to order)
                # 20
                MPN: 90007404003
                SCREW, HEX. HD.
                M 8 X 50
                from £1.10
                from £1.10
                This part replaces part number 90007404002
                SCREW, HEX. HD Genuine Porsche Part - New (to order)
                # 21
                MPN: 90110119500
                SLEEVE
                from £5.93
                from £5.93
                SLEEVE Genuine Porsche Part - New (to order)
                # 22
                MPN: 90038507201
                TORX SCREW
                M 6 X 25
                Supersession
                Supersession
                Genuine Porsche Part (no longer available to order)
                # 23
                MPN: 90038527001
                HEXAGON HEAD BOLT
                M 6 X 35
                HEXAGON HEAD BOLT - M 6 X 35 Genuine Porsche Part - New (to order)
                # 24
                MPN: 96410118701
                BRACKET
                (PR:480)
                from £11.18
                from £11.18
                bracket - D - MJ 1990>> Genuine Porsche Part - New (to order)
                # 25
                MPN: 96410131371
                WASHER
                Discontinued part
                WASHER Genuine Porsche Part - New (to order)
                # 25
                MPN: 96410131305
                WASHER
                from £16.07
                from £16.07
                WASHER Genuine Porsche Part - New (to order)
                # 26
                MPN: 99970100641
                O-RING
                8 X 2
                from £0.65
                from £0.65
                O-RING Genuine Porsche Part - New (to order)
                # 27
                MPN: 95910117270
                NUT
                M 10 X 1,25 | Discontinued part
                NUT Genuine Porsche Part - New (to order)
                # 27
                MPN: 95910117200
                NUT
                M 10 X 1,25
                from £5.50
                from £5.50
                NUT Genuine Porsche Part - New In stock
                # 28
                MPN: 99908420201
                LOCK NUT
                M 8
                from £2.68
                from £2.68
                LOCK NUT Genuine Porsche Part - New (to order)
                # 29
                MPN: 90002500803
                WASHER
                A 10,5
                from £0.59
                from £0.59
                WASHER Genuine Porsche Part - New (to order)
                # 30
                MPN: 90007607801
                HEX. NUT
                M 10 X 1,25 | No longer use the part here
                from £1.26
                from £1.26
                HEX. NUT - M 10 X 1,25 Genuine Porsche Part - New (to order)
                # 32
                MPN: 90091013001
                LOCK NUT
                M 10
                from £3.57
                from £3.57
                LOCK NUT - M 10 Genuine Porsche Part - New (to order)
                # 33
                MPN: 99660610501
                IMPULSE SENDER
                Discontinued part
                IMPULSE SENDER Genuine Porsche Part - New (to order)
                # 33
                MPN: 99660610502
                IMPULSE SENDER
                from £198.40
                from £198.40
                IMPULSE SENDER Genuine Porsche Part - New (to order)
                # 34
                MPN: 90038726401
                SCREW, CHEESE HD.
                M 6 X 16 | Discontinued part
                SCREW, CHEESE HD. - M 6 X 18 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                # 34
                MPN: N 10546403
                HEXAGONAL SOCKET HEAD
                screw | M 6 X 16
                from £1.04
                from £1.04
                hexagonal socket head - screw - M 6 X 18 Genuine Porsche Part - New In stock
                HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                HEXALOBULAR SOCKETM6X16 Genuine Lamborghini - New (to order)
                # 35
                MPN: 99950106530
                SEALING CAP
                9,2
                from £4.52
                from £4.52
                Sealing cap - 9,2 Genuine Porsche Part - New (to order)
                # 36
                MPN: 00004320458
                SEALANT
                30 GR. | DREI BOND | SILICON 2210 | No longer use the part here
                from £27.08
                from £27.08
                sealant - Silicon - FD 2210 - Container - 30 g Genuine Porsche Part - New (to order)
                # 36
                MPN: 99991557343
                SEALANT
                DOBOSEAL 224N | 75 ML
                SEALANT Genuine Porsche Part - New (to order)
                # 37
                MPN: 99950784240
                BRACKET
                impulse sender | No longer use the part here
                from £1.28
                from £1.28
                bracket - impulse sender Genuine Porsche Part - New (to order)
                # 38
                MPN: 99710101893
                SPRAY JET
                0,8 mm
                from £71.41
                from £71.41
                SPRAY JET Genuine Porsche Part - New (to order)
