porsche 2011 (997-2 gt3) crankshaft parts diagram

102-000 - crankshaft

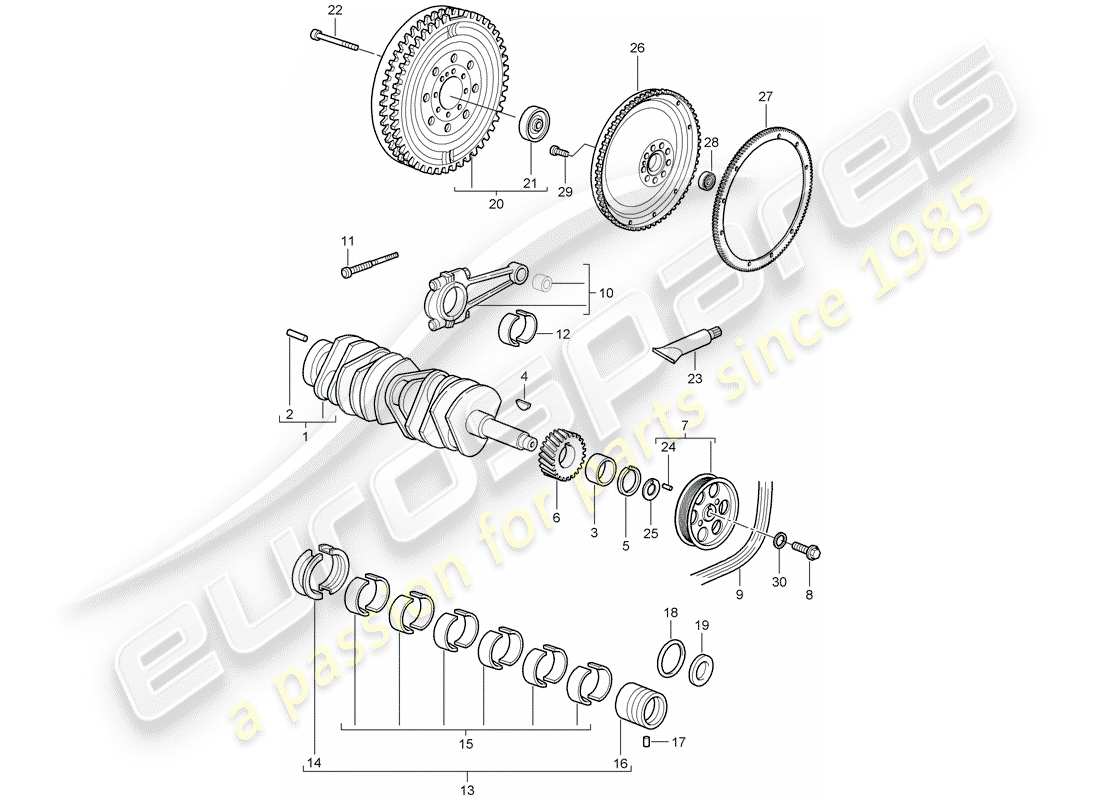

Porsche 2011 (997-2 GT3) CRANKSHAFT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 1
            MPN: 99610202193
            crankshaft
            Discontinued part
            Supersession
            Supersession
            Genuine Porsche Part (no longer available to order)
            # 1
            MPN: 99610202194
            crankshaft
            Discontinued part
            Supersession
            Supersession
            Genuine Porsche Part (no longer available to order)
            # 1
            MPN: 99610202195
            crankshaft
            as required use: 964 102 239 31
            from £1,374.18
            from £1,374.18
            crankshaft Genuine Porsche Part - New (to order)
            # 2
            MPN: 90009503100
            SPRING PIN
            6 X 16
            from £0.56
            from £0.56
            SPRING PIN - 6 X 16 Genuine Porsche Part - New (to order)
            # 3
            MPN: 95910232100
            INTERMEDIATE RING
            from £73.17
            from £73.17
            INTERMEDIATE RING Genuine Porsche Part - New (to order)
            # 4
            MPN: 90110214700
            WOODRUFF KEY
            from £8.77
            from £8.77
            woodruff key - for - Timing gear - D - MJ 1969>> Genuine Porsche Part - New (to order)
            # 5
            MPN: 90110214800
            LOCK RING
            Number 0
            from £5.93
            from £5.93
            lock ring - Number 0 Genuine Porsche Part - New (to order)
            # 5
            MPN: 90110214801
            LOCK RING
            Number 1
            from £5.93
            from £5.93
            lock ring - Number 1 Genuine Porsche Part - New (to order)
            # 5
            MPN: 90110214802
            LOCK RING
            Number 2
            from £5.93
            from £5.93
            lock ring - Number 2 Genuine Porsche Part - New (to order)
            # 5
            MPN: 90110214803
            LOCK RING
            Number 3
            from £5.93
            from £5.93
            lock ring - Number 3 Genuine Porsche Part - New (to order)
            # 6
            -
            SEE ILLUSTRATION:
            103-015
            # 7
            MPN: 99610201793
            PULLEY
            from £382.88
            from £382.88
            pulley - D - MJ 2003>> Genuine Porsche Part - New (to order)
            # 7
            MPN: 99610201795
            PULLEY
            (PR:004)
            from £93.11
            from £93.11
            pulley - D - MJ 2004>> Genuine Porsche Part - New (to order)
            # 8
            MPN: 99921712801
            SCREW, HEX. HD.
            M 14 X 1,5 X 33 | Discontinued part
            screw, hex. hd. - M 14 X 1,5 X 33 - D - MJ 2004>> Genuine Porsche Part - New (to order)
            # 8
            MPN: 99921712802
            SCREW, HEX. HD.
            M 14 X 1,5 X 33
            from £13.12
            from £13.12
            SCREW, HEX. HD Genuine Porsche Part - New (to order)
            # 8
            MPN: 99310255080
            SCREW, HEX. HD.
            M 14 X 1,5 X 40 | Discontinued part (PR:004)
            SCREW, HEX. HD. - M 14 X 1,5 X 40 - D - MJ 2003>>- DISCONTINUED PART Genuine Porsche Part - New (to order)
            # 8
            MPN: 99310255081
            SCREW, HEX. HD.
            M 14 X 1,5 X 40 (PR:004)
            from £42.12
            from £42.12
            screw, hex. hd. - M 14 X 1,5 X 40 - D - MJ 2003>> Genuine Porsche Part - New (to order)
            # 9
            MPN: 99610215192
            v-ribbed belt
            (PR:574)
            from £32.88
            from £32.88
            v-ribbed belt Genuine Porsche Part - New (to order)
            # 9
            MPN: 99610215193
            v-ribbed belt
            (PR:573)
            from £60.64
            from £60.64
            v-ribbed belt Genuine Porsche Part - New (to order)
            # 10
            MPN: 99710302090
            CONNECTING ROD
            No longer use the part here
            from £348.76
            from £348.76
            CONNECTING ROD Genuine Porsche Part - New (to order)
            # 10
            MPN: 99610301288
            CONNECTING ROD
            Discontinued part
            from £376.86
            from £376.86
            CONNECTING ROD Genuine Porsche Part - New (to order)
            # 10
            MPN: 99610301289
            CONNECTING ROD
            from £1,409.91
            from £1,409.91
            CONNECTING ROD Genuine Porsche Part - New (to order)
            # 11
            MPN: 99710317691
            BOLT - CONNECTING ROD
            No longer use the part here
            from £41.45
            from £41.45
            BOLT - CONNECTING ROD Genuine Porsche Part - New (to order)
            # 11
            MPN: 99710317690
            BOLT - CONNECTING ROD
            Discontinued part
            from £41.41
            from £41.41
            BOLT - CONNECTING ROD Genuine Porsche Part - New (to order)
            # 11
            MPN: 99710317692
            BOLT - CONNECTING ROD
            from £54.80
            from £54.80
            BOLT - CONNECTING ROD Genuine Porsche Part - New (to order)
            # 12
            MPN: 99610312194
            CONNECTING ROD BEARING SHELL
            Discontinued part
            from £18.71
            from £18.71
            This part replaces part number 99610312195
            CONNECTING ROD BEARING SHELL - DISCONTINUED PART Genuine Porsche Part - New (to order)
            # 12
            MPN: 99610312195
            CONNECTING ROD BEARING SHELL
            Supersession
            Supersession
            Genuine Porsche Part (no longer available to order)
            # 13
            MPN: 99710190100
            1 SET OF CRANKSHAFT BEARINGS
            from £1,032.22
            from £1,032.22
            1 SET OF CRANKSHAFT BEARINGS Genuine Porsche Part - New (to order)
            # 14
            MPN: 99610123192
            THRUST BEARING
            I
            from £179.31
            from £179.31
            Thrust bearing - I Genuine Porsche Part - New (to order)
            # 15
            MPN: 99610123292
            MAIN BEARING
            II-VII | Discontinued part
            Main bearing - II-VII Genuine Porsche Part - New (to order)
            # 15
            MPN: 99610123295
            MAIN BEARING
            II-VII
            from £55.63
            from £55.63
            MAIN BEARING Genuine Porsche Part - New (to order)
            # 16
            MPN: 96410113801
            BUSHING
            VIII
            from £339.47
            from £339.47
            NOSE BEARING (BUSHING), NO 8 Genuine Porsche Part - New (to order)
            # 17
            MPN: 90001206100
            DOWEL PIN
            5 H 8 X 10
            from £0.65
            from £0.65
            dowel pin - 5H8 X 10 Genuine Porsche Part - New (to order)
            # 18
            MPN: 99970728541
            O-RING
            51 X 4,5
            from £9.09
            from £9.09
            This part replaces part number 99970728540
            O-RING Genuine Porsche Part - New (to order)
            # 19
            MPN: 99911329041
            RADIAL SHAFT SEAL
            30 X 50 X 10 | No longer use the part here
            from £34.54
            from £34.54
            RADIAL SHAFT SEAL - 30 X 50 X 8 Genuine Porsche Part - New (to order)
            # 19
            MPN: 99710226591
            SEAL
            30 X 50 X 10 | See workshop manual | Group 1 | 13-74
            from £116.72
            from £116.72
            seal - 30 X 50 X 10 - See workshop manual - see main group 1 (engine) - 13-74 Genuine Porsche Part - New (to order)
            # 20
            MPN: 99611401250
            DUAL-MASS FLYWHEEL
            from £1,865.40
            from £1,865.40
            This part replaces part number 99611401251
            Dual-mass flywheel - D - MJ 2003>> Genuine Porsche Part - New (to order)
            # 21
            MPN: 99905216900
            BALL BEARING
            30 X 37 X 4
            from £80.33
            from £80.33
            BALL BEARING - 30 X 37 X 4 Genuine Porsche Part - New (to order)
            # 22
            MPN: 99911901701
            SCREW, CHEESE HD.
            M 10 X 1,25 X 62
            from £6.19
            from £6.19
            screw, cheese hd. - M 10 X 1,25 X 62 - for - Dual-mass flywheel - 964 114 012 00/01/02 - 964 114 012 50/51 Genuine Porsche Part - New In stock
            # 23
            MPN: 00004302400
            EXTREME-PRESSURE GREASE
            1 tube | 80 Gr. | for | connecting rod bearing shell
            Supersession
            Supersession
            Genuine Porsche Part (no longer available to order)
            # 24
            MPN: 90001207100
            DOWEL PIN
            A 4 X 8
            from £1.10
            from £1.10
            DOWEL PIN - A 4,0 X 8 Genuine Porsche Part - New (to order)
            # 25
            MPN: 99610220390
            WASHER
            from £23.72
            from £23.72
            Washer - D - MJ 2003>> Genuine Porsche Part - New (to order)
            # 26
            MPN: 96410223931
            FLYWHEEL
            (PR:004)
            from £759.85
            from £759.85
            flywheel - D - MJ 2003>> Genuine Porsche Part - New (to order)
            # 27
            MPN: 96411414331
            TOOTHED RING
            (PR:004)
            from £258.40
            from £258.40
            toothed ring - D - MJ 2003>> Genuine Porsche Part - New (to order)
            # 28
            MPN: 93110211100
            BALL BEARING
            Discontinued part (PR:004)
            Supersession
            Supersession
            Genuine Porsche Part (no longer available to order)
            # 28
            MPN: 93110211102
            BALL BEARING
            (PR:004)
            from £39.03
            from £39.03
            This part replaces part number 93110211100
            ball bearing - D - MJ 2003>> Genuine Porsche Part - New (to order)
            # 29
            MPN: 92810215101
            SCREW, CHEESE HD.
            (PR:004)
            from £2.74
            from £2.74
            screw, cheese hd. - D - MJ 2003>> Genuine Porsche Part - New In stock
            # 30
            MPN: 99902517401
            WASHER
            14,5 X 30 X 5,0
            from £16.00
            from £16.00
            WASHER - 14 x 1,5 x 40 Genuine Porsche Part - New (to order)
