porsche 2012 (997-2) hydraulic clutch parts diagram

702-008 - hydraulic clutch

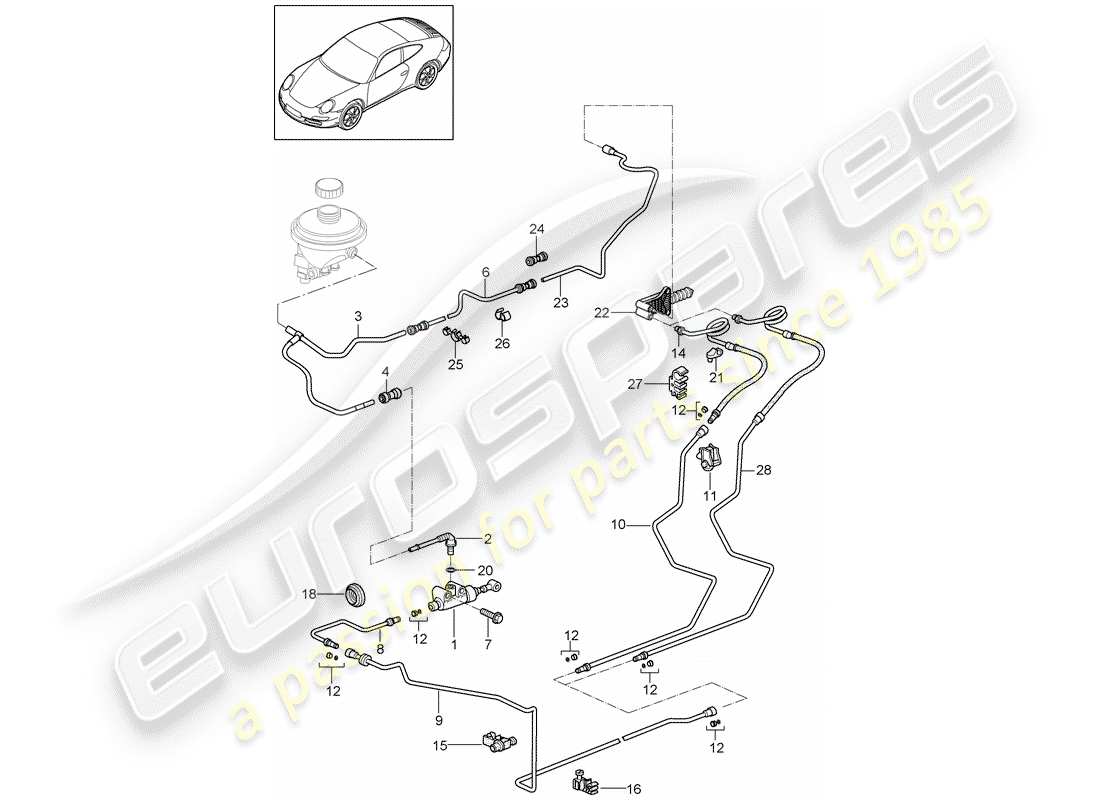

Porsche 2012 (997-2) HYDRAULIC CLUTCH Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Key
                                Price
                                # 1
                                MPN: 99742317101
                                CLUTCH MASTER CYLINDER
                                Supersession
                                Supersession
                                Genuine Porsche Part (no longer available to order)
                                # -
                                -
                                LOCK RING
                                PRESSURE LINE
                                # -
                                -
                                PIN
                                # -
                                -
                                LOCK WASHER
                                for | pin
                                # 2
                                MPN: 99742314700
                                SUPPLY PIPE
                                (PR:098)
                                from £42.99
                                from £42.99
                                SUPPLY PIPE Genuine Porsche Part - New (to order)
                                # 3
                                MPN: 99742319101
                                SUPPLY PIPE
                                (PR:098 CARRERA 2 CARRERA 2-S SPORTCLASSIC BLACKEDITION CHINAEDITION SPEEDSTER)
                                from £104.50
                                from £104.50
                                SUPPLY PIPE Genuine Porsche Part - New (to order)
                                # 3
                                MPN: 99742319001
                                SUPPLY PIPE
                                | |
                                D >> - MJ 2009 (PR:099 CARRERA 2 CARRERA 2-S)
                                SUPPLY PIPE Genuine Porsche Part - New (to order)
                                # 3
                                MPN: 99742319002
                                SUPPLY PIPE
                                | | | | |
                                D - MJ 2010>> (PR:099 CARRERA 2 CARRERA 2-S SPORTCLASSIC BLACKEDITION SPEEDSTER)
                                from £110.95
                                from £110.95
                                SUPPLY PIPE Genuine Porsche Part - New (to order)
                                # 3
                                MPN: 99742319121
                                SUPPLY PIPE
                                (PR:098 CARRERA 4 CARRERA 4-S TARGA TARGA-S CARRERA GTS 4 GTS)
                                from £104.91
                                from £104.91
                                SUPPLY PIPE Genuine Porsche Part - New (to order)
                                # 3
                                MPN: 99742319021
                                SUPPLY PIPE
                                | | | |
                                D >> - MJ 2009 (PR:099 CARRERA 4 CARRERA 4-S TARGA TARGA-S)
                                SUPPLY PIPE Genuine Porsche Part - New (to order)
                                # 3
                                MPN: 99742319022
                                SUPPLY PIPE
                                | | | | | |
                                D - MJ 2010>> (PR:099 CARRERA 4 CARRERA 4-S TARGA TARGA-S CARRERA GTS 4 GTS)
                                from £110.63
                                from £110.63
                                SUPPLY PIPE Genuine Porsche Part - New (to order)
                                # 4
                                MPN: 99923044740
                                ADAPTER
                                from £34.81
                                from £34.81
                                ADAPTER Genuine Porsche Part - New (to order)
                                # 5
                                MPN: 99923044840
                                ADAPTER
                                from £22.83
                                from £22.83
                                ADAPTER Genuine Porsche Part - New (to order)
                                # 6
                                MPN: 99742319202
                                SUPPLY PIPE
                                from £117.70
                                from £117.70
                                SUPPLY PIPE Genuine Porsche Part - New (to order)
                                # 7
                                MPN: 90037821709
                                SCREW, HEX. HD.
                                M 6 X 40
                                from £1.91
                                from £1.91
                                SCREW, HEX. HD Genuine Porsche Part - New In stock
                                # 8
                                MPN: 99742310711
                                HYDRAULIC CLUTCH PIPE
                                D >> - MJ 2009 (PR:098)
                                HYDRAULIC CLUTCH PIPE Genuine Porsche Part - New (to order)
                                # 8
                                MPN: 99742310712
                                HYDRAULIC CLUTCH PIPE
                                D - MJ 2010>> | Discontinued part (PR:098)
                                Supersession
                                Supersession
                                Genuine Porsche Part (no longer available to order)
                                # 8
                                MPN: 99742310713
                                HYDRAULIC CLUTCH PIPE
                                D - MJ 2010>> (PR:098)
                                from £167.42
                                from £167.42
                                This part replaces part number 99742310712
                                HYDRAULIC CLUTCH PIPE Genuine Porsche Part - New (to order)
                                # 8
                                MPN: 99742310811
                                HYDRAULIC CLUTCH PIPE
                                D >> - MJ 2009 (PR:099)
                                HYDRAULIC CLUTCH PIPE Genuine Porsche Part - New (to order)
                                # 8
                                MPN: 99742310812
                                HYDRAULIC CLUTCH PIPE
                                D - MJ 2010>> (PR:099)
                                HYDRAULIC CLUTCH PIPE Genuine Porsche Part - New (to order)
                                # 9
                                MPN: 99742310911
                                HYDRAULIC CLUTCH PIPE
                                Supersession
                                Supersession
                                Genuine Porsche Part (no longer available to order)
                                # 10
                                MPN: 99742311312
                                HYDRAULIC CLUTCH PIPE
                                D >> - MJ 2009
                                from £81.33
                                from £81.33
                                HYDRAULIC CLUTCH PIPE Genuine Porsche Part - New (to order)
                                # 11
                                MPN: 99950749540
                                BRACKET
                                from £2.68
                                from £2.68
                                BRACKET Genuine Porsche Part - New (to order)
                                # 12
                                MPN: 99742391300
                                repair kit
                                comprising: | O-Ring 1x | Rubber seal 1x
                                from £22.26
                                from £22.26
                                repair kit Genuine Porsche Part - New (to order)
                                # 14
                                MPN: 9A142337701
                                HYDRAULIC CLUTCH PIPE
                                D >> - MJ 2009
                                from £112.18
                                from £112.18
                                HYDRAULIC CLUTCH PIPE Genuine Porsche Part - New (to order)
                                # 15
                                MPN: 99635554900
                                BRACKET
                                from £4.37
                                from £4.37
                                BRACKET Genuine Porsche Part - New (to order)
                                # 16
                                MPN: 99635554500
                                BRACKET
                                from £3.13
                                from £3.13
                                BRACKET Genuine Porsche Part - New (to order)
                                # 18
                                MPN: 99970231340
                                GROMMET
                                from £4.31
                                from £4.31
                                GROMMET Genuine Porsche Part - New (to order)
                                # 20
                                MPN: 99970733340
                                SEAL RING
                                6,07 X 1,78N
                                from £4.03
                                from £4.03
                                SEAL RING Genuine Porsche Part - New (to order)
                                # 21
                                MPN: 99950758640
                                CABLE HOLDER
                                from £0.91
                                from £0.91
                                CABLE HOLDER Genuine Porsche Part - New (to order)
                                # 22
                                MPN: 9G111623800
                                CLUTCH SLAVE CYLINDER
                                CLUTCH SLAVE CYLINDER Genuine Porsche Part - New (to order)
                                # -
                                -
                                BREATHER ASSY.
                                # -
                                -
                                SCREW, HEX. HD.
                                M 8 X 30
                                # 23
                                MPN: 99742319302
                                RETURN LINE
                                Supersession
                                Supersession
                                Genuine Porsche Part (no longer available to order)
                                # -
                                -
                                CABLE HOLDER
                                7,0 / 9,0 | return line
                                # -
                                -
                                BRACKET
                                6,5 / 12,0 | return line
                                # 24
                                MPN: 99923044840
                                ADAPTER
                                from £22.83
                                from £22.83
                                ADAPTER Genuine Porsche Part - New (to order)
                                # 25
                                MPN: 99950714040
                                CABLE HOLDER
                                from £3.05
                                from £3.05
                                CABLE HOLDER Genuine Porsche Part - New (to order)
                                # 26
                                MPN: 99950756740
                                CABLE HOLDER
                                from £0.47
                                from £0.47
                                CABLE HOLDER Genuine Porsche Part - New (to order)
                                # 27
                                MPN: 99950726540
                                CABLE HOLDER
                                (PR:098)
                                CABLE HOLDER Genuine Porsche Part - New (to order)
                                # 27
                                MPN: 99950726140
                                CABLE HOLDER
                                D >> - MJ 2009 (PR:099)
                                from £2.79
                                from £2.79
                                CABLE HOLDER Genuine Porsche Part - New (to order)
                                # 27
                                MPN: 99950726141
                                CABLE HOLDER
                                D - MJ 2010>> (PR:099)
                                from £2.79
                                from £2.79
                                CABLE HOLDER Genuine Porsche Part - New (to order)
                                # 28
                                MPN: 99742311313
                                HYDRAULIC CLUTCH PIPE
                                D - MJ 2010>> | Discontinued part (PR:-756,)
                                Supersession
                                Supersession
                                Genuine Porsche Part (no longer available to order)
                                # 28
                                MPN: 99742311314
                                HYDRAULIC CLUTCH PIPE
                                D - MJ 2010>> | Discontinued part (PR:-756,)
                                HYDRAULIC CLUTCH PIPE Genuine Porsche Part - New (to order)
                                # 28
                                MPN: 99742311315
                                HYDRAULIC CLUTCH PIPE
                                D - MJ 2010>> | Discontinued part (PR:-756,)
                                HYDRAULIC CLUTCH PIPE Genuine Porsche Part - New (to order)
                                # 28
                                MPN: 99742311318
                                HYDRAULIC CLUTCH PIPE
                                D - MJ 2010>> (PR:-756,)
                                from £137.76
                                from £137.76
                                This part replaces part number 99742311313
                                HYDRAULIC CLUTCH PIPE Genuine Porsche Part - New (to order)
                                # 28
                                MPN: 99742311315
                                HYDRAULIC CLUTCH PIPE
                                Discontinued part (PR:756)
                                HYDRAULIC CLUTCH PIPE Genuine Porsche Part - New (to order)
                                # 28
                                MPN: 99742311318
                                HYDRAULIC CLUTCH PIPE
                                (PR:756)
                                from £137.76
                                from £137.76
                                This part replaces part number 99742311313
                                HYDRAULIC CLUTCH PIPE Genuine Porsche Part - New (to order)
                                # 28
                                MPN: 99742311315
                                HYDRAULIC CLUTCH PIPE
                                | Discontinued part (CARRERA GTS PR:011)
                                HYDRAULIC CLUTCH PIPE Genuine Porsche Part - New (to order)
                                # 28
                                MPN: 99742311318
                                HYDRAULIC CLUTCH PIPE
                                (CARRERA GTS PR:011)
                                from £137.76
                                from £137.76
                                This part replaces part number 99742311313
                                HYDRAULIC CLUTCH PIPE Genuine Porsche Part - New (to order)
                                # 28
                                MPN: 99742311315
                                HYDRAULIC CLUTCH PIPE
                                Discontinued part (4 GTS)
                                HYDRAULIC CLUTCH PIPE Genuine Porsche Part - New (to order)
                                # 28
                                MPN: 99742311318
                                HYDRAULIC CLUTCH PIPE
                                (4 GTS PR:019)
                                from £137.76
                                from £137.76
                                This part replaces part number 99742311313
                                HYDRAULIC CLUTCH PIPE Genuine Porsche Part - New (to order)
